Product Overview

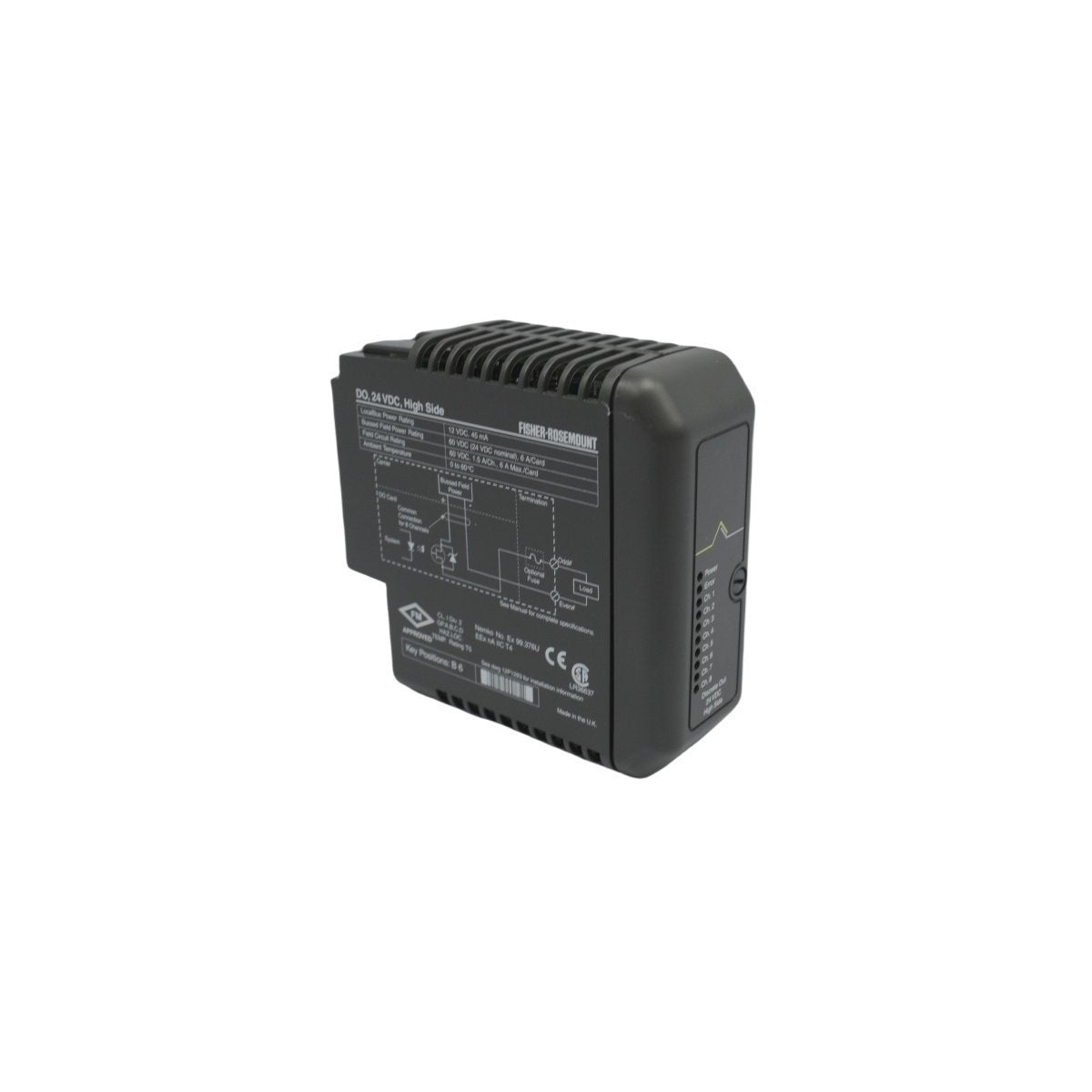

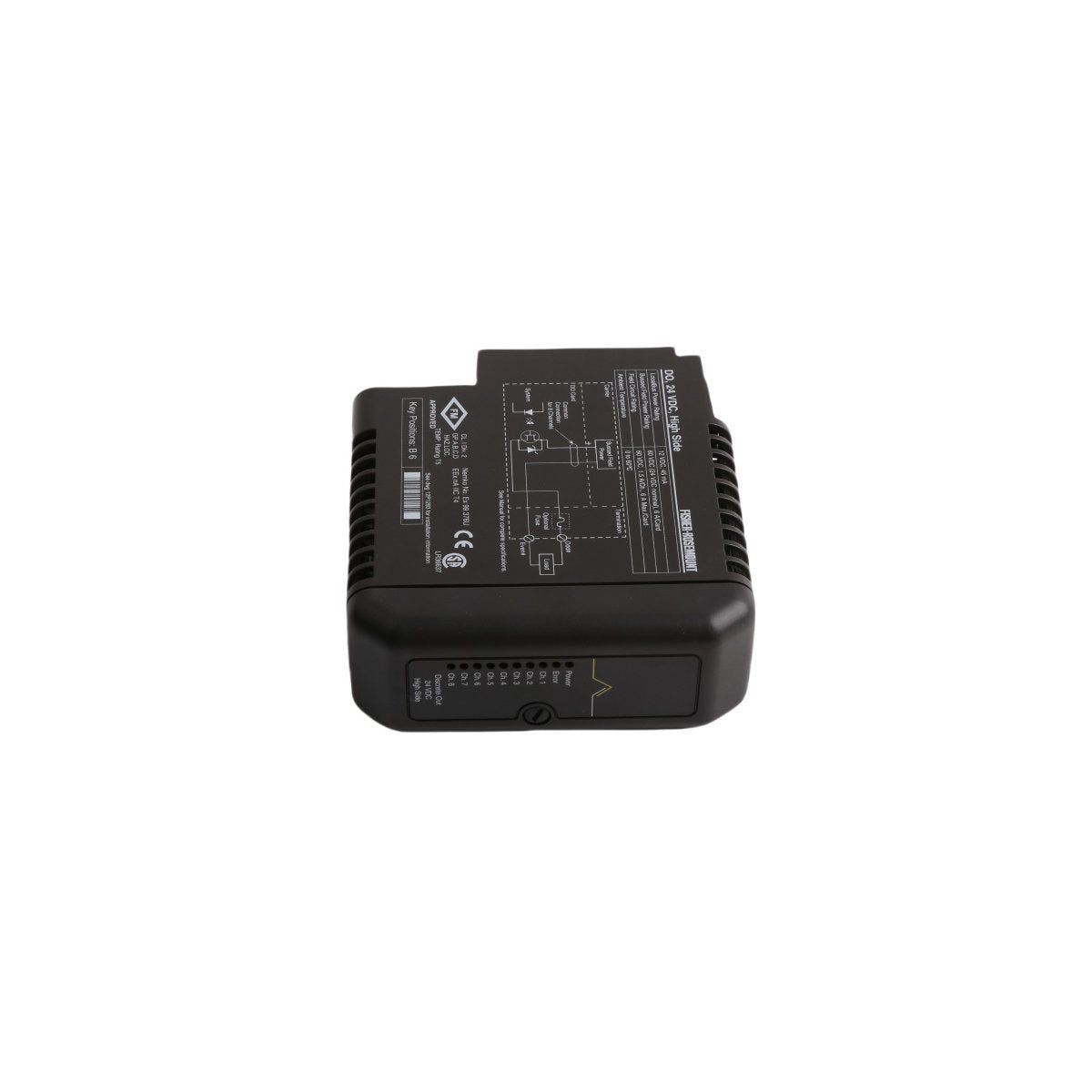

The Emerson KJ3001X1-BJ1, designated by the engineering part number 12P0555X152, is a high-integrity Digital Output Module specifically developed for the DeltaV SIS™ (Safety Instrumented System). This module is a core component of Emerson’s process safety architecture, designed to execute critical safety logic by driving field-side final control elements. Unlike standard DCS modules, the KJ3001X1-BJ1 is built with enhanced diagnostic capabilities and fault-tolerant circuitry to meet stringent Safety Integrity Level (SIL) requirements. It provides the essential interface for triggering emergency actions, ensuring that industrial processes remain within safe operating envelopes even during unexpected system transients.

Hardware Configuration and Technical Data

• Model Identification KJ3001X1-BJ1

• Engineering Order Number 12P0555X152

• System Series DeltaV SIS™ Process Safety System

• Module Role Safety-Related Digital Output

• I/O Capability Multiple discrete channels for safety-critical switching

• Diagnostic Coverage Integrated self-testing for hardware health and line monitoring

• Physical Mass 0.2 kg

• External Dimensions 4.1 cm x 12.5 cm x 10.5 cm

• Communication Architecture Fully compatible with DeltaV M-series and S-series controllers

• Manufacturing Origin USA

• Tariff Classification HS 8537101190

Safety-Critical Industrial Implementations

The KJ3001X1-BJ1 12P0555X152 is primarily deployed in "Logic Solver" roles within Safety Instrumented Functions (SIF):

Emergency Shutdown Systems (ESD)Serving as the primary trigger for final control elements like shutdown valves (SDVs) in oil and gas refineries to isolate fuel sources during a hazard event.

Fire and Gas (F&G) ProtectionActuating fire suppression systems, sirens, and visual beacons upon detection of hazardous gas leaks or flame signatures in chemical storage facilities.

Burner Management Systems (BMS)Safely managing the fuel-air mixture and ignition sequences in industrial boilers and furnaces by providing reliable binary control of fuel manifold valves.

High Integrity Pressure Protection Systems (HIPPS)Managing rapid-acting valves to protect downstream piping and vessels from overpressure scenarios in upstream oil production.

Legacy System Life-ExtensionWhile officially discontinued as of late 2018, this "Brand New" stock is vital for maintenance engineers looking to repair or expand existing DeltaV SIS installations without undergoing a full system migration.
