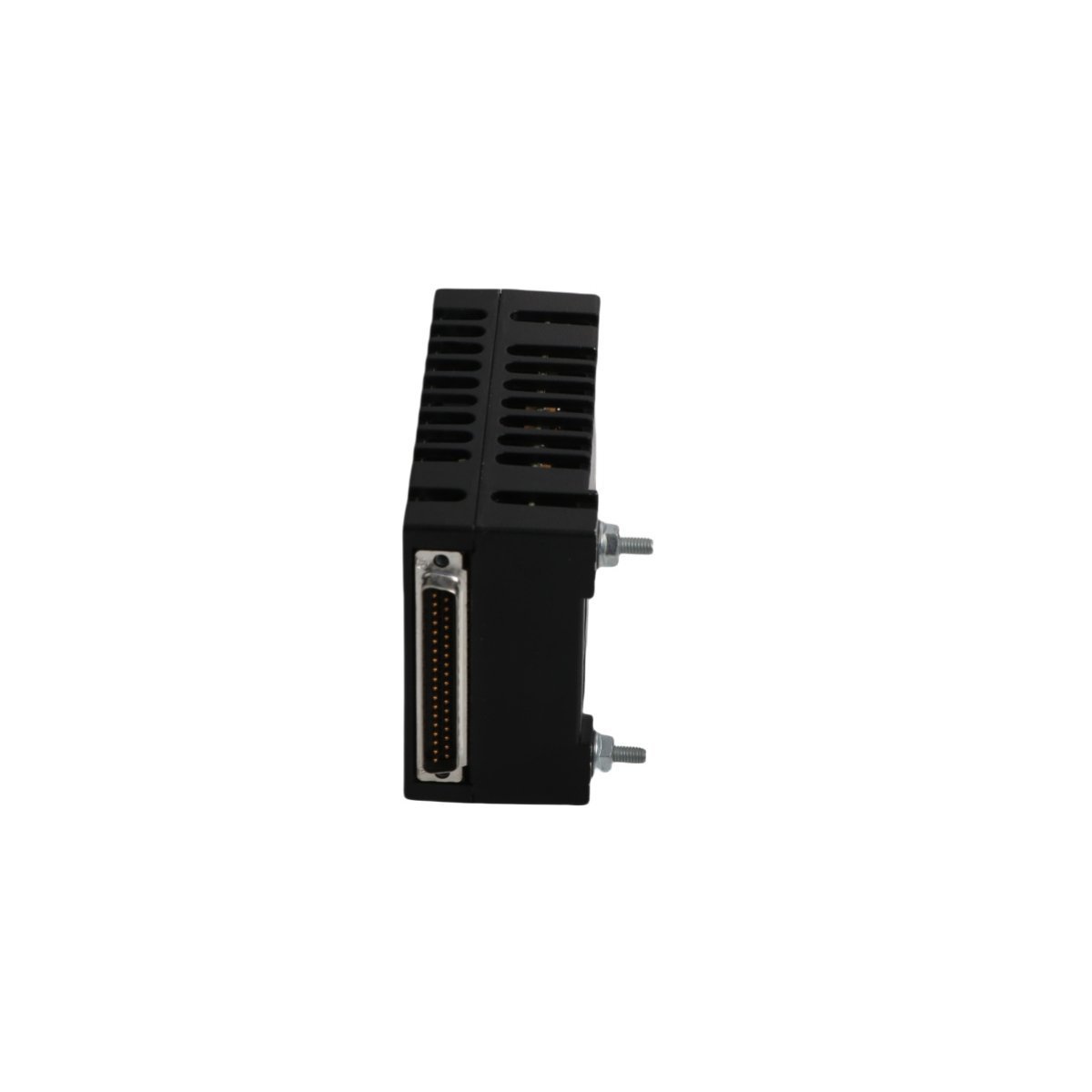

IS220PRTDH1A General Electric Mark VIe RTD Input Module Resistance Temperature Device
-
Dimensions: 13 x 8.3 x 6 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The IS220PRTDH1A is a high-performance Resistance Temperature Device (RTD) input module engineered for the General Electric Mark VIe Speedtronic control system. This specialized I/O pack serves as an intelligent interface between field-mounted temperature sensors and the IONet control network. Designed to handle eight independent RTD channels, the module digitizes analog thermal data with high precision, providing the critical temperature feedback necessary for turbine protection and process optimization. The IS220PRTDH1A is built to operate in demanding industrial environments, featuring a rugged, compact housing and a conformal-coated internal PCB that resists the effects of moisture, dust, and airborne contaminants.
Hardware Architecture and Functional Capabilities
The IS220PRTDH1A incorporates advanced electronics to ensure signal integrity and system availability:
-
Multi-Channel Capacity: Supports 8 independent RTD inputs per module, with the flexibility to scale for Simplex, Dual, or Triple Modular Redundant (TMR) architectures.
-
Dual-Port Connectivity: Equipped with two 10/100 Mbps RJ45 Ethernet ports, facilitating redundant communication paths to the Mark VIe controllers.
-
High-Speed Processing: Features an onboard processor that executes self-diagnostics, manages flash memory firmware, and handles infrared-based local troubleshooting.
-
Electrical Protection: Integrated soft-start circuitry prevents damaging inrush currents during power-up, while galvanic isolation protects the logic core from field transients.
-
Interface Standards: Utilizes a standard DC-37 pin connector for seamless pairing with TRTD and SRTD series terminal boards.
-
Status Monitoring: Front-panel LED indicators provide real-time visual feedback for Power, Logic Attention, and Ethernet link status.
-
Ruggedized Build: Designed with a compact 13 x 8.3 x 6 cm footprint and weighing 0.38 kg, it allows for high-density mounting in turbine control cabinets.
Specialized Deployment and Usage Scenarios
This RTD module is a cornerstone for thermal management in heavy-duty rotating machinery and power plant automation:
| Application Field | Operational Role |
| Gas Turbine Monitoring | Measuring exhaust gas temperatures (EGT) and bearing metal temperatures for trip protection. |
| Steam Turbine Control | Monitoring casing temperatures and steam chest thermal gradients to manage stress limits. |
| Hazardous Locations | UL and CE certified for safe operation in Class I, Division 2 environments when used with compatible boards. |
| Generator Excitation | Tracking stator winding and cooling air temperatures within the EX2100 excitation framework. |
| Industrial Co-generation | Providing high-accuracy temperature feedback for heat recovery steam generator (HRSG) control loops. |
