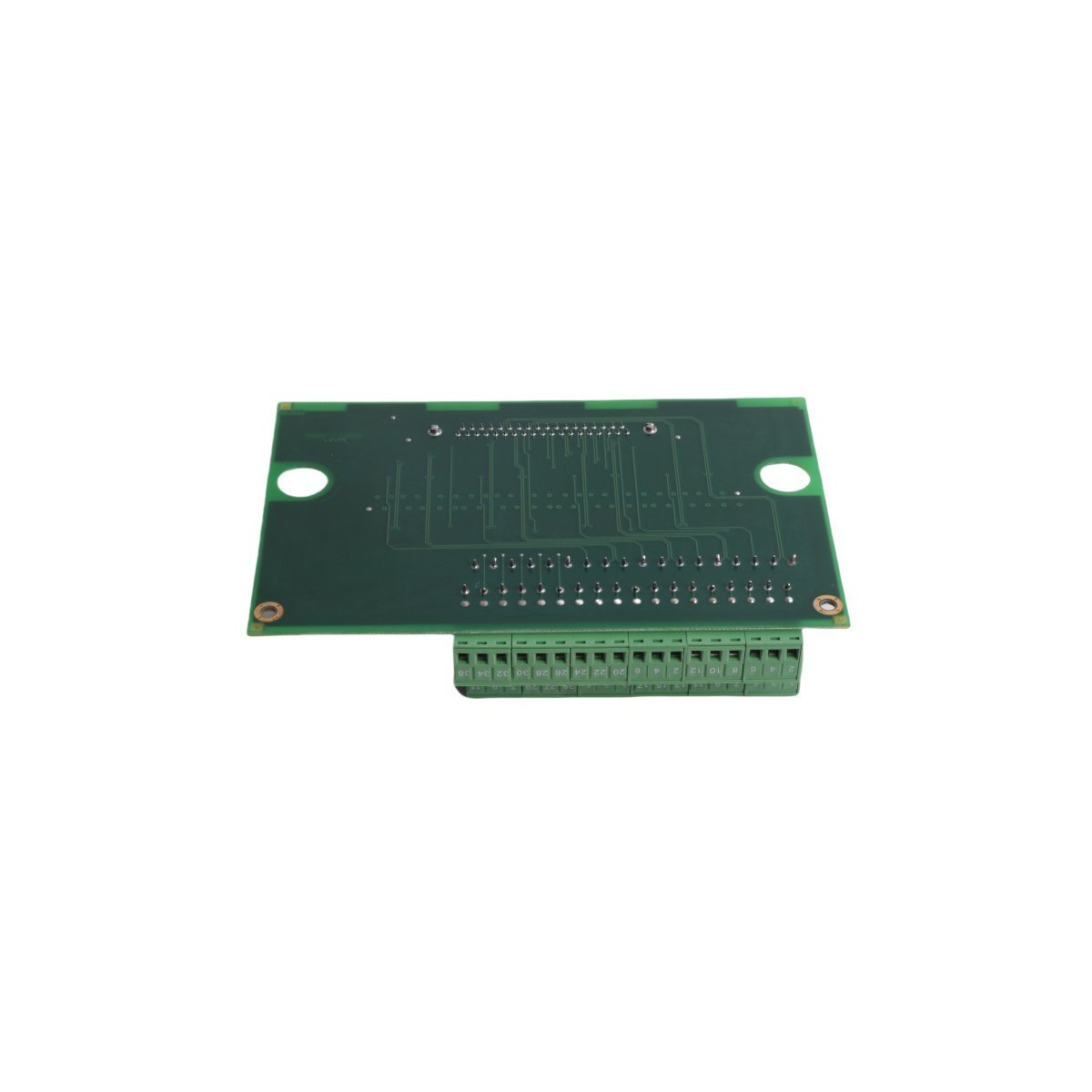

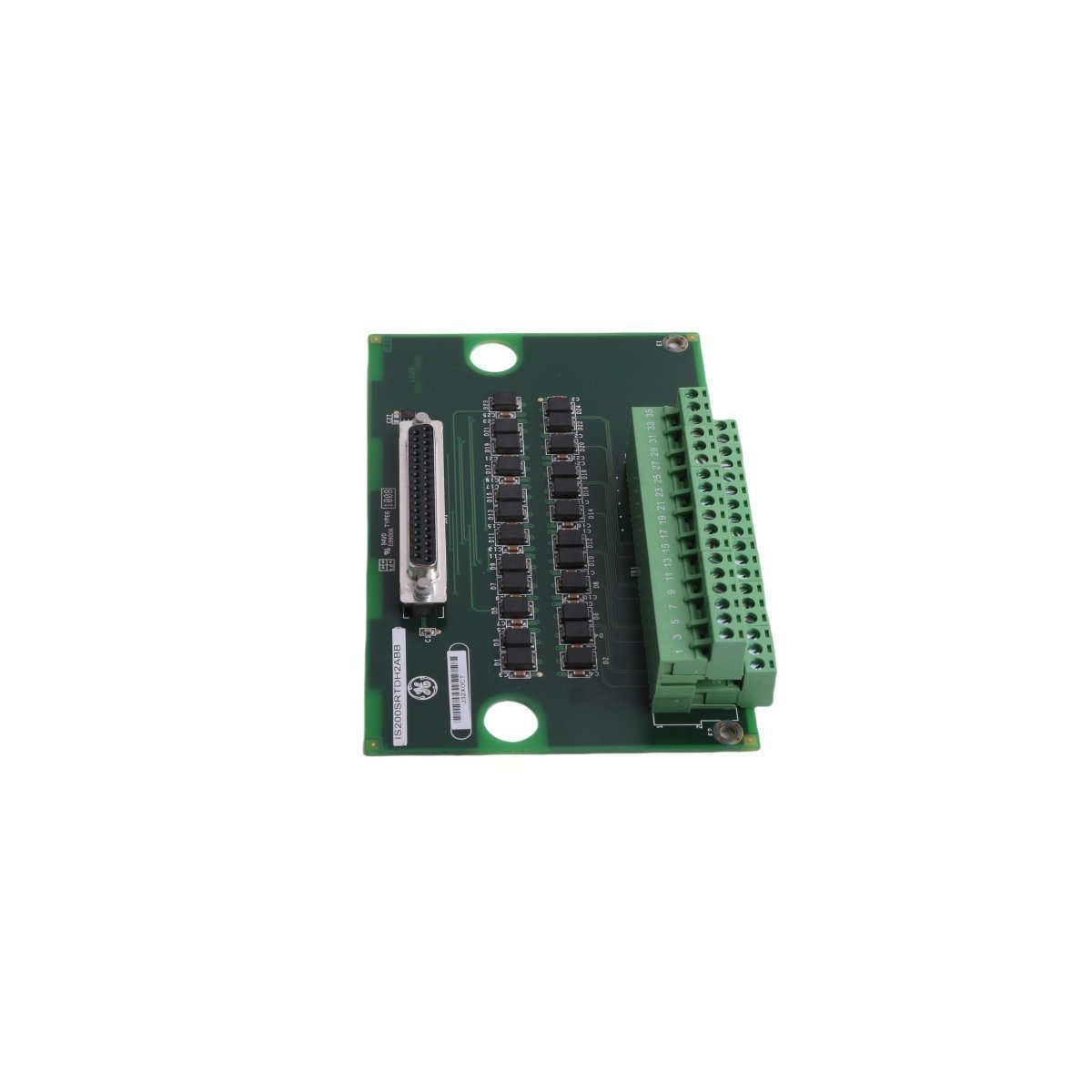

IS200SRTDH2A General Electric IS200SRTDH2ACB DRL RTD Terminal Board
-
Dimensions: 15.8 × 10.5 × 3.5 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The GE IS200SRTDH2ACB is an RTD termination board used to land and route resistance temperature detector (RTD) wiring into a turbine/excitation control cabinet. It functions as a dedicated field-wiring interface, providing organized terminal points and basic signal conditioning components that help maintain stable temperature measurement paths from plant sensors to the control system I/O interface.
Although sometimes described with mixed platform references, this part should be treated as an RTD termination/terminal board. Correct application must be confirmed by the cabinet wiring drawings and the mating connector/harness requirements associated with IS200SRTDH2ACB.
Hardware Parameters
| Item | Specification |
|---|---|
| Model / Part number | IS200SRTDH2ACB |
| Module category | RTD Termination Board |
| Marking / type (listing) | DRL TERMBD RTD |
| Terminal capacity (stated) | 36 screw terminals (2 terminal blocks × 18 points) |
| Board interface (stated) | 1 top-edge multi-pin connector for cabinet harnessing |
| Typical signal type | RTD sensor inputs (commonly 3-wire RTD, system dependent) |
| On-board components | Diodes and capacitors for protection/filtering (as described) |
| Mounting style | Cabinet / terminal board mounting (DIN-rail use depends on panel hardware) |
| Condition | Brand New |
| Lead time | In Stock |
| Weight | 0.16 kg |
| Dimensions (listing) | 15.8 × 10.5 × 3.5 cm |
| Country of origin (listing) | USA |
| HS code (listing) | 8537101190 |
| System category | DCS / excitation and turbine auxiliary control |
-
Service and wiring notes
-
Label field conductors before removal to prevent channel mix-ups during re-termination
-
Use correct torque for terminal screws and verify shield/ground practice per site standards
-
After replacement, validate RTD readings for plausibility and check for open/short indications at the controller
Industrial Applications
-
RTD wiring termination for turbine auxiliary temperature points in control cabinets
-
Excitation and protection panels where RTD inputs are used for monitoring and alarms
-
Replacement spare for installed systems requiring the original 36-point termination layout
-
Maintenance work addressing intermittent temperature readings caused by aged terminals or damaged board interfaces
