Product Overview

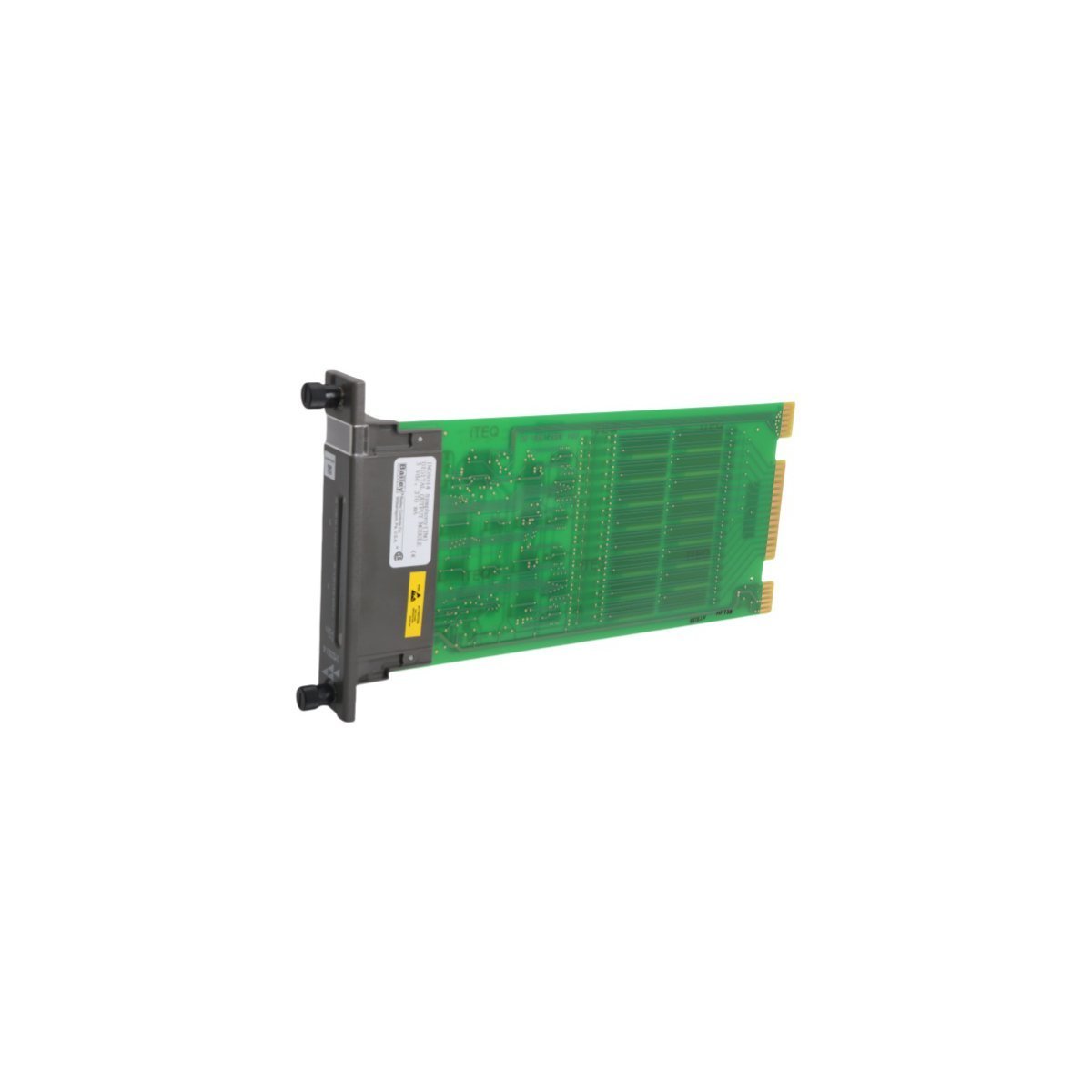

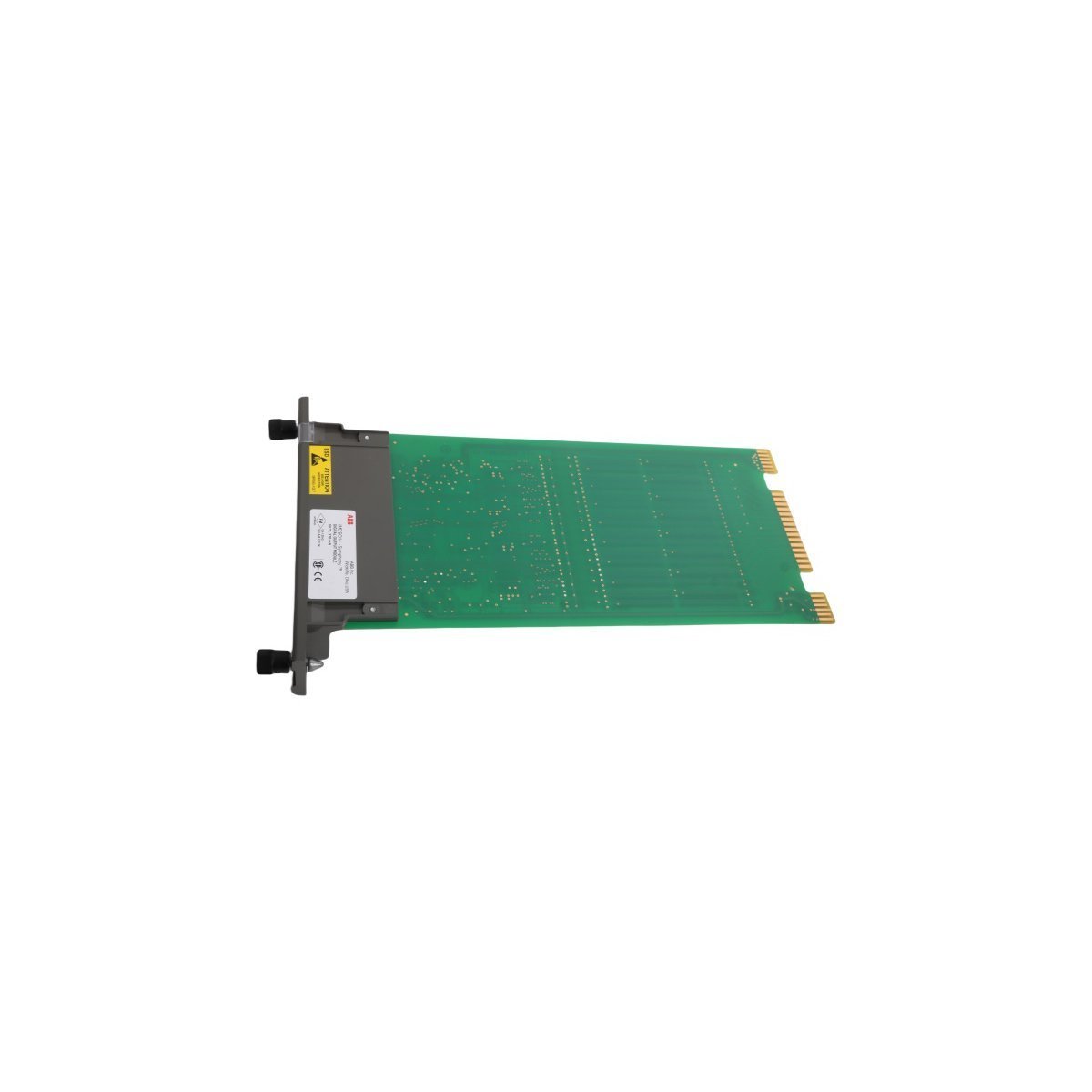

The ABB IMDSO14 is a high-reliability Digital Slave Output (DSO) module belonging to the Harmony Rack (HR) Series I/O family, widely utilized within Bailey Infi 90 and Symphony Plus Distributed Control Systems (DCS). This module serves as a critical interface for executing discrete control commands from the system's controller to field-level actuators, motor starters, and indicating lights. Utilizing a Frequency Shift Keying (FSK) communication protocol for intra-rack data exchange, the IMDSO14 provides an isolated and secure pathway for digital logic. Its architecture is specifically designed to manage high-density switching tasks while maintaining the rigorous signal timing required for complex industrial automation sequences.

Core Hardware Architecture and Performance Data

• Module Designation: IMDSO14

• Module Function: Digital Slave Output (DSO)

• Control Infrastructure: Harmony Rack / Infi 90 Series

• Signal Protocol: FSK (Frequency Shift Keying) for secure rack communication

• Dimensions: 3.7cm x 31.7cm x 17.8cm

• Unit Mass: 0.2kg

• Operational State: Active

• Mounting Environment: DCS I/O Rack Assembly

• Manufacturing Origin: Sweden

• Global Tariff Code: 8537101190

Strategic Industrial Implementations

The IMDSO14 is an essential component for sectors requiring deterministic discrete control and high-integrity signal isolation.

• Turbine Control Systems: Managing the trip logic and solenoid actuation for steam and gas turbines where reliability is non-negotiable.

• Power Grid Switchgear: Interfacing with circuit breakers and protective relays to execute remote switching operations within substations.

• Chemical Batch Processing: Coordinating the opening and closing of discrete valves and pump starters to maintain precise process timing.

• Emergency Shutdown (ESD) Nodes: Acting as a reliable output stage for safety-instrumented functions that require rapid, fail-safe digital responses.

Operational Integrity and System Resiliency

Engineered for continuous duty in electrically noisy and thermally varying industrial environments, the IMDSO14 features localized galvanic isolation to protect the central DCS bus from field-side transients. The module is built with a lightweight, slim-profile form factor that facilitates high-density mounting, allowing engineers to maximize I/O capacity within standard cabinet footprints. It supports extensive onboard diagnostics, enabling the system to detect open circuits or short-circuit conditions at the output stage, which significantly reduces the mean time to repair (MTTR). By integrating the IMDSO14, facilities ensure a stable and scalable digital control layer that remains resilient against the physical and electromagnetic stresses typical of heavy industry.
