Product Overview

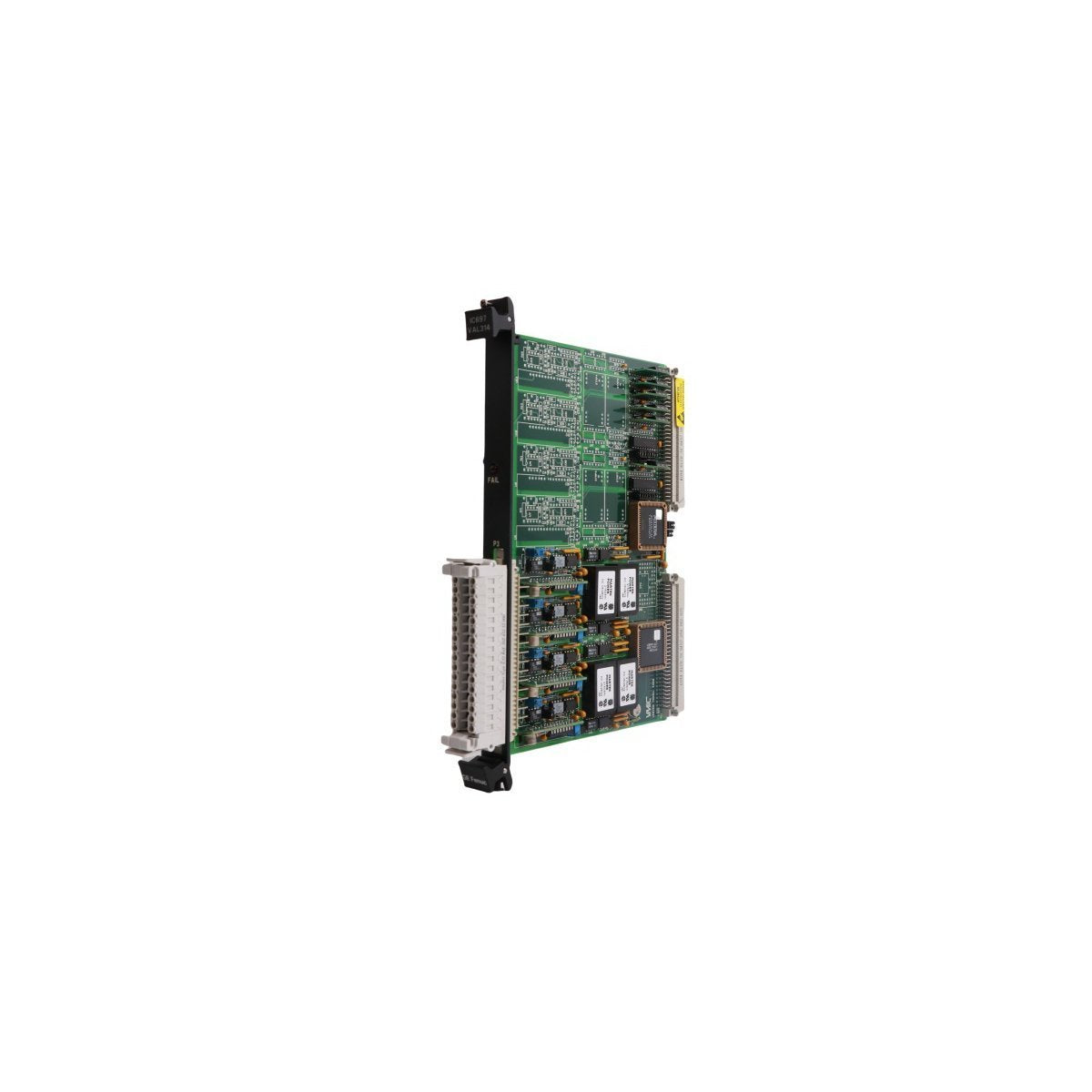

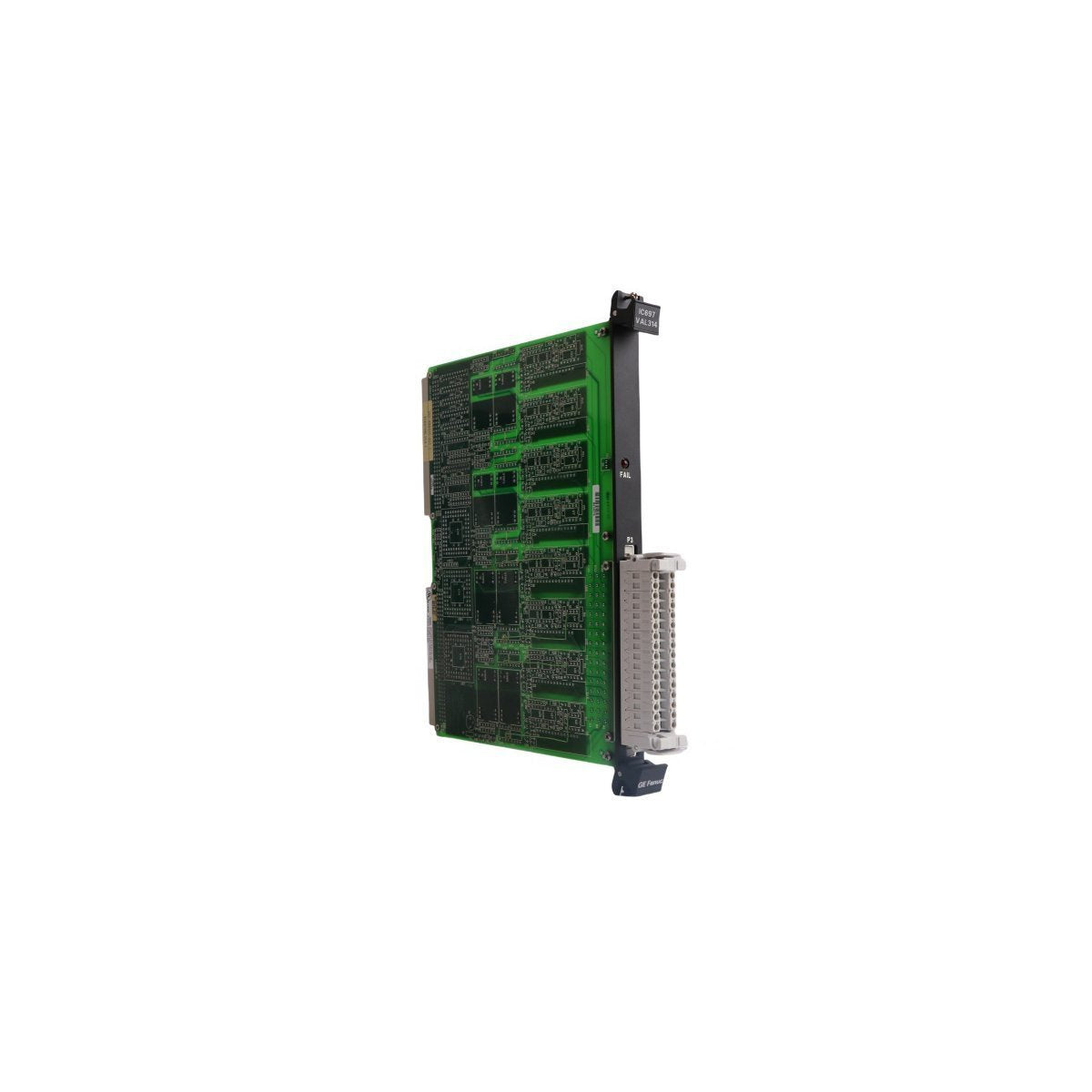

The GE Fanuc IC697VAL314 Converter Board is an analog-to-digital signal conversion module designed for the Series 90-70 PLC platform. It processes low-level analog voltage signals and converts them into digital values that can be used by the PLC for monitoring, measurement, and control logic execution.

This board operates autonomously once powered, continuously scanning its input channels without requiring additional application software. Its design supports accurate signal acquisition in systems where analog measurements must be reliably integrated into PLC-based control architectures.

Electrical and Signal Characteristics

• Model Number: IC697VAL314

• Product Type: Analog Converter Board

• Brand: General Electric (GE Fanuc)

• Product Family: Series 90-70

• Conversion Method: Analog-to-digital

• Resolution: 12-bit ADC

• Supported Input Range: ±50 mV to ±10 V DC

• Input Protection: Built-in overvoltage protection

• Isolation Rating: 1000 V DC

• Input Filtering: Factory-set 40 Hz filters

• Status Indication: Front-panel LED for operational state

• Bus Interface: VMEbus, 128-byte address space

• Configuration: Jumper-selectable address boundaries

• Condition: Brand new

• Weight: Approx. 0.42 kg

• Dimensions: Approx. 2.1 × 20.2 × 26.1 cm

• System Compatibility: PLC systems

• Product Status: Active

• Country of Origin: USA

• HS Code: 8537101190

Application Scenarios

The IC697VAL314 is used in PLC systems that require precise conversion of analog sensor signals into digital data. Typical applications include process measurement, laboratory instrumentation, test systems, and industrial automation environments where voltage-based signals must be captured accurately.

It is commonly installed in Series 90-70 PLC racks for monitoring low-level analog inputs such as transducers, reference signals, and measurement circuits within control and data acquisition systems.
