Product Overview

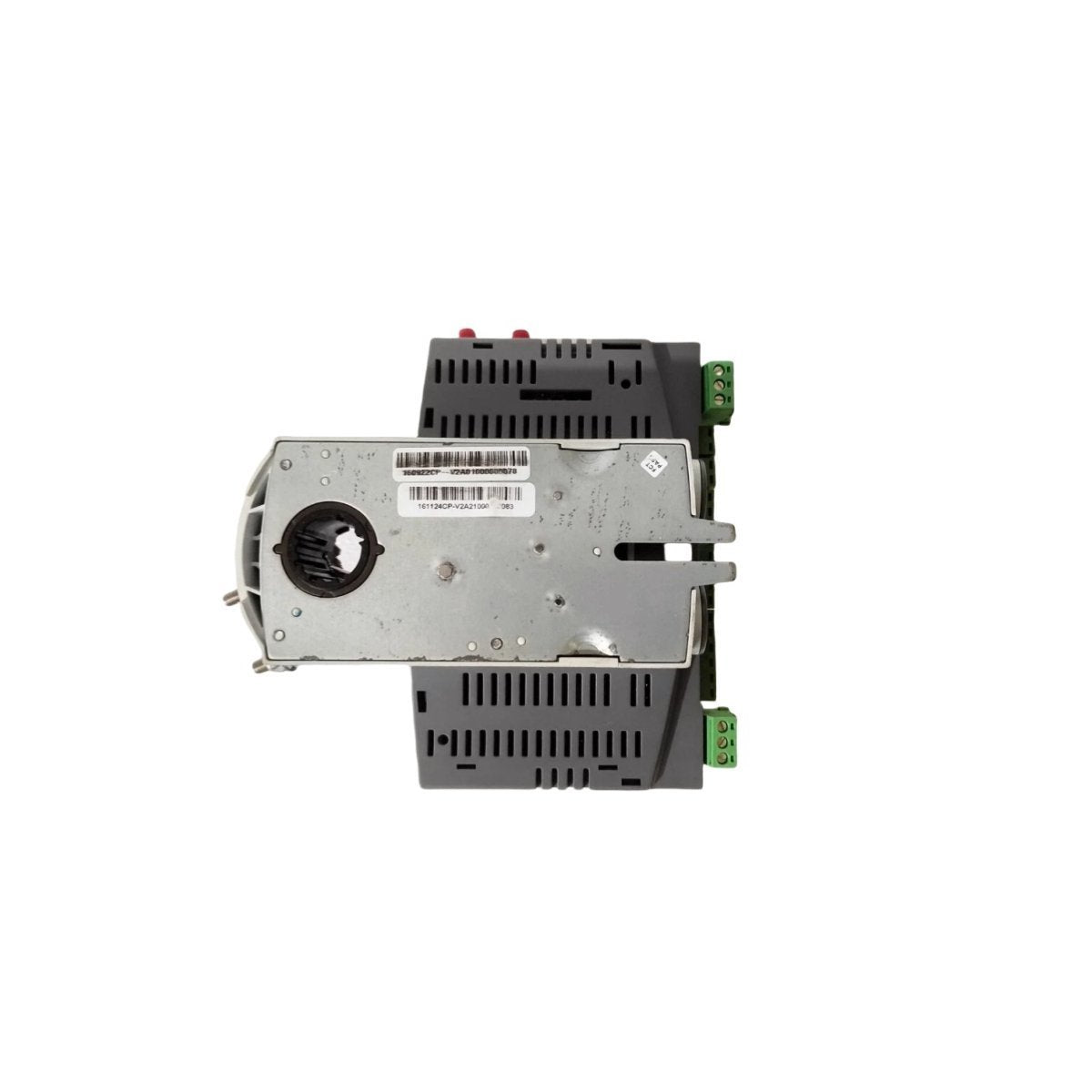

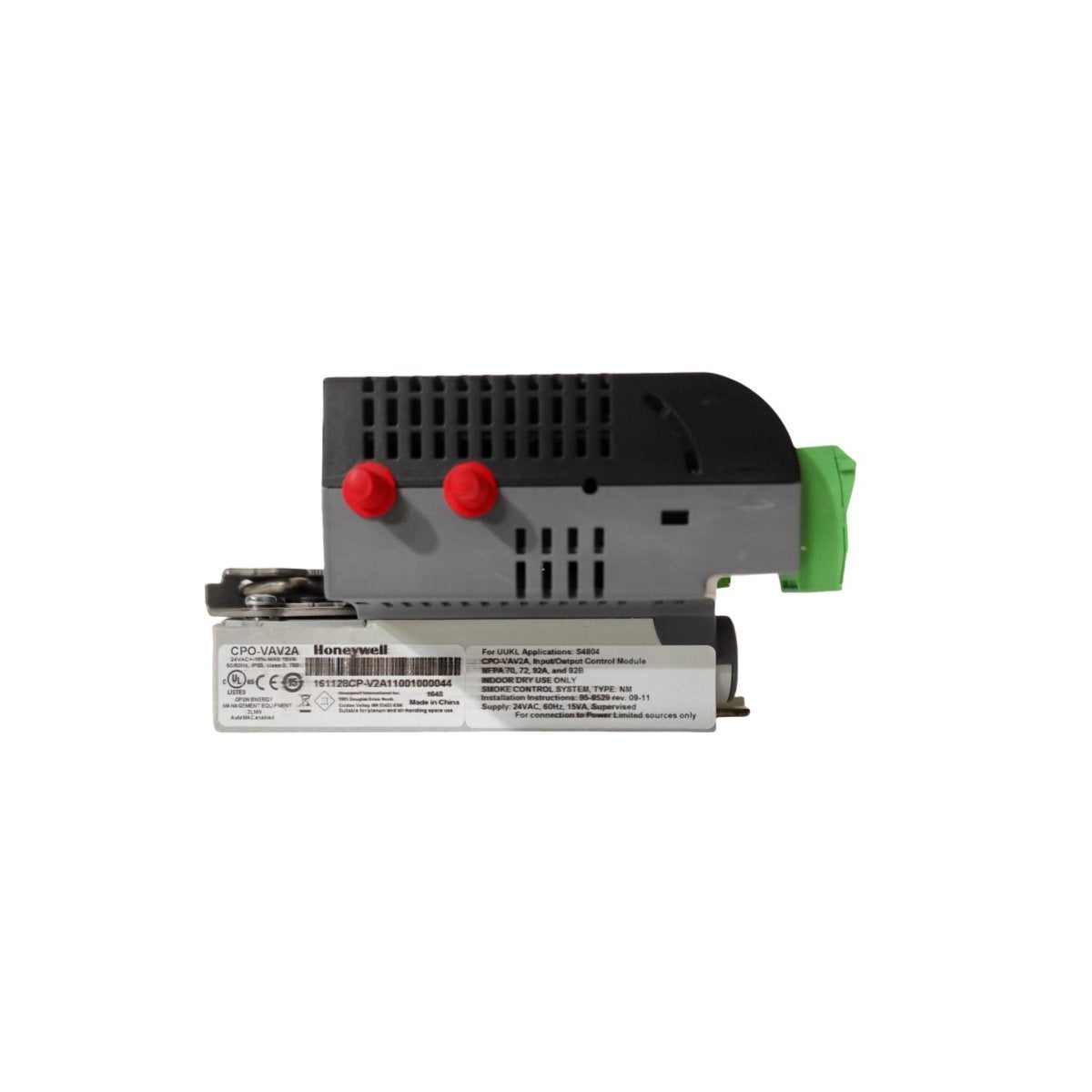

The Honeywell CPO-VAV2A stands as a high-precision solution for Variable Air Volume (VAV) terminal unit control within the ComfortPoint Open ecosystem. This integrated controller and actuator assembly orchestrates complex airflow sequences with deterministic accuracy, ensuring optimal thermal comfort and energy efficiency in demanding commercial and industrial environments. By utilizing native BACnet MS/TP communication, the CPO-VAV2A provides seamless data transparency to the building's head-end workstation, allowing for real-time monitoring of damper positions and duct pressure. Its robust mechanical drive handles high-torque requirements without compromising positioning resolution, making it a critical asset for engineers focused on maintaining strict indoor air quality (IAQ) and pressure regimes in laboratory or cleanroom settings.

Integrated Drive and Communication Logic

The CPO-VAV2A features an integrated brushless DC motor that delivers consistent torque across its full 95-degree stroke. A high-resolution pressure sensor (0 to 1 in. w.c.) resides within the housing, allowing the onboard processor to execute pressure-independent control logic without external transducers. The controller utilizes a 32-bit ARM processor to manage its built-in I/O, which includes universal inputs for temperature sensors and digital outputs for reheat stage control. Its BACnet MS/TP implementation supports high baud rates up to 76.8 Kbps, facilitating rapid peer-to-peer data sharing and ensuring that localized control responses remain synchronized with the broader plant strategy.

Hardware and Performance Specifications

On-Site Mounting and Configuration

Technicians must mount the CPO-VAV2A directly onto the damper shaft using the integrated universal shaft clamp, ensuring the anti-rotation strap is secured to the VAV box frame. Maintain a straight duct run upstream of the flow pickup to prevent turbulence-induced signal noise in the differential pressure sensor. When wiring the BACnet trunk, utilize shielded twisted-pair (STP) cabling and strictly observe the polarity of the (A+) and (B-) terminals to avoid network collisions. For software commissioning, ensure the Honeywell ComfortPoint Open Studio tool is utilized to calibrate the damper stroke and define the minimum/maximum CFM setpoints within the non-volatile memory.

Industrial Reliability and Integration

The CPO-VAV2A excels in facility-wide integration, offering a "Plug-and-Play" experience when connected to Honeywell Experion PKS or Niagara-based supervisors. Its housing carries an IP30 rating, protecting internal logic from dust and mechanical contact typical of ceiling plenum environments. The onboard firmware includes sophisticated hunting-suppression algorithms that prolong actuator life by preventing excessive repositioning during minor pressure fluctuations. This durability ensures a low total cost of ownership (TCO) while providing the high-fidelity control necessary for LEED-certified green building projects and mission-critical laboratory ventilation systems.

Logistics and Supply Chain Data

Order Processing: Shipments are initiated within 2-7 days when payment finish.

Global Express: We utilize DHL, FEDEX, and UPS for high-speed international transit.

Pack Standards: Every unit is secured in anti-static industrial packaging and heavy-duty corrugated boxes to ensure mechanical calibration remains intact.

Condition Status: We supply only New, Sealed, and Original Pack inventory to guarantee factory-spec performance upon arrival at your project site.

Engineering Knowledge Base

Q1: Can the CPO-VAV2A operate in a standalone mode?

A1: Yes. While designed for network integration, the CPO-VAV2A retains its programmed logic and setpoints in non-volatile memory, allowing it to maintain pressure-independent airflow control even if the BACnet MS/TP communication is lost.

Q2: What type of temperature sensors are compatible with the universal inputs?

A2: The unit natively supports 10K Ohm NTC Type II and Type III thermistors, which are the industry standard for wall-mounted space sensors and discharge air probes.

Q3: How is the damper position sensed by the controller?

A3: The CPO-VAV2A employs a high-precision internal potentiometer or hall-effect sensor coupled to the actuator gears to provide continuous feedback of the actual damper position (0-100%).

Q4: Is the pressure sensor resistant to dust buildup?

A4: The integrated sensor uses a flow-through micro-bridge design that is highly resistant to contamination; however, we always recommend utilizing high-quality air filtration in the supply air stream to maintain long-term calibration accuracy.
