Product Overview

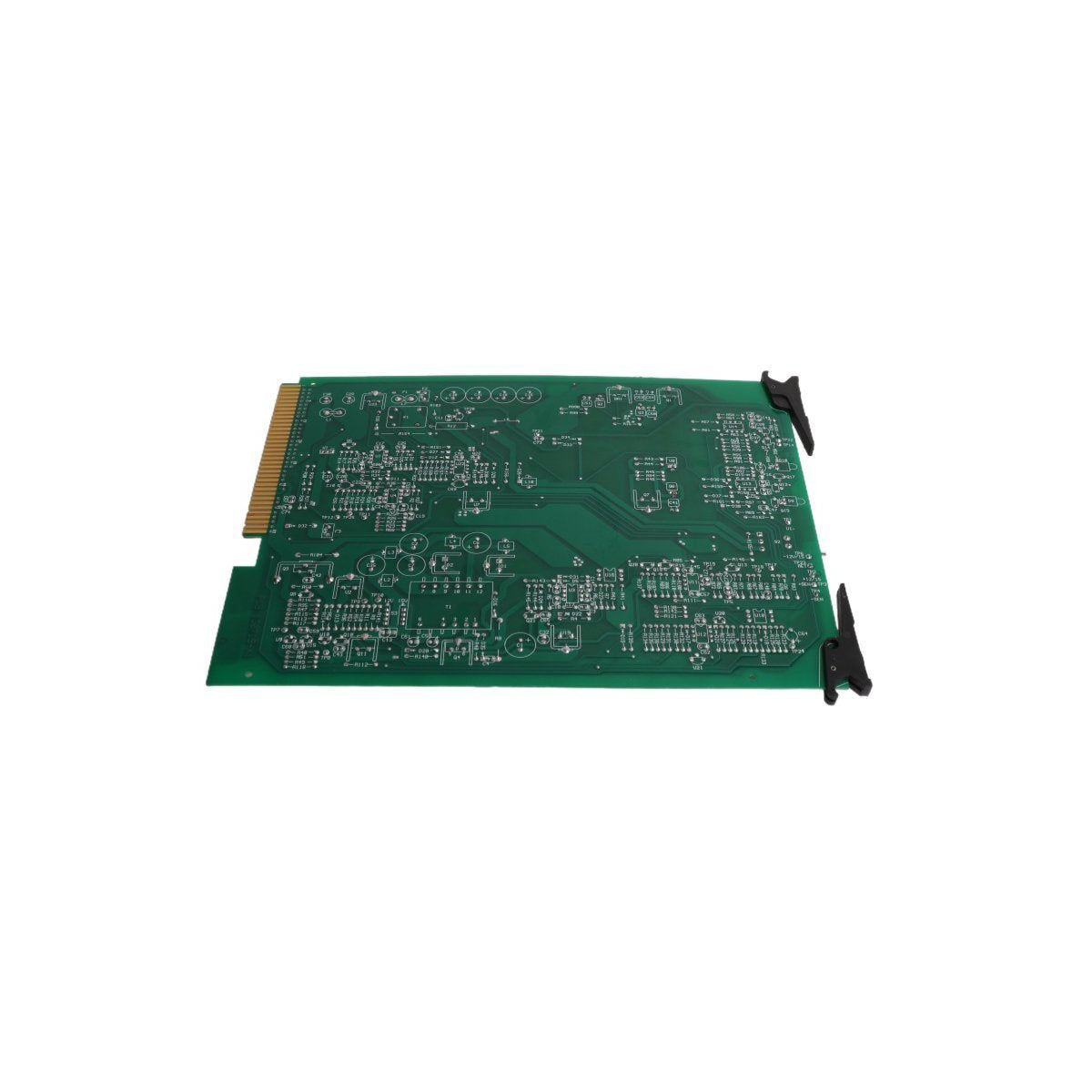

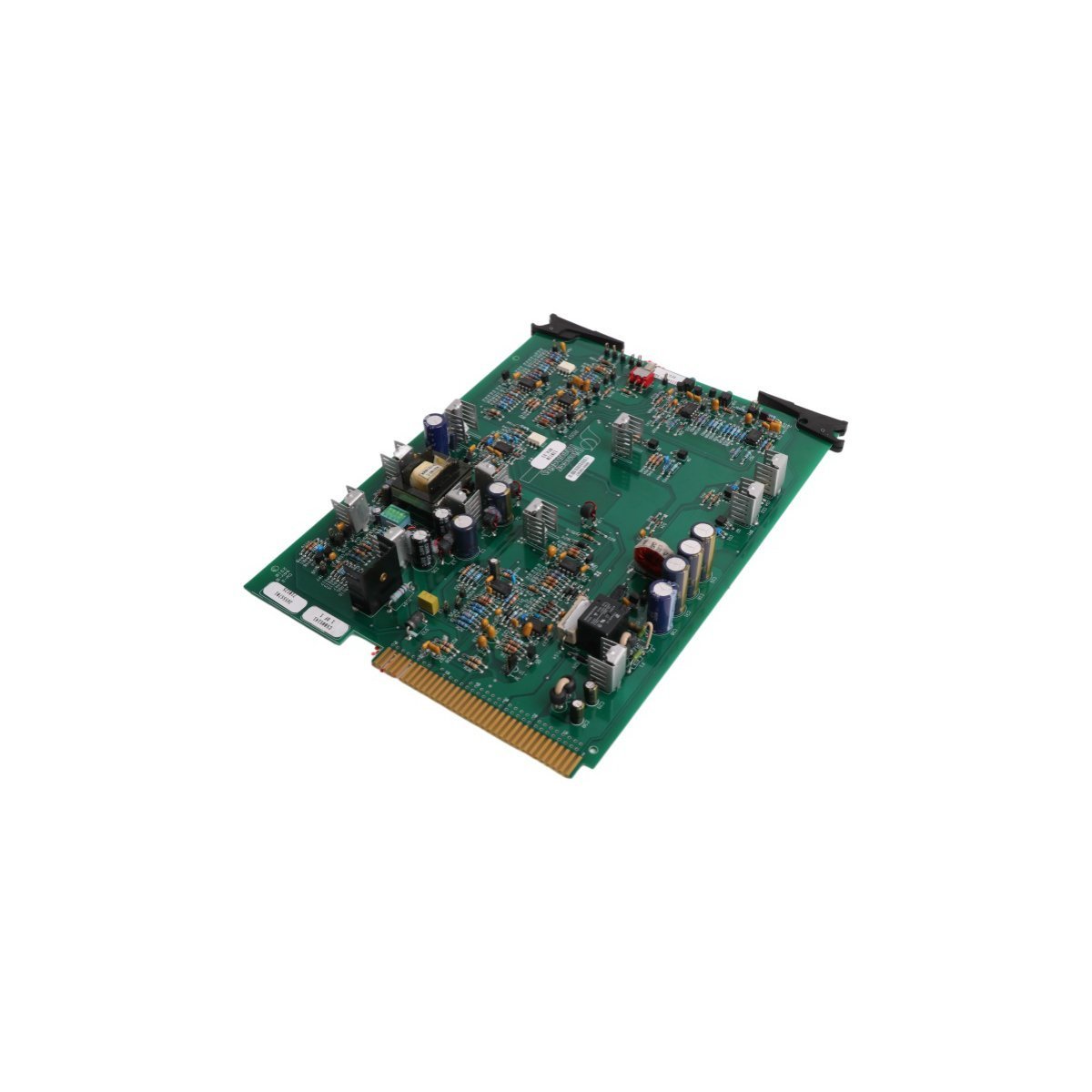

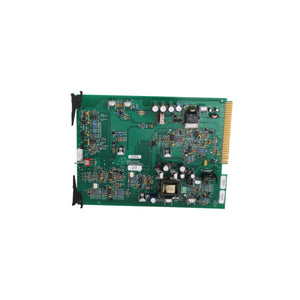

The Honeywell 51155506-100 is a professional-grade 6-channel isolated analog output module engineered for seamless integration with Experion Process Knowledge System (PKS) and C200 controller architectures. This module functions as a critical bridge between digital control processing and field-level execution, converting internal logic into precise 0 to 10V DC signals. It is primarily utilized for the proportional control of actuators, motor drives, and specialized instrumentation where signal accuracy is paramount.

By utilizing independent channel isolation, the 51155506-100 ensures high-level protection against electrical interference and ground loop issues. This galvanic separation prevents faults in one field circuit from affecting the rest of the control system, making it a reliable choice for complex industrial environments such as petrochemical refining, power generation, and advanced manufacturing.

Key Technical Characteristics

• Galvanic Isolation Architecture: Provides robust electrical separation for each of the six channels, safeguarding the controller backplane from field-side voltage spikes and noise.

• Deterministic Signal Control: Features a rapid 2 ms update frequency, enabling real-time responsiveness for high-speed dynamic processes.

• High-Fidelity Resolution: 12-bit digital-to-analog conversion provides 4,096 discrete steps, allowing for ultra-fine incremental adjustments in valve positioning and motor speed.

• Efficient Power Management: Designed for low thermal dissipation, drawing only 100 mA from a standard 24 VDC source to improve the longevity of enclosure components.

• Optimized Connectivity: Packaged with a 0.5-meter relay interface cable to simplify terminal wiring and ensure a secure, high-integrity physical connection.

• Industrial Accuracy Standards: Delivers a steady ±0.1% full-scale accuracy rating, ensuring consistent performance across the entire 0-10V operating range.

Technical Specifications

• Manufacturer: Honeywell

• Model Designation: 51155506-100

• System Environment: Experion PKS / C200 Controller

• Output Configuration: 6 Channels (Individually Isolated)

• Signal Format: 0 to 10 Volts DC

• Current Drive: 20 mA per channel maximum

• Processing Speed: 2 ms update rate

• Power Requirements: 24 VDC nominal

• Module Weight: 0.4 kg

• Physical Profile: 7 cm x 14 cm x 14.5 cm

• Production Origin: USA

Industrial Application Areas

• Valve Actuation: Precise modulation of control valves in fluid handling and chemical injection systems.

• Motor Control: Commanding Variable Frequency Drives (VFDs) for fans, pumps, and conveyor systems in automated warehouses.

• Climate Regulation: Interfacing with large-scale dampers and chillers in industrial-grade HVAC and energy management platforms.

• Pulp and Paper: Controlling tension and speed in continuous-web manufacturing processes.
