Product Overview

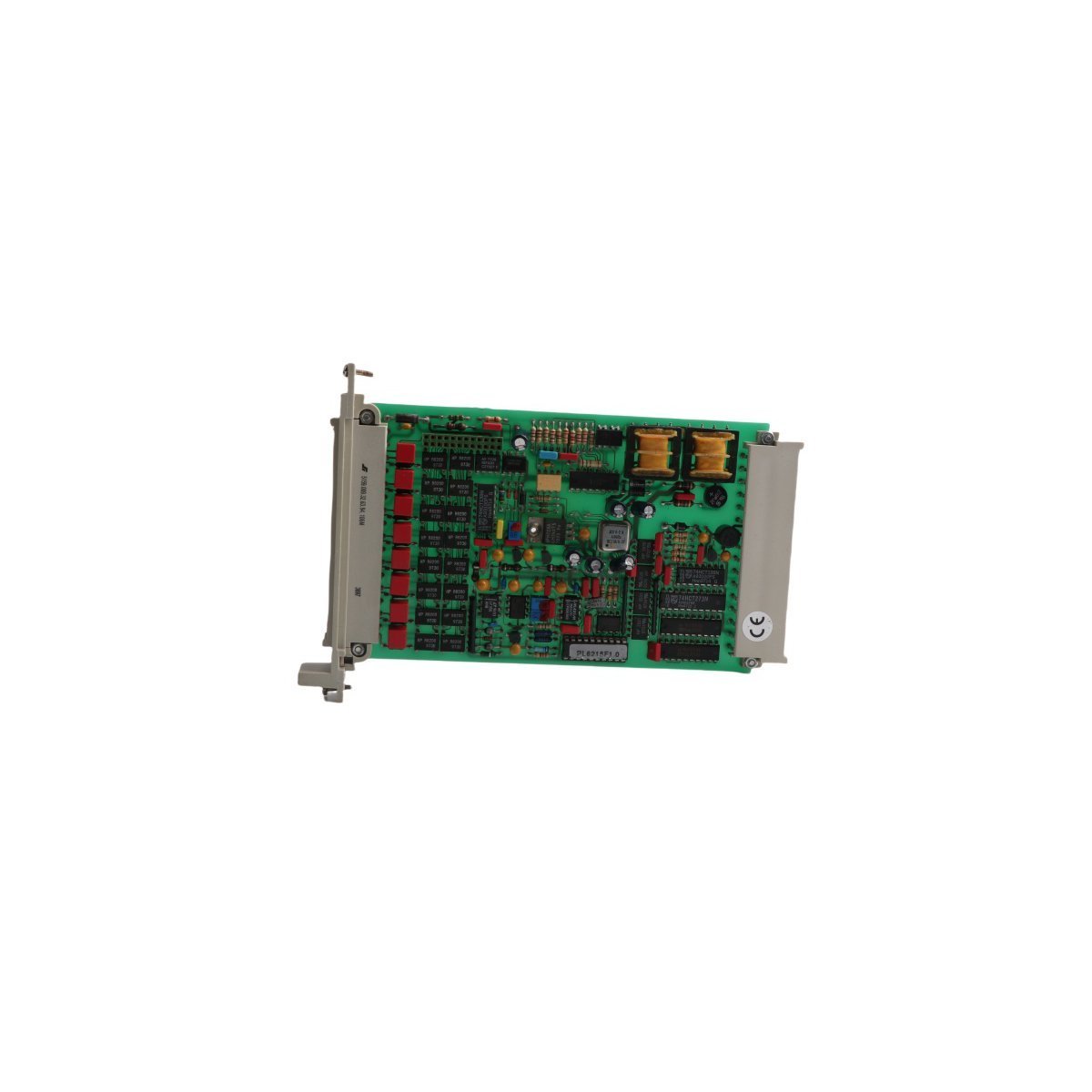

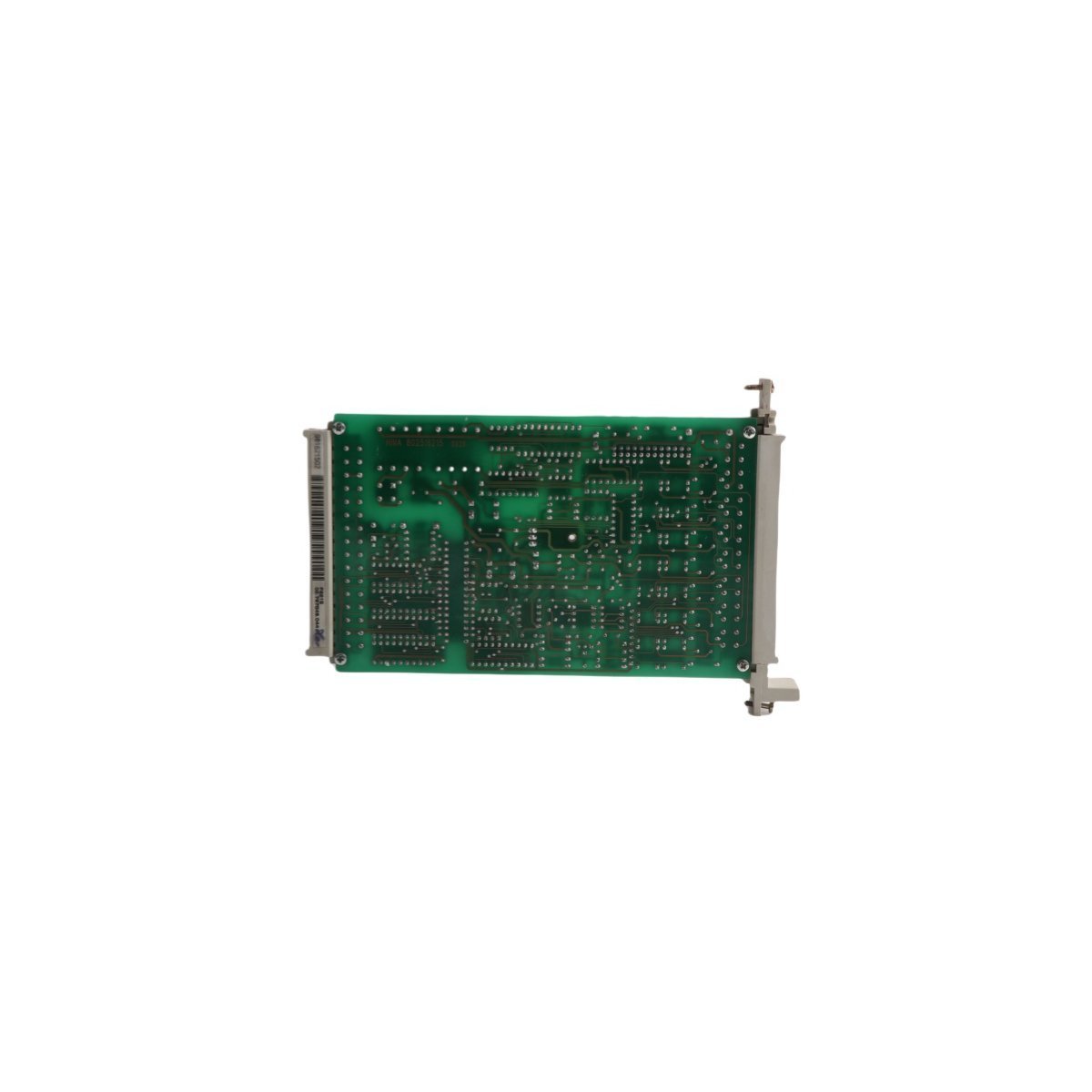

The HIMA F6215 is a high-precision analog signal acquisition module designed for the H41q and H51q safety controller series. Unlike digital modules, the F6215 is engineered to monitor continuous process variables such as pressure, temperature, flow, and level, converting them into safety-critical data for the logic solver. As a fundamental component of Safety Instrumented Systems (SIS), this module provides the reliable sensing required for high-integrity protection loops up to SIL 3.

Each module is built with HIMA's signature fail-safe architecture, ensuring that analog signals are acquired with deterministic accuracy. Its slim-line German design is optimized for high-density configurations in 19-inch subracks, making it an essential solution for complex Emergency Shutdown (ESD) and process control systems where precise monitoring of volatile variables is a prerequisite for operational safety.

Technical Characteristics

• Channel Density: 8 Analog Input Channels

• Input Signal Range: 0/4...20 mA (Standard current loops)

• System Family: HIMA H41q and H51q Safety-Related Systems

• Safety Integrity: TÜV certified for applications up to SIL 3

• Resolution: High-resolution A/D conversion for precise variable tracking

• Signal Isolation: Full galvanic isolation between field signals and the internal system bus

• Protection: Integrated interference suppression and electromagnetic immunity (EMI)

• Operating Temperature: Robust performance across standard industrial thermal ranges

• Dimensions: 2.0 x 18.5 x 12.8 cm

• Weight: 0.16 kg

• Manufacturing Origin: Germany

Operational Reliability and Field Integration

The F6215 Analog Input Module serves as a critical bridge between analog field instrumentation and the digital safety logic. By providing 8 isolated channels, it eliminates the risk of ground loops and signal interference that can lead to false trips or dangerous failures. The internal circuitry is specifically hardened to survive the electrical transients common in large-scale industrial plants, ensuring that sensor data remains accurate under all operating conditions.

For facility maintenance and system lifecycle management, the F6215 features a hot-swappable design (within compatible subracks) and clear front-panel diagnostics. These status indicators allow technicians to verify loop integrity and module health at a glance, significantly reducing troubleshooting time. Whether integrated into a new Distributed Control System (DCS) or maintained as a critical spare part for active safety racks, the F6215 provides the precision and reliability necessary to protect personnel, assets, and the environment.
