Product Overview

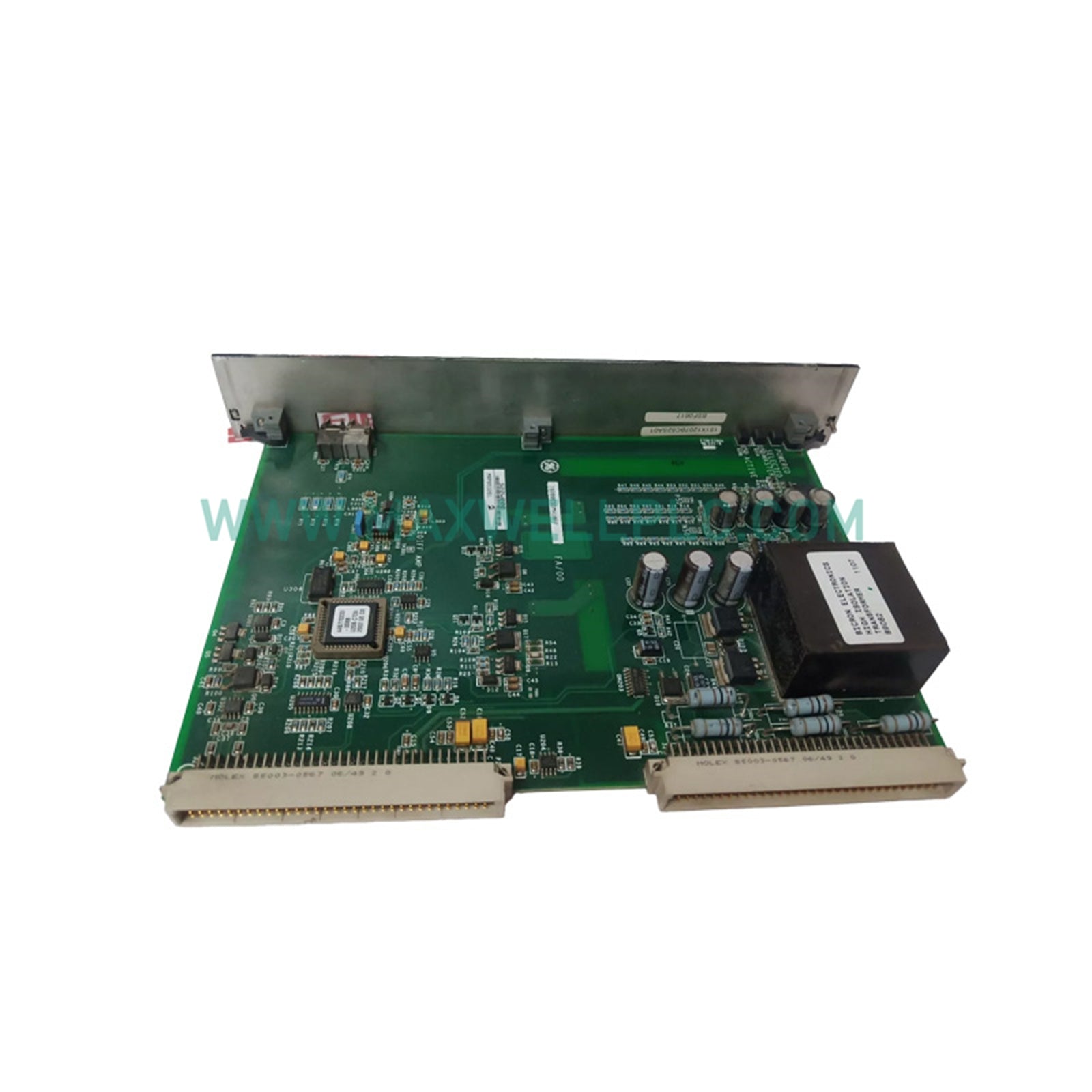

The IS200EGDMH1A is a high-precision Exciter Field Ground Detector board developed by GE Industrial Solutions for the EX2100 Excitation Control series. This critical safety component is engineered to continuously monitor the insulation integrity of the generator field circuit. By detecting leakage currents and potential ground faults, the IS200EGDMH1A serves as an early warning system to prevent catastrophic insulation failure and rotor damage. It operates in conjunction with the EXAM (Exciter Application Module) to provide localized signal processing and fault reporting, ensuring that the excitation system can respond immediately to abnormal electrical conditions within the field winding.

Hardware Parameters and Key Technical Characteristics

The IS200EGDMH1A (Revision AAB) is built with a compact form factor designed for seamless integration into the EX2100 control cabinet architecture.

• Manufacturer General Electric (GE)

• Model Designation IS200EGDMH1A / IS200EGDMH1AAB

• Product Line EX2100 Excitation Control

• Functional Type Field Ground Fault Detector (EGDM)

• Associated Hardware Interfaces with the EXAM board for system logic integration

• Revision Level AAB (Advanced revision with optimized signal filtering)

• Detection Sensitivity Optimized for high-impedance ground fault monitoring

• Physical Mass 0.58 kg (Approx. 2 lbs)

• Card Dimensions 13 cm x 10 cm x 2 cm

• Manufacturing Origin United States of America (USA)

• Hardware Reliability Industrial-grade components rated for continuous power generation duty

Industrial Applications and Operational Use Cases

This detector board is a fundamental protective element in the regulation and maintenance of large synchronous machinery.

• Generator Field Monitoring Actively sensing the electrical relationship between the generator's rotating field and the machine ground to prevent short circuits.

• Excitation System Protection Protecting the EX2100 bridge and transformers from the damaging effects of unexpected ground loops or insulation degradation.

• Predictive Maintenance Diagnostics Providing real-time feedback to the DCS, allowing plant operators to trend insulation health and schedule maintenance before a forced outage occurs.

• Utility-Scale Power Generation Mandatory safety deployment in steam, gas, and hydro turbine installations where excitation field reliability is paramount.

• Emergency Shutdown Integration Supplying the necessary fault signals to initiate rapid de-excitation sequences if a critical ground threshold is breached.

By maintaining the IS200EGDMH1A within the excitation suite, facilities ensure their synchronous generators are guarded against one of the most common causes of rotor failure, significantly improving overall plant availability.
