Product Overview

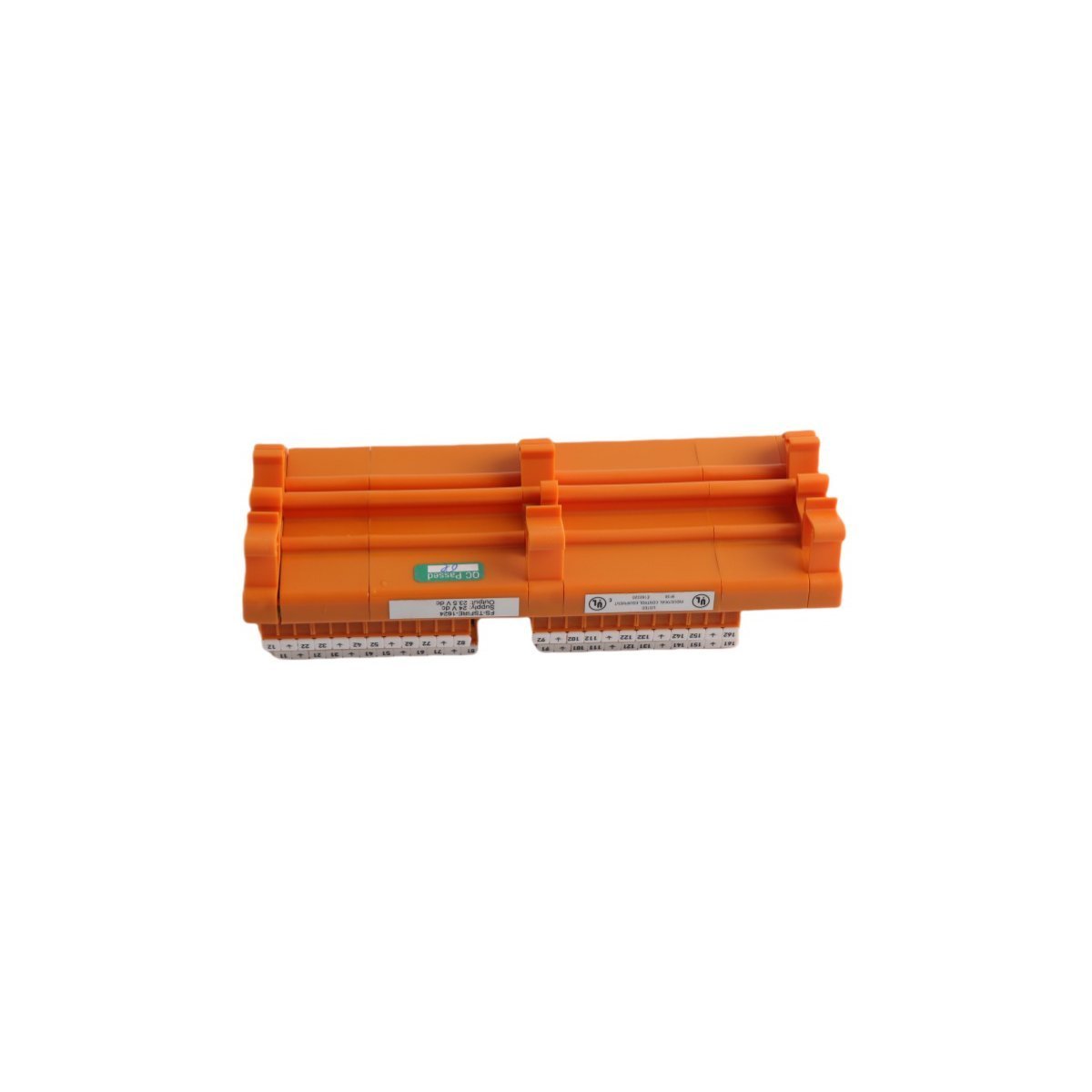

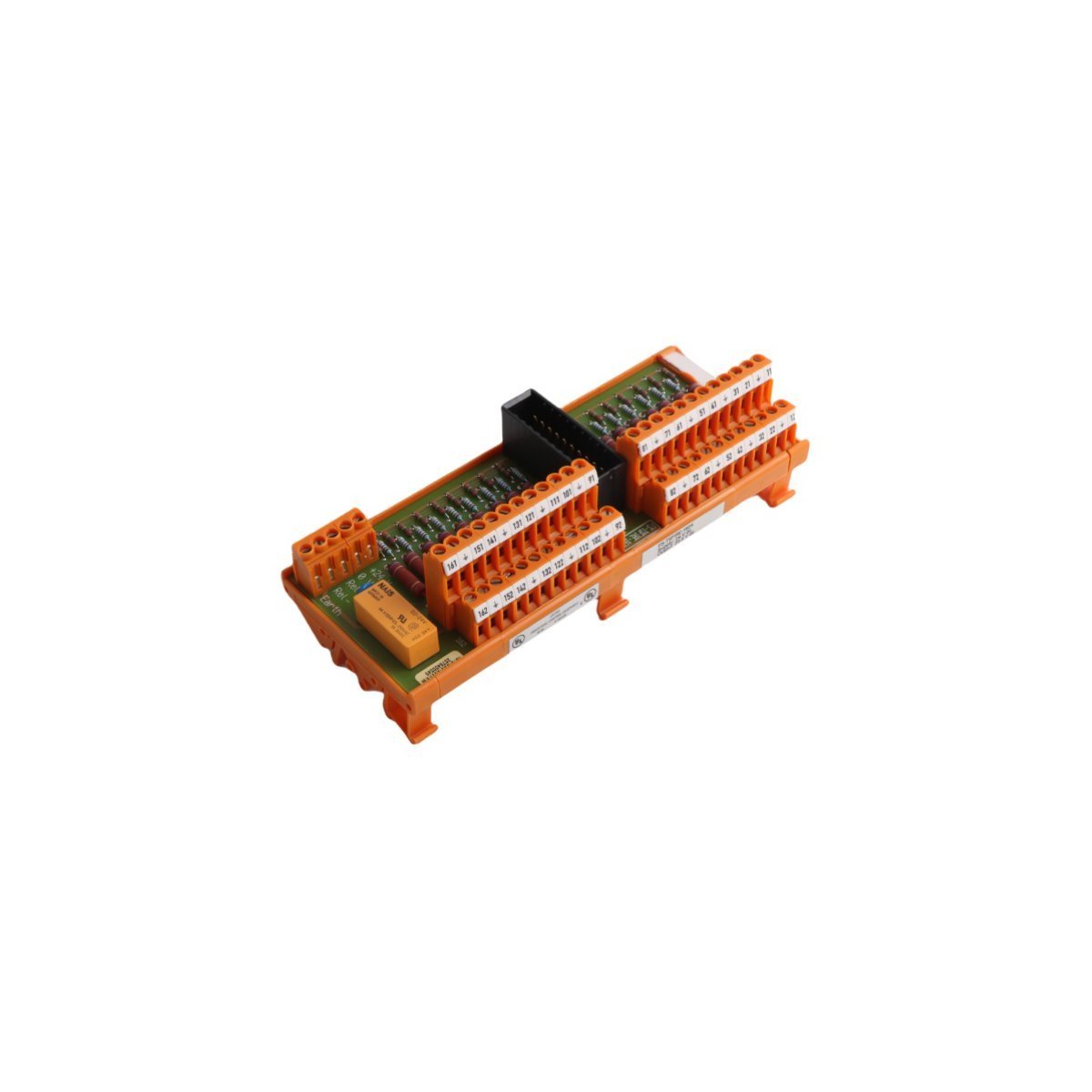

The Honeywell FS-TSFIRE-1624 is a specialized Field Termination Assembly (FTA) engineered for high-integrity safety instrumented systems (SIS). Specifically designed to facilitate the connection between field fire detection devices and the safety logic solver, this module ensures that critical alarm signals are processed with zero interference. The FS-TSFIRE-1624 acts as the physical interface layer, providing secure termination points for field wiring while offering the necessary signal conditioning to maintain loop integrity. Its architecture is optimized for 16-channel or 24V DC configurations, common in Fire and Gas (F&G) protection loops where rapid response and fault-tolerant communication are mandatory for plant-wide safety.

Hardware Interface and Technical Parameters

The FS-TSFIRE-1624 is built to sustain electrical stability in high-density control cabinets, featuring a ruggedized footprint that resists the thermal and vibrational stresses of industrial environments.

• Primary Function: Fire and Gas (F&G) Signal Field Termination

• Channel Support: Multi-point termination for discrete fire detection loops

• Voltage Rating: 24V DC nominal operation

• Signal Integrity: Advanced filtering to prevent false trips from electromagnetic noise

• System Compatibility: Native integration with Honeywell Safety Manager and FSC platforms

• Safety Standards: Engineered to comply with SIL-rated safety loop requirements

• Construction: Industrial-grade substrate with high-retention terminal blocks

• Net Weight: 0.22 kg

• Dimensions: 17.1 cm x 7 cm x 5.8 cm

• Origin: USA | HS Code: 8537101190

Safety-Critical Industrial Deployments

The FS-TSFIRE-1624 is a vital component for facility protection strategies, ensuring that fire detection networks remain operational and accurate under all conditions.

• Refinery Fire and Gas Systems: Serving as the termination hub for flame detectors and smoke sensors located in hazardous processing zones.

• Emergency Notification Loops: Managing the output signals to localized beacons and sirens when the safety system detects a thermal excursion.

• Offshore Platform Safety: Providing a vibration-resistant termination point for heat sensors on oil and gas production skids.

• Hazardous Material Storage: Monitoring dry-contact or analog inputs from fire suppression monitors in chemical warehouses.

• Critical Infrastructure Monitoring: Implementing reliable signal paths for gas leak detection and fire monitoring in utility-scale power generation halls.
