Product Overview

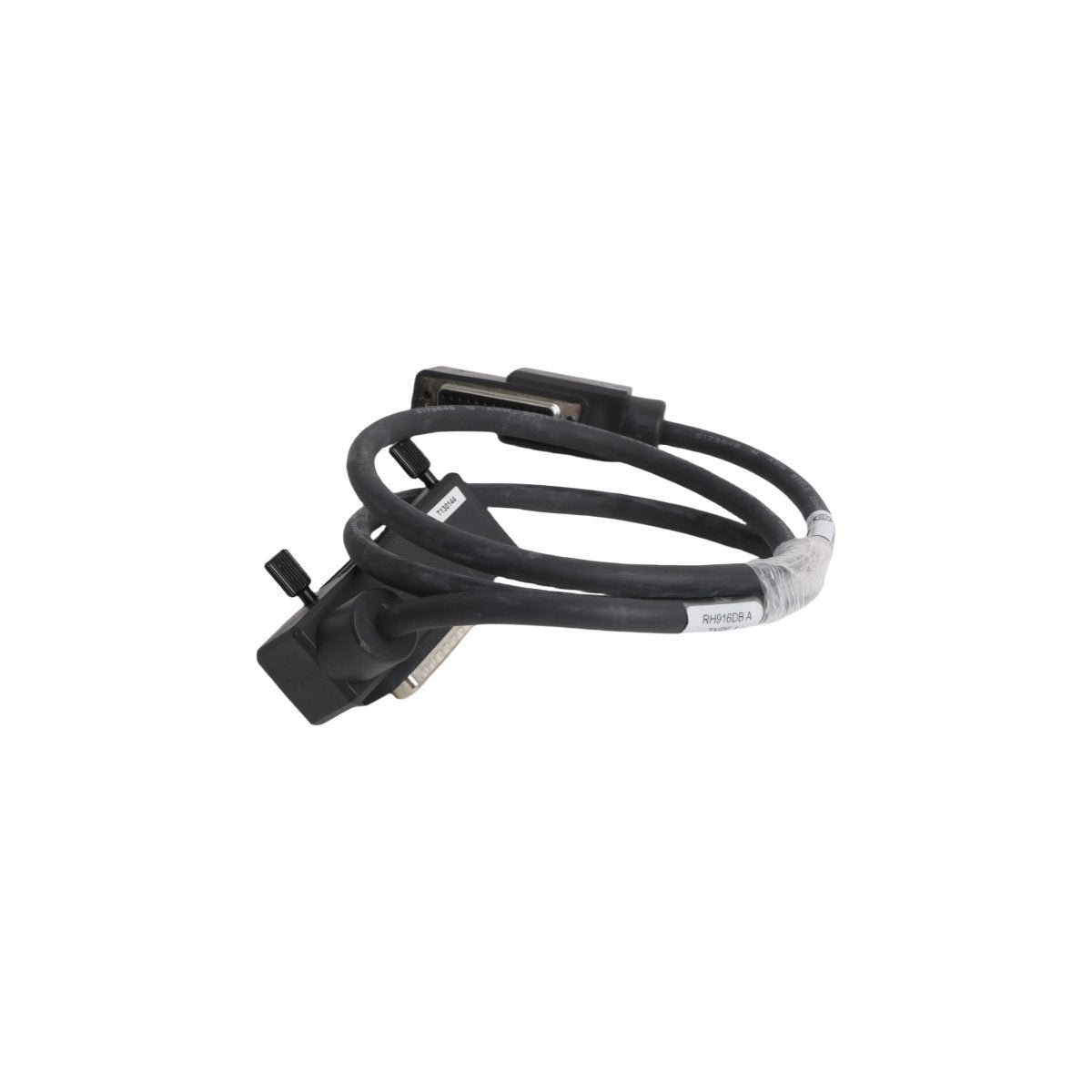

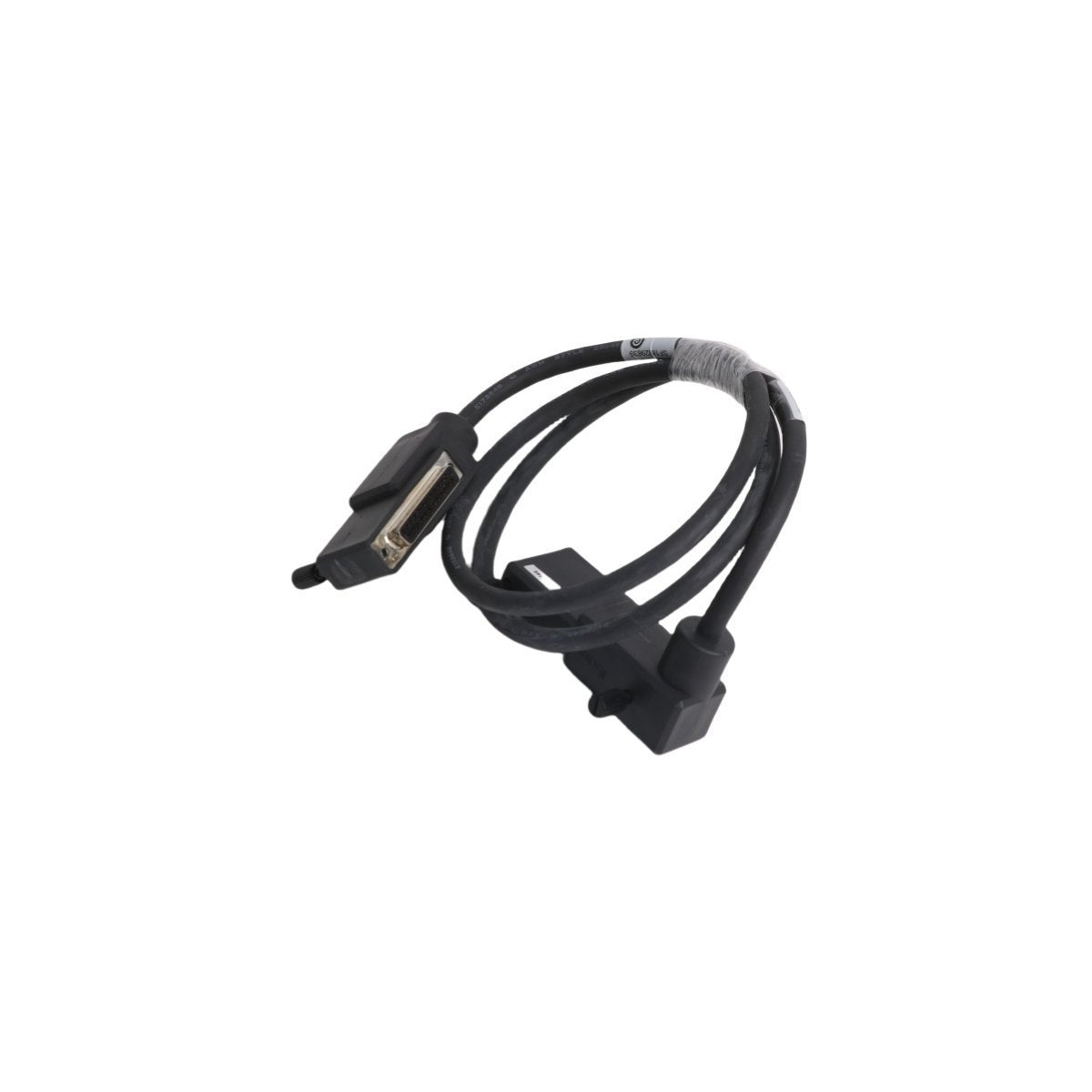

The Foxboro RH916DB is a high-specification electrical cable assembly engineered for the 200 Series I/O subsystem within the I/A Series Distributed Control System (DCS). This termination cable is purpose-built to maintain high-fidelity signal transmission between fieldbus modules and termination assemblies in demanding industrial environments. Utilizing high-purity copper conductors, the RH916DB ensures minimal resistance and maximum conductivity, which is essential for the stable operation of critical control loops.

Designed for durability and flexible integration, the RH916DB features advanced protective coatings and versatile connector compatibility. It serves as a reliable interconnect solution that protects system integrity against electrical interference and physical stress, making it a standard choice for process automation professionals.

Technical Specifications

• Manufacturer: Foxboro (Invensys / Schneider Electric)

• Model Number: RH916DB

• Series Compatibility: 200 Series / I/A Series DCS

• Cable Type: Termination / Electrical Cable Assembly

• Conductor Material: High-Conductivity Electrolytic Copper

• Outer Coating: Polyurethane (PUR) Conductive Insulation

• Connector Support: Compatible with BNC and M12 Interfaces

• Operating Temperature: -40°C to +85°C

• Compliance: RoHS Certified

• Weight: 0.28 kg

• Dimensions: 17.5 x 16.0 x 5.3 cm

• Origin: USA

Key Technical Characteristics

• Premium Insulation Technology: The cable is shielded with a high-performance polyurethane (PUR) conductive coating. This material provides a robust barrier against industrial contaminants, moisture, and chemical exposure while enhancing the cable’s overall dielectric properties.

• Broad Connectivity Interface: Engineered for versatility, the RH916DB supports dual-interface standards, allowing for secure integration with both BNC-type and M12 industrial connectors. This flexibility simplifies spare part management across various system architectures.

• Extreme Thermal Resilience: This cable assembly is certified to maintain its mechanical and electrical specifications across a wide temperature spectrum (-40°C to +85°C). It is ideally suited for installations in both sub-zero outdoor enclosures and high-heat production environments.

• High Tensile Strength: The assembly is designed with high pull strength to withstand the physical rigors of installation and long-term use in high-vibration settings. This prevents intermittent signal loss caused by mechanical tension on the termination points.

• Optimized Signal Integrity: By utilizing multi-strand copper cores, the RH916DB minimizes signal attenuation. This ensures that the data processed by the 200 Series modules remains accurate and free from the distortion typically caused by low-quality cabling.

• Sustainable Compliance: Fully compliant with RoHS standards, the cable is manufactured without hazardous substances, ensuring environmental safety and alignment with global industrial regulations.

Primary Applications

The Foxboro RH916DB cable is a critical interconnect for:

• Refinery Control Rooms: Connecting 200 Series FBMs to field marshalling panels.

• Power Generation: Reliable signal routing in areas with high electromagnetic interference.

• Chemical Processing: Providing durable connections in areas subject to corrosive vapors.

• General Automation: Serving as a high-integrity link for distributed control networks.
