Product Overview

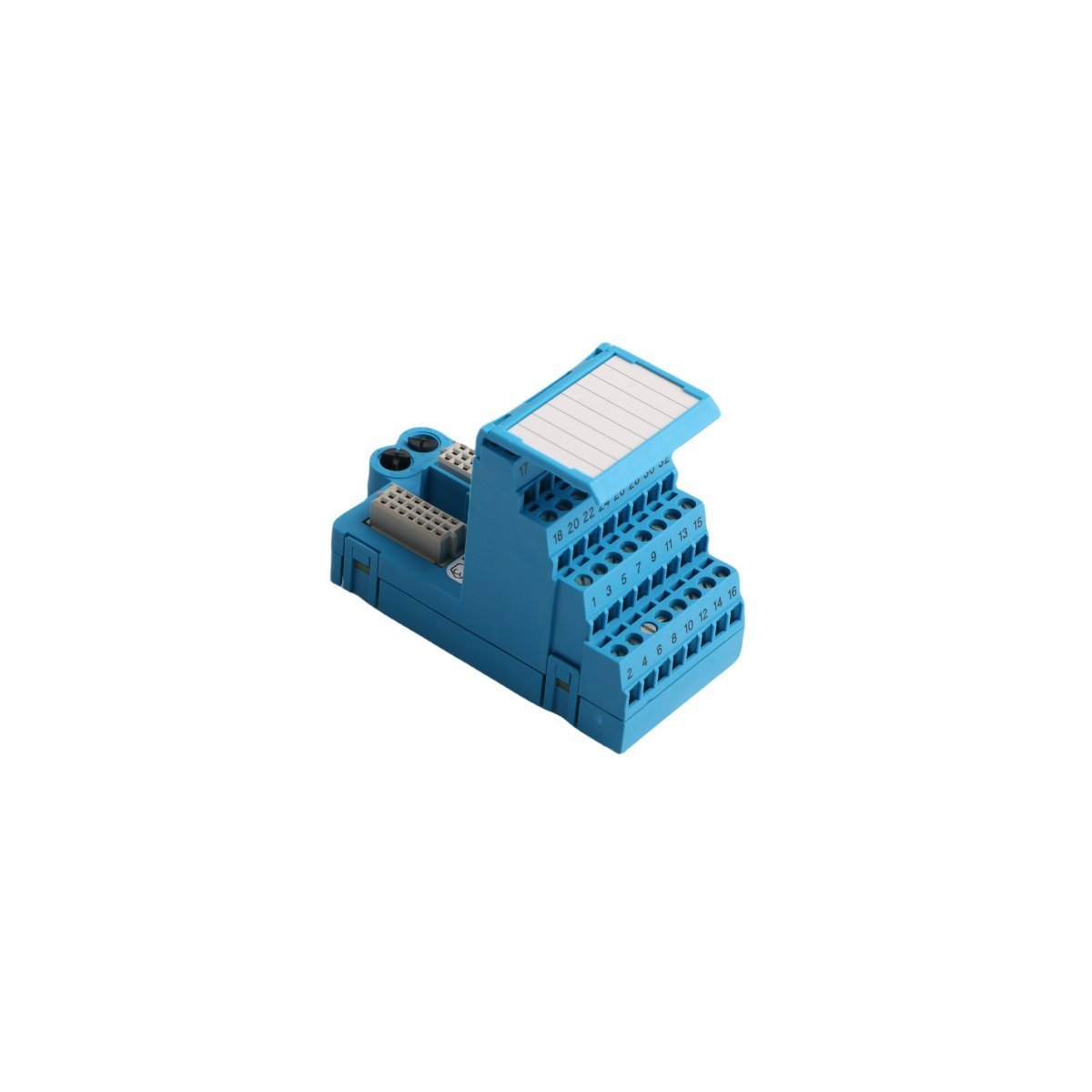

The Emerson KJ4110X1-BC1 (Part Number 12P1869X012) is a specialized 16-channel digital input terminal block designed for the DeltaV™ M-series I/O Subsystem. This module serves as the primary physical interface between field-side discrete devices—such as proximity switches, limit switches, and push buttons—and the DeltaV Distributed Control System (DCS). By providing a secure, organized termination point for 16 individual signal paths, it ensures high-fidelity data acquisition and seamless signal routing to the corresponding I/O cards.

The KJ4110X1-BC1 is engineered to simplify wiring complexity while maintaining the high availability required for modern industrial automation. It facilitates rapid installation and maintenance through its modular design, allowing for the quick connection and disconnection of field signals without disrupting the broader system backplane.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ4110X1-BC1

• Part Number: 12P1869X012

• Module Type: Digital Input Terminal Block

• Channel Capacity: 16 Channels

• Product Line: DeltaV M-series

• Operating Temperature: Industrial grade for harsh environments

• Housing Material: High-durability thermoplastic

• Weight: 0.12 kg

• Dimensions: 9 x 4.1 x 6.5 cm

• HS Code: 8537101190

Key Technical Characteristics

• High-Density Connectivity: Supports 16 discrete input channels in a compact 4.1cm width, optimizing cabinet space in high-density I/O configurations.

• Simplified Troubleshooting: Designed to work in conjunction with I/O card LED indicators, enabling maintenance personnel to quickly identify channel-specific faults or signal presence at the termination layer.

• Environmental Resilience: Built to withstand the rigors of industrial settings, including protection against standard levels of dust, moisture, and mechanical vibration common in plant environments.

• Plug-and-Play Integration: Fully compatible with DeltaV configuration software, allowing the terminal block to be mapped and commissioned within the DCS environment with minimal manual intervention.

• Safe Signal Isolation: Provides mechanical and electrical separation between adjacent channels to prevent cross-talk and ensure the integrity of critical process safety signals.

Industrial Applications

The KJ4110X1-BC1 Terminal Block is a staple in high-stakes process industries where precise digital monitoring is required. Common applications include:

• Oil & Gas: Monitoring valve positions and emergency shutdown (ESD) initiators.

• Chemical Processing: Tracking level switches and safety interlock inputs.

• Power Generation: Monitoring auxiliary contact statuses and motor starter feedbacks.

• Water & Wastewater: Integrating float switches and remote pump station signals.
