Product Overview

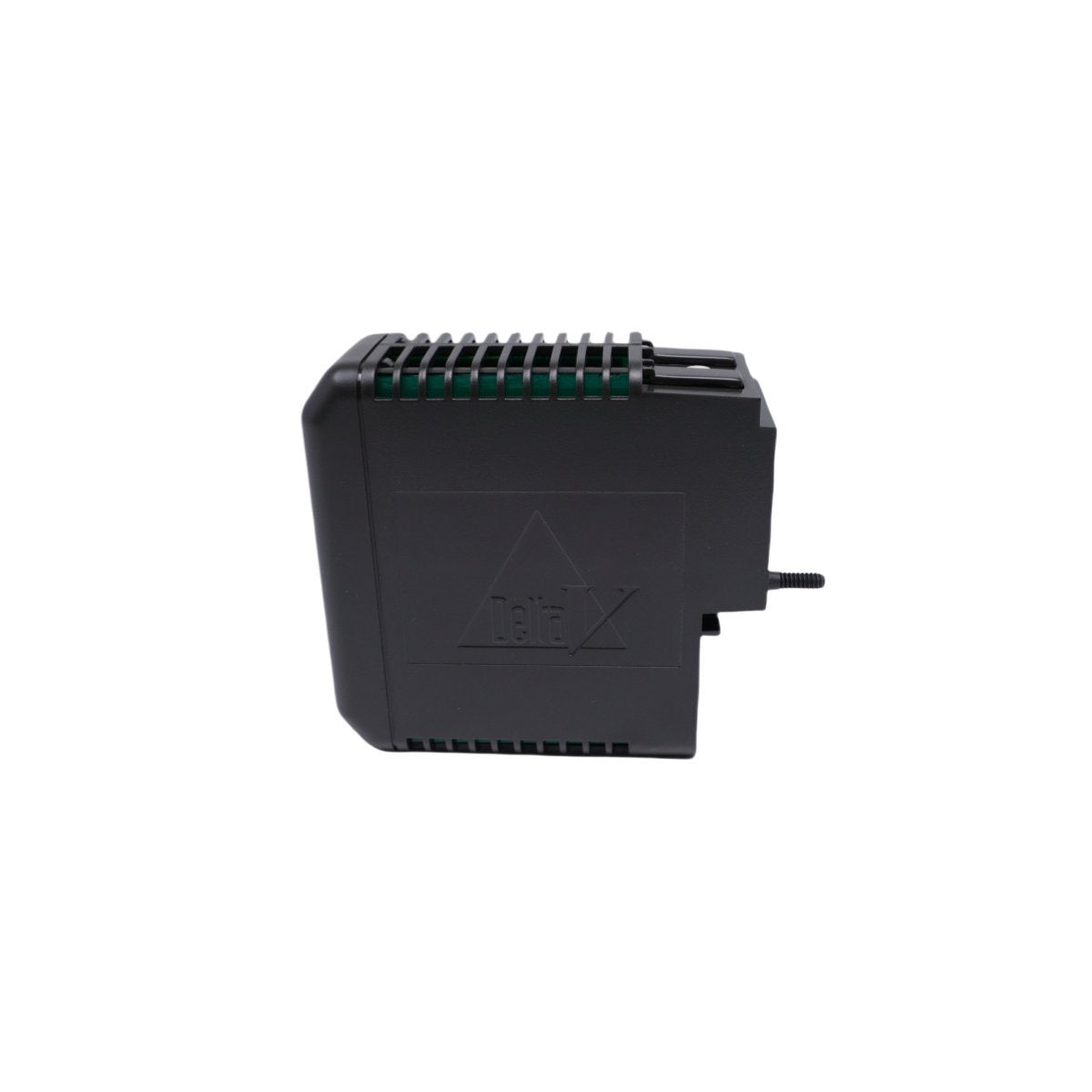

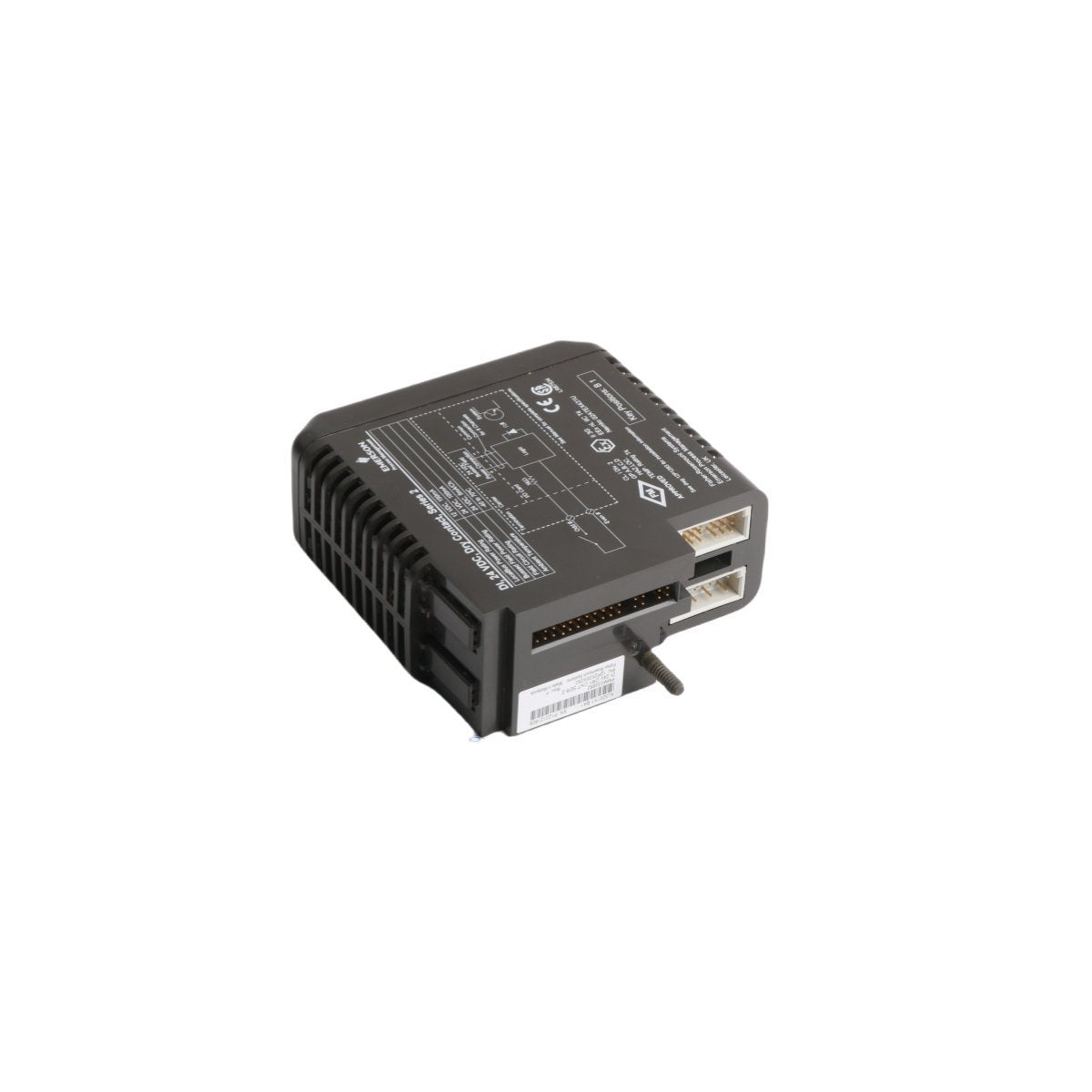

The Emerson KJ3201X1-BA1 (Part Number 12P2535X052) is a specialized isolated discrete input card engineered for the DeltaV M-series I/O subsystem. This module is designed to interface the control system with various field-level digital sensors, switches, and dry contacts. By providing high-integrity galvanic isolation, the KJ3201X1-BA1 protects the internal DCS logic from electrical transients, ground loops, and field-side noise, ensuring that binary status data—such as motor run/stop or valve open/close—is captured with absolute reliability.

Constructed for mission-critical automation, this isolated input card is a fundamental component for maintaining signal purity in high-voltage industrial environments. Its modular architecture supports the "plug-and-play" requirements of modern DeltaV systems, allowing for efficient integration into existing I/O carriers.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ3201X1-BA1

• Order Number: 12P2535X052

• Product Series: DeltaV M-series

• Module Type: Isolated Discrete Input Card

• Isolation Rating: Channel-to-channel and channel-to-system isolation

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

• Relative Humidity: 5% to 95% (Non-condensing)

• Module Weight: 0.18 kg

• Physical Dimensions: 4.2 x 12.6 x 10.3 cm

• Manufacturing Origin: USA

Core Technical Characteristics

• Superior Galvanic Separation: The KJ3201X1-BA1 features robust isolation barriers that electrically decouple the field circuits from the system backplane. This prevents faulty field signals or power surges from damaging the controller and ensures measurement accuracy in electrically noisy plant areas.

• Deterministic Signal Acquisition: Designed for real-time process control, the card provides low-latency digital signal processing. This allows the DeltaV controller to respond instantaneously to field status changes, which is critical for safety-instrumented functions and high-speed interlocks.

• High-Availability Redundancy Support: This module is compatible with redundant M-series carriers. In critical monitoring loops, a secondary KJ3201X1-BA1 can be utilized to ensure continuous data acquisition even in the event of a primary card hardware failure.

• Enhanced Diagnostic Intelligence: The module performs continuous self-checks and channel health monitoring. It can detect and report faults such as field power loss or internal electronic failure directly to the operator workstation, reducing the Mean Time To Repair (MTTR).

• Industrial Grade Hardening: With its wide operating temperature range and G3-compliant coating options, the card is built to survive the harsh atmospheric conditions common in petrochemical refineries and power generation facilities.

• Hot-Swap Maintenance Capability: The module supports removal and replacement while the I/O carrier is energized. This "hot-swappable" feature allows for localized maintenance without disrupting the operation of adjacent I/O modules or the broader DCS network.

Primary Applications

The Emerson KJ3201X1-BA1 Isolated Card is widely deployed in:

• Petrochemical & Refining: Monitoring explosion-proof limit switches and emergency shutdown triggers.

• Power Generation: Status acquisition for high-voltage circuit breakers and relay contacts.

• Chemical Batching: Tracking the position of motorized valves and pump status feedback.

• Wastewater Treatment: Interfacing float switches and pressure sensors in distributed pumping stations.
