Product Overview

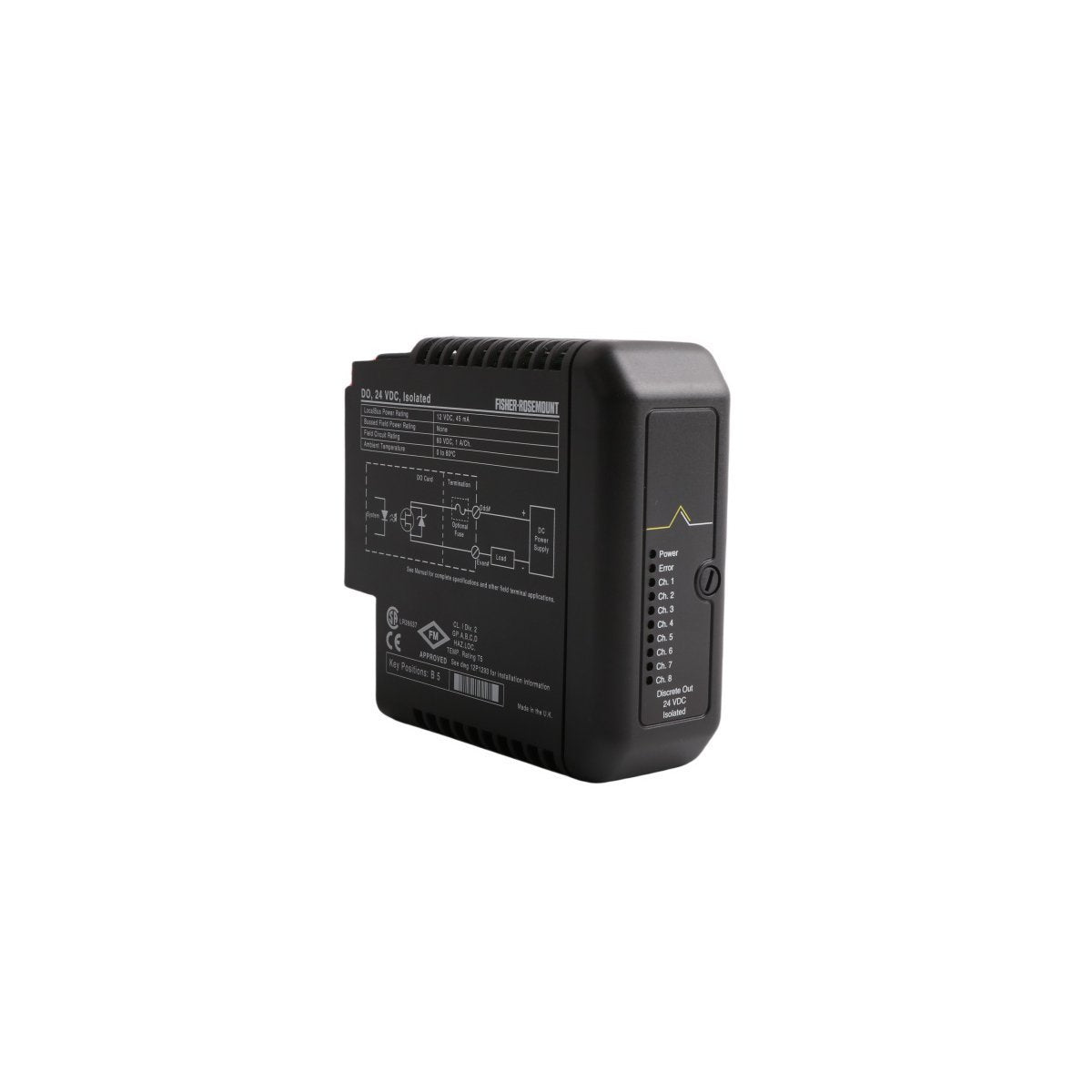

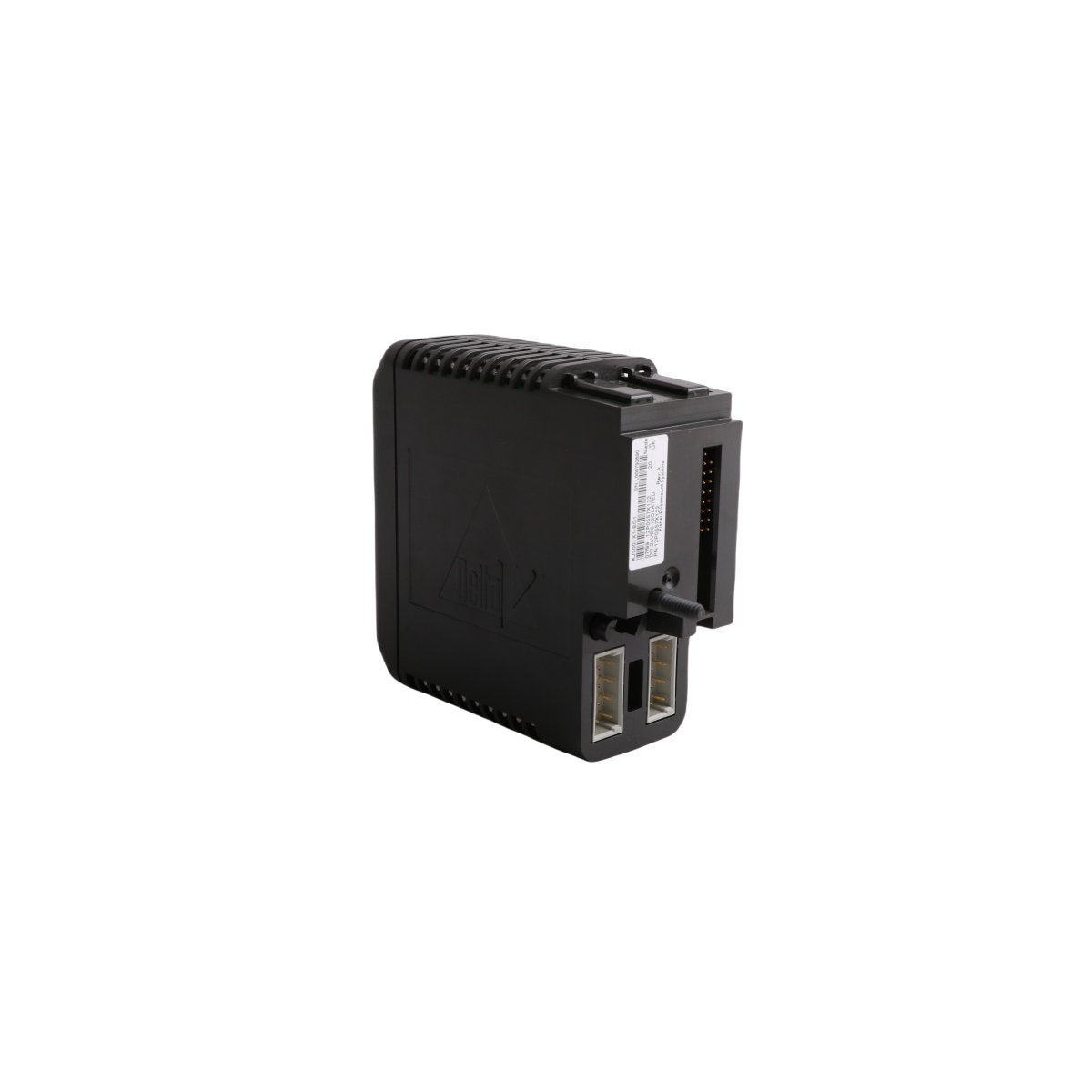

The Emerson KJ3001X1-BG1 (part numbers 12P0557X122 and VE4002S1T1B1) is a high-integrity isolated digital output module designed for the DeltaV SIS™ process safety system. This module serves as a critical interface between the safety logic solver and field-side final control elements, such as solenoid valves, relays, and interlock indicators. Unlike standard I/O, this unit is engineered to meet the stringent requirements of Safety Instrumented Systems (SIS), providing galvanically isolated channels that ensure faults in the field do not migrate to the backplane or affect adjacent safety loops.

Designed for high-availability environments, the KJ3001X1-BG1 utilizes sophisticated circuit isolation to eliminate ground loops and mitigate the impact of electromagnetic interference (EMI). Its robust architecture supports SIL-rated safety functions, making it a primary choice for emergency shutdown (ESD) and fire and gas (F&G) applications where system reliability and signal purity are non-negotiable.

Technical Specifications and Capabilities

The KJ3001X1-BG1 is built for seamless integration into the DeltaV M-series and S-series hardware environments, specifically for safety-related tasks.

• Module Function: Isolated Digital Output (DO)

• Model Identifiers: KJ3001X1-BG1, 12P0557X122, VE4002S1T1B1

• System Integration: DeltaV SIS™ Process Safety System

• Isolation Type: Galvanic isolation (Channel-to-Channel and Channel-to-System)

• Signal Protection: Integrated suppression for inductive loads and transient protection

• Configuration: Software-configurable via DeltaV Explorer

• Diagnostics: Active line monitoring for short circuits and open loops

• Weight: 0.2 kg

• Dimensions: 12.5 cm x 10.5 cm x 4.1 cm

• Mounting: Standard M-series I/O carrier

Key Operational Characteristics

The module’s design focuses on maximizing uptime and ensuring that safety actions are executed precisely when required by the process logic.

• Galvanic Isolation: Each output channel is electrically separated, preventing signal crosstalk and protecting the internal processor from high-voltage surges or field-side electrical noise.

• Safety Integrity: As a component of the DeltaV SIS platform, it supports the execution of safety instrumented functions (SIF) with high diagnostic coverage and fault tolerance.

• Intelligent Monitoring: The module performs continuous self-testing and line monitoring, allowing the DCS to identify and alert operators to field-side wiring faults before they result in a failed safety demand.

• Simplified Maintenance: The hot-swappable design allows for module replacement without powering down the entire safety carrier, significantly reducing mean time to repair (MTTR) in active industrial plants.

• Versatile Switching: Capable of driving various low-power DC loads common in chemical processing, oil and gas refining, and power generation safety loops.
