Product Overview

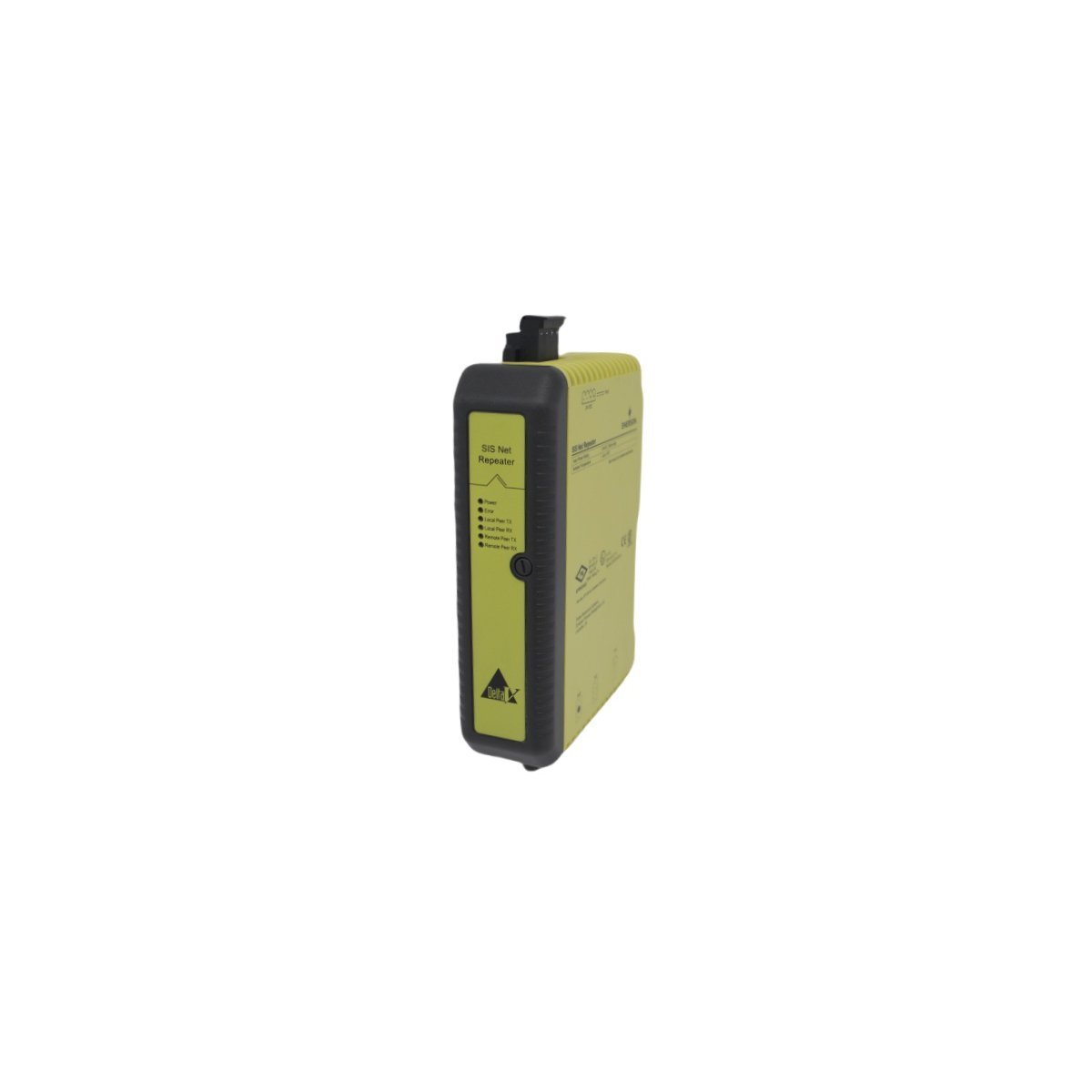

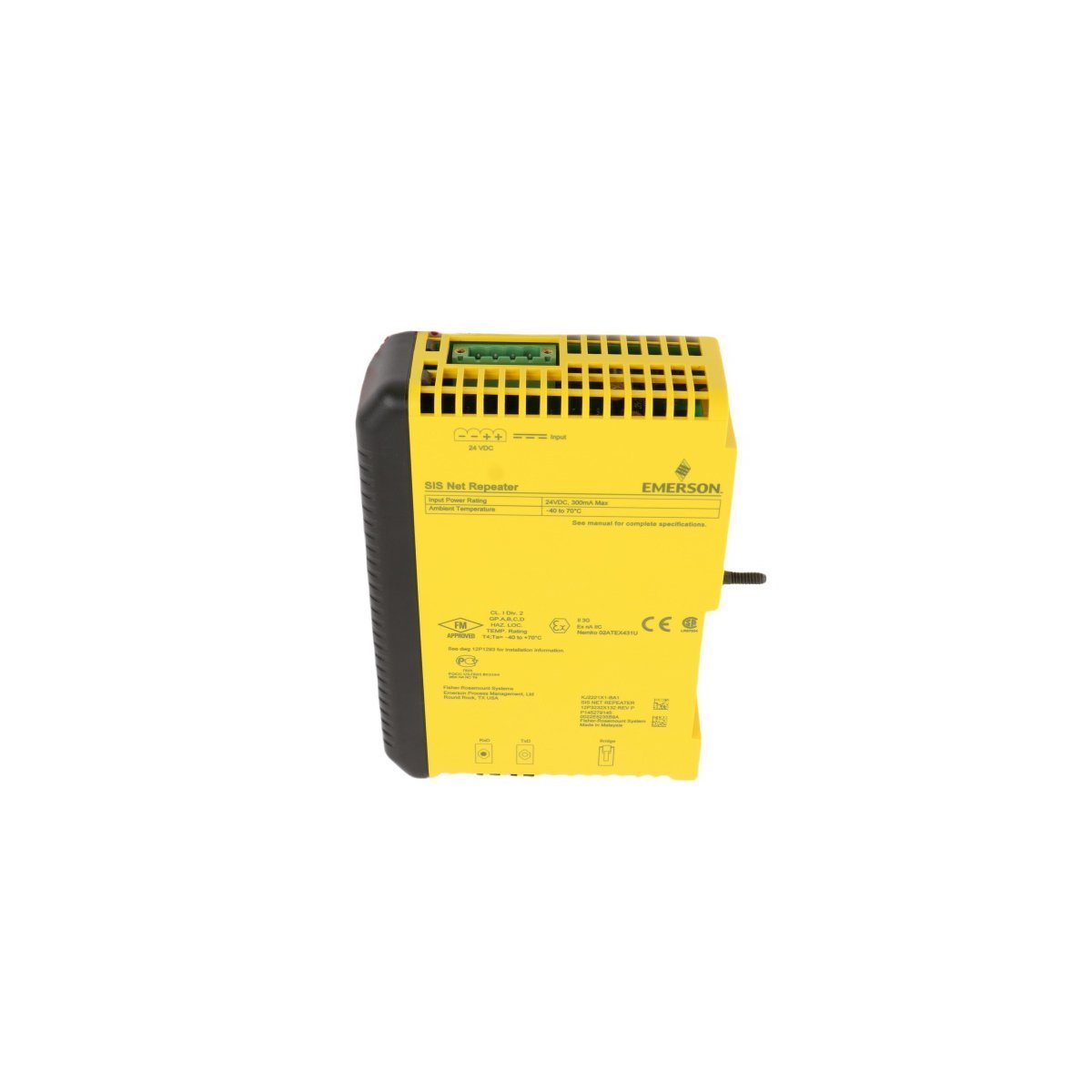

The Emerson KJ2221X1-BA1, also identified by part numbers 12P3232X132 and VS6002, is a high-integrity SISNet Repeater module designed specifically for the DeltaV SIS™ process safety system. This module serves as the primary communication backbone for expanding the physical reach of safety-instrumented functions across large-scale industrial sites. By regenerating and amplifying data signals, the repeater ensures that critical safety information remains synchronized between logic solvers and controllers, even when hardware is distributed across vast distances.

The SISNet Repeater is essential for maintaining the sub-second response times required for safety-critical loops. It eliminates signal degradation over long cable runs, providing a reliable data bridge for offshore platforms, refineries, and chemical plants where safety components are geographically dispersed.

Functional Characteristics and Network Integrity

The KJ2221X1-BA1 is engineered to uphold the stringent reliability standards required for Safety Instrumented Systems (SIS).

• Network Expansion: Facilitates the connection of remote DeltaV SIS logic solvers to the central control network, extending communication range without sacrificing speed or accuracy.

• Signal Regeneration: Actively cleans and amplifies digital signals to mitigate the effects of electromagnetic interference (EMI) and line attenuation common in noisy industrial environments.

• Redundancy Support: Integrated into the DeltaV redundancy framework, the module ensures that safety communication persists through alternate paths in the event of a single point of failure.

• Real-time Diagnostics: Provides continuous monitoring of network health through the DeltaV Explorer software, allowing for proactive identification of cable faults or signal quality drops.

• Ruggedized Design: Built for high-availability performance, the hardware is tested to withstand significant temperature fluctuations and mechanical vibration typical of process control cabinets.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ2221X1-BA1

• Secondary IDs: 12P3232X132 / VS6002

• Module Type: SISNet Repeater

• System Compatibility: DeltaV SIS Process Safety System

• Power Requirements: Logic power supplied via the carrier

• Operating Temperature: -40°C to +70°C

• Housing Dimensions: 11 cm x 2.5 cm x 11 cm

• Unit Weight: 0.16 kg

• Product Origin: USA

Industrial Applications

The Emerson KJ2221X1-BA1 Repeater is a vital component for safety networks in sectors that prioritize rapid-response protective systems:

• Offshore Rigs: Bridging safety communication between wellheads and central processing modules.

• Petrochemical Plants: Connecting distributed Emergency Shutdown (ESD) systems across wide refinery footprints.

• LNG Terminals: Maintaining high-speed data flow for fire and gas (F&G) detection systems.

• Power Utilities: Integrating safety logic solvers across expansive generation facilities.
