Product Overview

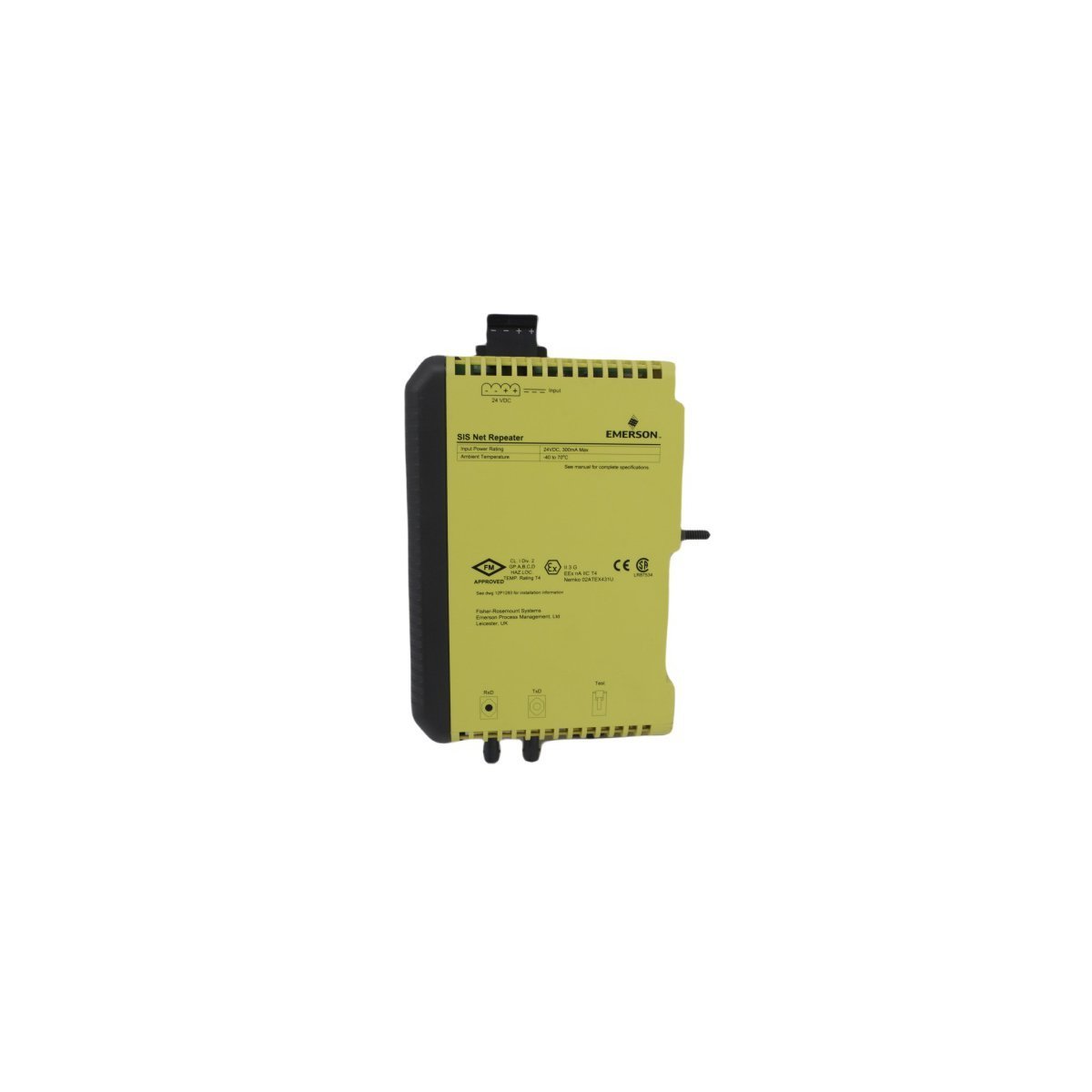

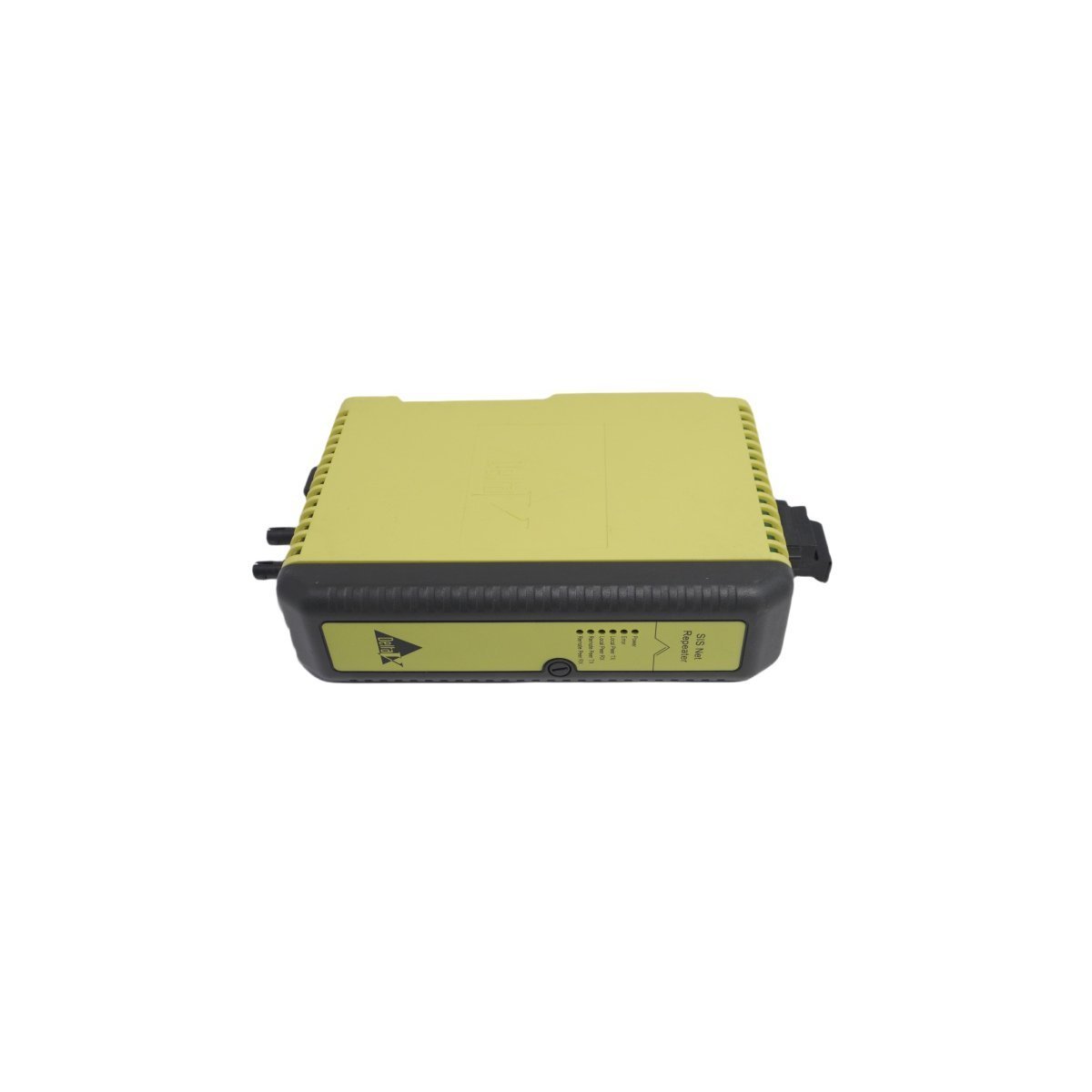

The Emerson KJ2221X1-BA1, also identified by part numbers 12P3232X112 and VS6002, is a dedicated SISNet Repeater designed for the DeltaV SIS™ process safety system. This module functions as a signal regenerator and network extender, allowing safety-critical communication to span greater physical distances within a distributed control environment. In large-scale industrial facilities like refineries and chemical plants, the SISNet Repeater ensures that high-speed safety bus signals maintain their integrity between localized safety logic solvers and remote I/O nodes.

By reinforcing the safety network’s backbone, the KJ2221X1-BA1 eliminates signal attenuation and synchronization errors that can occur over long cable runs. It is an essential component for maintaining the strict timing requirements of Safety Instrumented Functions (SIF), ensuring that emergency shutdown (ESD) commands and fire and gas (F&G) data are transmitted without latency or degradation.

Technical Specifications and Capabilities

The KJ2221X1-BA1 is engineered to meet the high-availability standards of safety-rated industrial networks.

• Module Type: SISNet Repeater / Network Extender

• Model Number: KJ2221X1-BA1

• Order Codes: 12P3232X112, VS6002

• System Compatibility: DeltaV SIS™ Safety Instrumented System

• Network Role: Signal boosting and regeneration for the SISNet safety bus

• Redundancy Support: Fully compatible with redundant safety network architectures

• Installation: Carrier-mounted for easy integration into DeltaV racks

• Weight: 0.32 kg

• Dimensions: 19.0 cm x 12.5 cm x 4.1 cm

• Origin: Made in the USA

Key Operational Characteristics

• Extended Communication Reach: Overcomes the distance limitations of standard copper safety bus segments, allowing for the deployment of safety controllers in geographically dispersed process areas.

• Signal Re-clocking and Conditioning: Actively regenerates digital signals to remove jitter and electrical noise, ensuring consistent performance across complex industrial topologies.

• High-Reliability Architecture: Built to operate in safety-critical environments where communication failure is not an option; supports the maintenance of Safety Integrity Level (SIL) ratings for the entire control loop.

• Hardware Diagnostics: Provides real-time status indication for network health, allowing maintenance personnel to quickly identify and resolve connectivity issues before they impact process uptime.

• Seamless DeltaV Integration: Fully recognized by DeltaV configuration software, enabling straightforward commissioning, monitoring, and remote diagnostics through the standard engineering workstation.
