Product Overview

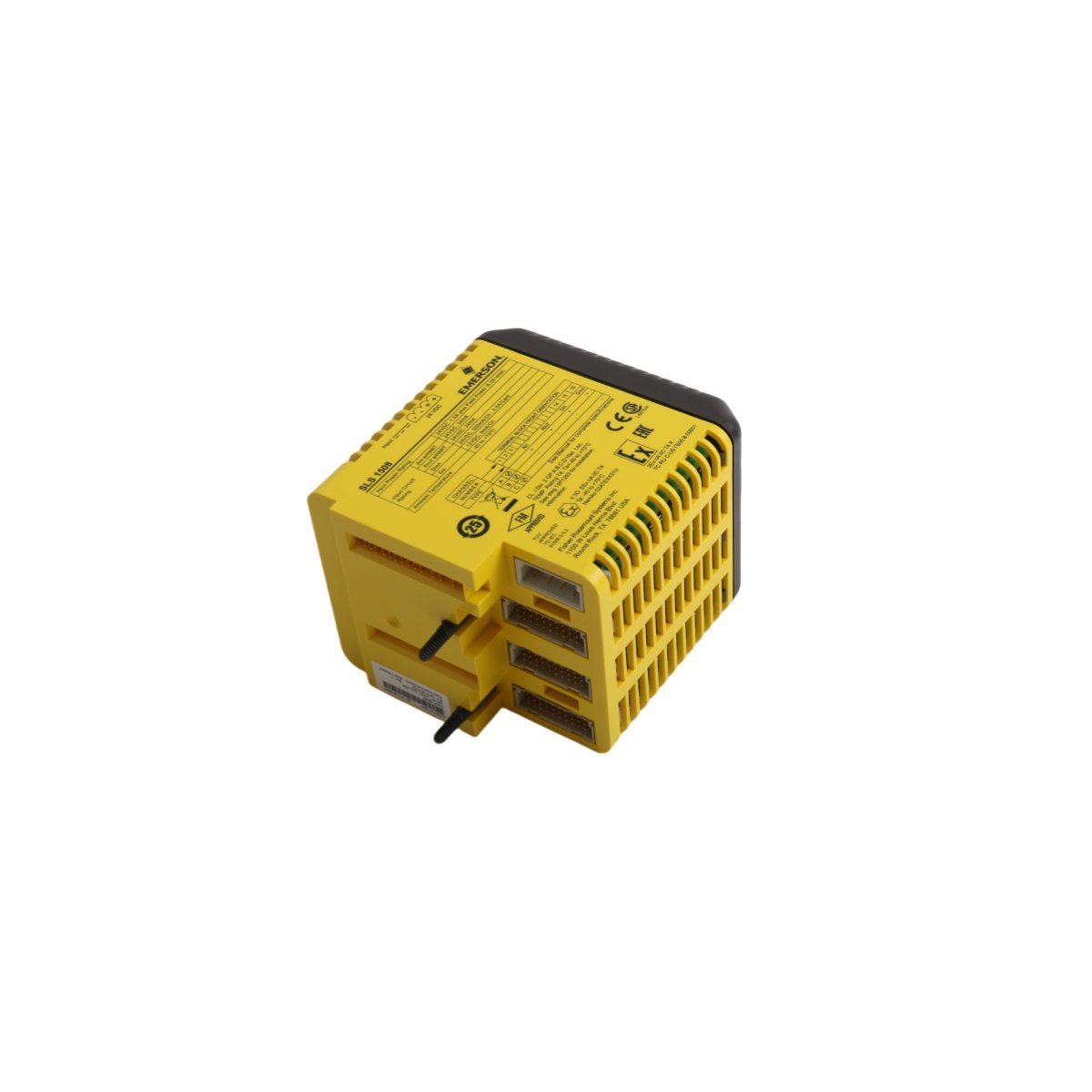

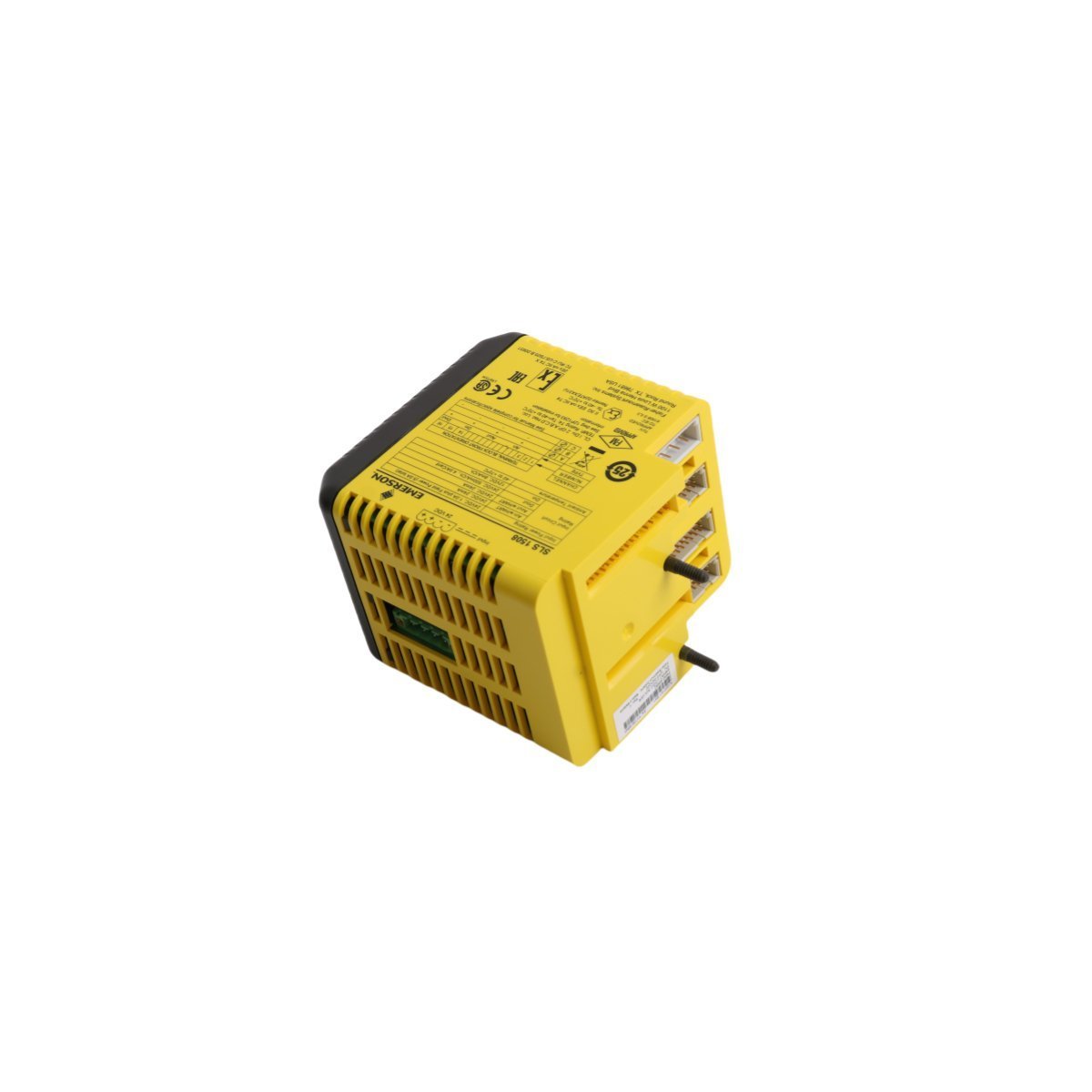

The Emerson KJ2201X1-BA1, also known by part number 12P3162X202 or the SLS1508 designation, is a specialized Smart Logic Solver designed for the DeltaV SIS™ (Safety Instrumented System). This critical hardware component is engineered to execute safety logic independently of the basic process control system (BPCS), ensuring that emergency shutdown (ESD), fire and gas (F&G), and burner management (BMS) functions are maintained with the highest degree of reliability.

The SLS1508 logic solver provides the computational intelligence required to monitor safety critical variables—including pressure, temperature, and flow—and initiate corrective actions within milliseconds. By integrating directly into the DeltaV safety architecture, the KJ2201X1-BA1 offers a scalable solution that maintains strict separation between safety and control layers while allowing unified engineering and diagnostic visibility.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ2201X1-BA1

• Order Number: 12P3162X202

• Nomenclature: SLS1508 Smart Logic Solver

• Product Series: DeltaV SIS™

• System Type: Safety Instrumented System (SIS)

• Logic Execution: Local, decentralized safety logic

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

• Protection Level: G3 Harsh Environment (ISA-S71.04)

• Weight: 0.5 kg

• Dimensions: 8.3 x 12.5 x 10.5 cm

• Origin: USA

Key Technical Characteristics

• Decentralized Safety Logic: The SLS1508 executes its safety logic locally within the module. This decentralized approach ensures that a failure in the central controller or the communication network will not prevent the safety system from performing its protective function.

• SIL 3 Rated Reliability: Designed and certified for use in SIL 3 safety loops (IEC 61511), the KJ2201X1-BA1 employs advanced internal hardware redundancy and self-diagnostics to achieve the high probability of failure on demand (PFD) required for process safety.

• Integrated Hardware Diagnostics: The solver continuously performs comprehensive self-tests, monitoring the integrity of internal memory, processor execution, and I/O circuit health. Any discrepancy is immediately reported to the DeltaV alarm system for proactive maintenance.

• High-Speed Execution: Optimized for time-critical safety shutdowns, the SLS1508 provides low-latency logic solving and output activation, which is vital for preventing catastrophic events in high-pressure or volatile chemical processes.

• Extreme Environmental Hardening: With a wide thermal operating range and G3-rated conformal coating, the module is resilient against the corrosive atmospheres and mechanical vibrations typical of offshore platforms and petrochemical plants.

• Simplified Engineering and Expansion: The modular design allows for the easy addition of safety loops. It utilizes a user-friendly interface for configuration, enabling engineers to implement complex cause-and-effect matrices through standard DeltaV SIS software tools.

Primary Applications

The Emerson KJ2201X1-BA1 SLS1508 is a fundamental component for:

• Emergency Shutdown Systems (ESD): Protecting plant assets and personnel during process excursions.

• Fire and Gas Systems (F&G): Managing the detection and mitigation of hazardous leaks or fire events.

• Burner Management Systems (BMS): Ensuring safe start-up, operation, and shutdown of industrial furnaces and boilers.

• Critical Interlock Control: Providing high-integrity logic for pressure relief and spill prevention.
