Product Overview

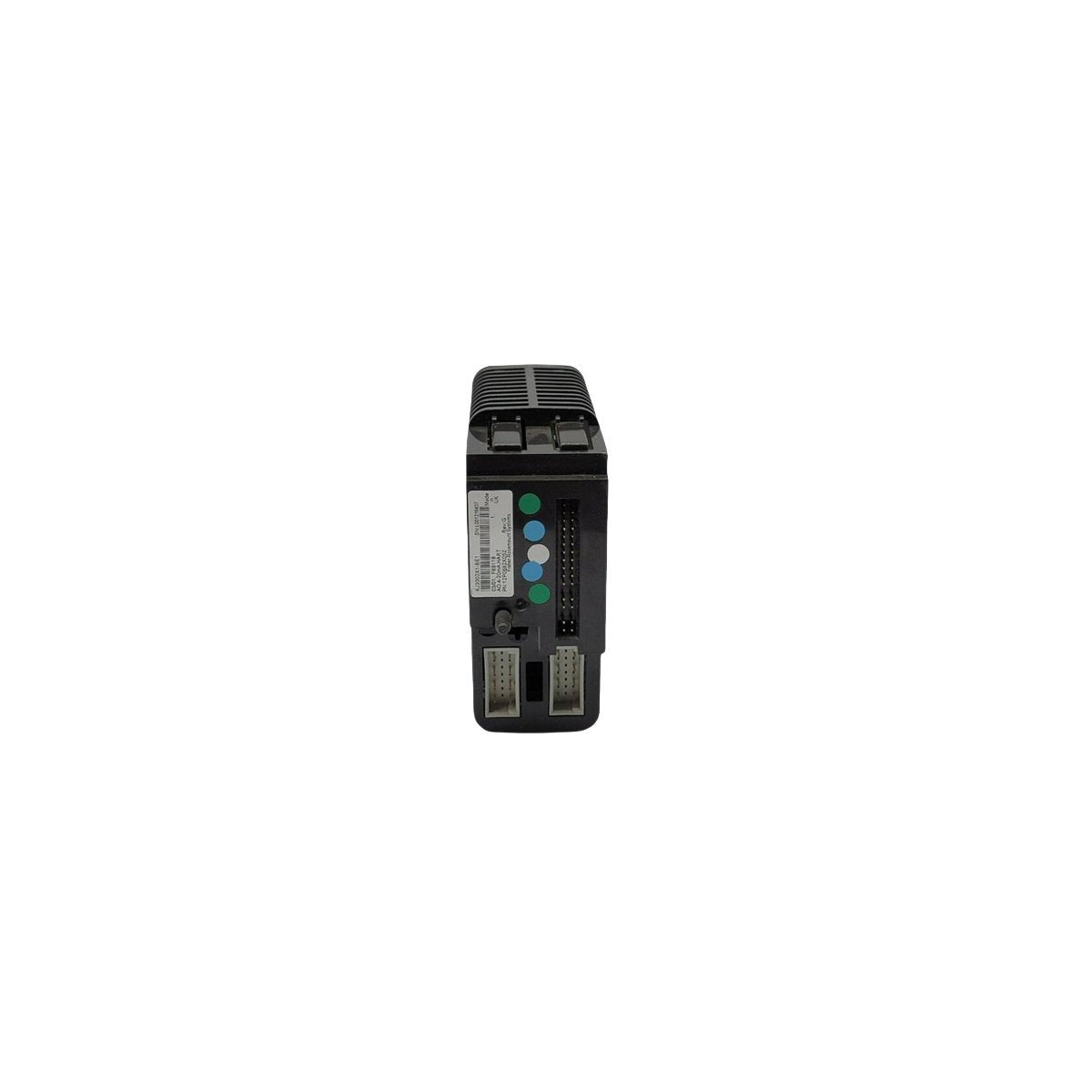

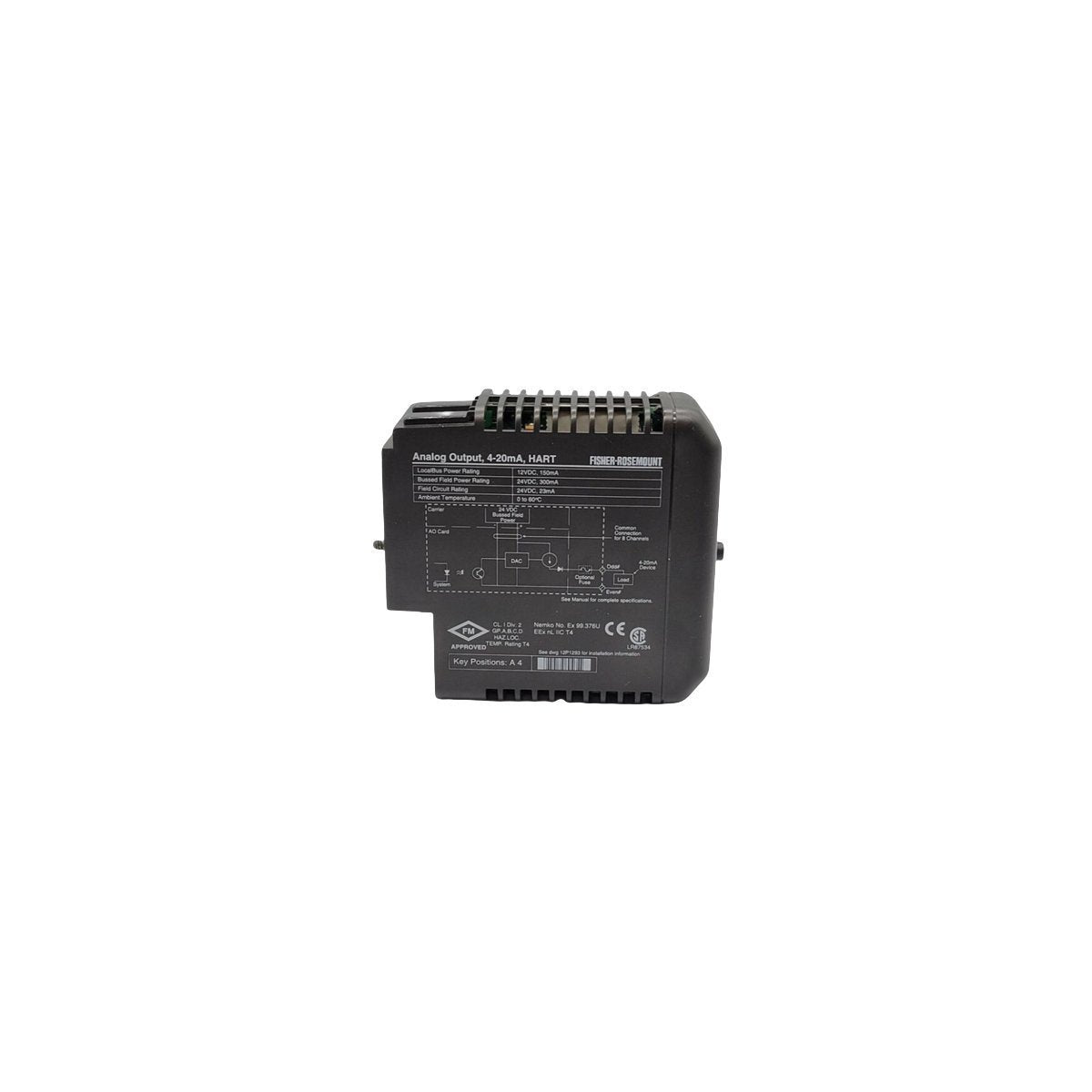

The Emerson KJ3002X1-BE1 (Part Number 12P0682X052) is a high-performance 8-channel analog output module designed for the DeltaV™ M-series I/O subsystem. This module acts as a critical interface between the DeltaV Distributed Control System (DCS) and field instruments, converting digital control signals into precise 4-20 mA analog currents. It is specifically engineered to drive final control elements such as control valves, variable speed drives, and positioners with high deterministic accuracy. By integrating this module into the M-series carrier, operators achieve granular control over continuous process variables including flow rates, pressure setpoints, and temperature regulation.

Technical Characteristics

The KJ3002X1-BE1 module is built to maintain signal integrity and system uptime through several advanced engineering features:

Signal Precision and Isolation The module provides 8 independent channels, each capable of delivering a 4-20 mA DC signal. It incorporates internal galvanic isolation and noise filtering to prevent ground loops and electromagnetic interference (EMI) from degrading signal accuracy in electrically noisy plant environments.

Intelligent Diagnostics Equipped with DeltaV-native diagnostics, the module continuously monitors the health of the output loops. It can detect open circuits or field wiring faults, reporting these conditions directly to the system explorer to allow for proactive maintenance before process deviations occur.

Hot-Swappable Modular Design The KJ3002X1-BE1 is designed for easy installation on the DeltaV M-series I/O carrier. It supports "hot-swapping," enabling modules to be replaced under power without interrupting the operation of other I/O cards in the same subsystem, which significantly reduces mean time to repair (MTTR).

Technical Specifications

• Brand: Emerson

• Model Number: KJ3002X1-BE1

• Part Number: 12P0682X052

• Series: DeltaV™ M-series

• Product Type: Analog Output (AO) Module

• Number of Channels: 8

• Signal Range: 4 to 20 mA DC

• Isolation: Field-to-logic isolation

• Dimensions: 5.1 x 12.7 x 12.7 cm

• Weight: 0.2 kg

• HS Code: 8537101190

• Country of Origin: USA

Application Areas

The Emerson KJ3002X1-BE1 is utilized extensively in process-heavy industries where precise modulation of equipment is required. Primary applications include:

• Oil and Gas: Modulating control valves on separators and pipelines.

• Chemical Processing: Regulating feed rates for reactors and catalysts.

• Power Generation: Controlling steam bypass valves and feedwater pumps.

• Water Treatment: Managing chemical dosing pumps and variable frequency drives (VFDs).
