Product Overview

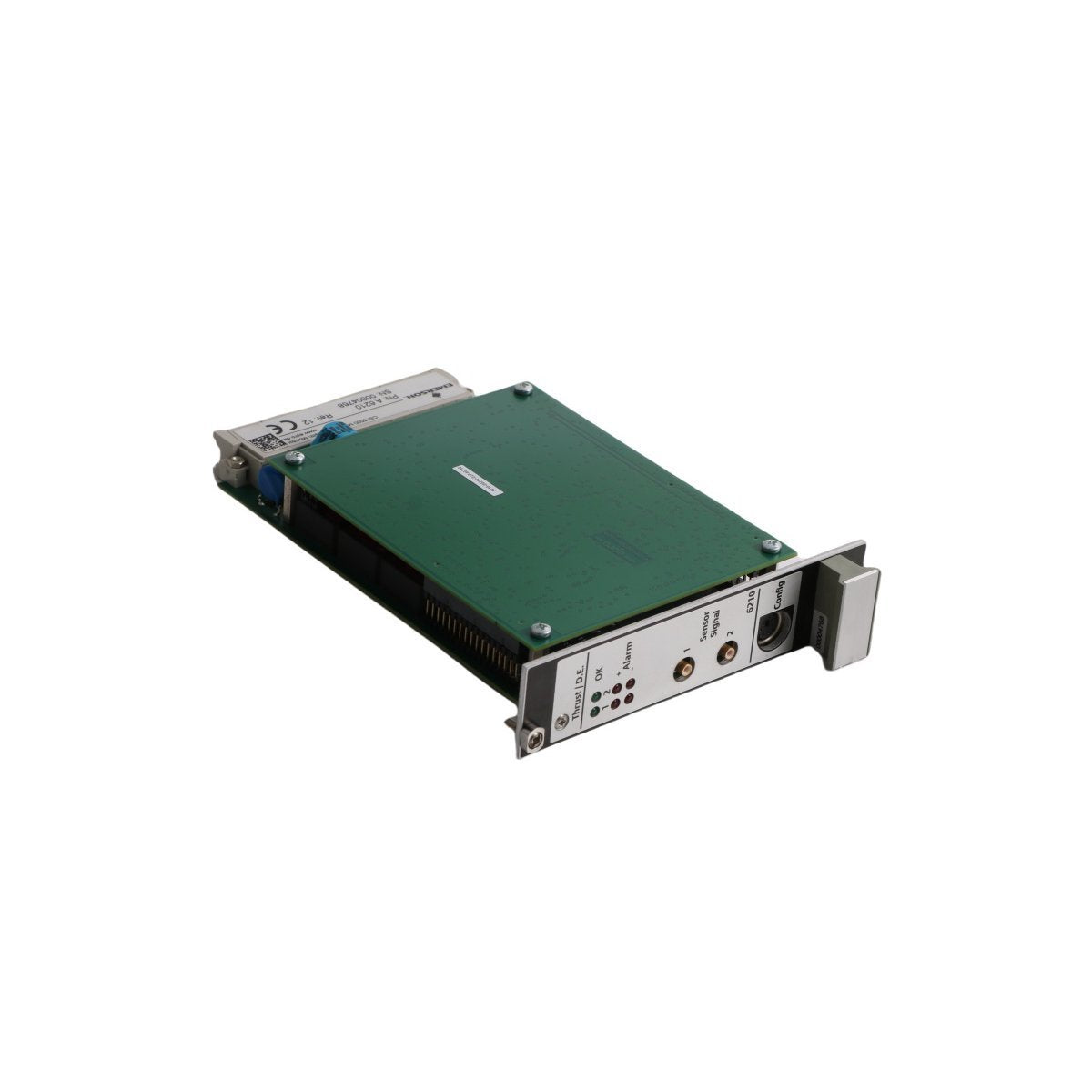

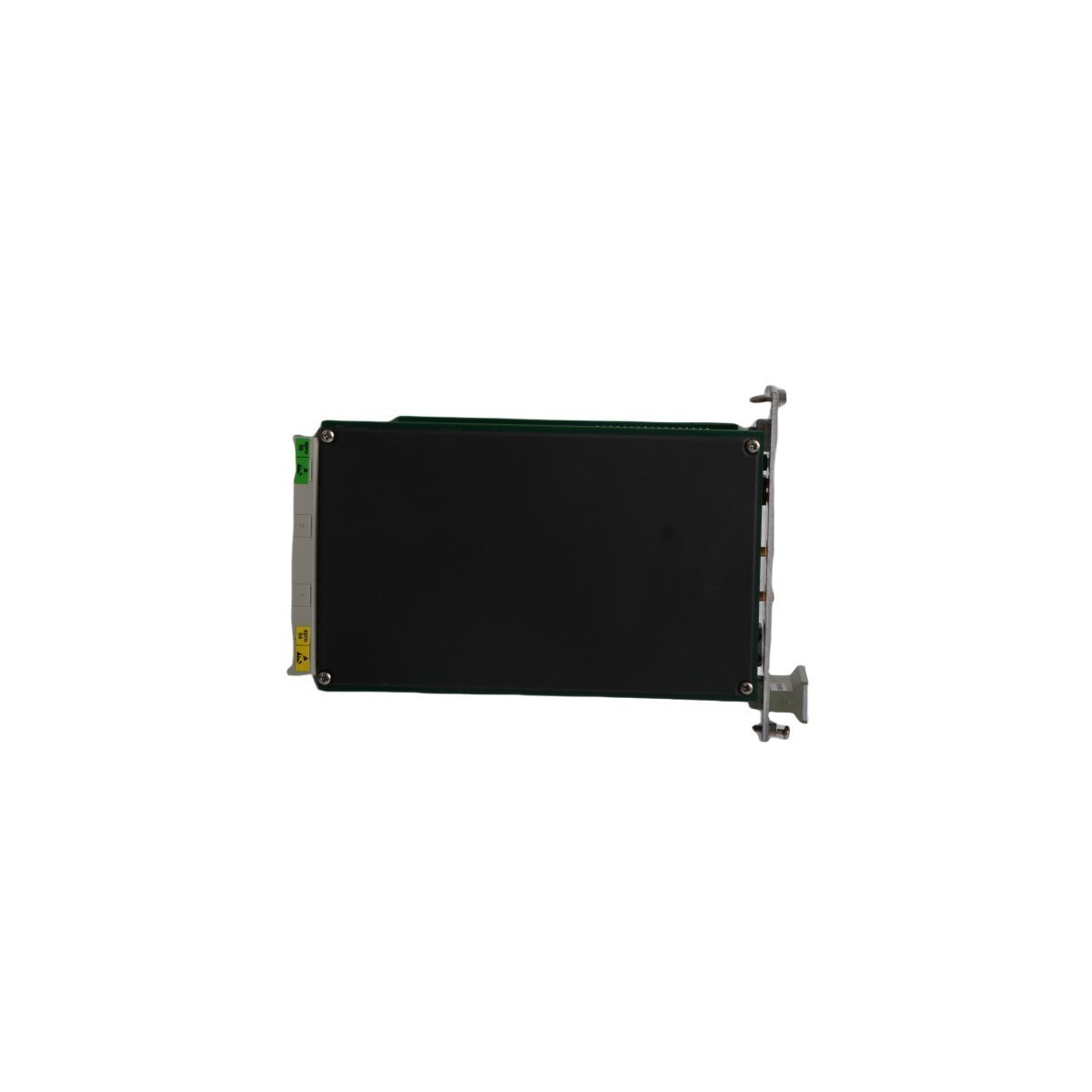

The Emerson A6210 is a high-precision, two-channel monitoring module designed for the AMS 6500 (formerly CSI 6500) Machinery Health Monitor platform. This module specializes in measuring axial displacement and mechanical positioning of critical rotating assets. It is a fundamental component for protecting large-scale industrial machinery, such as steam and gas turbines, compressors, and pumps, where precise clearance management is essential for operational safety.

By utilizing non-contact eddy current sensor technology, the A6210 provides real-time data on thrust position, differential expansion, and reciprocating compressor rod position. These measurements are vital for detecting thermal growth, bearing wear, and mechanical shifts that could lead to catastrophic equipment failure if left unmonitored.

Technical Specifications

• Manufacturer: Emerson (CSI / EPRO)

• Model Identification: A6210

• Module Type: Dual-Channel Position Monitor

• Product Series: AMS 6500 Machinery Health Monitor

• Measurement Modes: Thrust Position, Differential Expansion, Rod Position, Case Expansion

• Input Compatibility: Standard eddy current / proximity probe systems

• Signal Output: Temperature-compensated analog and digital status data

• Weight: 0.24 kg

• Dimensions: 19 cm x 12.8 cm x 7 cm

• HS Code: 8537101190

• Origin: USA

Core Technical Characteristics

• Multifunctional Monitoring: The A6210 is highly versatile, capable of being configured for axial thrust (tracking the shaft's longitudinal movement), differential expansion (measuring the relative growth between the rotor and the casing), or rod drop in reciprocating machinery.

• High-Resolution Data Acquisition: The module captures minute shifts in mechanical position with sub-micron accuracy, feeding critical data into the AMS Machinery Manager software for trend analysis and diagnostic reporting.

• Industrial Hardening: Engineered to maintain signal integrity in the presence of extreme temperatures, electromagnetic interference (EMI), and high-vibration environments typical of power generation and petrochemical facilities.

• Configurable Alert Thresholds: Engineers can define specific "Alert" and "Danger" setpoints. When these limits are breached, the A6210 can trigger automated machinery protection sequences or emergency shutdowns through the system rack.

• Seamless Backplane Integration: Plugs directly into the AMS 6500 chassis, utilizing the high-speed backplane for power and communication with the central controller and other protection modules.

Industrial Application

The A6210 is primarily deployed in high-stakes environments where unplanned downtime results in significant financial loss. It is widely used in:

• Power Plants: Monitoring the axial thrust of main steam turbines.

• Oil & Gas: Tracking differential expansion in large centrifugal compressors.

• Process Manufacturing: Supervising rod position in heavy-duty reciprocating compressors to detect premature rider band wear.
