Product Overview

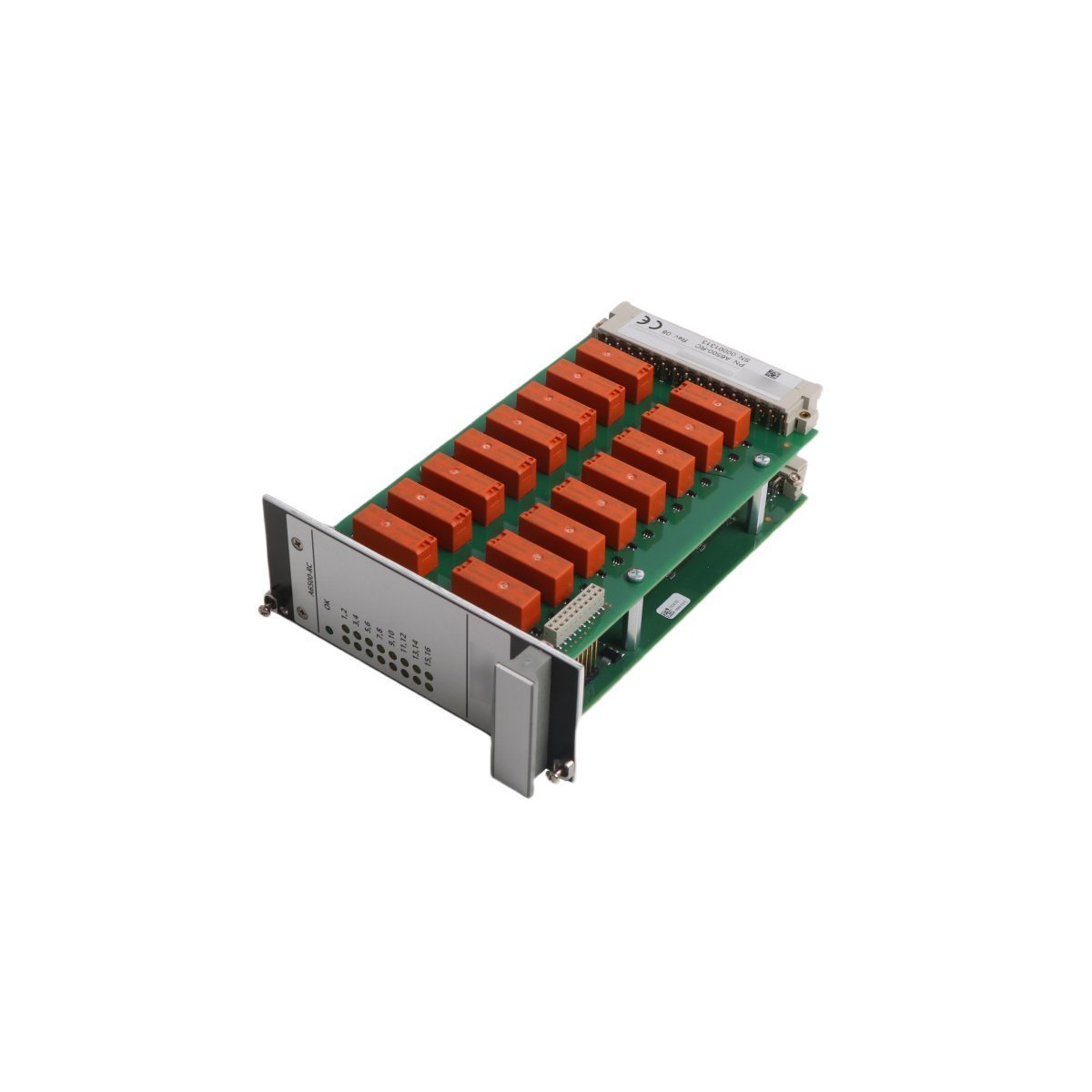

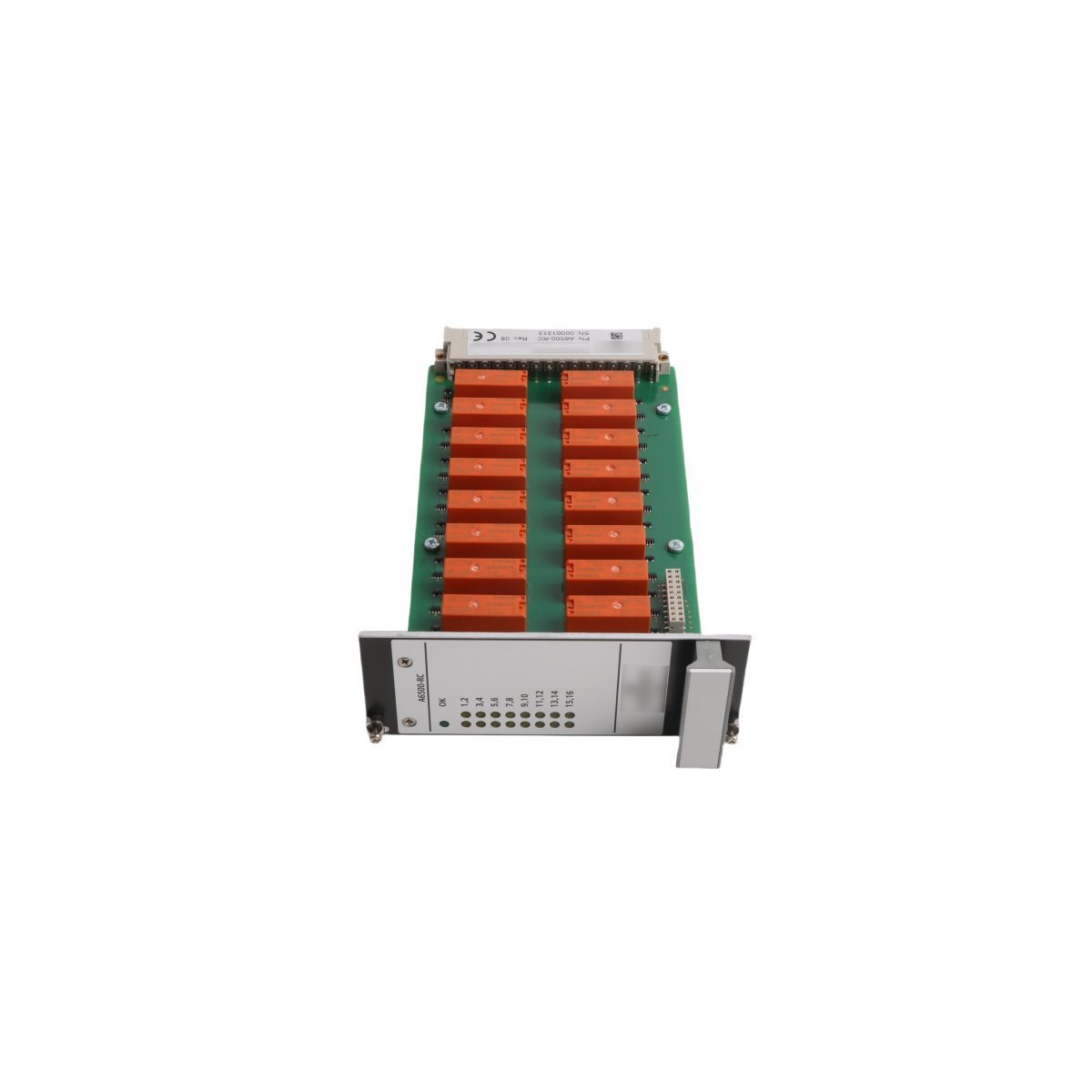

The Emerson A6500-RC is a high-integrity System Relay Card engineered specifically for the AMS 6500 ATG (Asset Transmission Group) machinery protection framework. This module serves as the primary physical interface between the monitoring system and the plant’s emergency shutdown or alarm annunciation hardware. By providing a series of configurable relay outputs, the A6500-RC translates processed vibration, position, and temperature data into actionable safety interlocks, ensuring that critical rotating assets are automatically protected when operational parameters exceed predefined safety limits.

Designed for high-reliability environments such as petrochemical plants, power generation facilities, and chemical processing units, the A6500-RC is a core safety component. It facilitates the immediate execution of machine trips or alarm alerts, effectively mitigating the risk of catastrophic mechanical failure. The module's architecture is optimized for low-latency response, ensuring that relay state changes occur in near real-time following a violation of setpoint thresholds.

Technical Functionality and Logic Integration

The A6500-RC offers sophisticated flexibility in relay logic configuration. Engineers can program the card to respond to diverse machinery threats, including high-frequency vibration spikes, axial displacement, or thermal overloads. Through seamless integration with Emerson AMS monitoring software, users can define complex voting logic (such as 1-out-of-2 or 2-out-of-3) to minimize nuisance trips while maintaining absolute protection integrity.

Constructed to withstand the rigors of heavy industrial environments, the module features robust electrical isolation and resistance to electromagnetic interference (EMI) and physical shock. Its compact form factor allows for efficient installation within the AMS 6500 rack, where it monitors the status of primary protection modules and executes localized control actions. Despite its discontinued status by the manufacturer, the A6500-RC remains an essential spare part for maintaining the operational safety and regulatory compliance of legacy AMS 6500 systems worldwide.

Technical Specifications

• Manufacturer: Emerson (formerly Epro)

• Model Designation: A6500-RC

• Product Series: AMS 6500 Machinery Protection System

• Module Type: System Relay Card

• Relay Outputs: Configurable dry contact relays

• Switching Capacity: Standard industrial relay ratings for 24VDC/250VAC applications

• Response Time: Sub-millisecond internal logic processing

• System Interface: Rack-based backplane communication

• Operating Weight: 0.42 kg (0.93 lbs)

• Dimensions (W x H x D): 5 cm x 19 cm x 12.7 cm

• Manufacturing Origin: USA

• HS Code: 8537101190

Critical Protective Capabilities

• Fail-Safe Operation: Designed to maintain machine protection status even in the event of partial system communication loss.

• Logic Customization: Supports tailored alarm and trip thresholds for specific machine train requirements via AMS software.

• Environmental Resilience: Hardened against industrial vibration, humidity, and electronic noise for long-term field stability.

• Real-Time Diagnostics: Continuous monitoring of relay coil integrity and card health to ensure the safety loop is always active.
