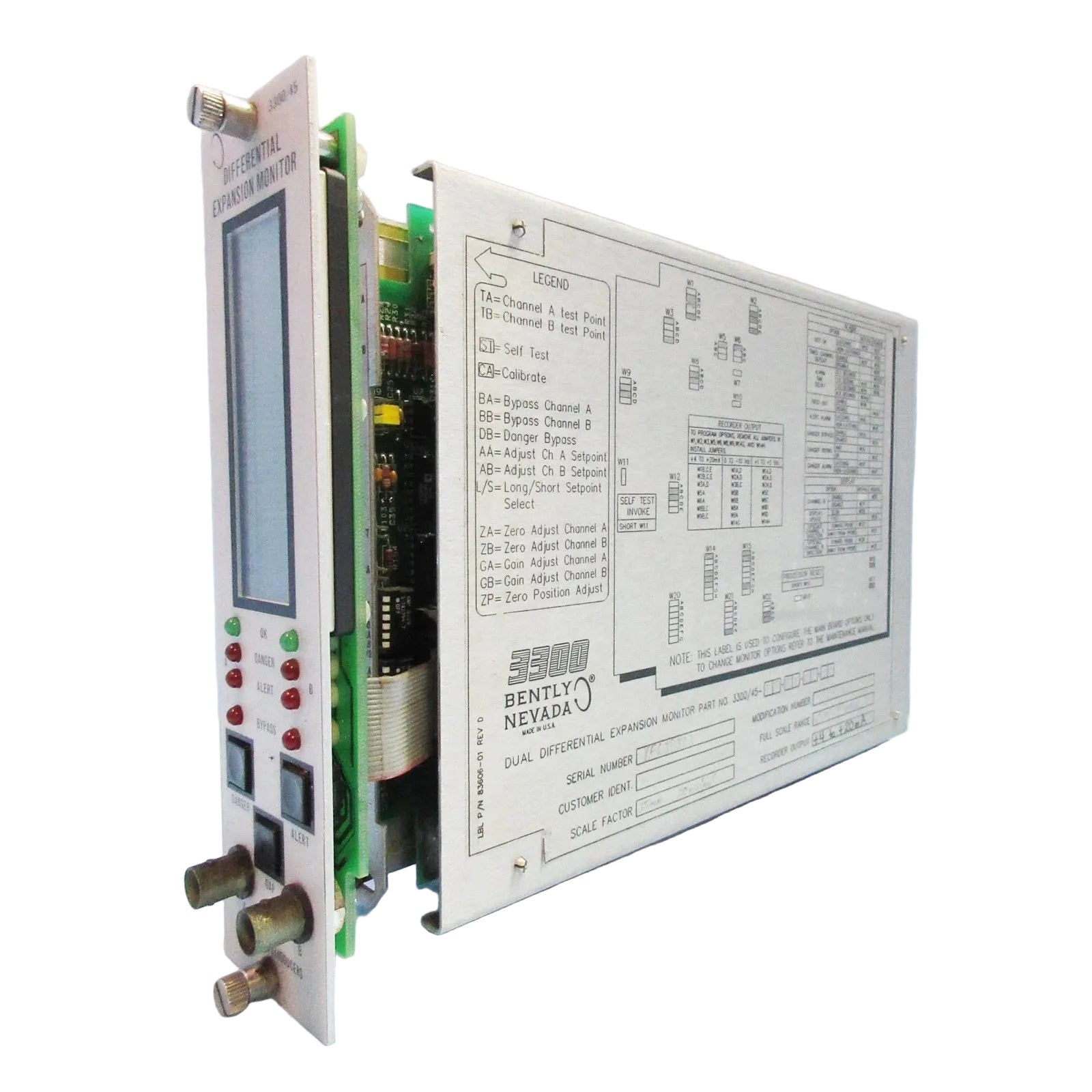

Product Overview

The Bently Nevada 3300/45-02-01-03-00 is a high-precision dual-channel monitor specifically engineered to track the relative thermal growth between a machine’s rotor and its stationary housing. Known as differential expansion, this measurement is vital during the startup and shutdown phases of large steam turbines, where rapid temperature changes can cause unequal expansion rates. If left unmonitored, these changes could lead to catastrophic internal contact. This module provides continuous surveillance and automated alarm triggering, utilizing Quad Relay outputs to ensure maximum system availability and protective redundancy within a 3300 series rack environment.

Core Hardware Parameters and Environmental Metrics

• Measurement Range: 0 to 10 mm (Option 02)

• Transducer Input Support: Designed for 25 mm proximity transducer systems (Option 01)

• Relay Output Structure: Quad Relay configuration with epoxy sealing for circuit protection (Option 03)

• System Accuracy: Within ±1.6% of the full-scale monitoring range

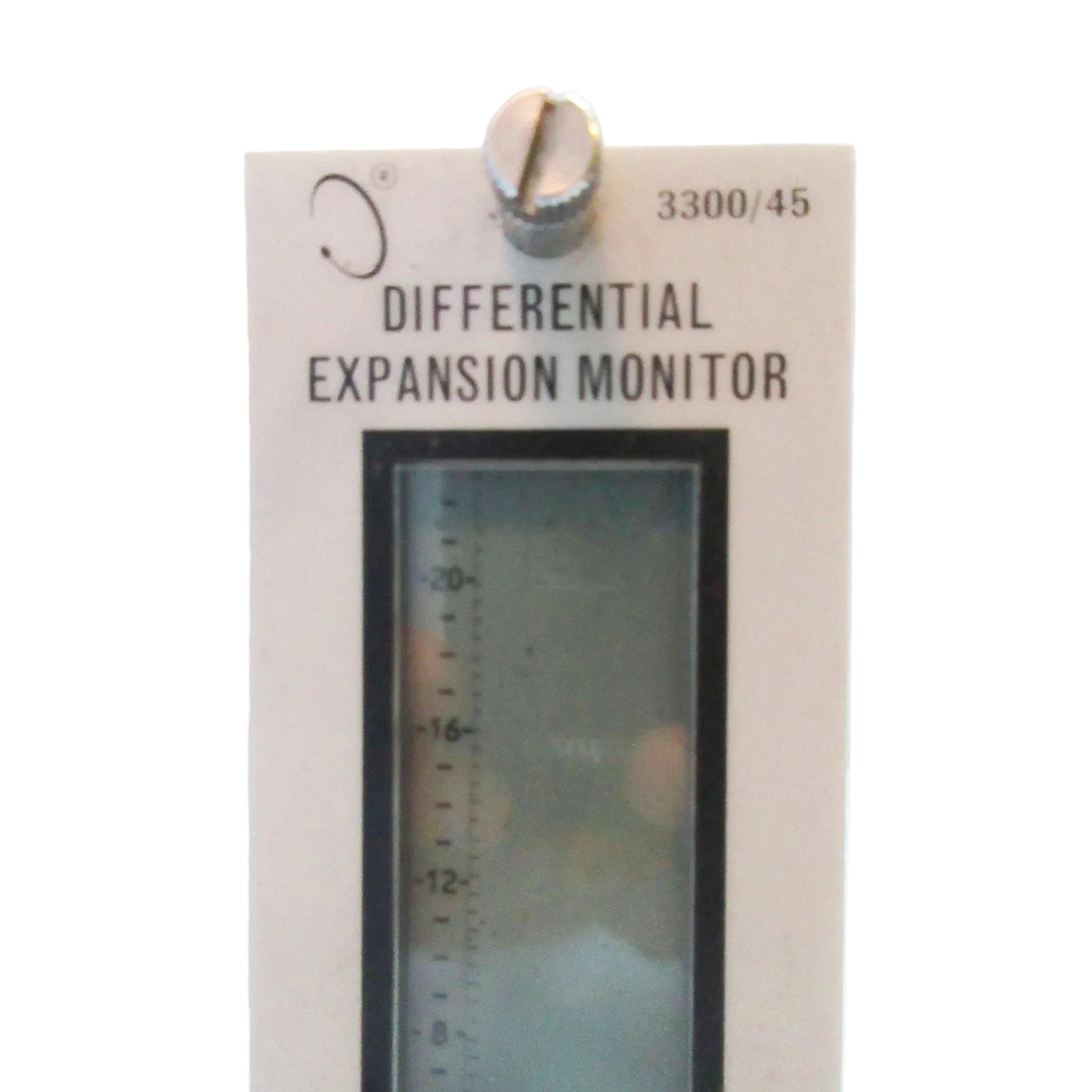

• Display Resolution: 0.1 mm increments on a high-visibility vertical faceplate

• Operating Temp Range: 0°C to +65°C (+32°F to +150°F)

• Storage Temp Range: -40°C to +85°C (-40°F to +185°F)

• Standard Unit Weight: 1.0 kg (2.2 lbs)

• Module Dimensions: 241 mm x 50 mm x 103 mm (9.5 in x 1.97 in x 4.05 in)

Strategic Industrial Deployment

This differential expansion monitoring system is a prerequisite for any facility operating large-scale rotating equipment subject to extreme thermal cycling. Its primary roles include:

• Steam Turbine Thermal Management: Monitoring the rotor-to-casing growth during the critical "warm-up" period in power plants.

• Gas Turbine Protection: Ensuring internal clearances are maintained during high-load thermal expansion.

• Large Centrifugal Compressors: Managing axial growth in multi-stage compression units for oil and gas processing.

• Industrial Boiler Feed Pumps: Tracking shaft stability in high-temperature fluid transport systems.

• Critical Fan Assemblies: Oversight of thermal shifts in heavy-duty cooling or ventilation fans for mining and smelting.

FAQ

Q: What is the primary advantage of the Quad Relay option on this module?

A: The Quad Relay configuration (Option 03) provides four independent relay contacts, allowing for sophisticated voting logic or multiple levels of Alert and Danger notifications to be sent to separate control systems.

Q: Why is a 25 mm transducer input specifically required for this monitor?

A: Because differential expansion involves significant movement, standard proximity probes often lack the necessary range. The 25 mm transducer input ensures the monitor can track the full travel of the rotor relative to the case.

Q: Can this 3300/45 module operate in high-humidity environments?

A: Yes, the module is rated for up to 95% non-condensing relative humidity and features epoxy-sealed relays to protect internal contacts from moisture and dust ingress.

Q: Is it possible to use this monitor without a Bently Nevada 3300 rack?

A: No, the 3300/45 is a rack-based module that relies on the 3300 series backplane for power, signal routing, and communication with other monitoring components.

Q: Does this specific configuration (00) include agency approvals like CSA?

A: This specific configuration is listed with Option 00, meaning it was ordered for applications where specific agency approvals were not required at the time of manufacture.
