Product Overview

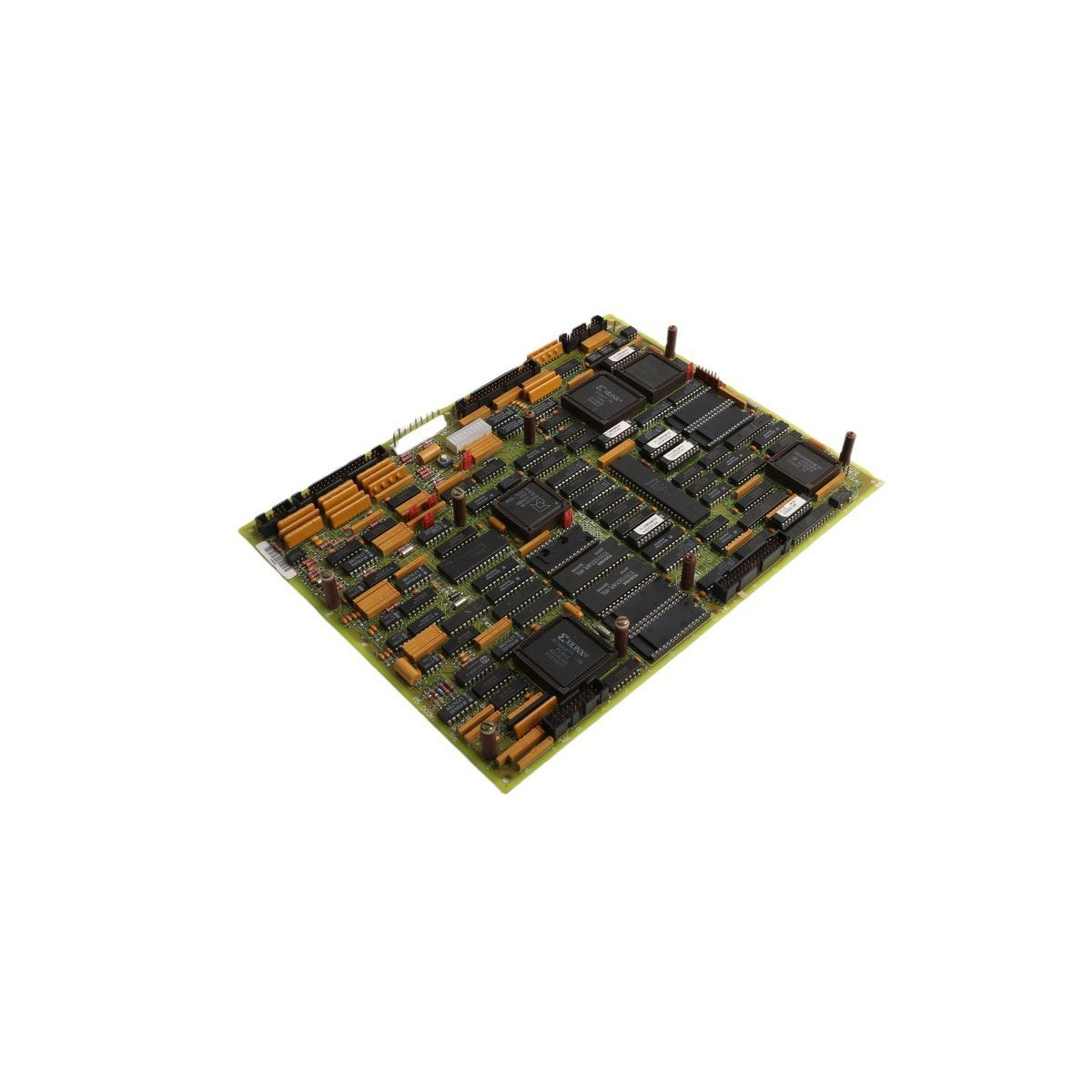

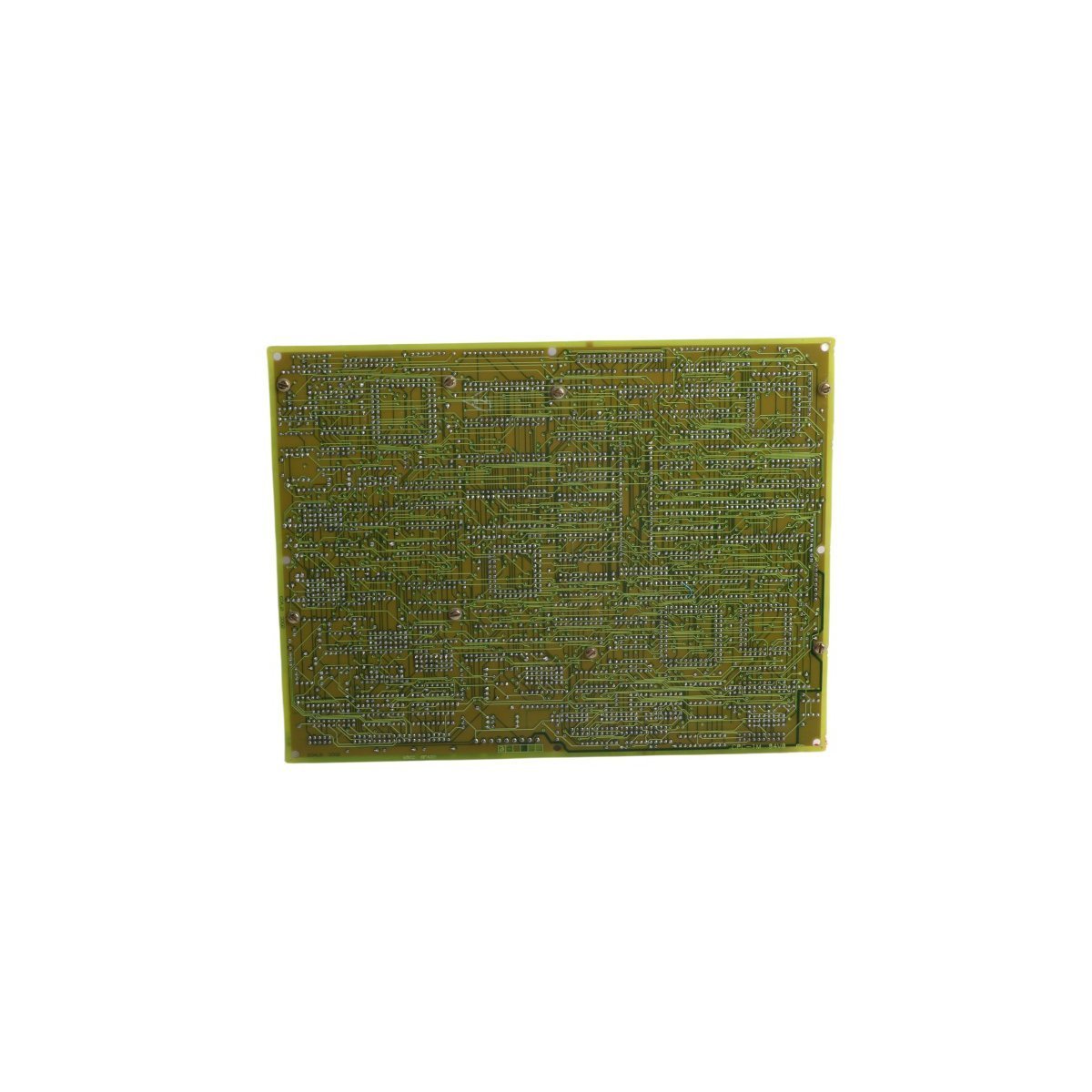

The DS200SDCCG1AEB is a high-performance drive control primary processor board engineered by General Electric for the Speedtronic Mark V and EX2100 control lineages. This module serves as the computational core for drive operations, managing the sophisticated analog-to-digital signal conversion necessary for regulating wind, steam, and gas turbines. By processing real-time feedback from field instrumentation, the DS200SDCCG1AEB ensures that turbine speed, load, and synchronization remain within strict operational tolerances. Its architecture is specifically designed to facilitate high-speed communication between auxiliary daughterboards and the main processor bus, making it a foundational element for maintaining the stability of legacy DCS (Distributed Control Systems).

Engineering Architecture and Hardware Capabilities

• Processing Core: Equipped with a Programmable Logic Device (PLD) for localized hardware logic execution and system interfacing.

• Memory Configuration: Integrated static RAM (SRAM) provides a high-speed buffer for data exchange between the card and DPSC processor buses.

• I/O Density: Features comprehensive analog and digital input/output arrays to handle diverse sensor feedback and actuator control signals.

• System Integration: Engineered for seamless master/slave communication with the DS200DPSC Power Supply Board.

• Diagnostics Interface: Includes an onboard LED array for immediate fault detection, featuring the green "IMOK" status indicator and the red "FAIL" diagnostic light.

• Physical Profile: Dimensions of 29.3 x 27 x 3.3 cm with a reinforced PCB substrate to withstand industrial vibration.

• Revision Level: The AEB suffix indicates an updated hardware revision optimized for enhanced signal processing fidelity compared to baseline G1 models.

Operational Deployment and Industrial Utility

The DS200SDCCG1AEB is utilized in critical power generation and heavy drive applications where precision timing is mandatory. Its primary industrial roles include:
