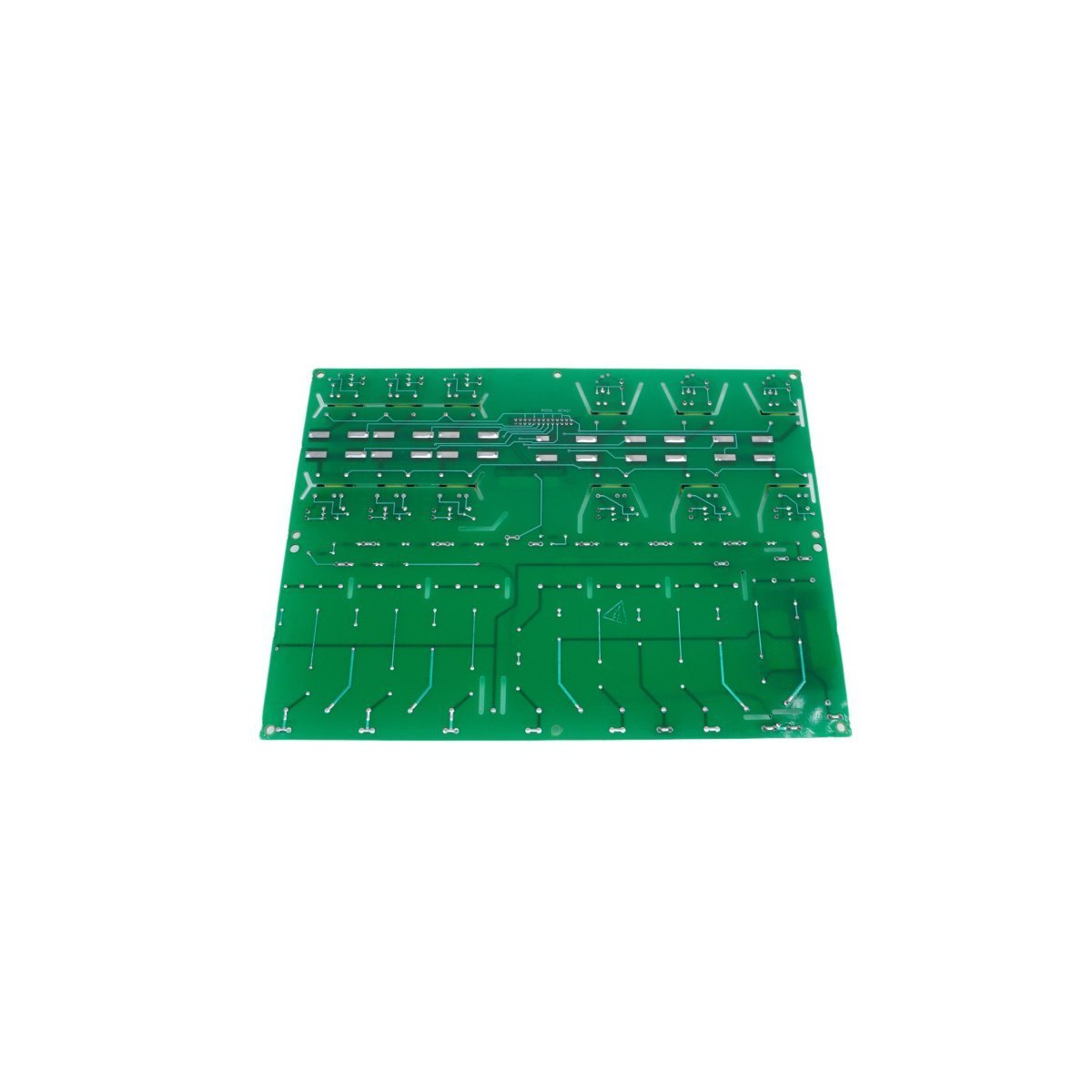

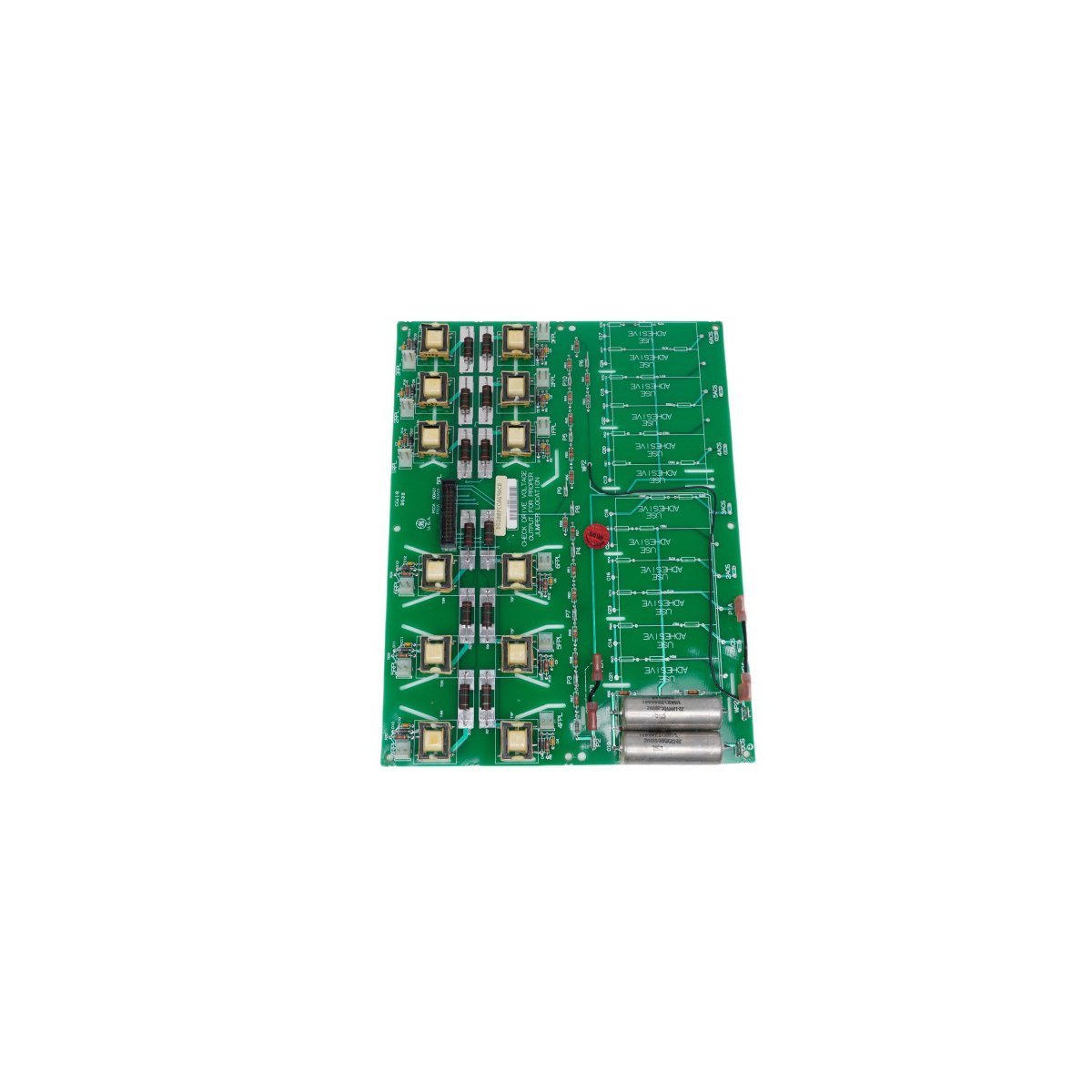

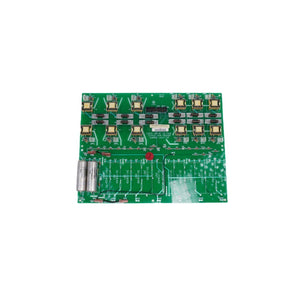

DS200PCCAG9ACB General Electric Power Connect Card Assembly Mark VIe
-
Dimensions: 27.8 x 21.2 x 4.8
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The DS200PCCAG9ACB is a high-performance Power Connect Card Assembly (PCCA) developed by General Electric for the Speedtronic Mark VIe and EX2100 Excitation control systems. This "Group Nine" revision represents a sophisticated power management solution designed to bridge the gap between control logic and high-power execution frames. It is specifically engineered to handle regenerative operational modes and provides the electrical infrastructure required for stable DC power distribution. By integrating protection components like leg reactors and fuses directly into the card assembly, the DS200PCCAG9ACB streamlines power cabinet architecture while enhancing the overall safety and response time of the drive system.
Hardware Topology and Performance Benchmarks
The DS200PCCAG9ACB is built with a heavy-duty physical profile to manage high-voltage loads and thermal stress effectively:
-
Voltage Capacity: Optimized for systems operating up to 600 V rms AC and supporting regenerative DC bus levels up to 630 VDC.
-
Integrated Protection: Features an onboard leg reactor and leg fuse configuration to mitigate current surges and protect sensitive downstream silicon-controlled rectifiers (SCRs).
-
Frame Compatibility: Designed for seamless mechanical and electrical integration within J-style and M-style power frames.
-
Power Conditioning: Includes specialized DC voltage snubbers to suppress transient spikes and ensure clean power delivery to the SDCI power board.
-
Transformer Flexibility: Supports versatile installation environments with compatibility for both common bus and separate bus transformer configurations.
-
Physical Profile: A robust assembly weighing 1.4 kg with dimensions of 27.8 x 21.2 x 4.8 cm, engineered for industrial-grade durability.
-
Signal Integrity: Built on the Mark V/VIe series standards to maintain deterministic communication between the power bridge and the central DCS.
Strategic Industrial Implementations
This Power Connect Card is a vital asset in heavy industrial and energy sectors where power stability is critical for continuous operation:
| Implementation Sphere | Functional Utility |
| Excitation Control | Managing high-current power connections within the EX2100 system for large generator units. |
| Regenerative Drives | Facilitating energy recovery and stable braking in high-torque industrial motor applications. |
| Turbine Power Distribution | Acting as the primary connection node for power execution units in Mark VIe turbine governing. |
| Transient Suppression | Utilizing integrated snubbers to protect the drive system from catastrophic voltage fluctuations. |
| Industrial DCS Expansion | Providing a reliable, well-documented power interface for complex distributed control environments. |
