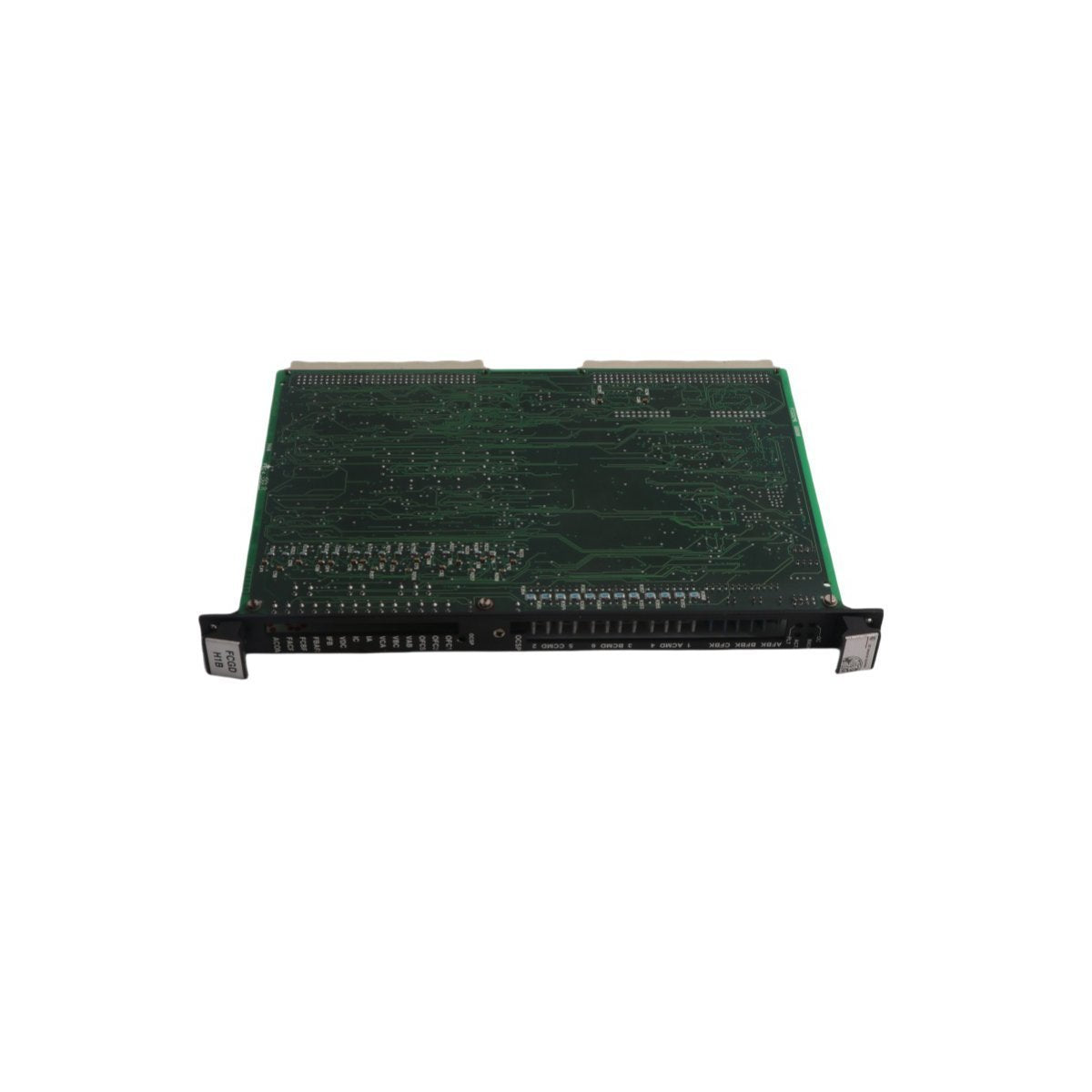

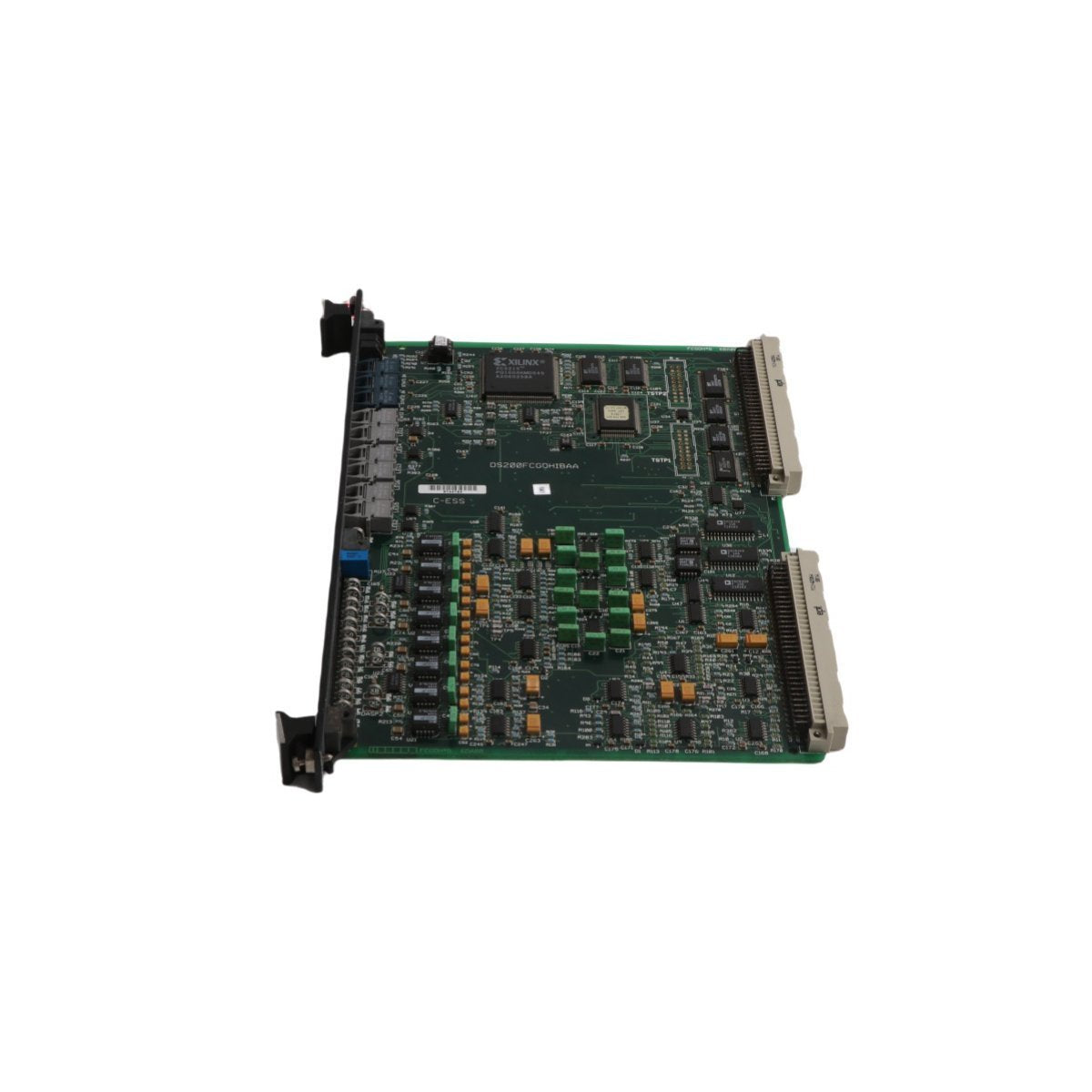

DS200FCGDH1B General Electric DS200FCGDH1BBA Gate Distribution and Status Board Mark VIe
-
Dimensions: 25.4 x 10.2 x 3.5 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The DS200FCGDH1BBA is a high-performance Gate Distribution and Status Board engineered by General Electric for Load Commutated Inverter (LCI) drive applications. This module is specifically designed to facilitate the control of 6-pulse phase-controlled, non-reversing power bridge configurations. Operating within the Speedtronic Mark VIe and Mark V ecosystems, it serves as the critical hardware link that decodes firing commands and distributes precise gate signals to power semiconductors. By collecting real-time feedback and diagnostic data, the DS200FCGDH1BBA ensures the power bridge operates with deterministic accuracy, maintaining system stability in high-demand industrial power conversion environments.
Technical Hardware Architecture and Engineering Specifications
The DS200FCGDH1BBA utilizes a sophisticated multi-layer PCB design to handle high-speed signal processing and rugged industrial conditions:
-
VME Standard Compliance: Built to a 6U VME form factor (approx. 9.2 x 6.3 inches), allowing for seamless installation into standardized industrial racks alongside Digital Signal Processing Cards (DSPC).
-
Advanced Circuitry: Features a robust six-layer PCB construction with Surface Mount Technology (SMT) on both sides to maximize component density and electrical reliability.
-
Current Feedback Processing: Integrated conditioning circuits transform raw signals from current transformers or LEM® modules into precise IA, IB, and IC phase current data.
-
Frequency Regulation: Utilizes Voltage-Controlled Oscillator (VCO) circuits to convert conditioned current signals into frequency-regulated pulses for stable bridge switching.
-
Protective Interlocks: Equipped with an onboard overcurrent protection system that monitors combined phase currents and triggers a failsafe shutdown if thresholds are exceeded.
-
Diagnostic Interface: Includes a comprehensive array of physical testpoints and visual LED indicators for real-time monitoring of signal health and operational status.
-
Physical Profile: Lightweight 0.38kg unit with dimensions of 25.4 x 10.2 x 3.5 cm, optimized for high-density control enclosures.
Industrial Deployment and Protective Logic
The General Electric DS200FCGDH1BBA is a foundational component for synchronized motor control and power management:
| Functional Area | Operational Role |
| LCI Bridge Control | Managing the distribution of gate firing pulses for large-scale 6-pulse inverter bridges. |
| Current Monitoring | Real-time processing and conditioning of three-phase current feedback for precision regulation. |
| System Safety | Executing hardware-level overspeed or overcurrent trips that require a physical reset to ensure operator safety. |
| Signal Synchronization | Interfacing directly with the DSPC to ensure firing signals are perfectly timed with the AC line frequency. |
| Excitation Systems | Supporting high-power excitation frames where status feedback and gate distribution are critical for generator stability. |
