Product Overview

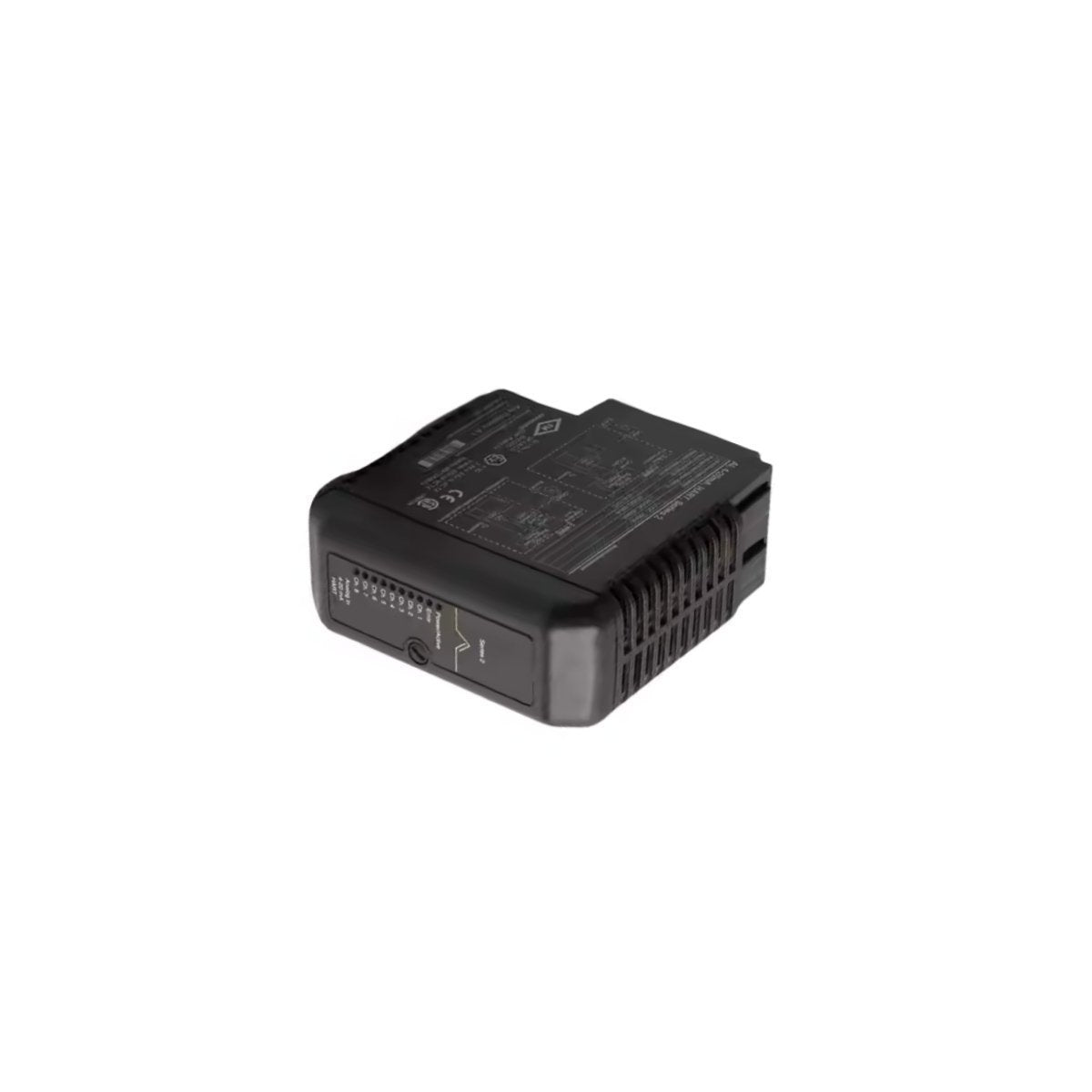

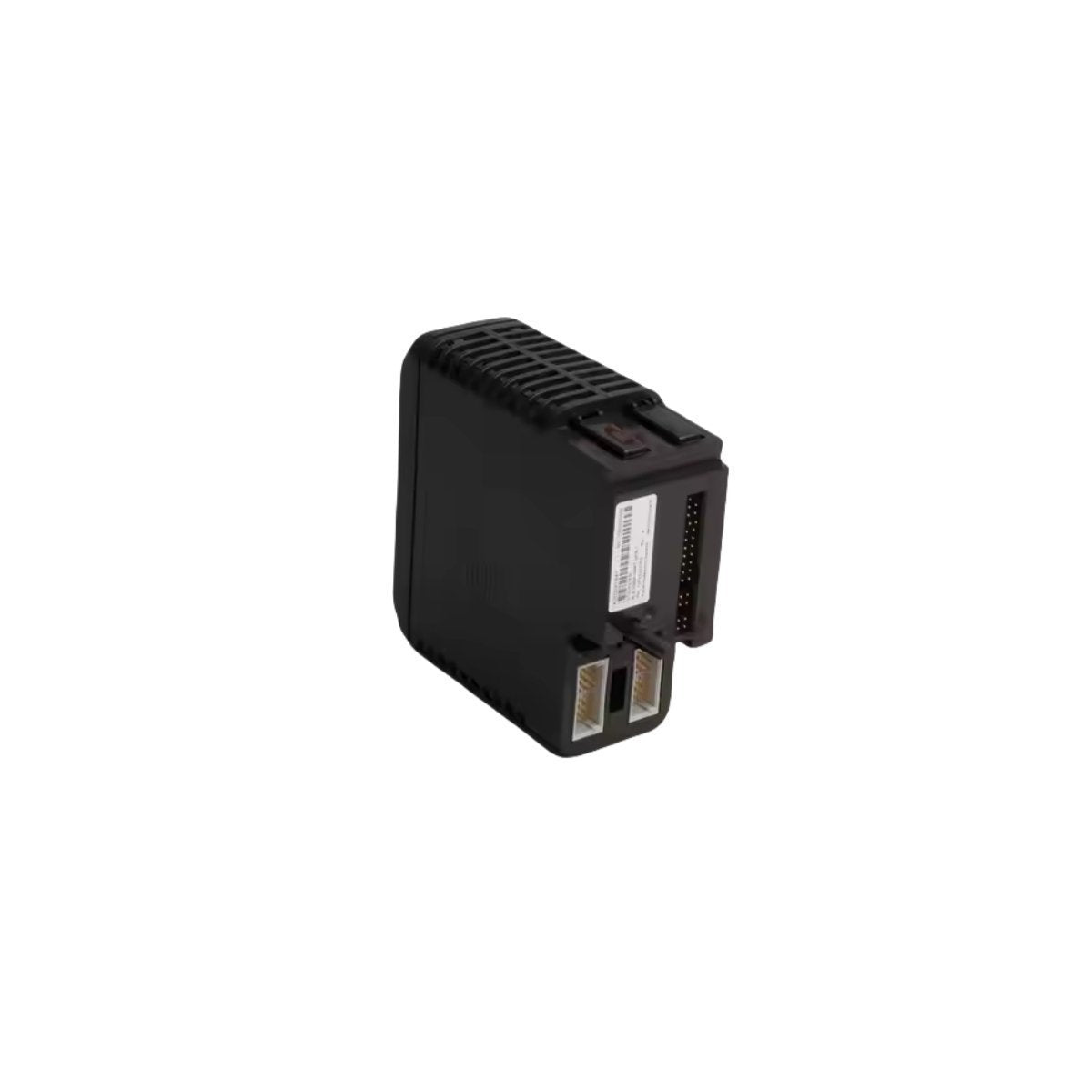

The Emerson KJ3222X1-BA1 is a precision 8-channel Analog Input module, part of the legacy DeltaV™ M-series I/O subsystem. Identified by part number 12P2532X092 and assembly VE4003S2B2, this module is engineered to bridge the gap between field instrumentation and the Distributed Control System (DCS). It specializes in converting 4-20 mA current signals into high-resolution digital data, allowing the controller to execute complex automation strategies. This module is renowned for its stability in high-vibration and electrically noisy industrial environments, providing the backbone for real-time monitoring and safety-critical process management.

Hardware Parameters and Technical Characteristics

• Input Channels: 8 Single-Ended channels for high-density I/O configurations.

• Signal Type: Standard 4-20 mA DC analog signals.

• Resolution: 14-bit Analog-to-Digital (A/D) conversion for granular measurement accuracy.

• Redundancy Support: Compatible with redundant M-series I/O carriers to ensure maximum system availability.

• Termination Integration: Designed for use with the VE4003S2B2 Fused I/O Termination Block to protect internal circuitry from field-side surges.

• HART Pass-through: Supports HART protocol communication, enabling remote calibration and diagnostics of smart field devices like Rosemount transmitters.

• System Compliance: Specifically designed for the DeltaV M-series hardware architecture.

• Physical Weight: 0.2 kg.

• Dimensions: 10.2 cm x 5.1 cm x 19.1 cm.

Industrial Applications

The KJ3222X1-BA1 Analog Input module is a staple in mission-critical sectors where downtime must be minimized. In the Oil and Gas industry, it is frequently deployed for monitoring pressure and flow rates in pipeline distribution networks. Chemical processing facilities utilize this module for precise temperature loop control and reactor monitoring. Additionally, it is widely implemented in Power Generation plants for auxiliary system control and boiler feed-water monitoring. Its ability to provide continuous, high-fidelity data makes it an ideal choice for facilities implementing predictive maintenance and advanced process optimization routines.
