Product Overview

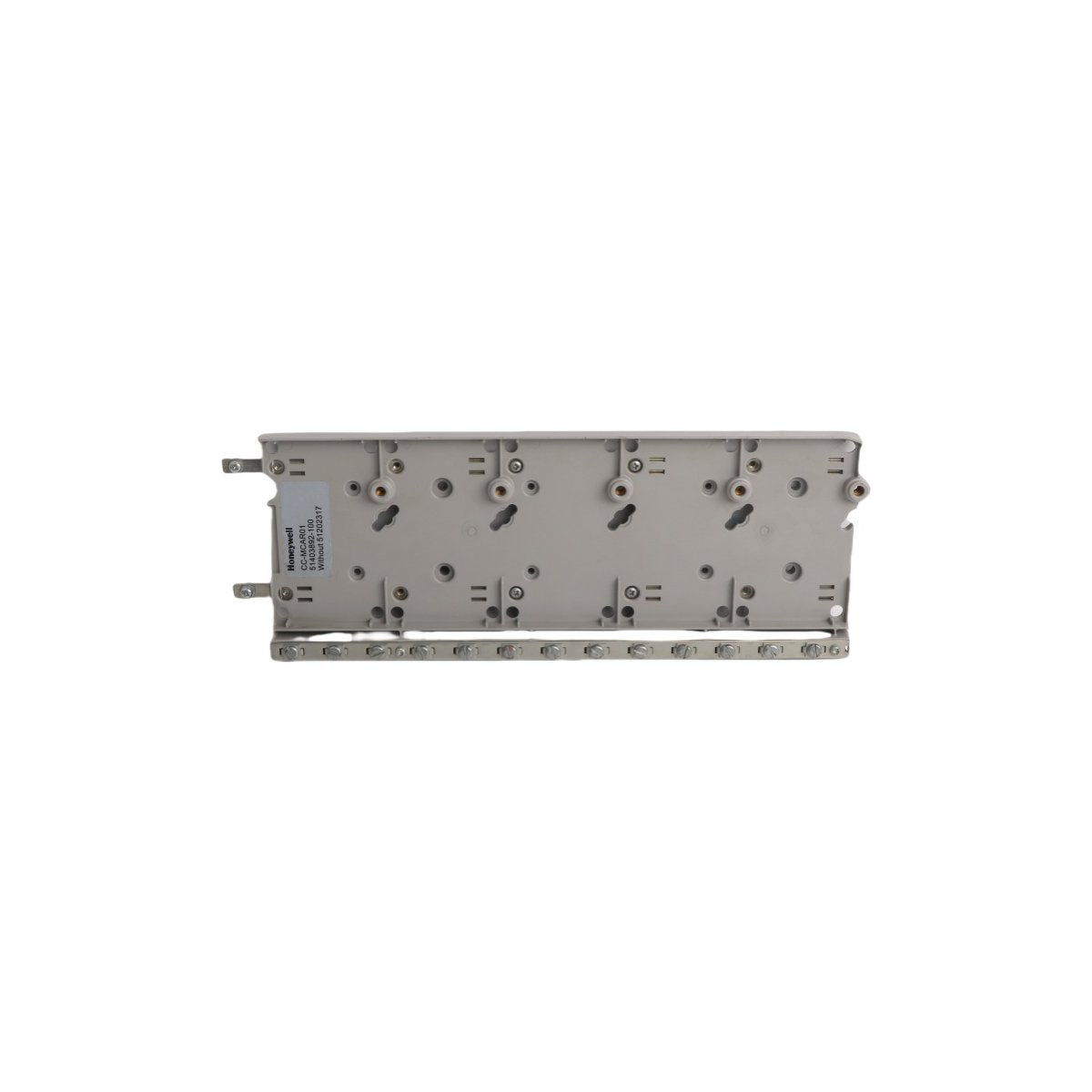

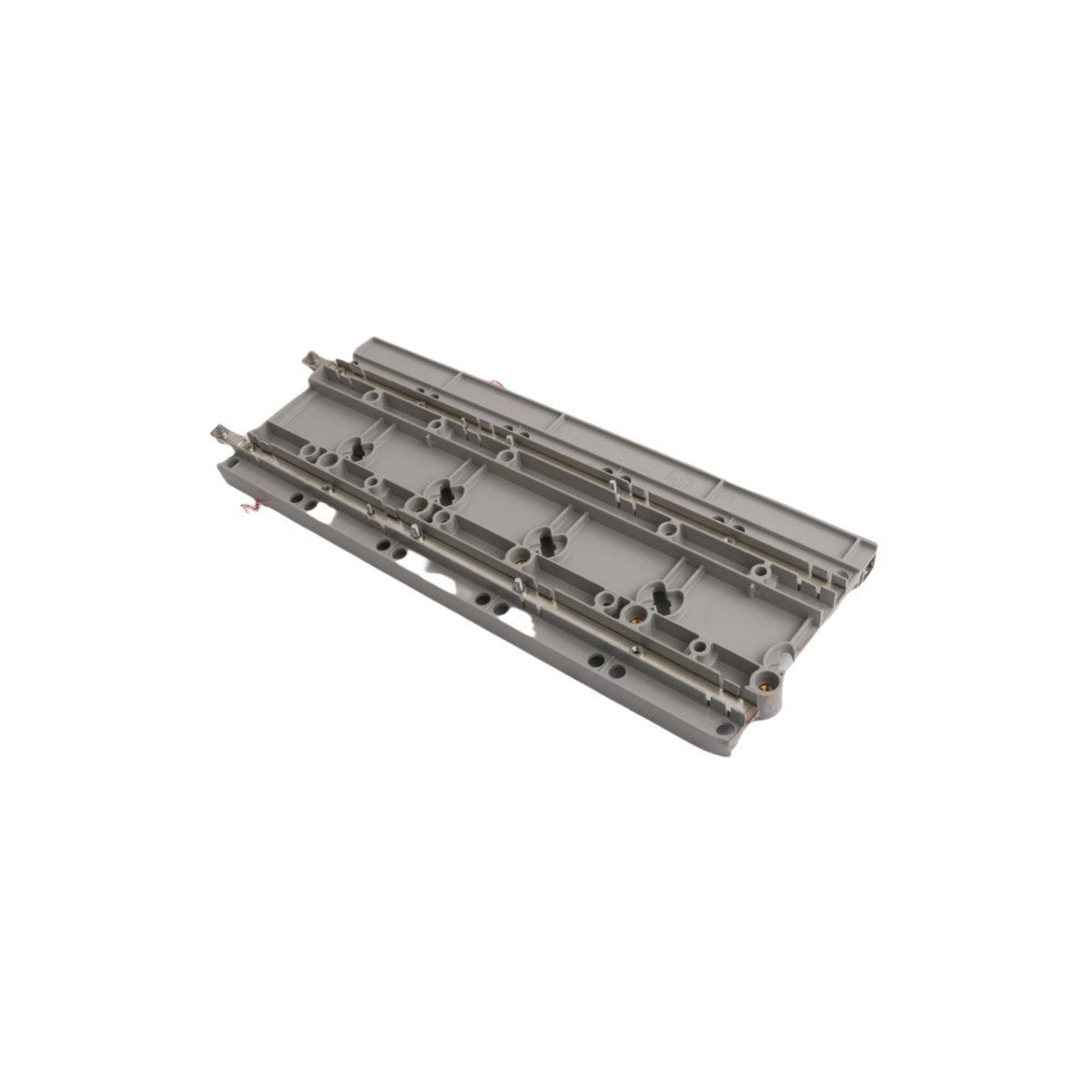

The Honeywell CC-MCAR01, identified by assembly numbers 51403892-100 and 51403884-100, is a high-performance motion coordination carrier designed for the Experion PKS Series C architecture. This module acts as the central mounting and communication interface for advanced multi-axis motion control, providing the deterministic backbone required for high-speed robotic and mechanical synchronization. By integrating 32-bit RISC processing with real-time Ethernet protocols, the CC-MCAR01 enables micron-level positioning precision across complex industrial machinery. It is specifically engineered to bridge the gap between standard DCS process control and high-speed discrete motion, making it a critical component for automated production lines that demand exact spatial coordination and rapid cycle times.

Mechanical Specifications & Hardware Infrastructure

• Model Identification: CC-MCAR01

• Part Numbers: 51403892-100 / 51403884-100

• Axis Coordination: Supports up to 8 synchronized motion axes

• Processing Core: 32-bit RISC high-speed processor

• Loop Performance: 20kHz Servo loop rate for ultra-fast response

• Network Protocol: EtherCAT and Real-time Ethernet compatible

• Physical Dimension: 40.5cm length (Series C optimized)

• Functional Safety: Supports STO (Safe Torque Off) and SS1 (Safe Stop 1) per IEC 61800-5-2

• Thermal Endurance: -20°C to +60°C operating range

• Environmental Tolerance: Up to 95% non-condensing relative humidity

• Maintenance Logic: Dual firmware slots for fail-safe field updates

Strategic Deployment & Machine Integration

In High-Speed Packaging and Bottling Operations, the CC-MCAR01 provides the sub-millisecond synchronization necessary for complex pick-and-place robotics and capping stations. The carrier's ability to coordinate up to 8 axes simultaneously allows for fluid, non-stop motion that maximizes throughput without risking mechanical collision. Its integrated health-monitoring algorithms utilize predictive diagnostics to estimate wear on mechanical components like ball screws, allowing maintenance teams to schedule servicing before a failure stops the line.

Within Precision CNC Machining and Metal Fabrication, this motion carrier ensures that multi-axis cutting heads maintain absolute spatial accuracy. The high-speed 20kHz servo loop rate enables the system to make instantaneous corrections to the motor path, compensating for load changes in real-time. Because the module is compliant with PLCopen Motion Control function blocks, engineers can rapidly deploy standardized motion profiles, reducing the engineering hours required to commission complex 3D contouring applications.

For Advanced Pharmaceutical Packaging, the CC-MCAR01 offers a safety-first solution for cleanroom automation. The native support for STO and SS1 safety functions allows for immediate motor de-energization in emergency scenarios without requiring complex external safety relays. Furthermore, its modular interface versatility ensures compatibility with linear, stepper, and servo motor technologies, providing a future-proof platform for facilities looking to integrate disparate motor types into a unified Experion PKS control strategy.
