Product Overview

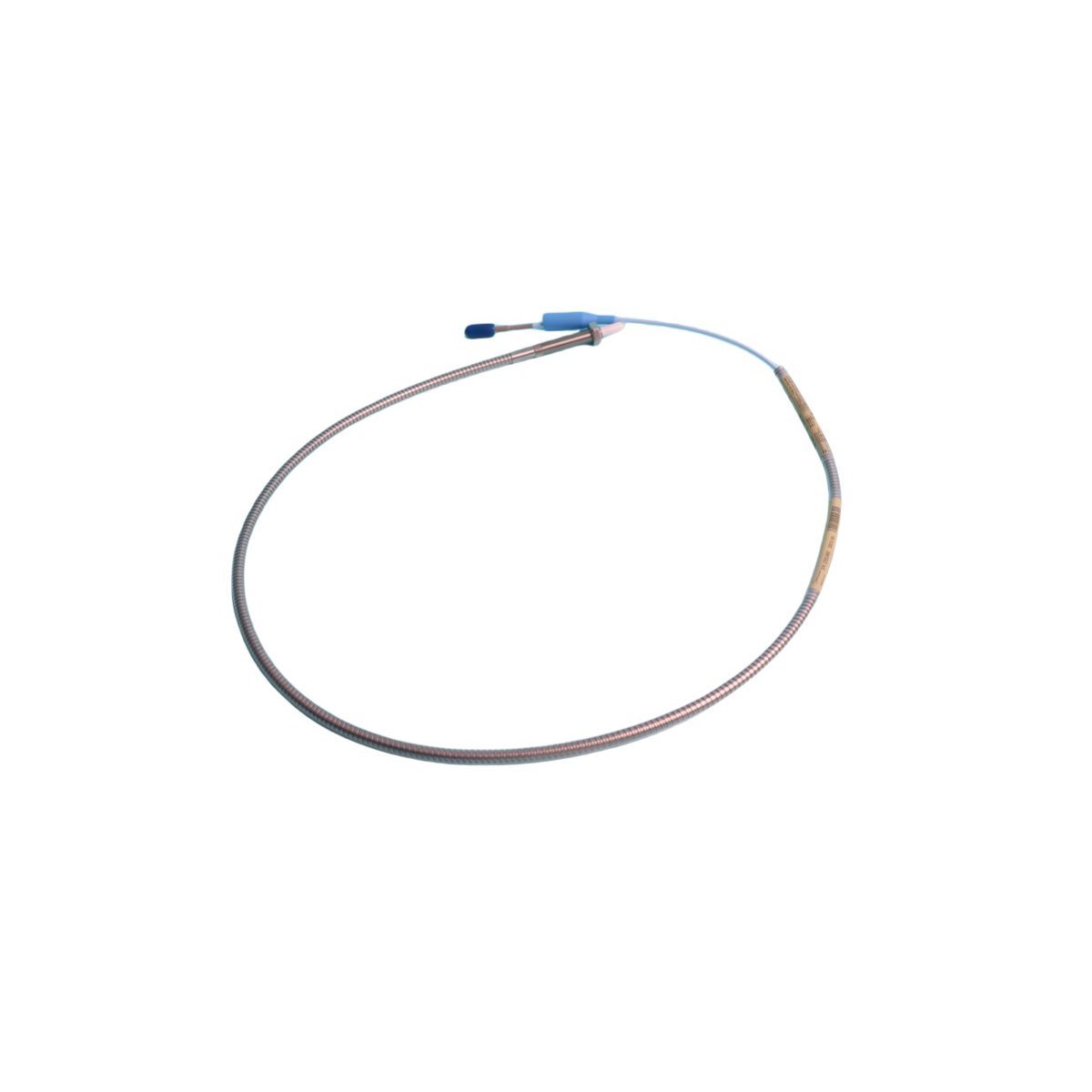

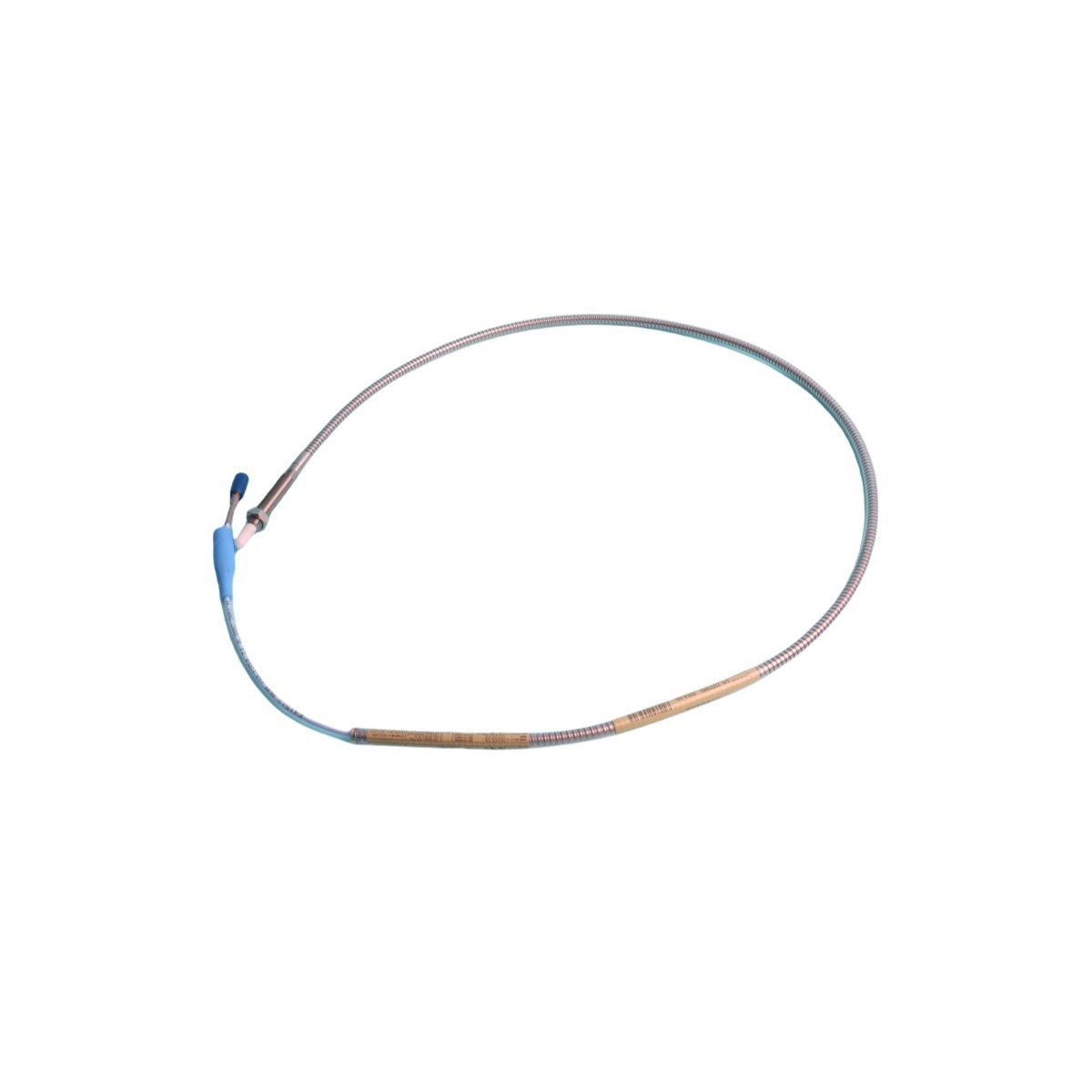

The Bently Nevada 330909-00-20-10-01-05 3300 NSv Proximity Probe resolves critical spacing constraints in high-speed rotating machinery deployments where standard 8mm probes cannot fit. This specialized eddy current sensor targets confined installations, such as small centrifugal compressors, high-speed gearboxes, and fluid-film bearings with tight internal clearances.

By delivering clean, high-fidelity analog signals to the Bently Nevada 3500 rack or emergency shutdown interlocks, this probe ensures micro-level precision in radial vibration and axial position tracking. It provides industrial plants with the necessary telemetry to execute automatic asset protection sequences, avoiding catastrophic structural damage during sudden shaft instabilities or lubrication film breakdowns.

Part Number Suffix Matrix

330909 [3300 NSv 3/8-24 UNF Threaded Probe]

Establishes the core hardware family as a standard 3300 NSv proximity probe featuring an imperial 3/8-24 UNF external thread profile, optimized for small target areas and narrow mechanical clearances.

-00 [Unthreaded Length Suffix]

Indicates a 0.0-inch unthreaded barrel segment, meaning the casing features external threads across its entire length to allow maximum depth adjustments inside the mounting bracket.

-20 [Overall Case Length Suffix]

Defines the total threaded case length as 2.0 inches, providing the required structural reach to span standard machine outer walls and bearing housings.

-10 [Total Length Suffix]

Specifies a 1.0-meter (3.3 feet) integrated cable length from the ceramic sensor tip to the miniature coaxial male terminal link.

-01 [Connector Type Option]

Equips the integrated cable assembly with a miniature coaxial ClickLoc connector, designed for quick, vibration-proof pairing with the extension cable.

-05 [Hazardous Area Approvals Suffix]

Certifies the probe assembly under multiple global intrinsically safe frameworks (including ATEX, IECEx, and CSA standards) for continuous operation in explosive atmospheres.

Transducer Engineering Specifications

Field Calibration & Mechanical Alignment

Field instrumentation teams must set the mechanical gap clearance accurately to ensure the probe operates within its optimized linear voltage window. Connect a digital voltmeter across the matching 3300 NSv Proximitor test points and adjust the probe insertion depth until the bias voltage registers approximately -9.0 VDC, marking the nominal physical center of the 1.52 mm operational range.

Maintain a rigid minimum bend radius of 25.4 mm (1.0 inch) across all segments of the coaxial cable to eliminate signal distortion or structural core fractures. Run the probe cable through dedicated, isolated conduits to prevent cross-talk from heavy electrical machinery. Technicians must verify that the combined length of this probe and its extension cable matches the specific 5.0-meter or 7.0-meter total system tuning parameters of the installed 3300 NSv Proximitor module.

Severe Environment Durability & System Topology

The 3300 NSv probe tip uses an advanced engineering plastic formulation that acts as an impermeable barrier against high-pressure steam, synthetic lubricating oils, and chemical solvents. This ensures stable, drift-free eddy current field generation even when submerged continuously in hot machine oil.

The high-frequency analog signal generated by the sensor integrates natively into the Bently Nevada 3500 machinery protection system, passing synchronized vibration metrics to a plant-wide Honeywell Experion PKS or Siemens S7 platform via Modbus TCP or automated analog loops. This integration strengthens Turbine Supervisory Instrumentation (TSI) layers, providing control rooms with simultaneous access to high-speed trip automation and asset health trending software.

Package Content Manifest

The factory-sealed individual carton contains the following components:

(1) Original Bently Nevada 330909-00-20-10-01-05 Proximity Probe

(2) Factory-terminated ClickLoc miniature coaxial male connector

(3) Removable composite connector shield sleeve

(4) Material trace documentation and individual calibration data sheet

Secure Logistics & Shipping Schedules

Our shipping center processes and dispatches all orders within 2-7 days after payment verification. We utilize top-tier global express handlers including DHL, FedEx, and UPS to guarantee fast, fully tracked, and insured transit to your destination site.

Every probe travels inside specialized anti-static industrial packaging sheets, placed within heavy-duty, shock-absorbing custom foam enclosures. This strict packaging architecture guarantees absolute protection against static build-up, physical impact, and ambient moisture infiltration throughout international transit routes.

Critical Maintenance Diagnostics

Q1: Can I pair this 3300 NSv probe with a standard 3300 XL 5mm or 8mm Proximitor Sensor?

A1: No. The 3300 NSv series utilizes a unique coil design and targets smaller target areas, giving it different electrical characteristics than the standard 3300 XL series. Connecting this probe to a 3300 XL Proximitor causes severe scale factor errors and compromises the machinery protection loop. Always pair this probe with a dedicated 3300 NSv Proximitor.

Q2: Why does the 3300 NSv system use a center gap voltage of -9.0 VDC instead of the standard -10.0 VDC?

A2: The 3300 NSv probe features a compact linear range of 1.52 mm (60 mils), which is tighter than the 2.0 mm range found on standard 8mm probes. The calibrated linear region for the NSv system ranges from approximately -2.0 VDC to -16.0 VDC, making -9.0 VDC the mathematically calculated midpoint for optimal sensor linear response.

Q3: What action should I take if the Proximitor output limits at a constant -24 VDC?

A3: A constant -24 VDC saturation signal indicates an open circuit condition in the sensor loop. Inspect the miniature ClickLoc connection between the probe cable and the extension cable for loose coupling, moisture ingress, or physical core damage. Check the continuity of the entire cable run using a multimeter to find the broken conductor.
