Product Overview

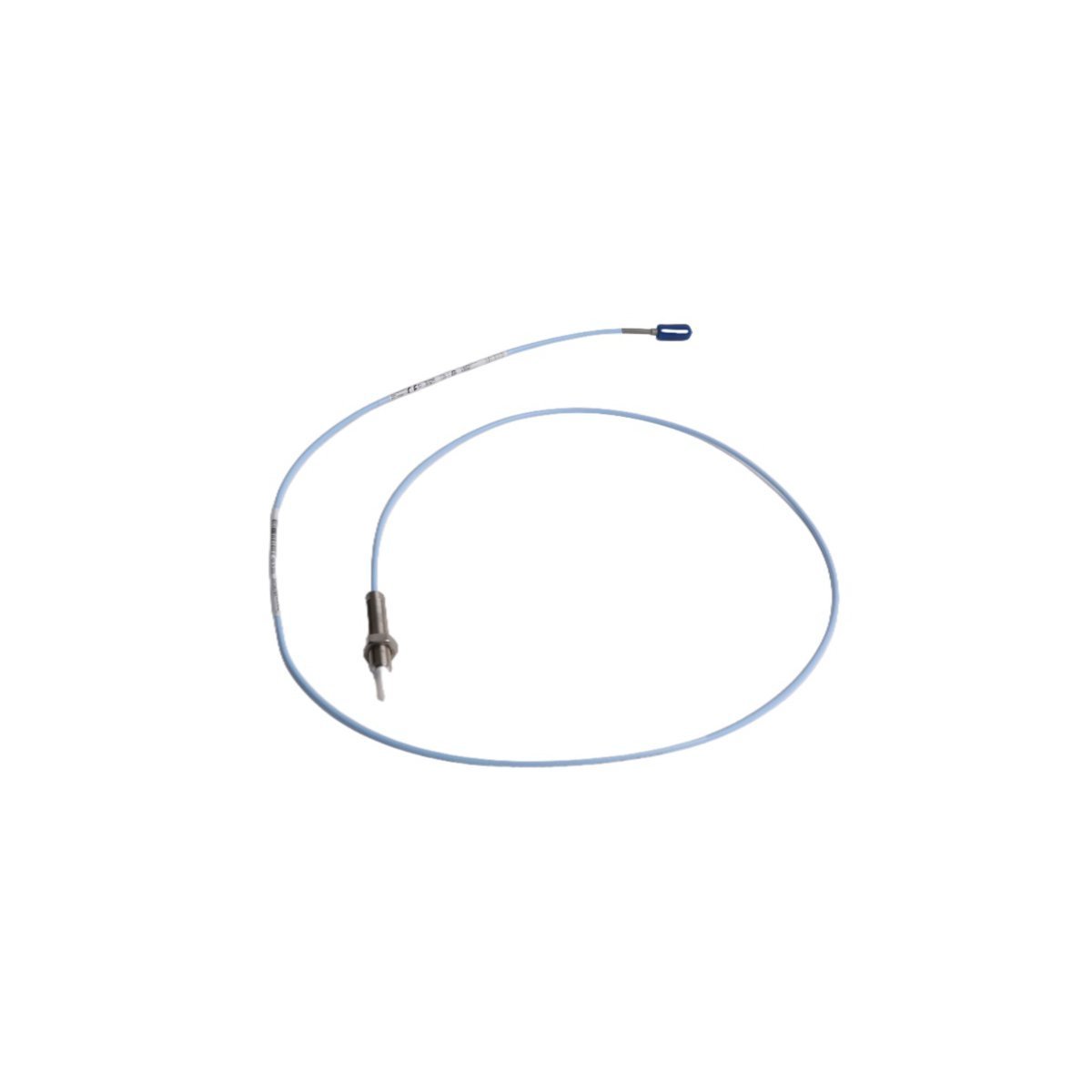

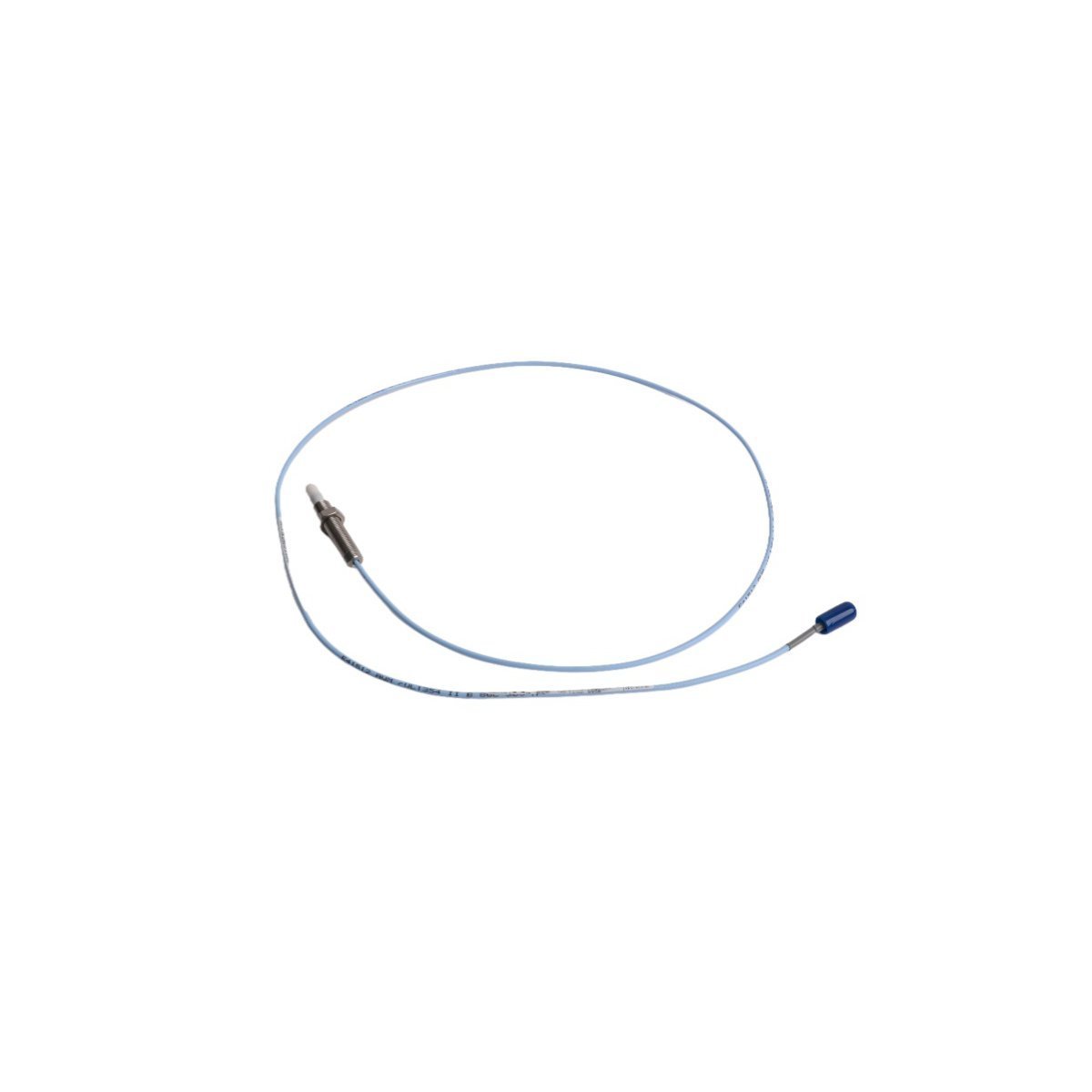

The Bently Nevada 330908-00-15-05-02-00 3300 NSv (Narrow Service) Proximity Probe addresses the critical monitoring requirements of small-scale rotating machinery where standard probes cannot be utilized. Engineered specifically for applications with limited radial clearance or small target areas, this sensor delivers high-resolution vibration and displacement data. It excels in monitoring centrifugal compressors, pumps, and aero-derivative turbines that require a smaller footprint without sacrificing industrial-grade reliability.

This probe functions as the essential sensory front-end for the Bently Nevada 3500 Monitoring System, providing the precise analog inputs necessary for effective machinery protection. By maintaining exceptional linearity and a stable scale factor in confined spaces, the 3300 NSv ensures that maintenance teams can detect early-stage bearing wear and shaft instabilities. Implementing this high-precision sensor mitigates the risk of catastrophic asset failure and optimizes the lifecycle of critical plant equipment.

Hardware Configuration Logic

330908-00-15-05-02-00 Suffix Breakdown

Each alphanumeric segment of the 3300 NSv model number defines specific mechanical and electrical traits tailored for precision engineering.

Unthreaded Length (-00)

The 00 suffix indicates a 0.0-inch unthreaded length. This fully threaded case design (5/16-24 UNF) allows for maximum flexibility when adjusting the probe depth within a mounting bracket to achieve the correct gap voltage.

Overall Case Length (-15)

The 15 suffix specifies a 1.5-inch overall case length. This compact body is optimized for tight mechanical envelopes, ensuring the probe can be mounted in restricted spaces while providing a rigid platform for vibration sensing.

Total Length (-05)

This designates a 0.5-meter (20-inch) integral lead cable. This cable is specifically tuned for a 5.0-meter total system length when paired with the appropriate 3300 NSv extension cable, ensuring the resonant frequency of the transducer circuit remains accurate.

Connector and Protection (-02)

Equipped with a miniature coaxial connector and a factory-installed connector protector. This protection is vital for installations in oily or humid environments, shielding the electrical junction from contaminants that cause signal attenuation.

Agency Approvals (-00)

The 00 suffix represents the standard configuration with no specific hazardous area certifications. This model is intended for general industrial use or non-classified zones where standard environmental resilience is sufficient.

Technical Performance Data

Precision Commissioning Guide

Gap Voltage Setting

Technicians must set the quiescent gap voltage to -10.00 VDC during the installation process. This ensures the sensor operates in the precise center of its 60-mil linear range. Use a calibrated voltmeter at the Proximitor output and verify the target shaft is AISI 4140 steel to maintain scale factor accuracy.

Target Surface Requirements

The 3300 NSv probe requires a target diameter of at least 9.5 mm (0.375 in). If the target area is smaller than this dimension, the system will experience side-viewing errors and non-linear output. Ensure the probe tip is centered over the shaft and free from adjacent metal objects within a 13 mm radius.

Cable Handling and Routing

Maintain a minimum bend radius of 25.4 mm (1.0 inch) for the integral coaxial lead. Avoid pinching or crimping the cable, as mechanical deformation alters the electrical impedance. Proper routing through protective conduit prevents EMI/RFI noise from distorting the vibration signal in the 3500 rack.

Core Engineering Performance

Resilience in Narrow Environments

The 3300 NSv probe tip utilizes high-performance chemical-resistant polymers. This allows the sensor to survive continuous exposure to synthetic lubricants and process gases while maintaining thermal stability. It prevents "tip swelling," a common issue in lower-quality sensors that leads to false DC gap drift.

System 1 and DCS Synergy

This probe integrates natively with Honeywell Experion PKS or Emerson DeltaV via the Bently Nevada 3500/42M monitor. This synergy allows for advanced spectral analysis in System 1 software, enabling predictive maintenance strategies based on high-fidelity displacement data.

Structural Integrity

The stainless steel case and patented tip-to-case bonding process ensure that the internal sensing coil remains stable even under high-frequency mechanical vibration. This rugged construction guarantees a long Mean Time Between Failures (MTBF) in high-speed centrifugal applications.

Global Shipping & Logistics

Rapid Fulfillment

We provide a delivery time of 3-5 days when payment finish. All international shipments are handled via premium air freight services including DHL, FEDEX, or UPS. This ensures door-to-door tracking and minimizes downtime for critical machinery outages.

Industrial-Grade Protection

Every 330908 probe is dispatched in New Original Pack condition. Our logistics team utilizes vacuum-sealed anti-static industrial packaging and reinforced shock-resistant secondary boxing to protect the precision-machined threads and sensitive coaxial leads during transit.

Expert Technical Support

Q1: Can I use this probe with a standard 3300 XL 8mm Proximitor?

A1: No. The 3300 NSv series has unique electrical characteristics. You must use a dedicated 3300 NSv Proximitor to ensure the correct 200 mV/mil scale factor and linearity.

Q2: What is the primary difference between the 330908 and 330909?

A2: The 330908 features standard threads (5/16-24 UNF), whereas the 330909 uses metric threads (M8 x 1). Always verify the tapped hole on the machine housing before attempting installation to prevent thread damage.

Q3: How do I verify the health of the probe in the field?

A3: Measure the DC resistance between the center pin and the outer shell of the connector. A functional 3300 NSv probe typically reads between 5.0 and 12.0 ohms. An infinite or "open" reading indicates a broken internal coil or lead.

Q4: Is the connector protector (-02 option) necessary for dry installations?
