Product Overview

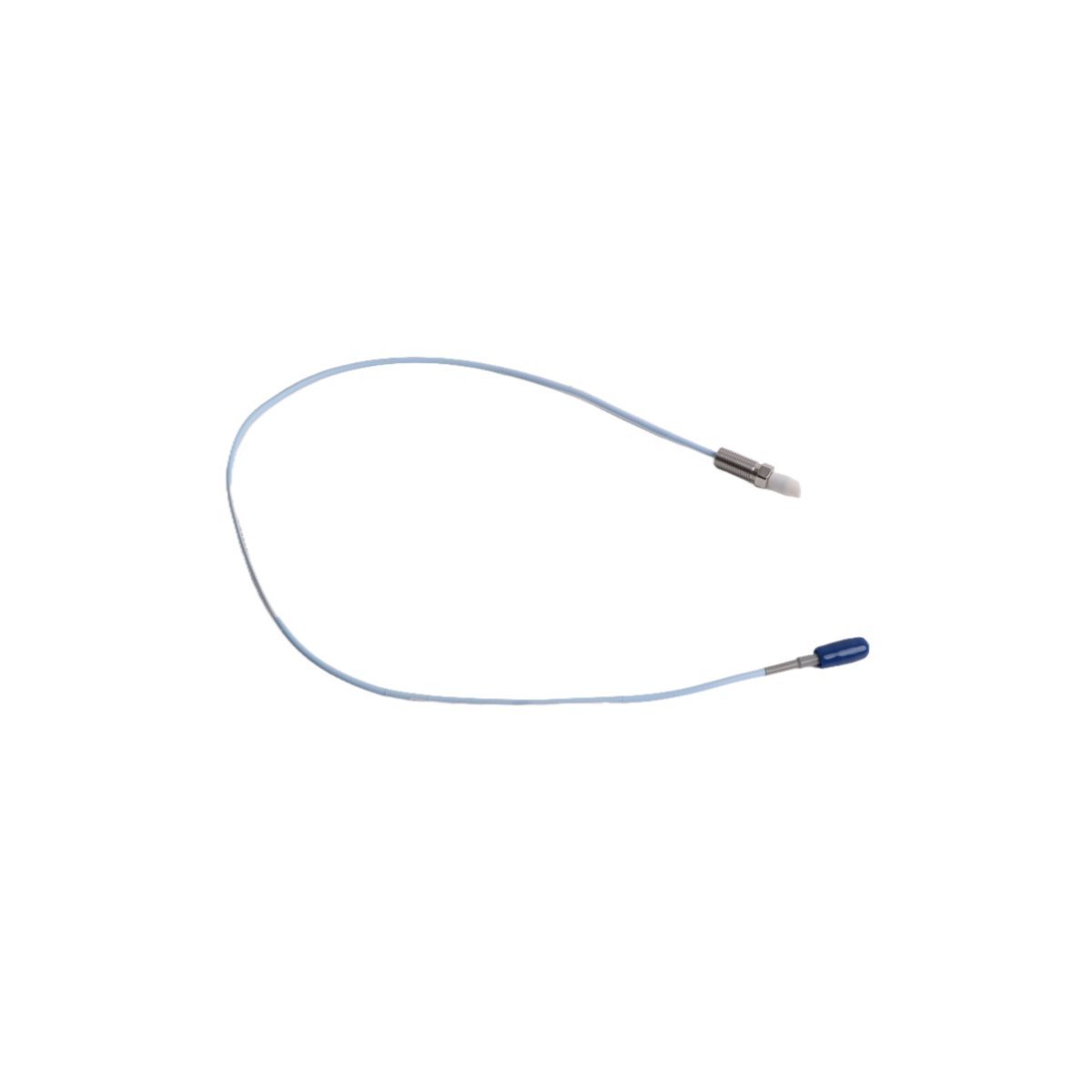

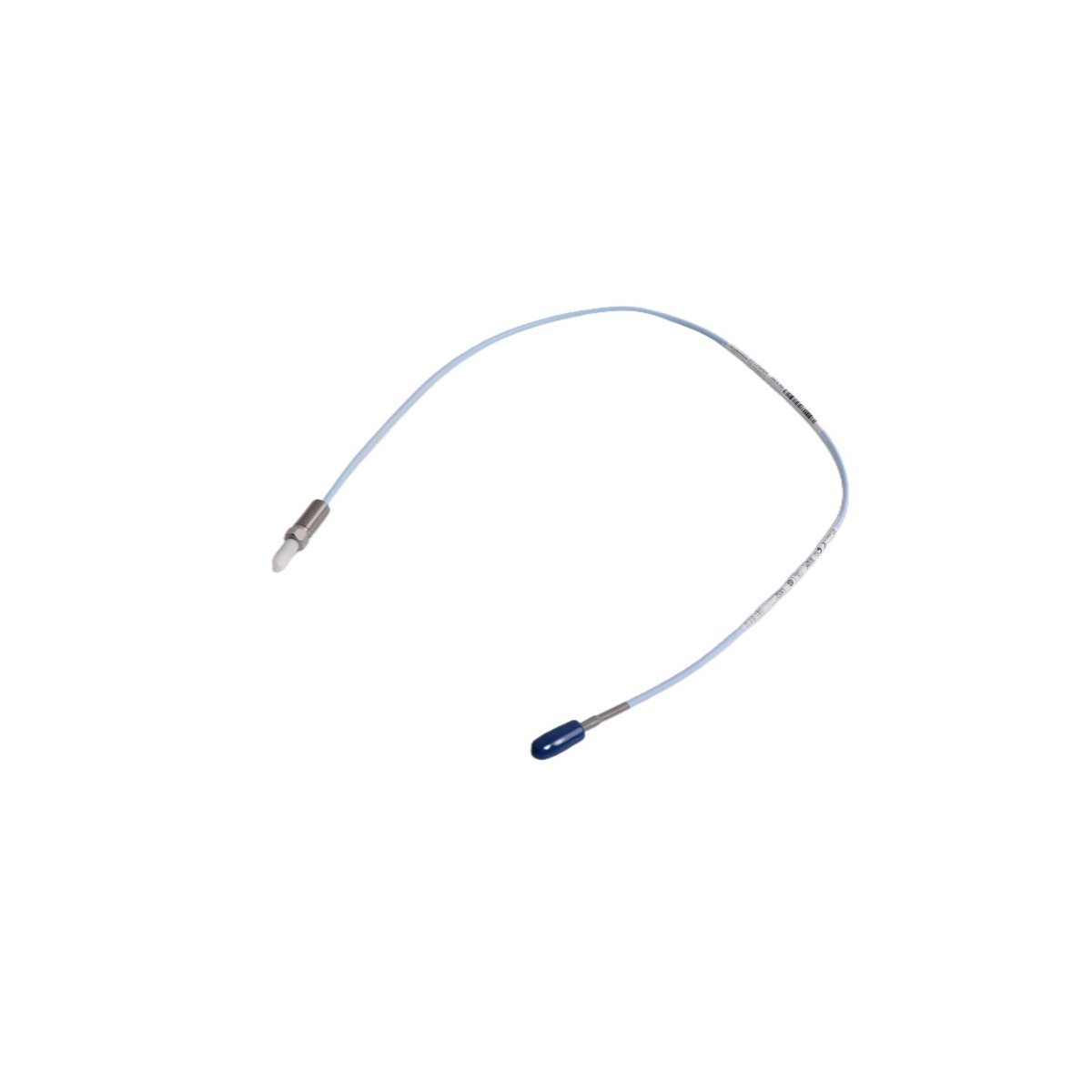

The Bently Nevada 330906-02-12-10-02-00 3300 NSv Reverse Mount Proximity Probe provides critical displacement and vibration measurements for rotating machinery operating in confined spaces. This eddy current sensor excels in fluid-film bearing monitoring, thrust measurements, and phase reference execution (Keyphasor) within smaller steam turbines, compressors, and high-speed pumps. Engineers rely on the 3300 NSv series when standard probe profiles cannot fit the mechanical envelope, utilizing its tight magnetic field and specific calibration to deliver micro-inch resolution even with side-viewing restrictions or narrow target tracks. The design directly feeds precise analog signals to the Bently Nevada 3500 monitoring system or distributed control networks, ensuring continuous asset protection and mitigating the risk of catastrophic machinery failure.

Suffix Configuration Logic

Probe Thread Options

The 02 suffix specifies a 3/8-24 UNF thread configuration, establishing a standard industrial footprint for precise mechanical positioning and depth adjustment during internal housing installation.

Unthreaded Length Options

The 12 suffix defines an unthreaded length of 1.2 inches, providing the required smooth shaft section to clear bracket tolerances before the threaded portion engages the mounting block.

Overall Case Length Options

The 10 suffix designates an overall case length of 1.0 inch, optimizing the structural housing length to ensure the sensor face maintains proper mechanical rigidity inside tight reverse-mount recesses.

Total Length Options

The 02 suffix mandates a total cable length of 0.5 meters (1.6 feet), reducing unnecessary cable slack inside the machine housing and maintaining optimal impedance matching when connecting to an extension cable.

Connector and Cable Options

The 00 suffix provides a standard miniature coaxial connector without specialized armor, designed for direct routing through protective rigid or flexible industrial conduit systems.

Agency Approval Options

The 00 suffix denotes standard configuration without special regional hazardous area certificates, suitable for general industrial deployments and environments requiring baseline manufacturing electrical ratings.

Hardware and Performance Parameters

Deployment and Calibration Guidelines

Field technicians must calibrate the probe gap voltage using a digital multimeter connected to the Proximitor sensor output. The nominal linear range sits between -2.0 Vdc and -18.0 Vdc, with the ideal installation gap set at -10.0 Vdc, corresponding to the physical midpoint of the linear tracking zone.

Maintain a strict minimum bend radius of 25.4 mm (1.0 inch) for the coaxial extension cable during routing to prevent internal dielectric damage and signal attenuation. Avoid running the probe cable parallel to high-voltage AC power lines; always route sensor leads through dedicated, grounded low-voltage instrumentation trays.

Ensure the mounting bracket exhibits sufficient structural mass to prevent parasitic resonance from corrupting the vibration data. When locking the reverse-mount assembly into position, use a calibrated torque wrench to prevent over-tightening against the machine casing, which can crack the internal ceramic transition joints.

Industrial Survivability and TSI Integration

Extreme Temperature Resilience

The rugged polyphenylene sulfide (PPS) tip molding withstands prolonged exposure to hot synthetic lubricants and aggressive industrial solvents, maintaining structural integrity across an expansive operational thermal window up to 177°C.

Precision TSI Architecture

The 3300 NSv probe functions as a core data-acquisition link within modern Turbine Supervisory Instrumentation (TSI) networks, delivering high-frequency response rates capable of tracking subtle sub-synchronous shaft vibrations.

Seamless DCS Communication

The sensor assembly integrates effortlessly with existing Bently Nevada 3500/22M translinear modules or direct Proximitor outputs feeding into Honeywell Experion PKS platforms, bypassing the need for secondary signal conditioning hardware.

Fulfillment and Kit Contents

Your procurement package includes the following items:

(1) One Bently Nevada 330906-02-12-10-02-00 3300 NSv Reverse Mount Probe assembly with integrated 0.5-meter coaxial cable.

(2) One factory-installed miniature coaxial connector with a male interface pin.

(3) One set of standard brass locking nuts for thread positioning and secondary back-out prevention.

(4) Complete factory calibration data sheet tracing electrical linearity performance back to national industrial standards.

Logistics and Dispatch Specifications

We ship all premium industrial components within 2-5 days following verified payment clearance. Expedited global dispatch relies exclusively on tier-one express carriers including DHL, FedEx, and UPS to guarantee transit security and predictable lead times. Every shipment undergoes rigorous packing procedures, utilizing specialized anti-static industrial enclosures and high-density foam padding to insulate sensitive eddy-current electronics from electrostatic discharge and mechanical shock during cross-border transit.

Field Engineering Queries

Q1: How does the 3300 NSv probe handle tight clearance areas differently than a standard 3300 XL 5mm probe?

The 3300 NSv utilizes a completely different coil winding design optimized for a much narrower magnetic field footprint. Standard 5mm or 8mm probes require a large clear area around the tip to prevent side-loading, where adjacent metal parts corrupt the reading. The NSv ignores surrounding counterbore walls down to very small diameters, making it ideal for tight spaces where a standard probe would experience massive electrical cross-talk or offset saturation.

Q2: Can I connect this 0.5-meter probe directly to a 9-meter extension cable?

No, the total electrical length of the system must match the calibration profile of the Proximitor sensor. A 0.5-meter probe requires a 4.5-meter extension cable to match a 5.0-meter Proximitor, or an 8.5-meter extension cable to pair with a 9.0-meter Proximitor. Mixing mismatched probe and cable lengths alters system impedance, destroying the 200 mV/mil scale factor accuracy.

Q3: What is the primary sign that a reverse-mount probe has suffered internal mechanical damage?

A continuous open circuit or an immediate shift to a supply rail voltage (typically near -24 Vdc) at the Proximitor output indicates a broken center conductor within the probe or cable. If the gap voltage remains static regardless of physical distance adjustments during installation, the probe tip has likely shorted against the internal housing or experienced structural damage from contact with the shaft target.
