Product Overview

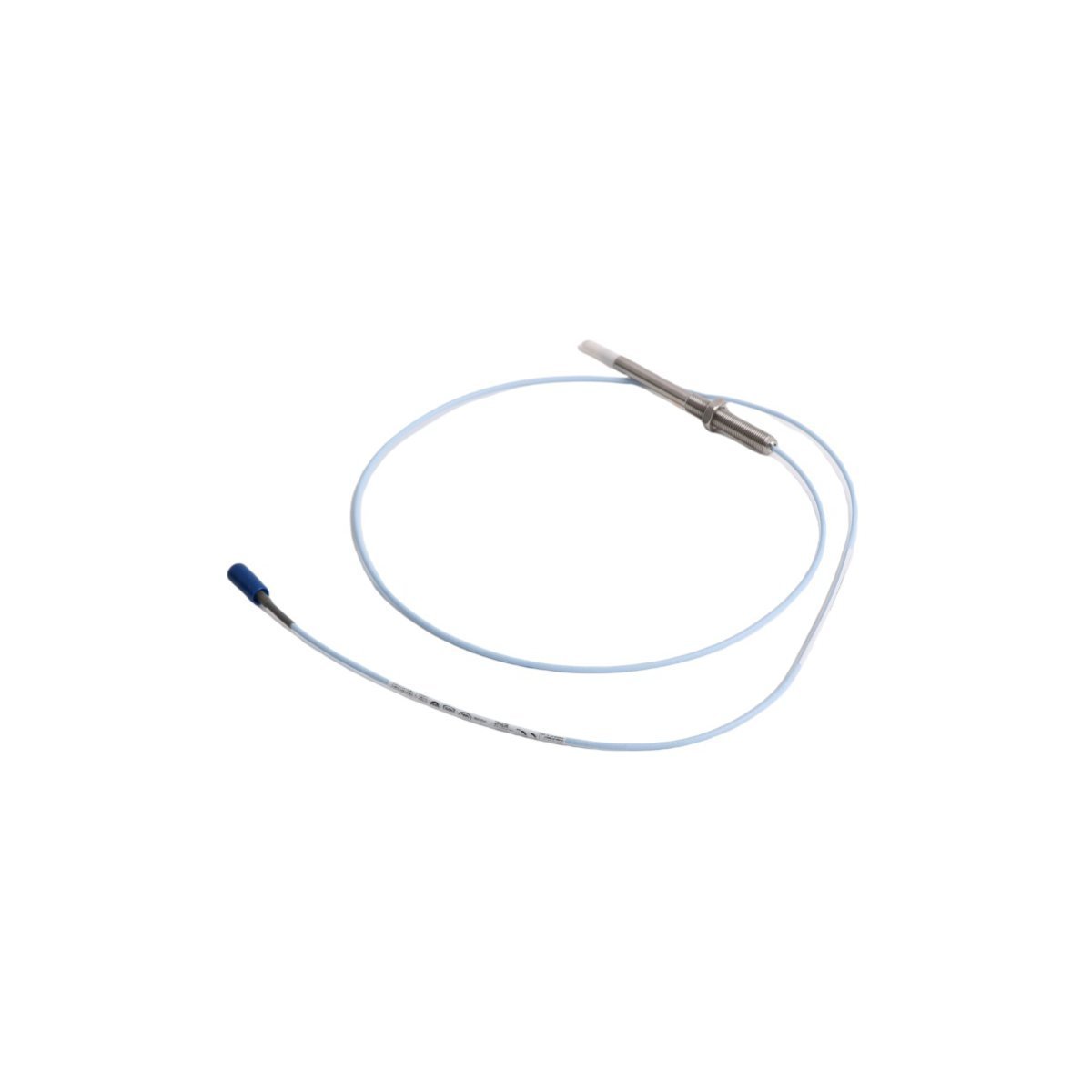

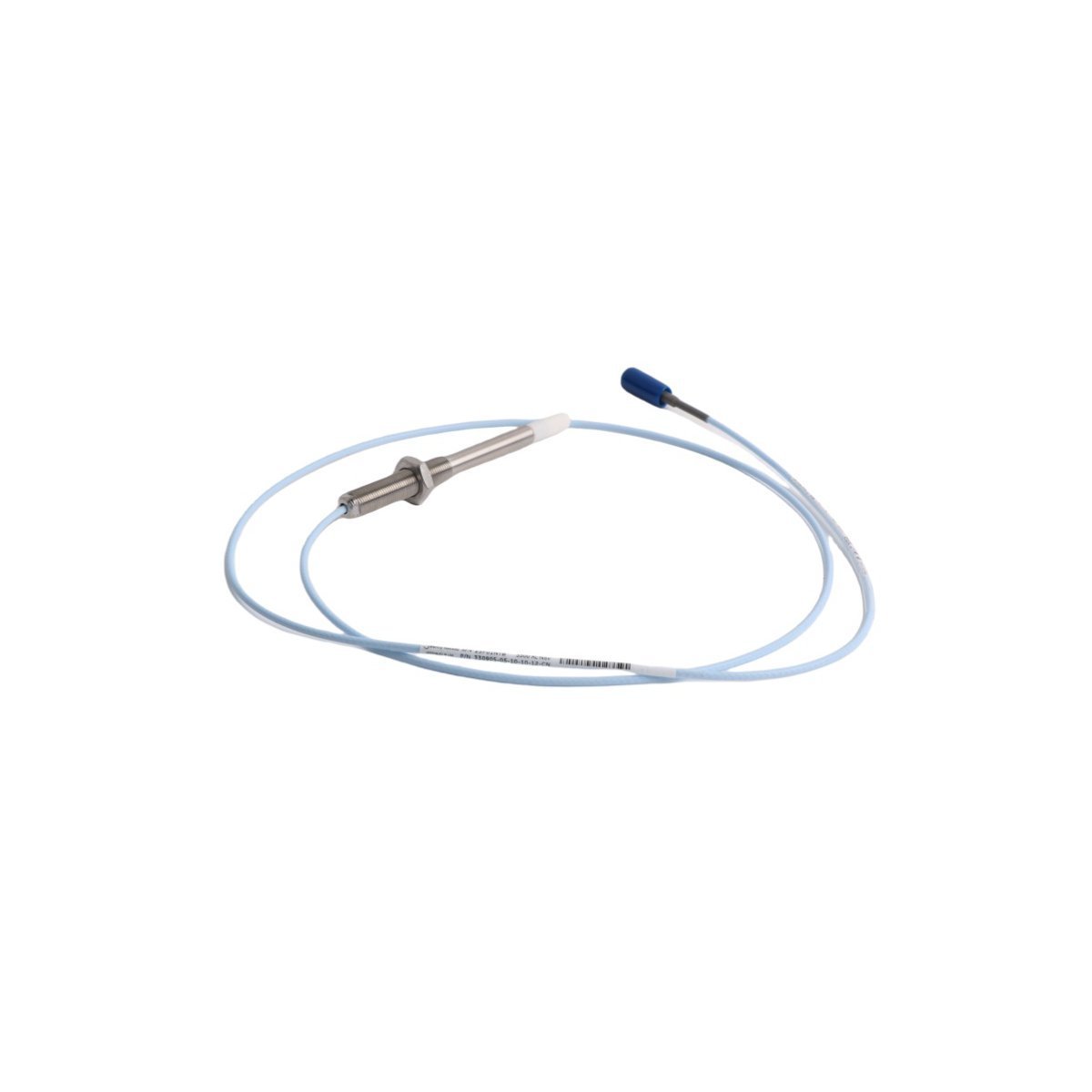

The Bently Nevada 330905-05-10-10-02-05 Proximity Probe delivers high-precision vibration and axial position feedback for specialized rotating machinery assets. Engineers deploy the 3300 NSv series specifically in scenarios involving small-diameter targets or confined installation geometries where standard 8mm probes cannot function correctly. This transducer executes continuous, low-noise monitoring of centrifugal compressors, high-speed pumps, and aero-derivative gas turbines. By integrating directly into Turbine Supervisory Instrumentation platforms and the Bently Nevada 3500 system, it functions as a vital early warning trigger for emergency shutdown protocols. The rugged design preserves signal integrity across intense physical stress, preventing unexpected plant blackouts and optimizing machinery maintenance cycles.

Model Structure and Suffix Matrix

Unthreaded Length Designation

The first 05 suffix indicates a 0.5-inch unthreaded case portion, balancing deep mechanical insertion requirements with necessary stability inside the mounting sleeve.

Overall Case Length Profile

The second 10 suffix establishes a 1.0-inch total threaded case length, creating a dense physical footprint designed for narrow radial clearance paths.

Total Cable Span

The third 10 suffix denotes a 1.0-meter (3.3 feet) overall cable length, carefully balanced to maintain precise electrical impedance parameters when mating with the system extension cable.

Connector Type and Miniature Strain Relief

The 02 suffix equips the assembly with a miniature coaxial click-loc connector and standard fluid-resistant cable construction, maintaining strict signal isolation in humid environments.

Hazardous Area Certification

The final 05 suffix marks the integration of multiple global explosion-proof approvals, certifying the component for immediate installation inside Class I, Div 1 and Zone 0 hazardous operational environments.

Mechanical and Electrical Attributes

On-Site Installation Rules

Electronic Gap Verification

Field technicians must adjust the spatial gap by cross-referencing the DC voltage at the Proximitor Sensor output terminals. Rotate the probe until the multi-meter reads -10.0 VDC, aligning the system precisely with the center of the 3300 NSv linear voltage curve.

Minimum Mechanical Clearance

Because the NSv series targets small shafts, maintain a minimum target diameter clearance of 6.4 mm. Smaller targets will distort the magnetic field lines, causing calibration scale factor errors in the DCS system.

Coaxial Routing Safeguards

Route all sensor cables through dedicated, grounded metal conduits. Ensure the bend radius never drops below 25.4 mm (1.0 inch) to eliminate micro-fractures in the inner silver-plated copper core wire.

Environmental and Architecture Synergy

Severe Media Tolerance

The hermetically sealed polyphenylene sulfide tip withstands aggressive chemical washdowns, synthetic lubrication fluids, and high-pressure steam leaks without micro-cracking or signal drift.

Seamless Distributed Control Integration

This transducer feeds clear analog voltage profiles into the Bently Nevada 3500 monitor rack. The rack digitizes and outputs data via Modbus TCP or OPC UA directly to plant-wide architectures like the Honeywell Experion PKS platform, ensuring synchronized plant asset monitoring.

Ordering and Kit Contents

(1) One authentic Bently Nevada 330905-05-10-10-02-05 Proximity Probe with an integrated 1-meter coaxial cable leash

(2) Two matching stainless steel locknuts to provide permanent, vibration-resistant positioning locks inside the bracket

(3) One specialized protective connector insulator boot to seal out oil, grease, and atmospheric moisture at the extension link

(4) Individual factory testing documentation verifying performance compliance and serial number traceability

Shipping Protocols and Dispatch Windows

Global Express Timelines

We finalize shipment dispatches within 3-5 days when payment finish protocols are cleared through our accounting department. All shipments travel via priority express channels including DHL, FedEx, or UPS to guarantee rapid global delivery.

Secured Transit Shielding

Our warehouse team places each probe into specialized, vacuum-sealed anti-static industrial packaging. This multi-layered buffering process isolates the sensitive eddy-current electronics from static fields, moisture spikes, and physical impacts during international transit.

Field Maintenance FAQs

Q1: What is the specific function of the 3300 NSv series compared to standard 3300 XL 8mm probes?

A1: The 3300 NSv series operates with a tighter magnetic field, allowing it to accurately measure vibration on targets smaller than 8mm, or in tight spaces where side-wall interference from surrounding metal would distort a standard probe signal.

Q2: How do I read the 10-10 suffix parameters during physical field audits?

A2: The first "10" designates an overall threaded case length of 1.0 inch. The second "10" specifies a total integrated cable length of 1.0 meter.

Q3: Which payment structures do you authorize for urgent procurement needs?

A3: We process international telegraphic transfers (T/T), corporate proforma invoices, and major secure global credit or digital business payment networks.

Q4: Can I use this probe with a standard 3300 XL 5mm or 8mm Proximitor sensor?

A4: No. This probe requires a dedicated 3300 NSv Proximitor Sensor. Mixing components from different series destroys the calibration linearity and causes incorrect vibration data in your control system.

Q5: What steps should I take if the gap voltage spikes intermittently?

A5: Check the miniature coaxial click-loc connector for oil contamination. Clean the inner pin with an approved electronic contact cleaner, dry completely, and apply the silicone insulator boot to re-seal the junction.
