Product Overview

The Bently Nevada 330905-00-25-05-01-05 delivers elite non-contacting displacement telemetry within geometrically confined rotating machinery configurations, relying on a specialized reverse-mount architecture. Engineered specifically to observe small-diameter shafts, tight counterbores, and narrow thrust collars, this 3300 NSv proximity probe prevents side-wall cross-talk errors that frequently corrupt standard sensor outputs. The heavy-duty hardware element tracks real-time radial vibration parameters, relative rotor position, and thrust bearing compression across high-speed process machinery. It pipes stable, low-noise analog signals back to Bently Nevada 3500 monitoring panels or plant-wide Distributed Control Systems (DCS). Serving as a rugged front-line sensory node within automated Emergency Shutdown (ESD) architectures, it isolates microscopic machine anomalies instantly to allow plant operations to head off catastrophic mechanical breakdown and eliminate unpredictable production outages.

Structural Part Number Matrix Decoding

Bently Nevada applies a strict alphanumeric option hierarchy to define the installation style, body casing measurements, armored line layouts, and international explosion-proof classifications for this 3300 NSv transducer.

330905 Base Component Identifier

This alphanumeric sequence defines the core hardware as a 3300 NSv reverse-mount proximity probe body utilizing standard 3/8-24 UNF external sleeve mounting threads.

Unthreaded Casing Length (-00)

The 00 suffix dictates a 0.0-inch unthreaded tip length, maximizing the threaded adjustment travel profile along the outer sleeve envelope to assist field calibration.

Overall Case Depth Option (-25)

The 25 designator specifies a 2.5-inch overall case structural length, providing a compact, low-profile mechanical envelope tailored for space-restricted rear-entry brackets or thin bearing caps.

Total System Cable Length (-05)

The 05 suffix configures a 0.5-meter (1.6 feet) integrated miniature coaxial probe cable length, designed to terminate inside a local junction enclosure.

Coaxial Cable Armor Integration (-01)

The 01 option introduces a flexible, fluid-resistant stainless steel armor conduit running the full length of the cable jacket, protecting the internal signal transmission line from mechanical cuts, abrasions, and hot lubrication fluids.

Hazardous Area Certification (-05)

The 05 suffix provides comprehensive multi-agency safety validation, unlocking combined ATEX, IECEx, and CSA intrinsic safety and non-incendive ratings for zone-classified hazardous process environments.

Mechanical and Performance Matrix

Field Insertion and Mechanical Gapping Protocol

Setting correct physical depth clearances dictates final measurement reliability across small targets. Field engineers must monitor the raw DC gap voltage across the 3300 NSv Proximitor Sensor terminals using a high-impedance digital multimeter during physical assembly. Thread the reverse-mount 3/8-24 UNF probe body into its housing adapter or bracket sleeve until the multimeter registers exactly -9.0 VDC, which confirms that the target shaft face rests perfectly in the center of the 3300 NSv probe tip's unique 1.5 mm linear calibration zone.

Observe rigid routing guidelines to protect the armored cable from internal coaxial kinks. The flexible stainless steel armor conduit requires a minimum physical bend radius of 25.4 mm (1.0 inch). Technicians must contain all miniature coaxial connector joints inside dedicated, sealed terminal junction boxes to prevent fluid contamination and eliminate electromagnetic noise. Ensure the probe case remains electrically isolated from the local machine casing, grounding the shield drain wire exclusively at the 3500 monitoring rack chassis ground terminal strip.

Severe Process Resilience

This specialized proximity sensor withstands the punishing conditions of heavy industrial processing, including extreme thermal cycling, heavy casing vibration, and continuous oil submersion inside turbine housings. It integrates natively into comprehensive Turbine Supervisory Instrumentation (TSI) upgrades. The low-impedance analog output signal travels across long distances without degradation, interfacing cleanly with modern process control engines like Honeywell Experion PKS or Siemens S7 PLC architectures to feed plant asset management software with clean dynamic data for real-time diagnostic plotting.

Ordering and Kit Inventory Information

Every ordered procurement kit includes the essential hardware components required for rapid field deployment. The original factory carton contains:

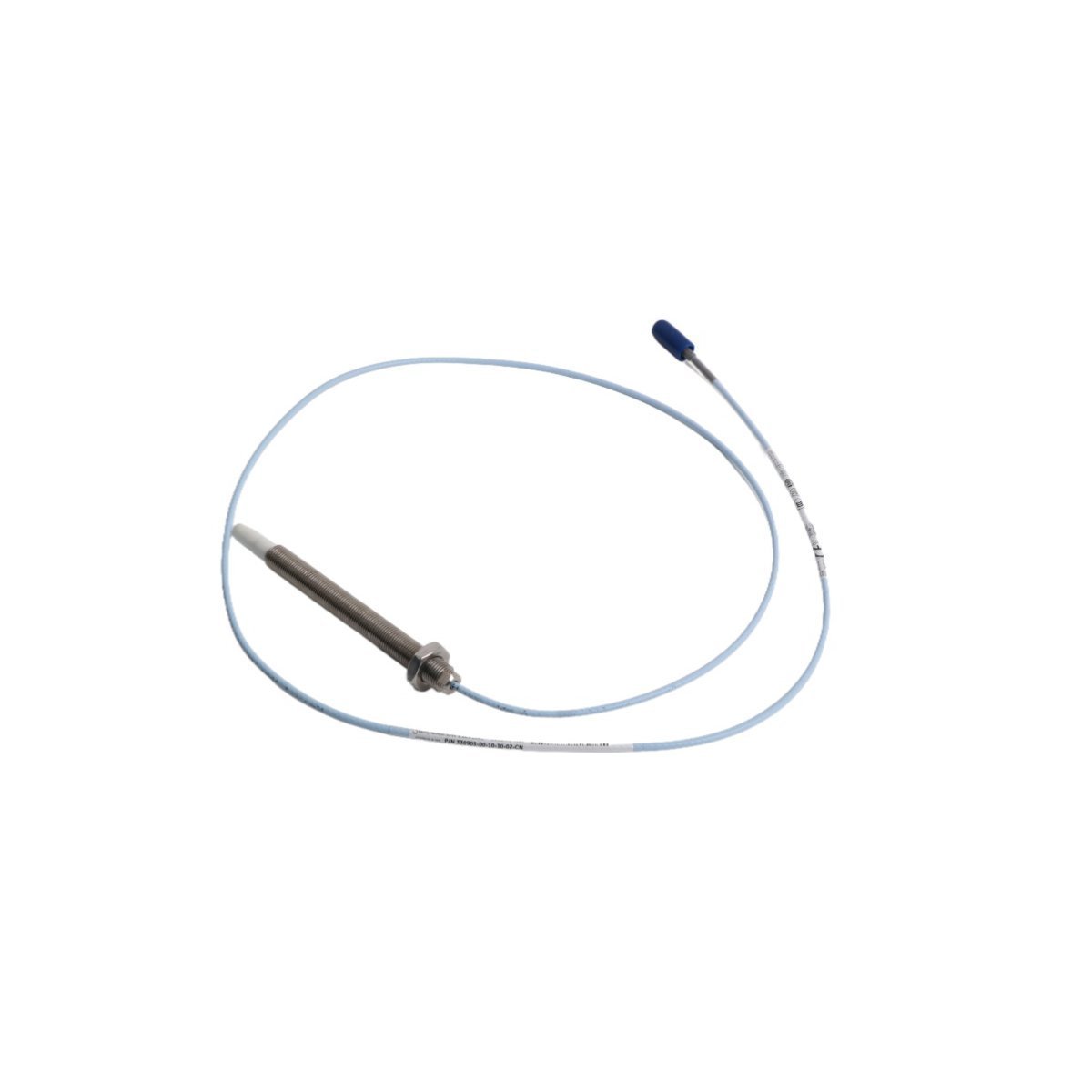

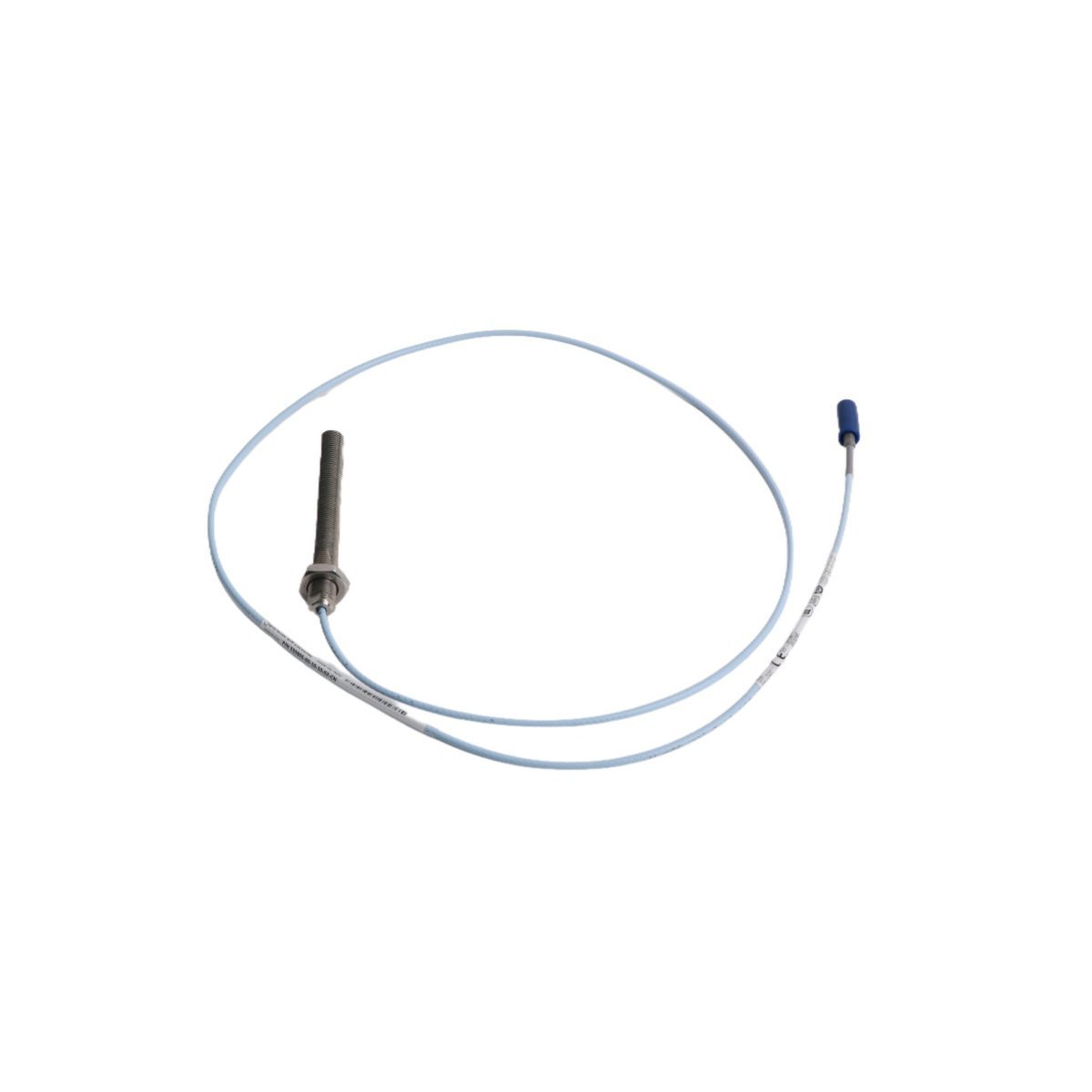

(1) New Bently Nevada 330905-00-25-05-01-05 3300 NSv reverse-mount probe with an integrated 0.5-meter armored cable.

(2) Heavy-duty standard English locknuts to lock down final mechanical depth positioning against severe machine housing vibration.

(3) Transparent connector insulation sleeves to isolate the miniature coaxial mating point from moisture.

(4) Complete material traceability records along with the original manufacturer linear calibration datasheet.

Global Logistics and Freight Protection

Our international distribution network ensures rapid fulfillment and absolute component safety.

Transit Timeline

Your order ships out within 2-7 days when payment finish, routed via world-class express carriers like DHL, FEDEX, or UPS to guarantee accelerated customs clearance and tracked global doorstep delivery.

Storage Packaging Quality

Our facility seals every proximity probe inside specialized anti-static industrial packaging and form-fitting, impact-resistant foam padding, completely neutralizing electrostatic hazards and mechanical shocks encountered during transit.

Field Engineering Diagnostics FAQ

Q1: What specific installation scenario requires this reverse-mount probe configuration?

A1: A reverse-mount probe installs from the rear through a specialized housing sleeve or internal bracket, allowing you to mount the sensor inside a bearing housing when external clearance or standard external threading paths are unavailable.

Q2: Can I pair this 3300 NSv probe with a standard 3300 XL 8mm extension cable?

A2: No, you cannot mix these loops. The 3300 NSv series operates on a different frequency and tuning profile than the standard 3300 XL series. You must use a dedicated 3300 NSv extension cable and a 3300 NSv Proximitor Sensor to keep the system calibrated.

Q3: What is the target gap voltage for this specific sensor during installation?

A3: The standard installation gap voltage for a 3300 NSv system is -9.0 VDC. This sets the probe tip at the exact center of its 1.5 mm (60 mils) linear operating range, matching factory calibration specifications.

Q4: How do I arrange commercial payment to ensure immediate order processing?

A4: We accept verified commercial telegraphic wire transfers (T/T), standard proforma corporate invoicing, and major verified credit accounts to accelerate the financial clearance phase and initiate priority packaging routing.
