Specialized Monitoring for Restricted Geometries

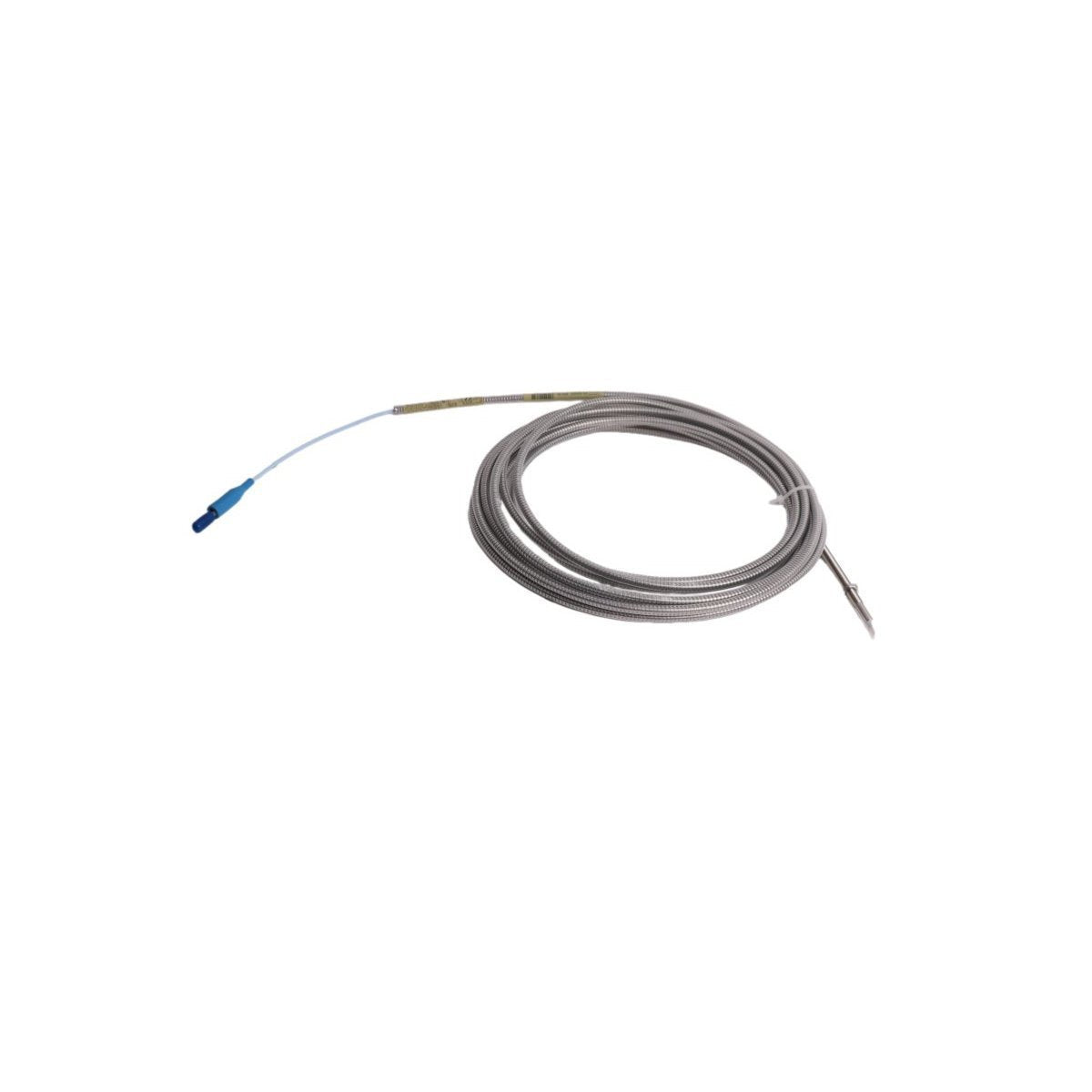

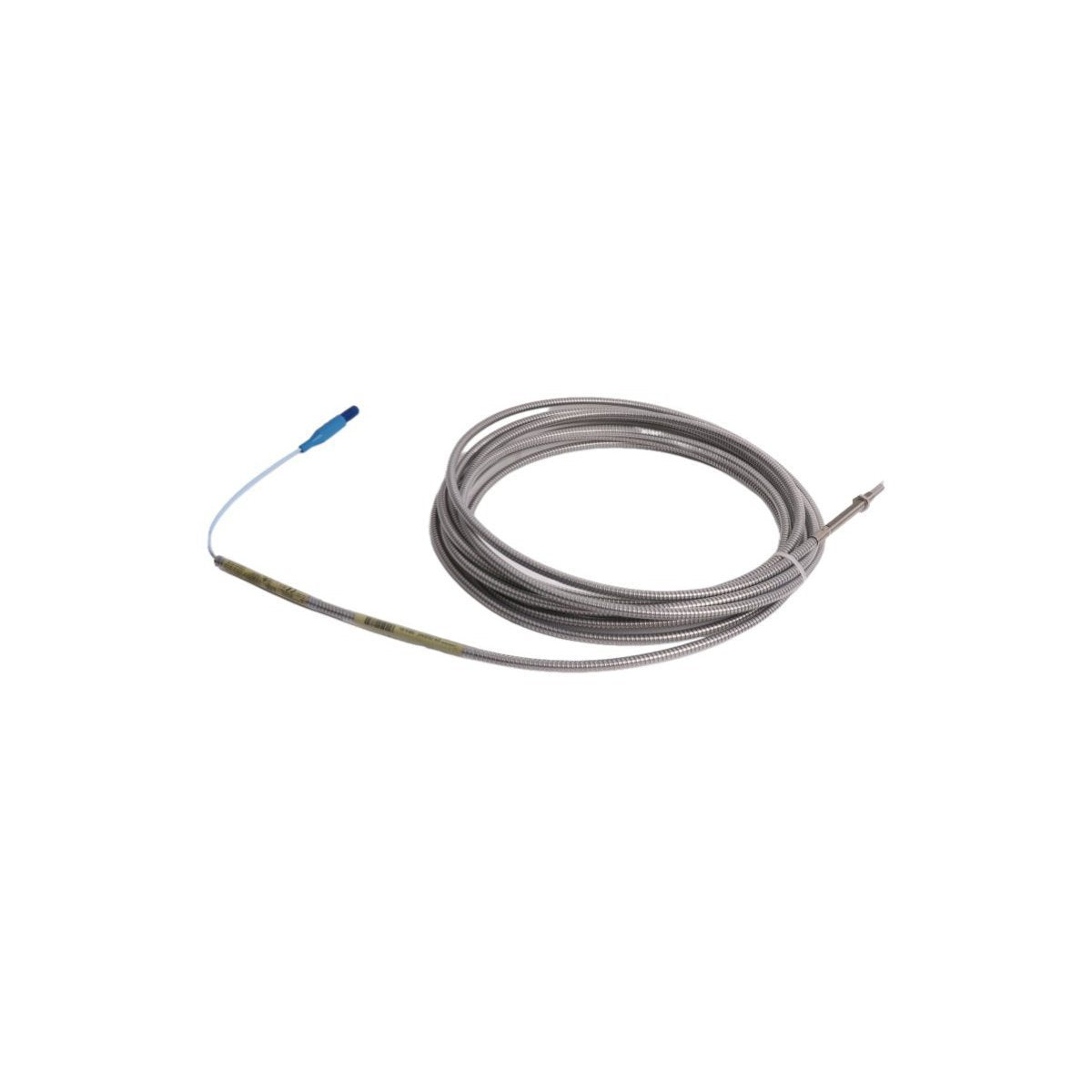

The Bently Nevada 330904-02-10-70-01-00 3300 NSv (Narrow Side View) proximity probe provides a critical solution for machinery with limited installation space or small shaft diameters. Unlike standard probes that suffer from "side view" interference in confined areas, the NSv series utilizes a specialized tip design to focus the electromagnetic field. This makes it the primary choice for centrifugal compressors, pumps, and small turbines where side-clearance is minimal. By delivering precise radial vibration and axial position data to your 3500 Machinery Protection System, this probe ensures high-speed assets remain protected against rotor-to-stator contact, maintaining plant safety and operational continuity.

Configuration Analysis (Part Number Breakdown)

330904 - 3300 NSv Proximity Probe

Standard 3/8-24 UNF thread probe specifically designed for the 3300 NSv Transducer System, optimized for small target surfaces.

02 - Unthreaded Length

Specifies a 0.2-inch unthreaded section. This option allows for precise positioning of the probe tip within the machine housing while maintaining structural integrity.

10 - Overall Case Length

Defines a 1.0-inch total case length. This short-body design is ideal for compact bearing housings where external clearance is extremely limited.

70 - Total Length

Indicates a 7.0-meter (23.0 feet) total length. This specific length eliminates the need for intermediate extension cables in many applications, reducing signal loss and potential failure points.

01 - Connector and Cable Option

Includes a miniature coaxial connector with a standard cable. The connector features a high-reliability locking mechanism suited for high-vibration industrial environments.

00 - Agency Approval Option

Designates the standard version for non-hazardous locations, providing a cost-effective solution for general-purpose industrial machinery protection.

Core Technical Data

Field Installation Strategy

The 3300 NSv probe requires precise gapping for optimal performance. Field engineers should set the initial gap to -10.0 VDC (the center of the 1.5mm linear range) using a calibrated voltmeter at the Proximitor output. Because this probe is often used in tight spaces, ensure the lead cable maintains a minimum bend radius of 25.4 mm (1 inch) to prevent internal conductor fatigue. Always verify that the probe tip is perpendicular to the shaft surface; any angular misalignment will directly degrade the sensitivity and linearity of the vibration signal.

Industrial Reliability and Integration

The 330904-02-10-70-01-00 thrives in the oil-saturated, high-temperature environments of industrial centrifugal equipment. Its robust construction resists chemical degradation and thermal drift, ensuring consistent data flow to DCS platforms like Honeywell Experion PKS or Emerson DeltaV. When integrated with the Bently Nevada 3500/42M Proximitor Monitor, it provides seamless 24/7 protection, allowing for advanced diagnostic capabilities like orbit plots and shaft centerline trending, even on the smallest high-speed rotors.

Order Fulfillment and Logistics

Delivery time: 3-5 days when payment finish, BY DHL/FEDEX/UPS.

All sensors are shipped in anti-static industrial packaging to preserve the integrity of the sensing tip and internal coaxial shielding during global transit.

Technical Support FAQ

Q1: Can I use the 3300 NSv probe with a standard 3300 XL Proximitor?

A1: No. The 3300 NSv probe must be paired with a 3300 NSv Proximitor. Using a standard 3300 XL Proximitor will result in incorrect sensitivity and non-linear data due to the different tip electronics.

Q2: What is the benefit of the "Narrow Side View" (NSv) design?

A2: Standard 8mm probes require a large clearance around the tip to avoid "seeing" the sides of the mounting hole. The NSv design focuses the field, allowing it to work in holes only slightly larger than the probe itself without signal interference.

Q3: How do I handle the 7.0m integrated cable during installation?

A3: Excess cable should be neatly coiled (minimum 150mm diameter) and secured in a junction box. Never cut or splice the probe lead, as this changes the electrical length and invalidates the system calibration.
