Product Overview

The Bently Nevada 330903-00-05-05-01-00 proximity probe provides essential non-contact displacement telemetry within the specialized 3300 NSv eddy current measurement series. This high-reliability sensor targets confined industrial installations where standard probe envelopes cannot fit, offering exceptional precision for small-target or tight-clearance rotating machinery assets. It interfaces directly with critical monitoring hardware such as emergency shutdown protection loops and Turbine Supervisory Instrumentation (TSI) platforms. By operating effectively near gear teeth, narrow shafts, and thrust collars, this transducer delivers instantaneous gap and vibration data to control frameworks including the Bently Nevada 3500 system or Honeywell Experion PKS distributed control systems (DCS). This real-time visibility enables automated asset trip mechanisms to prevent catastrophic mechanical failure during abnormal structural events.

Transducer Configuration Mapping and Option Logic

Deciphering the functional options chosen for this specific configuration identifies exact engineering compatibility parameters.

Unthreaded Length Suffix (00)

This selection dictates a 0 mm unthreaded section, meaning mechanical threads run the full length of the probe case to optimize mounting flexibility inside customized bracketry.

Case Length Metric Profile (05)

The probe incorporates a 50 mm overall case length featuring standard M8 x 1 threads, striking an optimal balance between rigid thread engagement and minimal structural protrusion.

Total Cable Length Metric Option (05)

An integrated coaxial miniature cable provides a total length of 0.5 meters (1.6 feet), establishing an accurate impedance path optimized for localized termination inside adjacent machine boxes.

Connector Type Structure (01)

The cable terminates in a miniature coaxial ClickLoc connector structure without fluid-resistant boot insulation, allowing quick lock mating cycles to standard NSv extension cabling systems.

Hazardous Area Agency Approval (00)

The 00 suffix denotes standard non-hazardous or multiple global approval options depending on structural baseline manufacturing runs, matching direct operational infrastructure safety mandates.

Operational Parameters and Dimensional Infrastructure

Mechanical Field Deployment and Calibration Rules

Optimal Voltage Target Configuration

Field engineers must monitor output via a digital multimeter directly connected to the matching 3300 NSv Proximitor sensor terminal block. Rotate the probe slowly until the multimeter registers a static baseline calibration voltage of -9.0 VDC, securing the sensor tip precisely at the center of its linear displacement curve.

Minimizing Localized Cross-Talk

Because the 3300 NSv system features a concentrated magnetic field footprint, maintain a physical separation of at least 25 mm between adjacent probe tips. This spacing prevents electromagnetic fields from overlapping and corrupting the raw high-frequency displacement signals.

Extension Cable Routing Constraints

Secure the 0.5-meter probe cable cleanly to non-vibrating structures using insulated conduit clamps. Maintain a static bend radius of no less than 25 mm to preserve copper core integrity and prevent impedance variations across the measurement loop.

Plant Asset Synergy and Environmental Resilience

Performance Profiles in Volatile Spaces

The chemically inert probe tip compound withstands continuous exposure to hot synthetic lubricants, ammonia mist, and severe chemical flushes. The sensor resists mechanical wear and eliminates thermal calibration drift across thousands of hours of continuous industrial rotation cycles.

Direct Process Control Architecture Integration

The sensor transfers raw voltage outputs directly to automated vibration panels or modern DCS networks via 3500 series vibration monitors. This provides machinery health indicators across plant networks, ensuring early detection of shaft centerline changes or high-amplitude axial thrust anomalies.

Kit Inclusions and Ordering Framework

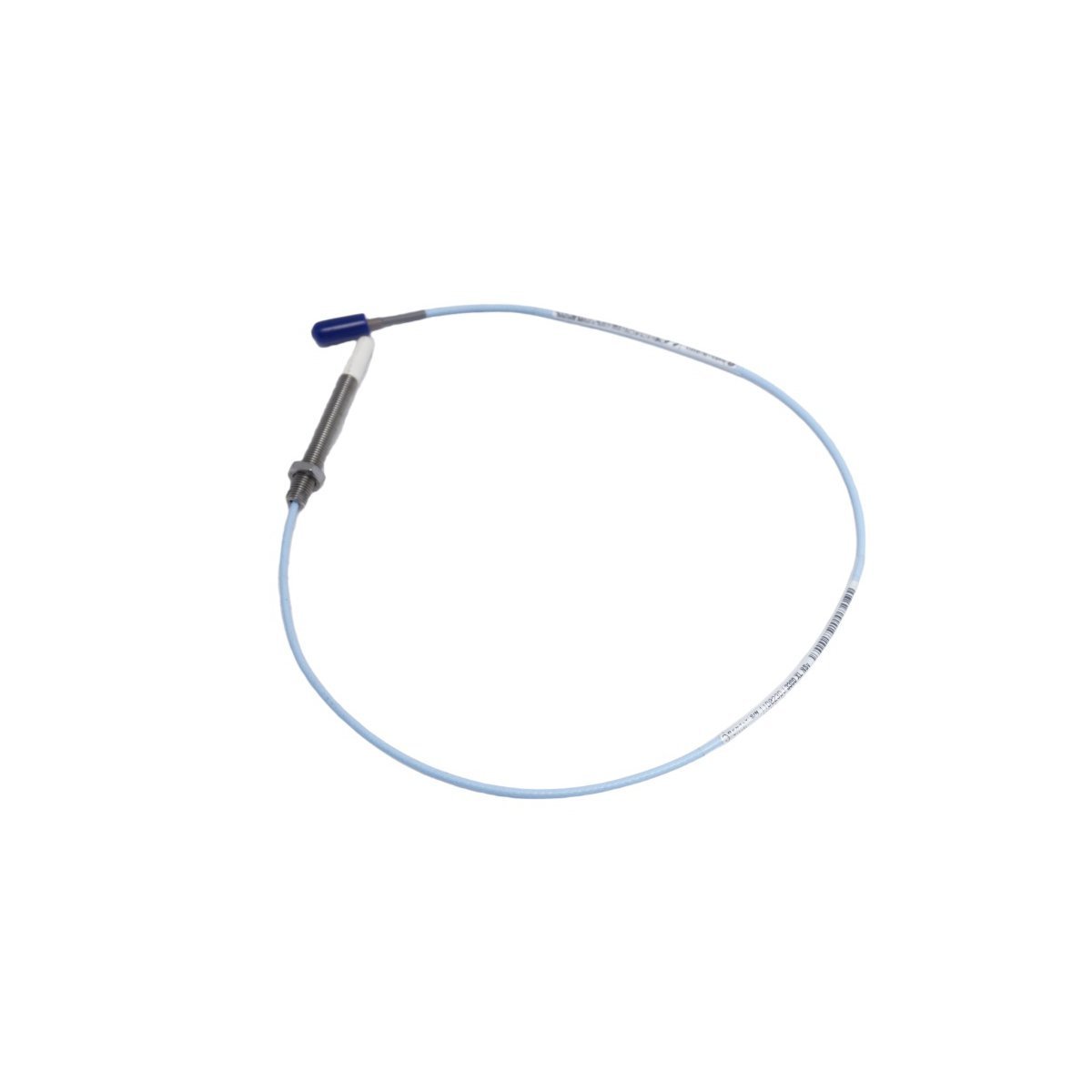

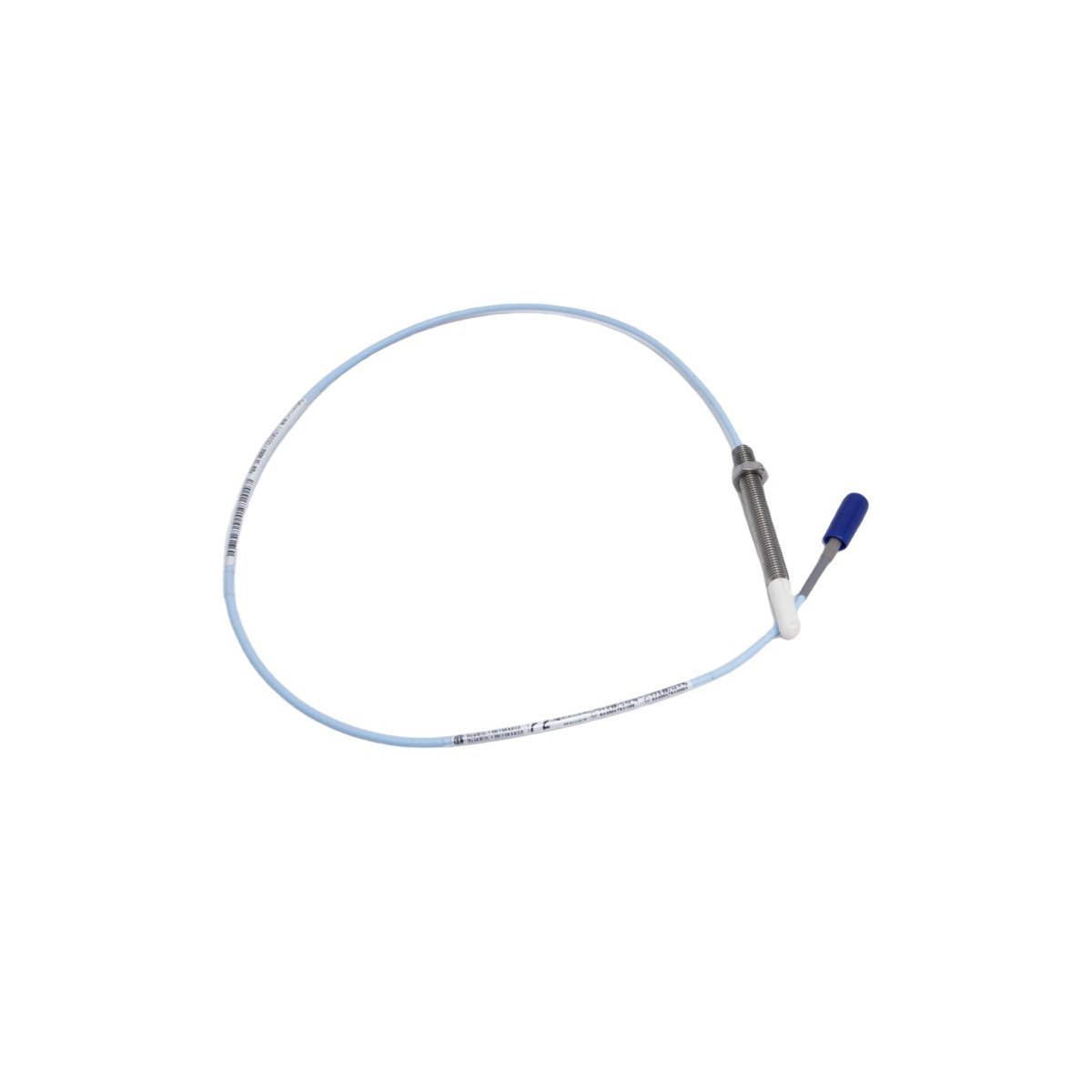

(1) One Bently Nevada 330903-00-05-05-01-00 3300 NSv Proximity Probe.

(2) Integrated ClickLoc miniature coaxial connector terminal.

(3) Removable plastic connector shielding cap.

(4) Factory calibration certificate and structural instruction sheet.

Logistics Workflow and Protective Packaging

We dispatch confirmed orders within 3-5 days when payment finish, routing all shipments through premier carrier platforms like DHL, FedEx, or UPS for rapid international handling. Every proximity probe goes through strict validation before packing in heavy-duty anti-static industrial packaging. This protective layer isolates sensitive magnetic fields and eliminates physical shock hazards, ensuring the component arrives at your site ready for immediate installation.

Field Engineering FAQs

Q1: What differentiates the 3300 NSv probe series from the standard Bently Nevada 3300 XL 8mm system?

A1: The 3300 NSv series utilizes a smaller 5mm tip diameter and tight target geometry calibration, allowing it to measure vibrations on very small shafts or tight spaces where an 8mm probe would suffer from side-viewing interference.

Q2: Can I combine a 3300 NSv probe with a standard 3300 XL extension cable and Proximitor sensor?

A2: No, mixing lines alters system impedance. The 3300 NSv probe must operate exclusively with dedicated 3300 NSv extension cables and matching NSv Proximitor sensors to prevent severe output voltage errors.

Q3: How do I handle an unexpected situation where the probe tip makes light contact with the target shaft?

A3: If physical contact occurs, inspect the probe tip immediately for scoring or cracking. The robust tip assembly withstands minor touch incidents, but structural cracks require immediate probe replacement to prevent fluid wicking into the cable.
