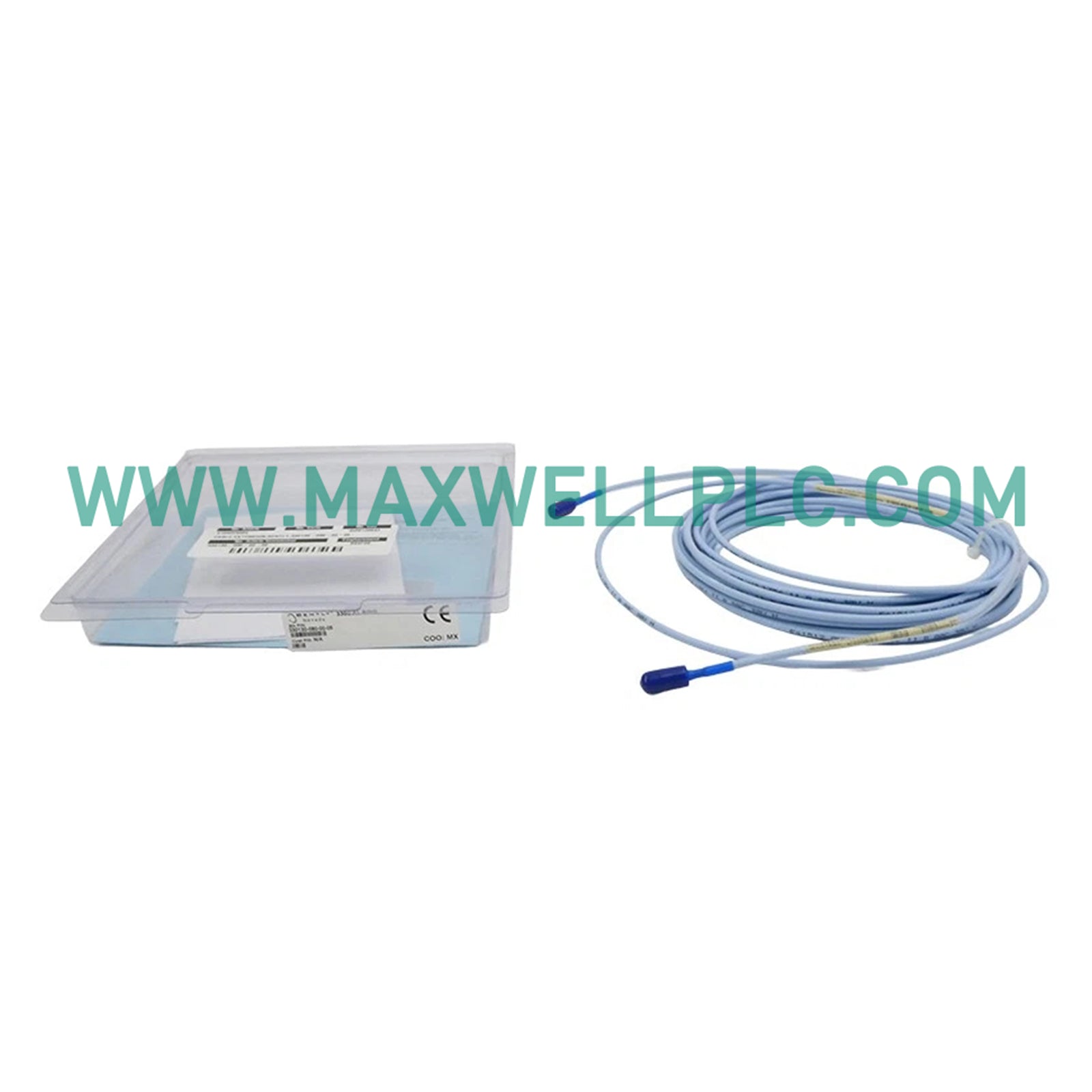

The Bently Nevada 84661-70 serves as the primary 84661 Interconnect Cables utilized to execute control or monitoring functions across automation platforms. The hardware establishes the dynamic electrical interconnection between high-frequency machine sensors and central vibration signal processing instrumentation blocks, ensuring continuous loop operation without impedance mismatch or signal degradation.

Suffix Nomenclature Breakdown

• 84661: Base catalog model for the 2-conductor twisted, shielded armored interconnect cable assembly.
• -70: Standardized option code specifying a pre-terminated physical length configuration of exactly 70 ft (21.3 m).

Technical Specifications

Eddy-Current Probe Scaling & Vibration Signal Processing

The electrical distribution tolerances of the 84661-70 cable assembly are designed to support accurate vibration signal processing path tracking. Maintaining an internal core capacitance below 45 pF/m prevents high-frequency data clipping, ensuring that factory eddy-current probe scaling metrics and piezo-velocity waveforms reach processing monitors without phase distortion. This controlled profile aids in stabilizing gap voltage validation (-10 VDC targets) during baseline static component calibrations. The mechanical interlocking stainless steel armor wrap blocks continuous rotor dynamics stresses and physical friction, while the structural design enforces high cross-talk suppression between parallel instrumentation runs laid out within the same heavy-industrial containment channels.

Ordering Information

• 1 x 84661-70 Armored Interconnect Cable Assembly (70 ft length)
• 1 x Integrated 2-socket moisture-resistant female plug
• 2 x Factory-crimped connection terminal ring lugs

Installation Guidelines

Grounding Rules

• Terminate the overall drain wire braid strictly at the instrumentation clean earth bus bar located within the remote monitor rack cabinet.
• Do not ground the stainless steel outer armor jacket at the machine housing frame boundary; ensure it remains isolated at the sensor end to stop circulating loop ground currents.

Wiring Constraints

• Maintain a strict minimum static bend radius of 110 mm along all conduit runs and junction tray layout pathways.
• Secure the armored assembly to high-vibration machine supports using stainless steel cable clamps spaced at maximum 450 mm intervals.

Shielding Requirements

• Verify that the 2-socket moisture-resistant female connector boot is fully engaged and threaded straight onto the 330500 or 330525 sensor body to protect against liquid or grease ingress.
• Route the 70 ft run completely isolated from any multi-phase alternating current motor lines or digital control switching elements to avoid inductive noise pickup.

Backplane Insertion Rules

• Bypass or disarm the corresponding machinery protection monitoring channel before executing ring lug landing actions at the termination block.
• Ensure the screw connections on the input terminal strip are torqued down firmly to prevent micro-arcing and intermittent open-circuit faults at the monitor panel backplane.

Environmental Limitations

• Do not allow the operating envelope to exceed the certified continuous temperature parameters of -40 to +150 deg C.
• Ensure that the interlocking armor shows no crushed zones or physical pinches that could damage the internal twisted-pair conductors or cause conductor-to-shield shorts.

Frequently Asked Questions

• Q: What is the hot-swap behavior when replacing the 84661-70 interconnect cable during live turbine operations?

  A: The associated monitoring rack slot must be placed in bypass mode first; removing the connection under power simulates an open-circuit error, which can trigger a false emergency machinery shutdown.

• Q: Does this unpowered 70 ft armored cable generate an additional current load on the internal backplane supply?

  A: No, the assembly is a completely passive electrical analog component that draws 0 mA from the monitoring rack power rails or instrument bus lines.

• Q: What redundancy switching delay is added by this cable when changing over to a backup rack monitor?

  A: The wire provides direct physical conduction pathways for the piezo-velocity sensor output, resulting in a 0 ms electronic switching delay contribution during channel transfer operations.

• Q: Are there specific firmware compatibility steps needed when tracking signals through this legacy cable asset?

  A: No, this is an analog interconnect assembly without logic arrays or internal memory components; it maintains full transparency across all firmware flash versions and hardware platforms.

• Q: What level of electrical signal isolation does the cable structure provide between the core and the armor?

  A: The interior dielectric insulation provides a rated test tolerance of 1500 V DC conductor-to-shield isolation to prevent accidental high-voltage transients from feeding back into the logic cards.

• Q: What field wiring constraints govern the installation of the ring lugs at the terminal box?

  A: Use matching terminal barrier block pitch spaces and compress the terminal screws cleanly over the 22 AWG lug bases to avoid intermittent high contact resistance points.

• Q: Why is this specialized interconnect cable marked as unsuitable for the 21128 velocity transducer housing?

  A: The 21128 mechanical housing clearance tolerances do not fit the larger outer envelope diameter and bending stiffness of this specific stainless steel armored configuration.

• Q: What diagnostic indicator displays on the monitor if the insulation resistance drops below standard criteria?

  A: The monitoring system typically flags a transducer fault or out-of-bounds gap voltage error, which signifies a breakdown of the core insulation or moisture intrusion at the female pin junction.
