Product Overview

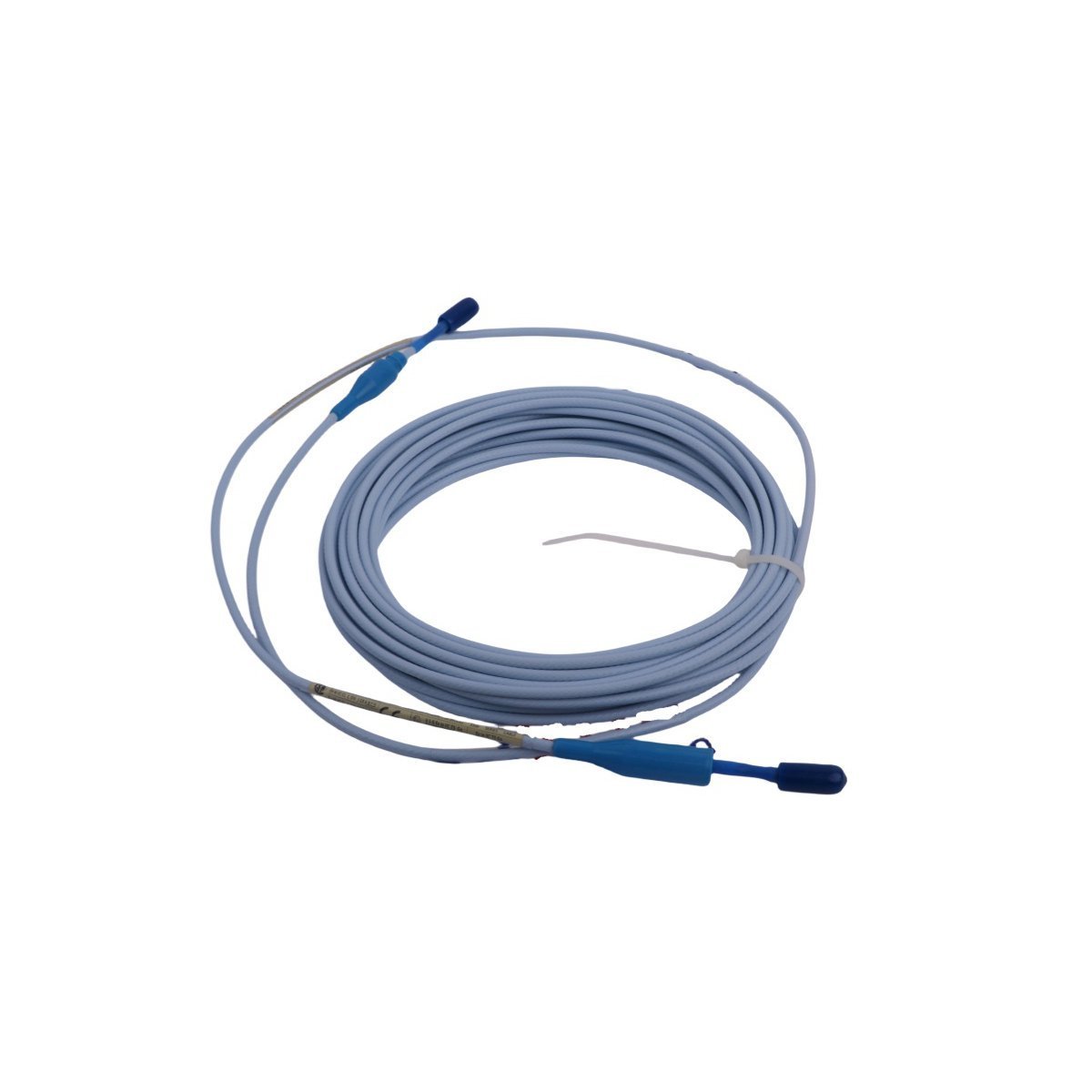

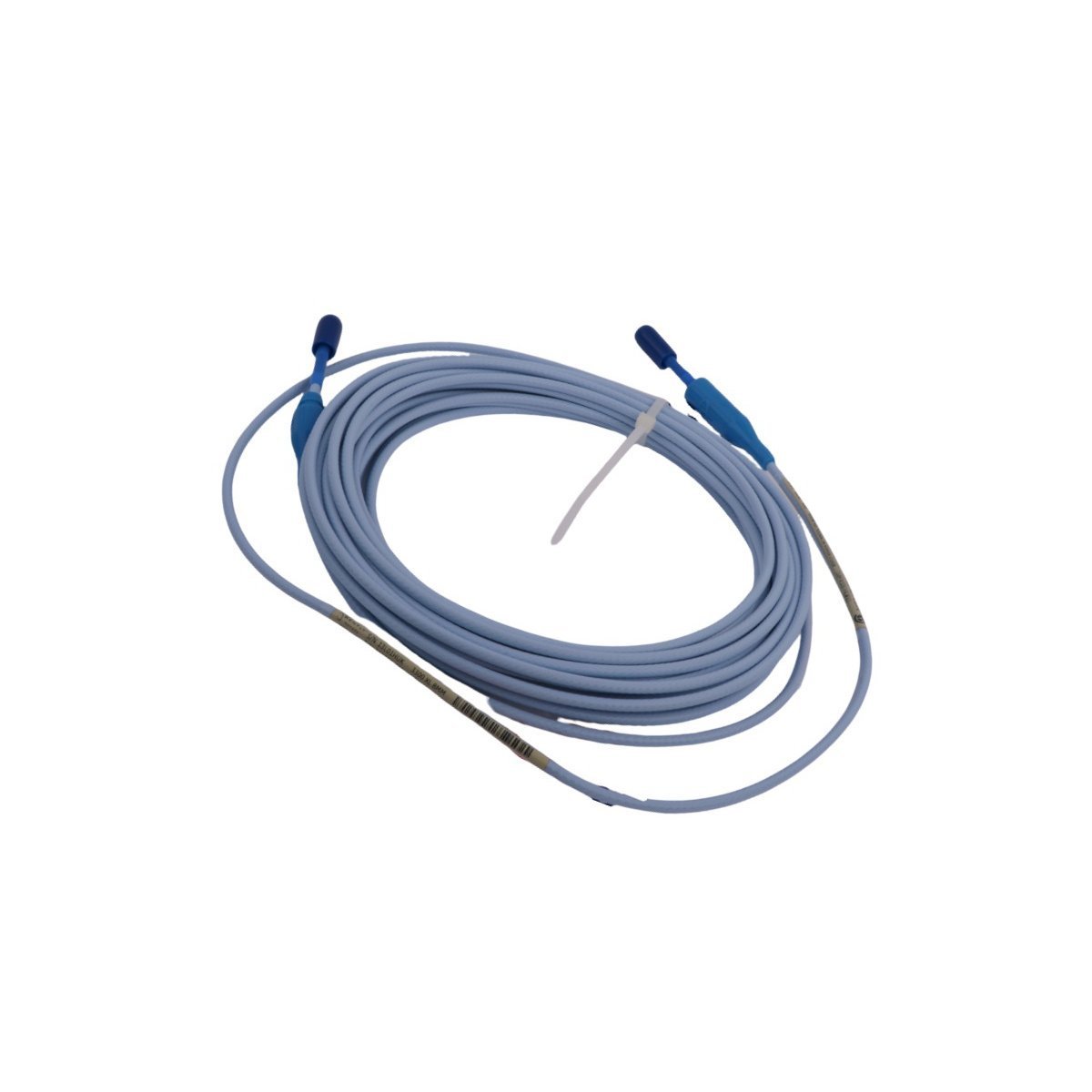

The Bently Nevada 330130-085-02-05 3300 XL 8mm Extension Cable establishes a low-attenuation, impedance-matched electrical bridge within critical machinery protection loops. This heavy-duty coaxial line links the physical eddy current probe head directly to a remote Proximitor sensor module, maintaining absolute signal calibration across long distances.

Control engineers deploy this armored extension cable within comprehensive Turbine Supervisory Instrumentation (TSI) layouts to track critical dynamics on large-scale steam turbines, high-speed centrifugal compressors, and major process pumps. The high-integrity shielding structure passes raw, high-frequency analog waveforms without experiencing phase shifting or signal drop. This ultra-stable telemetry gives central DCS interlocks and automated emergency shutdown networks the clear electrical tracking needed to trip machines instantly before catastrophic bearing or shaft breakdown occurs.

Part Number Structural Tuning

330130 [3300 XL 8mm Baseline Coaxial Layout]

Designates the product family as a premium, low-loss 3300 XL 8mm extension cable assembly engineered to preserve absolute scale factor stability across industrial eddy current sensing systems.

-085 [Calibrated Cable Length Option]

Defines the exact calibrated length of the cable as 8.5 meters (27.9 feet). This length option combines with a 0.5-meter proximity probe to achieve a precise 9.0-meter total electrical loop tuning.

-02 [Stainless Steel Armor Option]

Equips the high-frequency coaxial line with a flexible, fluid-tight stainless steel armor jacket over its entire physical length to shield the internal dielectric layers from physical crushing or abrasion.

-05 [Global Safety Framework Option]

Carries comprehensive international hazardous area certifications, including ATEX, IECEx, and CSA standards, allowing continuous secure deployment within intrinsically safe zones.

Mechanical & Electrical Framework Attributes

Proximity Loop Field Routing Mandates

Field installation crews must maintain a strict minimum bend radius of 25.4 mm (1.0 inch) across the stainless steel armored run to avoid compressing the internal dielectric layer or changing system capacitance. Route the armored line through dedicated, grounded instrument raceways to eliminate electromagnetic interference (EMI) originating from nearby heavy induction motors or raw power lines.

Technicians must verify that all miniature coaxial ClickLoc connector faces remain clean, dry, and free of oil before completing the loop coupling. Lock the connections finger-tight, then apply a final quarter-turn using specialized connector wrenches to prevent the assembly from backing out during high-velocity machine vibration cycles. Secure the intermediate probe-to-cable joint inside a dedicated, grounded field junction box to preserve the structural ingress protection rating.

Environmental Endurance & Distributed Automation Link

The rugged stainless steel armor and premium internal fluoropolymer insulation allow the 330130-085-02-05 cable to withstand constant exposure to corrosive ammonia vapors, hot synthetic bearing lubricants, and high-pressure steam leaks without cracking. This structural integrity prevents moisture migration into the core shield, ensuring stable scale factors across multi-year asset lifecycles.

The cable delivers unattenuated analog proximity signals directly to the Proximitor module, which feeds the Bently Nevada 3500 protection rack. The system mirrors these synchronized shaft dynamics to a plant-wide Honeywell Experion PKS or Siemens S7 PLC framework via dedicated analog loops or automated Modbus TCP channels. This configuration provides the control room with split-second machinery trip interlocks and deep predictive asset health monitoring simultaneously.

Commercial Box Manifest

The commercial industrial package contains the following itemized components:

(1) Original Bently Nevada 330130-085-02-05 Armored Extension Cable

(2) Factory-installed miniature coaxial ClickLoc female connector

(3) Factory-installed miniature coaxial ClickLoc male connector

(4) Complete material traceability card and individual physical calibration certificate

Freight Protection & Global Despatch Protocols

Our global supply center processes and dispatches all equipment inventory within 2-7 days following payment finalization. We route all critical machinery components via premium express air carriers, including DHL, FedEx, and UPS, to guarantee fast, tracked, and insured delivery to your facility.

Our warehouse packages each extension cable assembly inside heavy-duty anti-static industrial packaging sheets before securing it within custom, shock-absorbing foam padding inserts. This strict packaging process provides full protection against electrostatic discharge, heavy transit vibrations, and ambient moisture entry along international shipping routes.

Site Maintenance Engineering FAQ

Q1: Can I pair this 8.5-meter extension cable with a 1.0-meter proximity probe?

A1: No. Combining an 8.5-meter extension cable with a 1.0-meter probe creates a total physical loop length of 9.5 meters. Standard Bently Nevada 3300 XL Proximitor sensors are calibrated strictly for either 5.0-meter or 9.0-meter total system lengths. A 9.5-meter mismatch alters electrical impedance, ruining measurement calibration and causing severe voltage tracking errors. Always pair this 8.5-meter cable with a 0.5-meter probe to achieve the required 9.0-meter configuration.

Q2: What specific maintenance action should I take if the monitor registers a "Not OK" status for this channel?

A2: A "Not OK" status often points to an open or short circuit along the transducer loop. Disconnect the extension cable at both ends and measure the center-conductor-to-shield resistance using a digital multimeter. A reading of infinity indicates a physical break in the line, while a reading near zero ohms points to an internal short, meaning you must replace the cable assembly.

Q3: Does the stainless steel armor eliminate the need for external conduit runs?

A3: The flexible stainless steel armor (-02 option) provides excellent protection against physical impact, sharp cuts, and fluid abrasion along open machine runs. However, it does not act as an airtight electrical shield. You should still route the armored cable inside a dedicated metal conduit or cable tray if the path runs next to high-voltage lines that emit high levels of electromagnetic noise.
