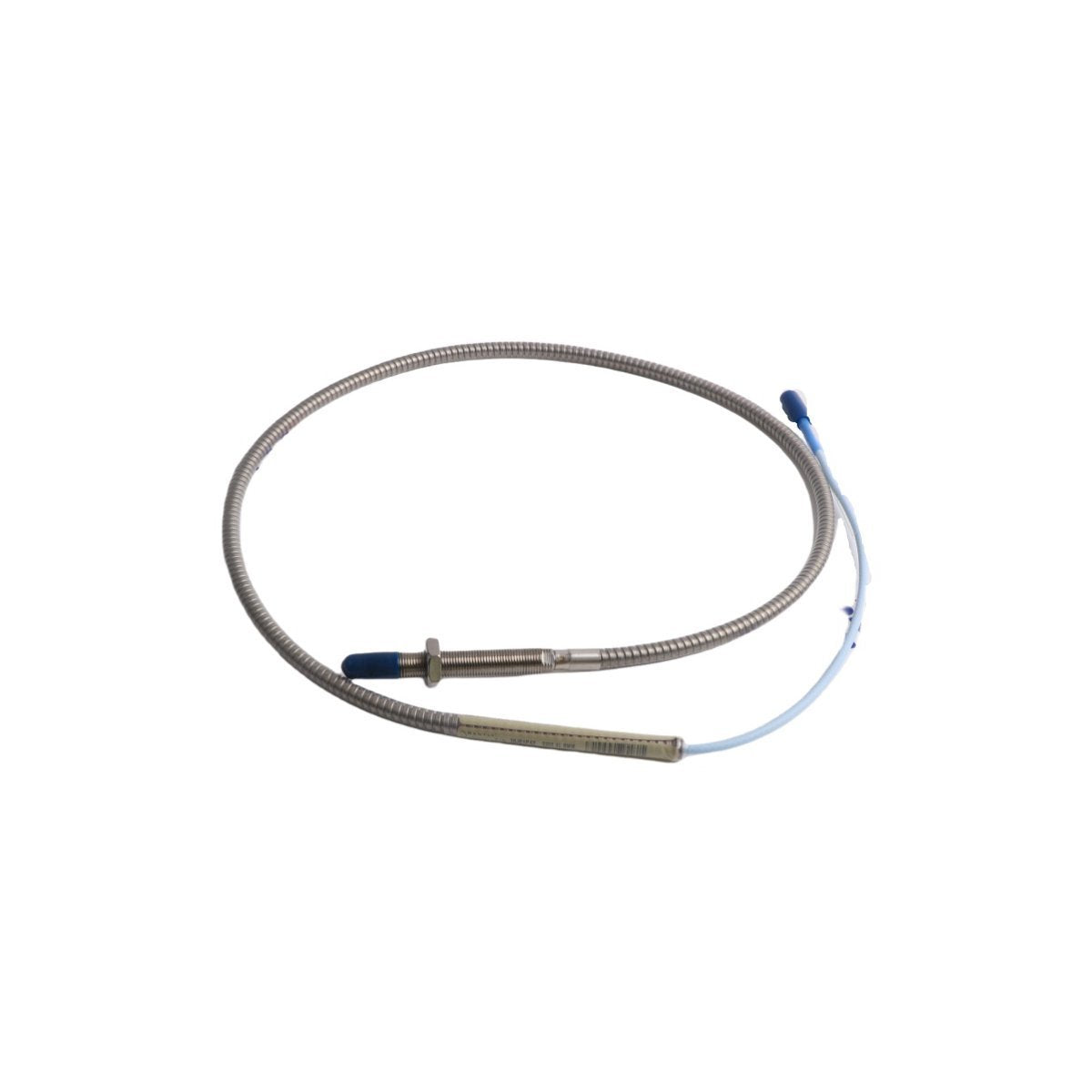

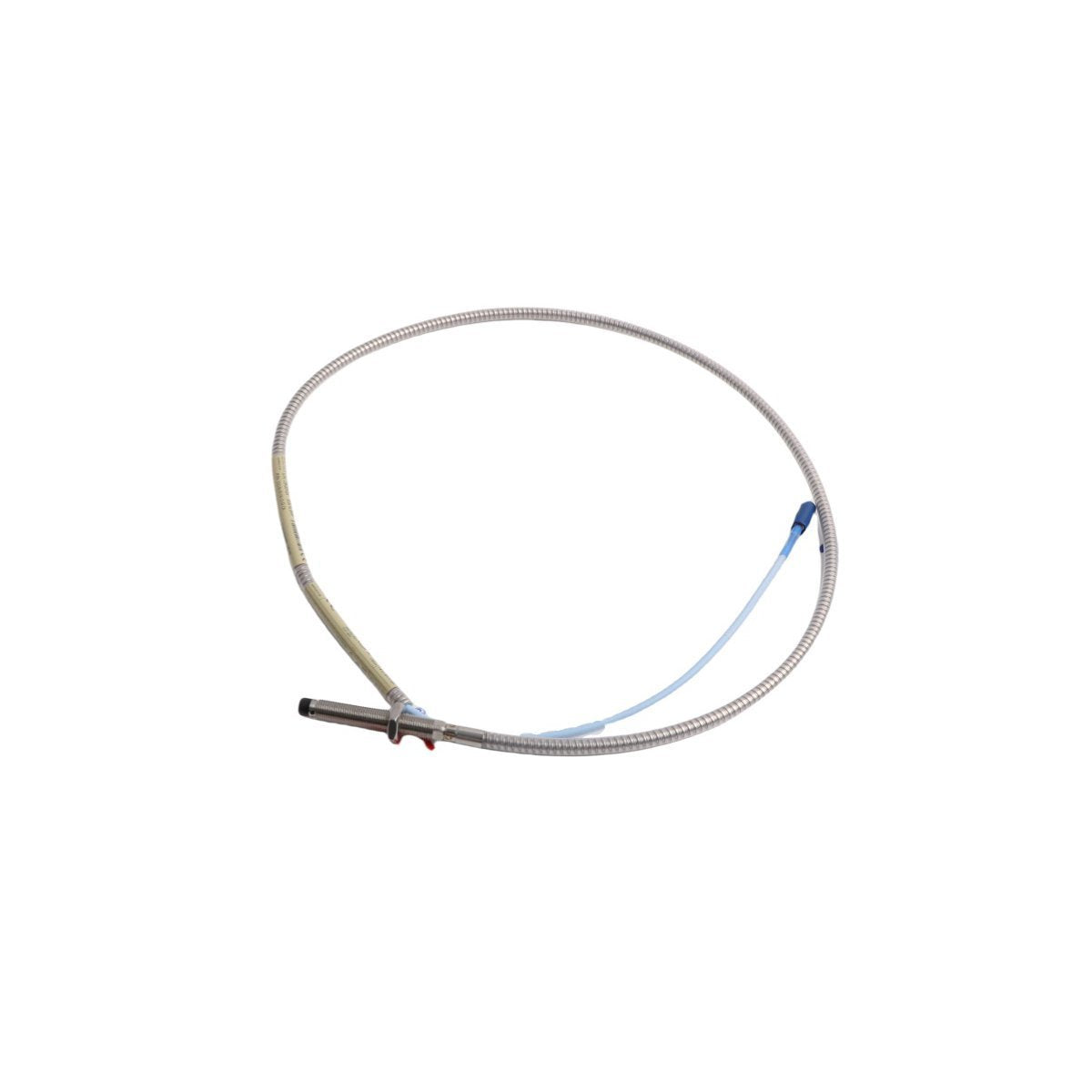

The Bently Nevada 330104-00-06-10-02-05 serves as the primary 330104 Proximity Probes utilized to execute non-contacting shaft displacement and dynamic vibration measurements across Bently Nevada 3500 Machinery Protection System platforms. The instrument detects static and dynamic distances between the sensor tip and the target shaft surface, transmitting proportional analog voltage variations through a closed high-frequency loop to the system monitoring rack.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The 330104-00-06-10-02-05 projects a high-frequency radio frequency (RF) field from its 8.0 mm tip to interact directly with the rotating target material. To establish an accurate calibration curve against volatile rotor dynamics, field configuration requires strict gap voltage validation. Adjusting the physical insertion depth until the Proximitor sensor output indicates exactly -10 VDC targets the precise midpoint of the 2.0 mm linear tracking envelope. This spatial alignment preserves the factory eddy-current probe scaling accuracy. Furthermore, proper spatial separation intervals must be calculated and enforced during multi-probe bracket layout to maintain cross-talk suppression and eliminate inductive overlapping between adjacent measurement channels.

Frequently Asked Questions

Q: Does this 3300 XL proximity probe support continuous on-line hot-swap manipulation at the ClickLoc junction?

A: Yes, the loop accommodates hardware substitution. However, separating the coaxial connector breaks the high-frequency RF carrier wave, causing the matched monitor card to register an immediate Transducer Fault (NOT OK) flag. The tracking channel must be placed in manual software bypass before uncoupling the connector interface.

Q: Can this 330104 probe be utilized with older 7200 series 8 mm Proximitor sensors?

A: No. The internal coil properties and electrical length optimization of the 3300 XL series do not match the modulation parameters of the obsolete 7200 series. Intermixing these platforms de-calibrates the eddy-current probe scaling and results in false displacement data.

Q: How does operating with a non-4140 steel target profile impact the analog output voltage?

A: Metallurgy variations modify target magnetic permeability. Non-4140 targets warp the linear tracking calibration matrix, shifting the scale factor away from the 7.87 V/mm standard. If other steels are used, the system must undergo laboratory recalibration or software offset correction.

Field Installation Guidelines

Procurement Manifest

The standard procurement specification comprises the following package items:

Cargo Forwarding Matrix

• Dispatch Window: Parts are cleared for departure within 2-7 days when payment finish through confirmed industrial commercial banking accounts.

• Transit Routing: Shipped globally using priority express networks including DHL, FEDEX, or UPS.

• Packaging Integrity: Sealed inside heavy-duty, moisture-barrier anti-static industrial packaging sheets to protect the internal high-frequency electromagnetic coil from electrostatic and structural degradation during flight.
