Product Overview

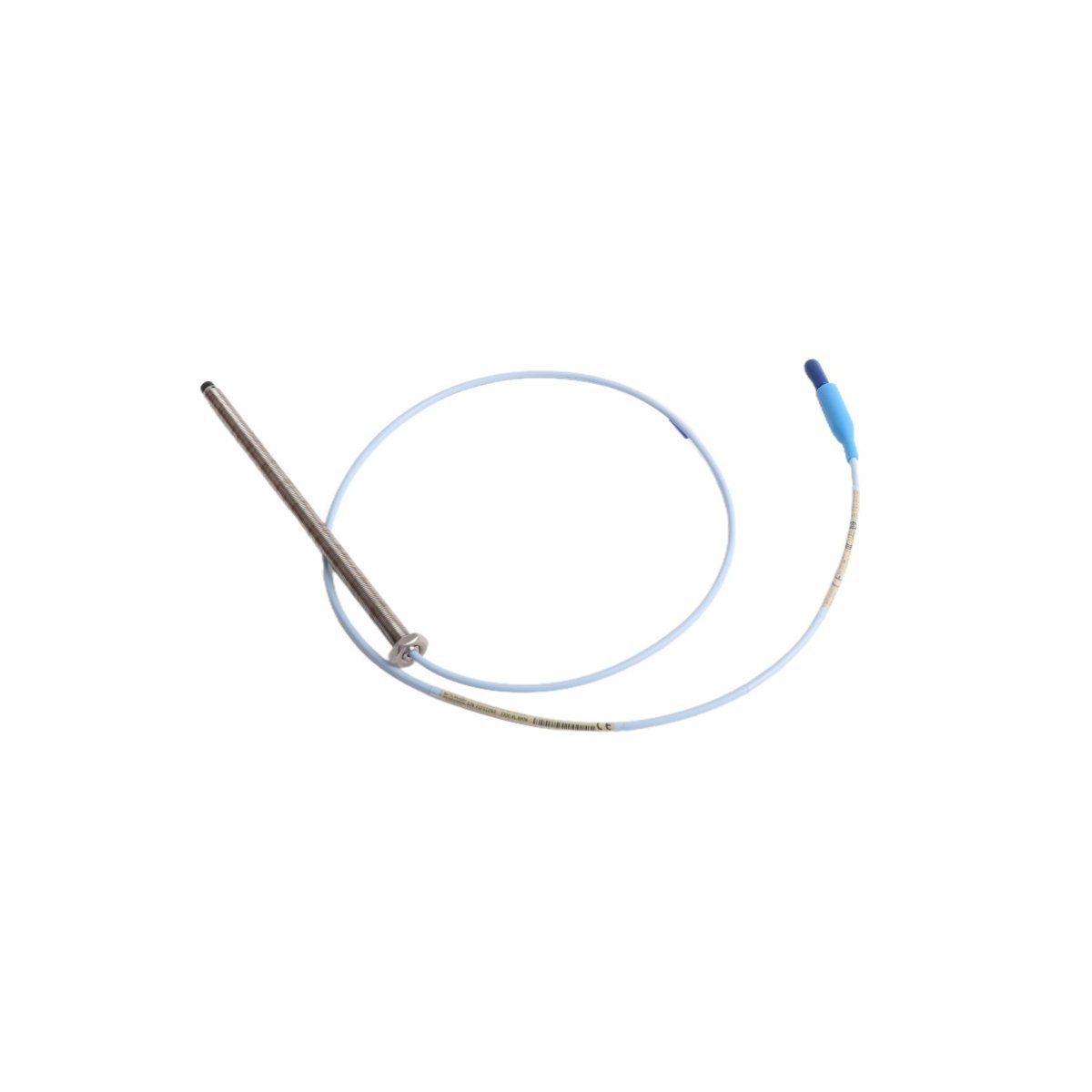

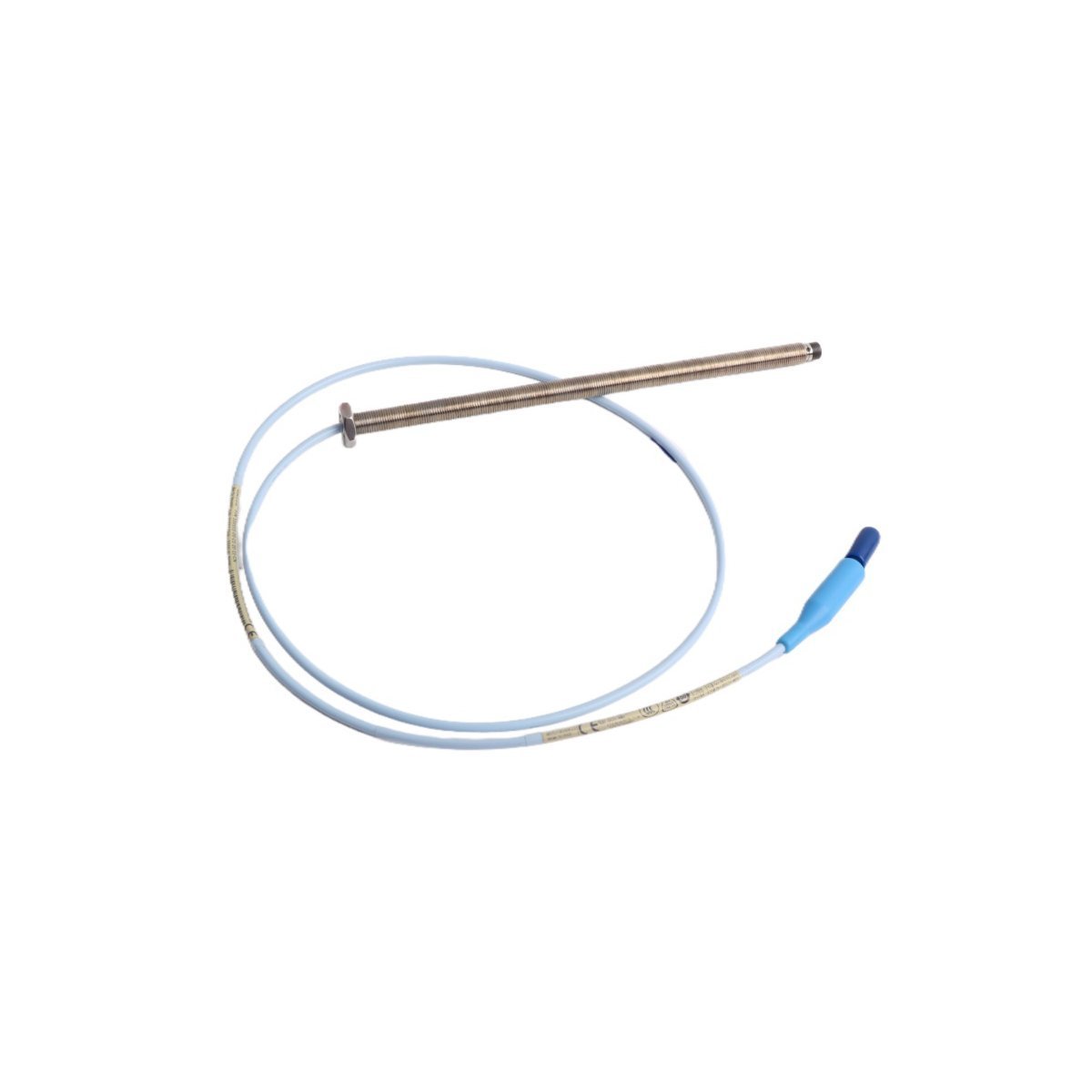

The Bently Nevada 330103-00-21-05-11-05 acts as a critical instrumentation asset for heavy industrial equipment protection, utilizing advanced non-contacting eddy current technology to assess real-time shaft dynamics. Engineered specifically as a smooth cylindrical body variant, this 3300 XL 8 mm proximity probe mounts flawlessly into tight spaces via external clamping blocks or internal smooth bores. It monitors structural indicators such as radial vibration profiles, axial thrust displacement, and relative oil-film clearance on high-speed industrial assets, including centrifugal compressors, steam turbines, and critical water pumps. The sensor transmits continuous, drift-free analog metrics straight to Bently Nevada 3500 monitoring chassis or distributed plant automation networks. By integrating directly into localized Emergency Shutdown (ESD) control loops, this probe allows engineering teams to identify sub-micron structural flaws instantly, preventing catastrophic machine failure and avoiding expensive unscheduled production outages.

Alphanumeric Option Matrix Breakdown

Bently Nevada applies a structured code matrix to specify the exact structural casing dimensions, cable lengths, and explosive-zone safety validations for this smooth-body 3300 XL probe.

330103 Base Model Designation

This code defines the 3300 XL 8 mm smooth cylindrical proximity probe layout, which lacks external threads on the main body case.

Unthreaded Length Parameter (-00)

For this smooth-body model, the 00 suffix dictates a 0.0-inch unthreaded variation because the entire main casing sleeve is completely smooth by design.

Overall Case Depth Specification (-21)

The 21 suffix specifies a 2.1-inch overall case length, providing a compact mechanical body footprint optimized for localized machine block mounting.

Integrated Coaxial Line Length (-05)

The 05 option assigns a 0.5-meter (1.6 feet) total integrated probe cable length, terminating in a miniature low-loss gold-plated connector.

Cable Hardware Armor (-11)

The 11 designator introduces a flexible, fluid-resistant stainless steel armor conduit along with an integrated coaxial connector protector, shielding the underlying signal core from sharp metal debris and high-temperature oil splashes.

Hazardous Area Certification (-05)

The 05 designation provides comprehensive global explosion-proof approvals, including ATEX, IECEx, and CSA intrinsic safety and non-incendive ratings for zone-classified environments.

Physical and Electrical Performance Properties

Site Deployment and Mechanical Centering Protocol

Mechanical depth adjustment directly dictates the accuracy of your dynamic vibration loops. Field technicians must monitor the raw DC gap voltage across the Proximitor Sensor terminals using a high-impedance digital multimeter during physical assembly. Slide the smooth-body probe into the mounting sleeve or clamp block until the multimeter registers exactly -10.0 VDC. Tighten the external clamp bolts firmly to secure the probe, which ensures the target shaft face rests precisely in the center of the probe tip's linear calibration range.

Observe rigid routing guidelines to protect the armored cable from internal coaxial kinks. The flexible stainless steel armor conduit requires a minimum physical bend radius of 25.4 mm (1.0 inch). Technicians must contain all miniature coaxial connector joints inside dedicated, sealed terminal junction boxes to prevent fluid contamination and eliminate electromagnetic noise. Ensure the probe case remains electrically isolated from the local machine casing, grounding the shield drain wire exclusively at the 3500 monitoring rack chassis ground terminal strip.

Plant Infrastructure Interconnection

This 3300 XL proximity sensor withstands the punishing conditions of heavy industrial processing, including extreme thermal cycling, heavy casing vibration, and continuous oil submersion inside turbine housings. It integrates natively into comprehensive Turbine Supervisory Instrumentation (TSI) upgrades. The low-impedance analog output signal travels across long distances without degradation, interfacing cleanly with modern process control engines like Honeywell Experion PKS or Siemens S7 PLC architectures to feed plant asset management software with clean dynamic data for real-time diagnostic plotting.

Procurement Inventory and Package Elements

Every ordered procurement kit includes the essential hardware components required for rapid field deployment. The original factory carton contains:

(1) New Bently Nevada 330103-00-21-05-11-05 8 mm smooth-body proximity probe with an integrated 0.5-meter armored cable.

(2) Removable rubber connector protective boots to safeguard the coaxial mating ends during installation routing.

(3) Premium marker identification tags indicating the precise model number layout for rapid asset tracking.

(4) Complete material traceability records along with the original manufacturer linear calibration datasheet.

Supply Chain Logistics and Secure Transit

Our global distribution framework prioritizes fast, secure transit to your industrial facility.

Logistics Dispatch Window

Your consignment ships out within 2-7 days when payment finish, relying on elite global courier providers such as DHL, FEDEX, or UPS to secure automated tracking and rapid international customs processing.

Protective Warehousing Protocols

We pack all industrial infrastructure elements within specialized anti-static industrial packaging and high-density foam stabilization blocks, neutralizing physical impact forces and electrostatic hazards encountered during over-the-road or air freight transit.

Field Engineering Diagnostics FAQ

Q1: What makes the 330103 probe layout different from the standard 330101 model?

A1: The 330103 model features a completely smooth cylindrical case body without any external threads, whereas the 330101 model utilizes a fully threaded body. This smooth design allows you to adjust insertion depth freely through a sliding fit or external clamping sleeve.

Q2: What does the -11 suffix option signify regarding cable hardware?

A2: The -11 option indicates that the probe includes a flexible stainless steel armor jacket over the coaxial cable line, combined with an integrated connector protector. This protector sleeve prevents fluid ingress and locks the coaxial connection mechanically to prevent accidental disconnection from machine vibration.

Q3: Can I connect this 0.5-meter probe to a standard 9-meter 3300 XL extension cable?

A3: No, you must match the total system length. This 0.5-meter probe requires a 4.5-meter extension cable to create a certified 5.0-meter system loop, or an 8.5-meter extension cable for a 9.0-meter system loop. Using mismatched extension cables alters the 200 mV/mil scale factor, ruining measurement accuracy.
