Product Overview

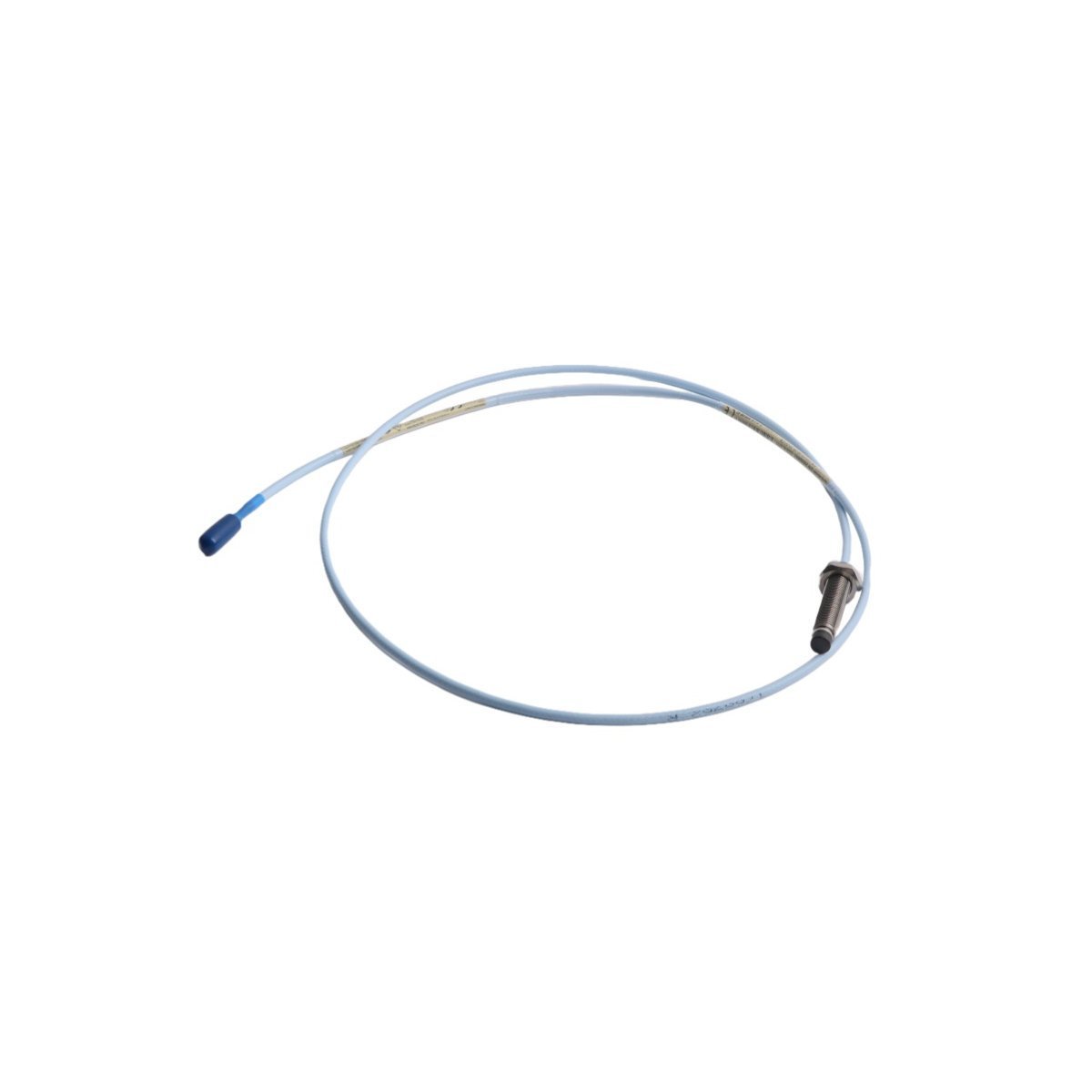

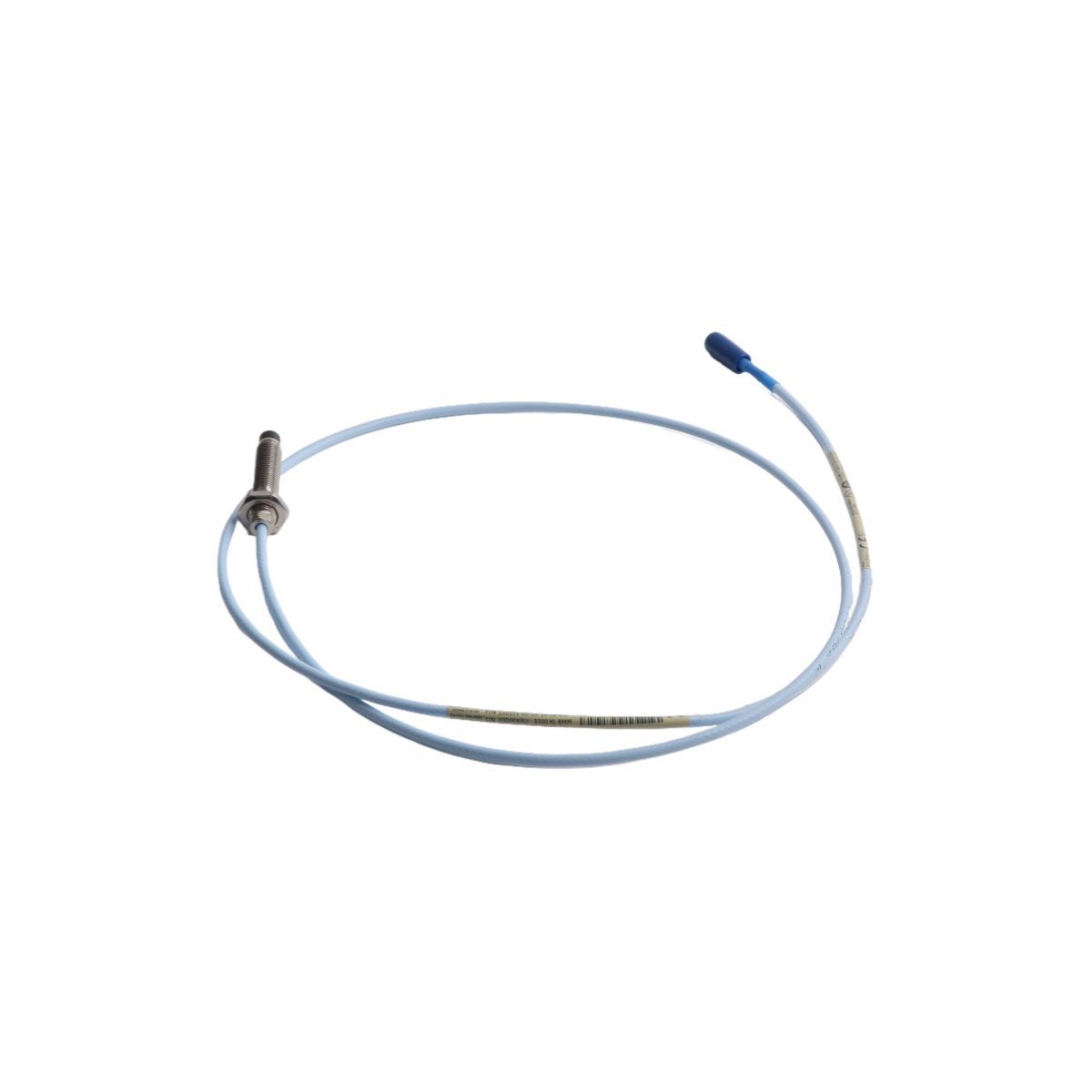

The Bently Nevada 330103-00-05-10-02-CN provides high-reliability asset protection and predictive diagnostic data across heavy industrial applications, deploying advanced non-contacting eddy current sensing fields. Designed with a smooth cylindrical casing, this 3300 XL 8 mm proximity probe slides effortlessly into custom mounting sleeves, specialized clamp blocks, or internal smooth bores where standard threaded options cannot fit. The transducer measures dynamic shaft variables, including radial vibration profiles, axial thrust tracking, and oil-film bearing clearances on high-speed equipment like centrifugal compressors, power-generation steam turbines, and large industrial fans. This hardware streams drift-free raw analog signals directly into Bently Nevada 3500 monitoring enclosures or plant Distributed Control Systems (DCS). Operating as a front-line measurement node in safety-critical Emergency Shutdown (ESD) architectures, it captures microscopic mechanical faults early to prevent catastrophic rotor damage and eliminate expensive production outages.

Alphanumeric Option Architecture

Bently Nevada utilizes an exact option code sequence to dictate the casing style, structural measurements, cable layout, and regional safety approvals of this smooth-body transducer assembly.

330103 Smooth Body Base Designator

This prefix identifies the asset as a 3300 XL 8 mm smooth cylindrical proximity probe, lacking external mounting threads on the main sensor body shell.

Unthreaded Body Length Selection (-00)

For this smooth-case configuration, the 00 suffix indicates a 0.0-inch unthreaded length because the entire outer sleeve maintains a uniform smooth profile by design.

Overall Case Depth Specification (-05)

The 05 suffix defines a compact 0.5-inch overall case length, providing a low-profile physical envelope optimized for shallow bearing caps or restricted internal machine clearance areas.

Integrated Coaxial Cable Length (-10)

The 10 option designates an integrated 1.0-meter (3.3 feet) probe cable length, terminating in a low-loss miniature gold-plated coaxial connector.

Cable Protection Armor (-02)

The 02 suffix introduces a flexible, fluid-resistant stainless steel armor conduit running the full length of the cable jacket, protecting the internal coaxial signal core from hot oil degradation, friction, and physical cuts.

Regional Safety Certification (-CN)

The CN suffix provides localized explosion-proof and intrinsic safety approvals, granting official NEPSI/CCC certifications for zone-classified hazardous environments in the Chinese industrial market.

Physical and Mechanical Operational Parameters

Field Insertion and Mechanical Alignment

Achieving precise calibration curves relies on careful mechanical gapping during field deployment. Field engineers must monitor the raw DC gap voltage across the Proximitor Sensor output terminals using a high-impedance digital multimeter while positioning the sensor. Slide the smooth cylindrical probe body forward into the mounting clamp or sleeve until the multimeter registers exactly -10.0 VDC. Lock the external clamping mechanism securely at this position to ensure the target shaft face rests perfectly in the center of the probe tip's 2.0 mm linear calibration zone.

Observe rigid routing guidelines to prevent signal attenuation across the loop. The flexible stainless steel armor conduit requires a minimum physical bend radius of 25.4 mm (1.0 inch) to eliminate internal coaxial kinks. Technicians must contain all miniature coaxial connector joints inside dedicated, sealed terminal junction boxes to prevent fluid contamination and eliminate electromagnetic noise. Ensure the probe case remains electrically isolated from the local machine casing, grounding the shield drain wire exclusively at the 3500 monitoring rack chassis ground terminal strip.

Critical Process Resilience

This 3300 XL proximity sensor withstands the punishing conditions of heavy industrial processing, including extreme thermal cycling, heavy casing vibration, and continuous oil submersion inside turbine housings. It integrates natively into comprehensive Turbine Supervisory Instrumentation (TSI) upgrades. The low-impedance analog output signal travels across long distances without degradation, interfacing cleanly with modern process control engines like Honeywell Experion PKS or Siemens S7 PLC architectures to feed plant asset management software with clean dynamic data for real-time diagnostic plotting.

Procurement Inventory and Package Elements

Every ordered procurement kit includes the essential hardware components required for rapid field deployment. The original factory carton contains:

(1) New Bently Nevada 330103-00-05-10-02-CN smooth-body proximity probe with an integrated 1.0-meter armored cable.

(2) Removable rubber connector protective boots to safeguard the coaxial mating ends during installation routing.

(3) Transparent connector insulation sleeves to isolate the miniature coaxial mating point from moisture.

(4) Complete material traceability records along with the original manufacturer linear calibration datasheet.

Supply Chain Logistics and Secure Transit

Our global distribution framework prioritizes fast, secure transit to your industrial facility.

Transit Timeline

Your order ships out within 2-7 days when payment finish, routed via world-class express carriers like DHL, FEDEX, or UPS to guarantee accelerated customs clearance and tracked global doorstep delivery.

Storage Packaging Quality

Our facility seals every proximity probe inside specialized anti-static industrial packaging and form-fitting, impact-resistant foam padding, completely neutralizing electrostatic hazards and mechanical shocks encountered during transit.

Field Engineering Diagnostics FAQ

Q1: What makes the 330103 probe layout different from the standard 330101 model?

A1: The 330103 model features a completely smooth cylindrical case body without any external threads, whereas the 330101 model utilizes a fully threaded body. This smooth design allows you to adjust insertion depth freely through a sliding fit or external clamping sleeve.

Q2: What specific classification does the -CN suffix provide?

A2: The -CN suffix indicates that this probe carries regional hazardous area certifications specifically validated by NEPSI/CCC. This matches the compliance mandates for explosion-proof equipment operated within zone-classified locations in China.

Q3: What is the required extension cable pairing for this 1.0-meter probe?

A3: This 1.0-meter probe cable requires a matching 4.0-meter extension cable to complete a standard 5.0-meter loop system, or an 8.0-meter extension cable to form a 9.0-meter loop system. Match these lengths exactly to preserve the calibrated 200 mV/mil scale factor.
