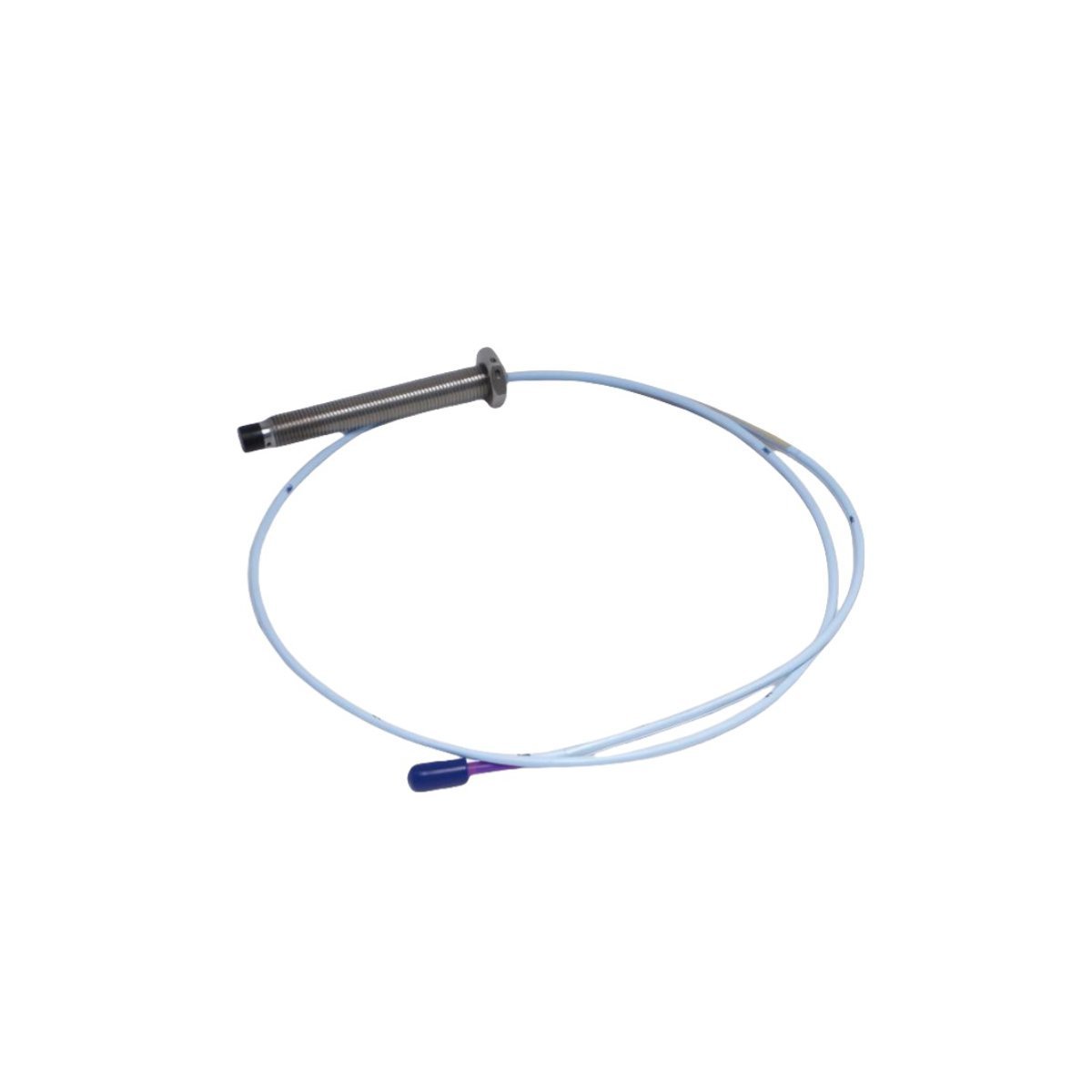

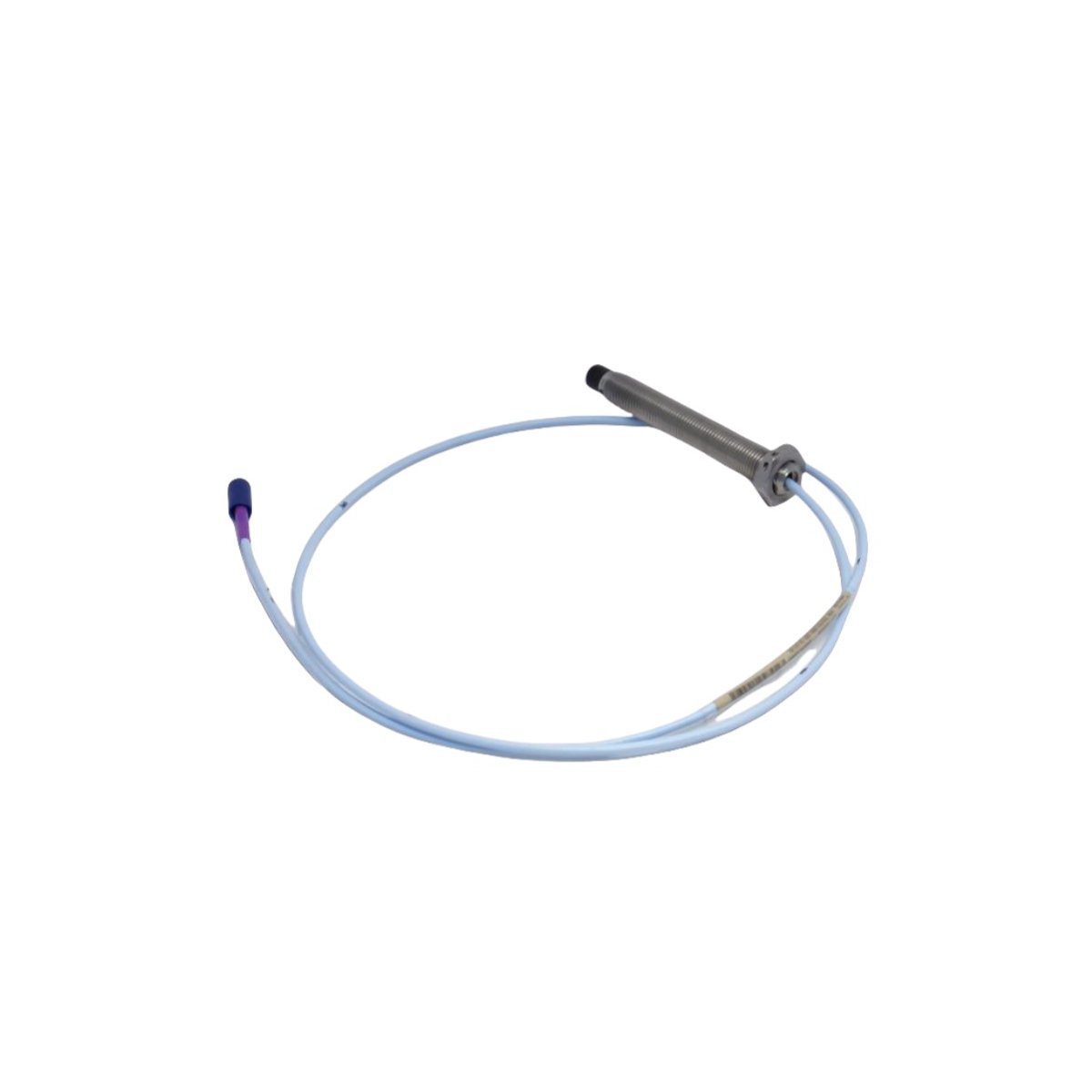

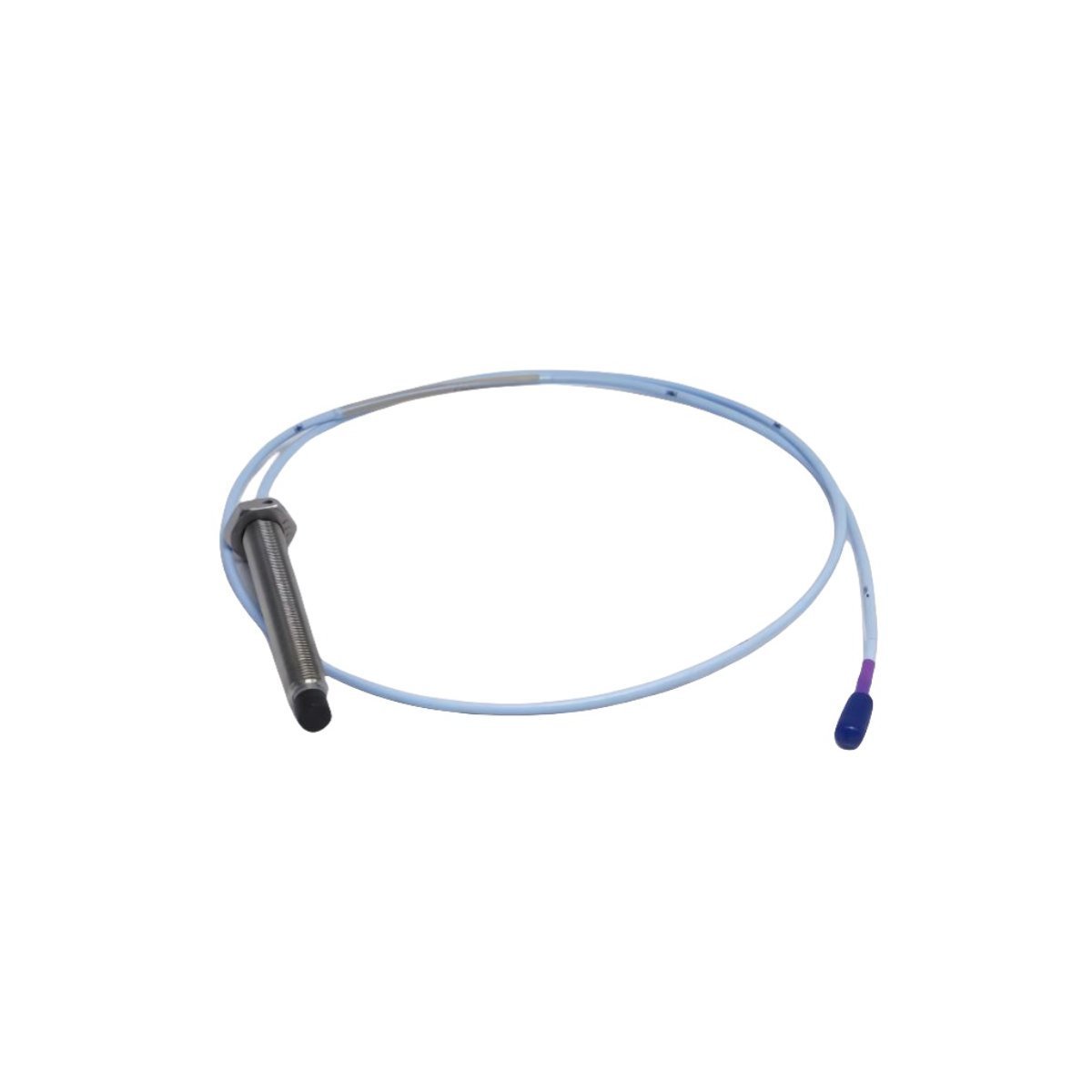

Configured for shaft displacement and vibration measurement in 3300 XL monitoring systems, the Bently Nevada 330102-04-56-10-02-00 (330102 Proximity Probe) provides direct physical/electrical execution of non-contact position sensing. This transducer employs eddy-current induction to generate a voltage signal proportional to the gap between the probe tip and the observed conductive target. The device functions as a primary component in a calibrated measurement chain, requiring a compatible Proximitor sensor for excitation and signal demodulation to output displacement data for rotating machinery analysis.

Suffix Breakdown

The 330102-04-56-10-02-00 is a factory-defined transducer assembly:

• 04: Unthreaded length (40 mm)

• 56: Overall case length (56 mm)

• 10: Total length (1.0 meter)

• 02: Connector type (Miniature coaxial)

• 00: Agency approval (Standard)

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300 XL probe series utilizes precise eddy-current probe scaling to ensure linear output relative to gap distance. During installation, gap voltage validation is mandatory; installers must target -10 VDC when the probe is positioned at the center of its linear range. Rotor dynamics analysis depends on this precise gap setting to accurately capture shaft centerline position and vibration vectors. Cross-talk suppression is maintained by adhering to physical spacing requirements between adjacent probes, preventing frequency interference from overlapping excitation signals generated by the Proximitor.

Ordering Info

• 330102 8 mm Proximity Probe

• Technical installation manual

• Protective thread cover

• Standard mounting accessories not included

Field Installation Guidelines

• Gap Setting: Utilize a feeler gauge to establish the initial gap and confirm output voltage at the Proximitor terminals to verify the -10 VDC center point.

• Torque Application: Apply manufacturer-specified torque to the probe locknut to prevent mechanical loosening caused by casing vibration.

• Cabling: Ensure the coaxial cable is routed in dedicated conduit to minimize EMI/RFI and protect against mechanical damage.

• Grounding: Establish electrical continuity between the probe case and the machine ground to provide a stable common reference.

• Surface Prep: Confirm the target surface is free of non-conductive coatings, burrs, or debris before final calibration.

Frequently Asked Questions

• Q: Is the 330102 compatible with 3300 NSv Proximitors?

• A: No, the 330102 probe must be paired with a compatible 3300 XL Proximitor to ensure correct scaling and linearity.

• Q: Can the coaxial cable be shortened?

• A: No, the cable length is an integral part of the transducer system calibration; modification will alter impedance and degrade measurement accuracy.

• Q: What is the primary purpose of the -10 VDC gap target?

• A: It centers the probe within the linear operating range, allowing the system to measure both positive and negative vibration excursions.

• Q: How does temperature affect the probe?

• A: The probe is rated for operation up to 177 deg C; extreme thermal gradients can cause minor bias shifts, requiring baseline verification after thermal stabilization.

• Q: How often should gap voltage be verified?

• A: Gap voltage should be confirmed during initial commissioning and as part of regular maintenance intervals to ensure consistency.

• Q: Is the miniature coaxial connector waterproof?

• A: No, the connector is not environmentally sealed and must be installed within a protective housing or junction box.

• Q: What causes signal noise in the measurement loop?

• A: Noise is typically induced by ground loops, poor cable shielding, or electromagnetic interference from high-power equipment.

• Q: Are the probes hot-swappable?

• A: While the probe can be disconnected, it is recommended to power down the associated monitor to prevent transient voltage damage to the electronics.
