Product Overview

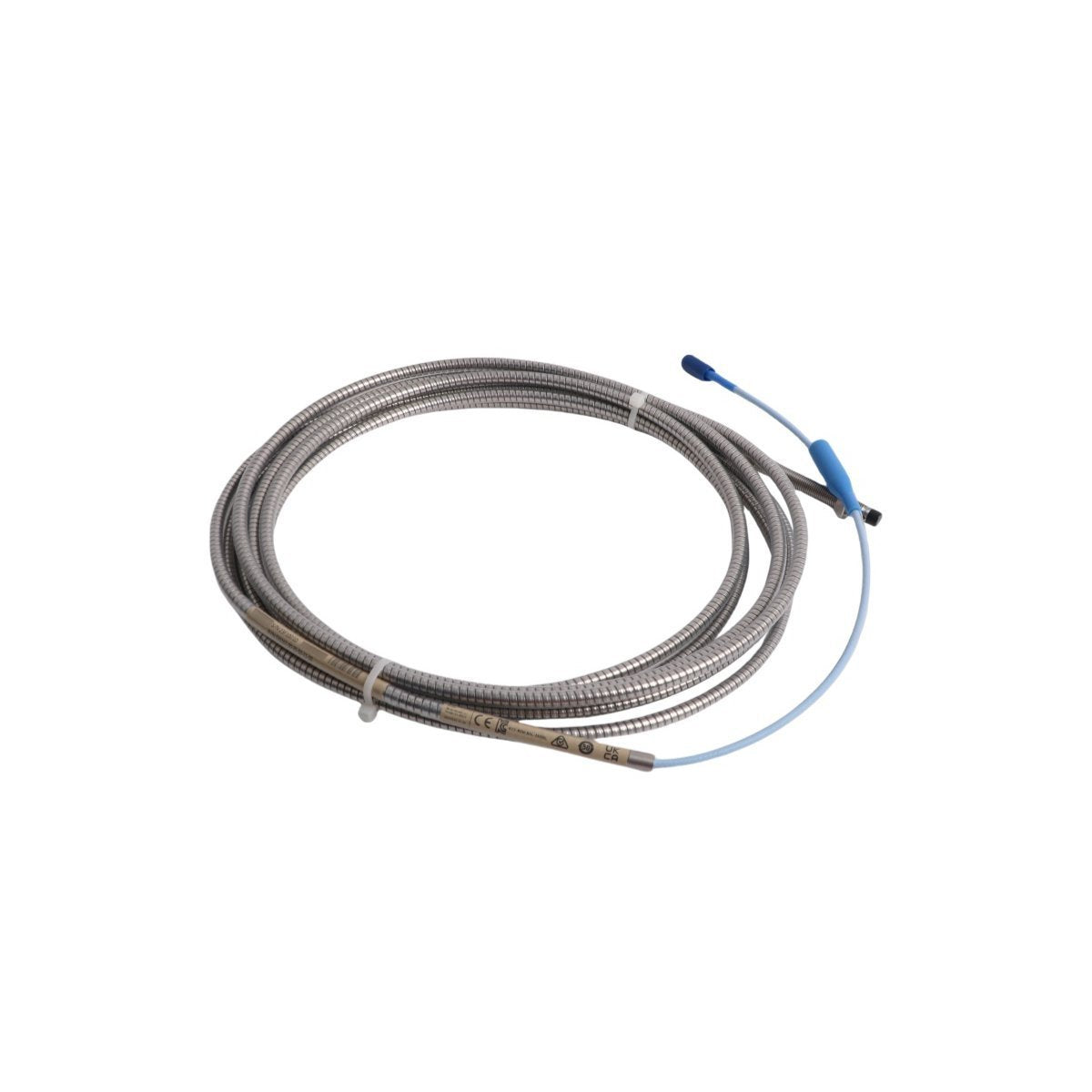

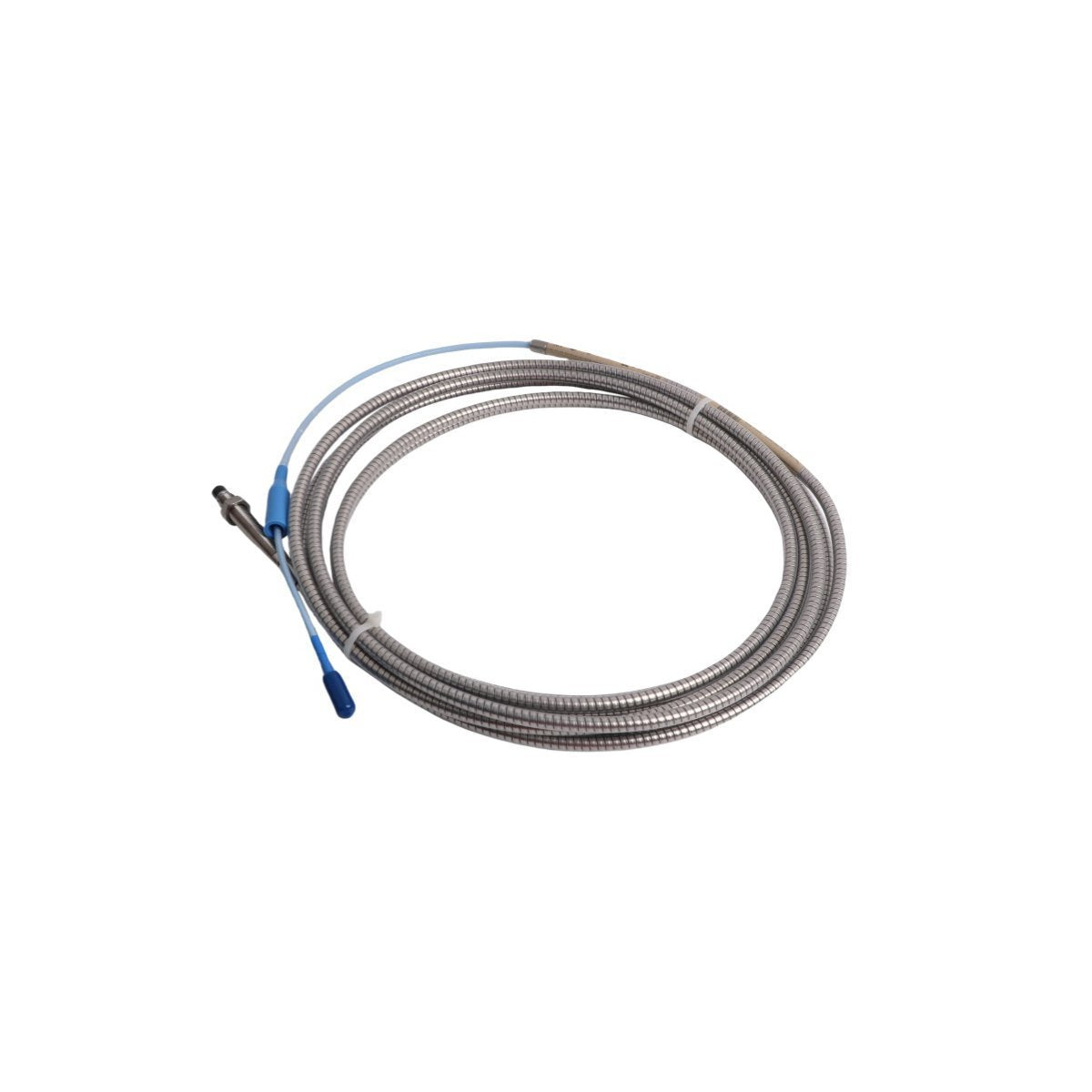

The Bently Nevada 330102-00-25-10-02-05 Proximity Probe provides critical shaft position and vibration measurements for high-speed rotating machinery. As a fundamental component of Machinery Condition Monitoring and Turbine Supervisory Instrumentation systems, this 8 mm eddy current sensor delivers exceptional accuracy under extreme thermal and mechanical stress. It interfaces directly with the Bently Nevada 3500 monitoring system to prevent catastrophic machine failures through real-time predictive diagnostics. Plant operators rely on this rugged hardware to supply clear, low-noise voltage signals to emergency shutdown systems, safeguarding steam turbines, compressors, and large industrial pumps from costly downtime.

Part Number Suffix Configuration

Unthreaded Length Option

The 00 suffix indicates a 0 mm unthreaded length, configuration intended for full-thread insertion depth adjustments within the bracket housings.

Overall Case Length Option

The 25 suffix specifies a 25 mm overall case length, providing a compact mechanical profile for tight radial or axial mounting constraints.

Total Length Option

The 10 suffix designates a 1.0 meter (3.3 feet) total cable length, optimizing the electrical impedance match when paired with a standard extension cable.

Connector and Cable Option

The 02 suffix supplies a miniature coaxial click-loc connector with standard cable insulation, minimizing signal attenuation and preventing fluid ingress.

Agency Approval Option

The 05 suffix indicates multiple hazardous area approvals, certifying the sensor assembly for safe deployment in intrinsically safe Class I, Division 1 and Zone 0 environments.

Physical and Operational Specifications

Deployment and Engineering Calibration

Mechanical Clearance Setup

Engineers must set the mechanical gap using a digital voltmeter connected to the Proximitor Sensor output. Adjust the probe position until the gap voltage reads -10.0 VDC, corresponding to the center of the linear calibration range.

Cable Routing Restrictions

Maintain a minimum bend radius of 25.4 mm (1.0 inch) for the coaxial cable to prevent internal core damage. Isolate all probe cabling from high-voltage conduit channels to eliminate electromagnetic interference.

Hazardous Area Grounding

Ensure strict adherence to intrinsic safety loop diagrams during wiring. The outer shield must connect to the instrument common ground at the monitor rack while remaining isolated at the probe junction box.

Machinery Asset Integration

Thermal Drift Mitigation

Advanced polyphenylene sulfide tip molding ensures exceptional dimensional stability across severe temperature transitions, eliminating measurement drift during turbine startup cycles.

Ecosystem Compatibility

This sensor integrates cleanly into enterprise-level control architectures like Honeywell Experion PKS through Modbus or OPC UA communication links originating at the 3500 rack interface, allowing cross-functional asset analytics.

Ordering and Kit Contents

(1) One Bently Nevada 330102-00-25-10-02-05 Proximity Probe with integrated 1-meter coaxial cable

(2) One silicone connector protector boot to seal the extension cable junction against oil and moisture

(3) Two hex locknuts for rigid mechanical positioning within the threaded mounting port

(4) Complete factory calibration certificate validating the precise scale factor and linearity data

Global Logistics and Packaging

Dispatch Timeline

Our logistics team dispatches orders within 2-7 days following payment verification, utilizing premium express services through DHL, FedEx, or UPS for rapid transit.

Protective Isolation Protocols

Every probe undergoes packaging inside heavy-duty, anti-static industrial containers. This specialized buffering prevents static discharge and physical deformation during international air freight transport.

Technical Field Questions

Q1: How do field technicians verify a degraded probe signal before replacing hardware?

A1: Measure the loop resistance across the center conductor and outer shield using a multimeter. A healthy 1.0-meter probe exhibits a resistance value between 5.9 and 7.7 ohms; significantly higher readings indicate internal conductor fatigue.

Q2: Can this specific probe connect directly to a PLC analog input card?

A2: No, eddy current probes require a matching Proximitor Sensor to condition the high-frequency RF signal into a usable DC voltage before routing to PLC or DCS analog inputs.

Q3: What payment frameworks do you support for international corporate buyers?

A3: We accept secure wire transfers (T/T), verified business credit accounts, and major global commercial digital payment platforms.

Q4: What happens if this probe tip comes into intermittent contact with the target oil film?

A4: The IP68 rated tip material resists continuous exposure to synthetic and mineral-based lubrication oils, maintaining calibration integrity without signal degradation.
