Product Overview

The Bently Nevada 330101-00-24-10-02-05 3300 XL 8 mm Proximity Probe guarantees maximum asset uptime through precise, non-contact displacement monitoring. Built for high-speed rotating machinery, this ruggedized eddy current sensor continuously tracks radial vibration, shaft axial position, and structural eccentricity. It seamlessly links target movement to the Bently Nevada 3500 protection rack and advanced Distributed Control Systems (DCS), acting as the primary data source for machine condition monitoring and Emergency Shutdown (ESD) control. By generating a highly linear voltage scale factor, the sensor allows instrumentation engineers to detect minute structural variations before mechanical wear occurs. Its specialized design maintains extreme thermal stability, preventing sensor drift and ensuring fail-safe protection inside demanding turbine houses, refinery compressor platforms, and critical pump systems.

Decoding of Model Part Suffixes

330101: 3300 XL 8 mm Proximity Probe Core

This base part number specifies the premium 3/8-24 UNF threaded proximity probe body featuring a high-performance 8 mm tip structure.

Unthreaded Length Identifier: -00

This selection indicates a 0.0-inch unthreaded body length. The probe case features complete mechanical threading along its outer sleeve to provide maximum installation flexibility inside thick mounting plates.

Overall Case Length Identifier: -24

This suffix designates a 2.4-inch overall case length, defining the precise structural depth of the stainless steel probe body when seated in the machine housing.

Total Integrated Cable Length: -10

This option defines a 1.0-meter (3.3 feet) total cable length, measuring directly from the encapsulated probe tip to the terminal coaxial connector junction.

Connector Type and Cable Construction: -02

This code confirms the integration of a miniature coaxial Click-Loc connector paired with standard premium coaxial cabling, minimizing transmission impedance.

Global Certification Profile: -05

This crucial suffix applies Multiple Approvals certifications, verifying the electrical and structural safety of the sensor inside explosive atmospheres, ATEX zones, and hazardous industrial locations.

Dimensional and Measurement Specifications

Field Positioning and Electrical Calibration

Voltage Midpoint Adjustments

Mount the probe body securely inside the target bracket while checking the live DC gap voltage using a digital multimeter at the Proximitor sensor output. Adjust the mechanical clearance until the instrument indicates exactly -10.0 VDC, which positions the probe tip precisely at the geometric center of its linear range.

Cable Geometry Restrictions

Maintain a strict minimum cable bend radius of 25.4 mm (1.0 inch) across the entire line deployment path to avoid crimping the internal shielding layer. Route the low-voltage sensor cables through dedicated grounded iron conduits, isolating them from parallel high-power motor lines or switching grids.

Terminal Environmental Sealing

Always place the coaxial Click-Loc union between the probe lead and the extension line inside an isolated, weatherproof junction enclosure. Apply proper industrial cable glands to exclude oil mist and ambient moisture, preventing loop resistance shifts that trigger false vibration alarms.

System Interoperability and Environmental Armor

Corrosive Atmosphere Endurance

The robust 303 stainless steel outer casing and premium PPS tip prevent chemical breakdown when exposed to hot synthetic lubrication oils and caustic steam. High-pressure vacuum-molding technologies seal the internal sensor coil assemblies, ensuring stable performance during sudden temperature spikes and intense physical shaking.

Turbine Supervisory Instrumentation Synergy

This proximity probe supplies the clean, high-frequency waveform inputs demanded by specialized Turbine Supervisory Instrumentation (TSI) diagnostics. It transmits uncompromised raw data vectors to modern industrial monitoring platforms, integrating flawlessly with Honeywell Experion PKS for precise shaft centerline tracking and orbit chart generation.

Shipment Contents and Hardware Inventory

Every processed industrial order contains the following physical line items:

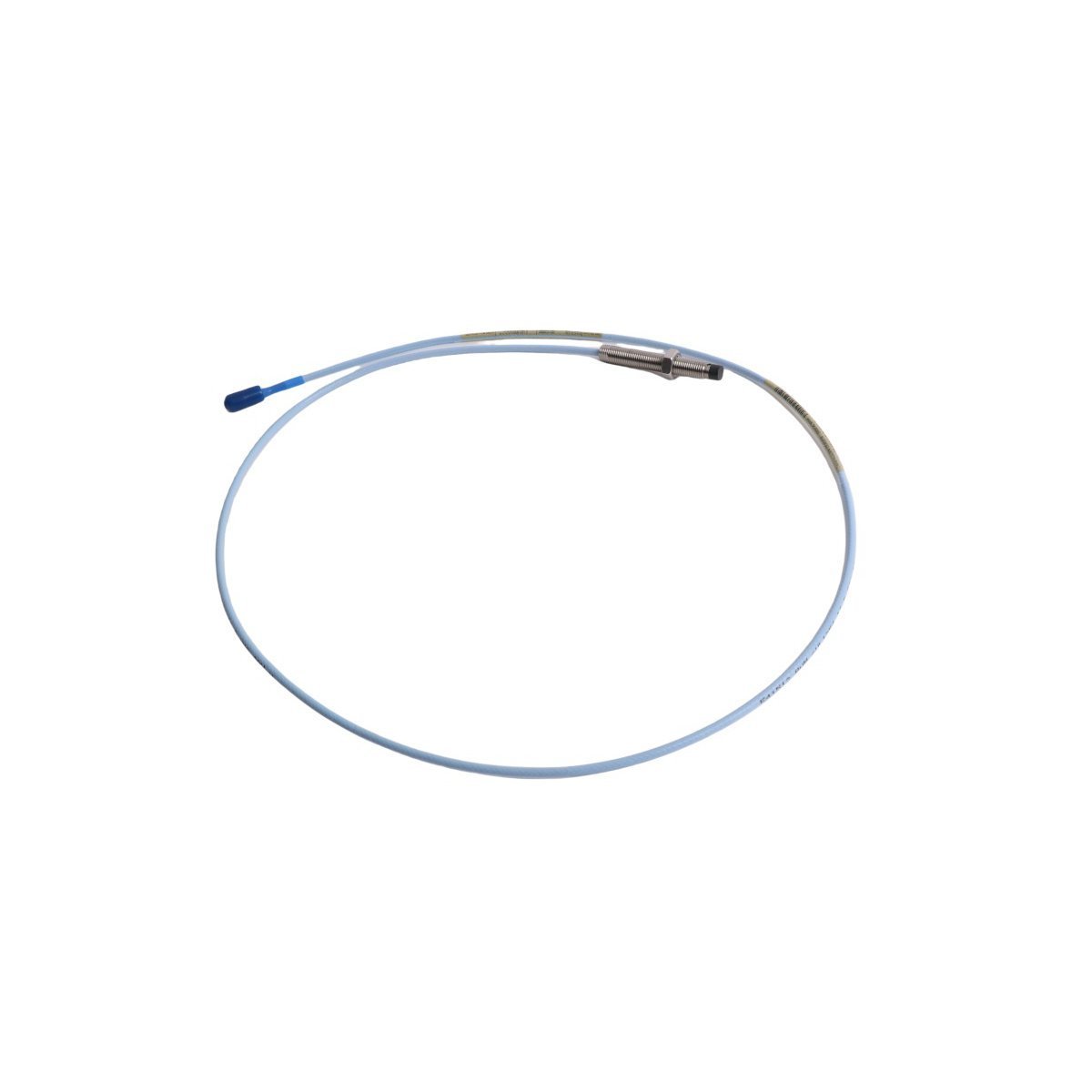

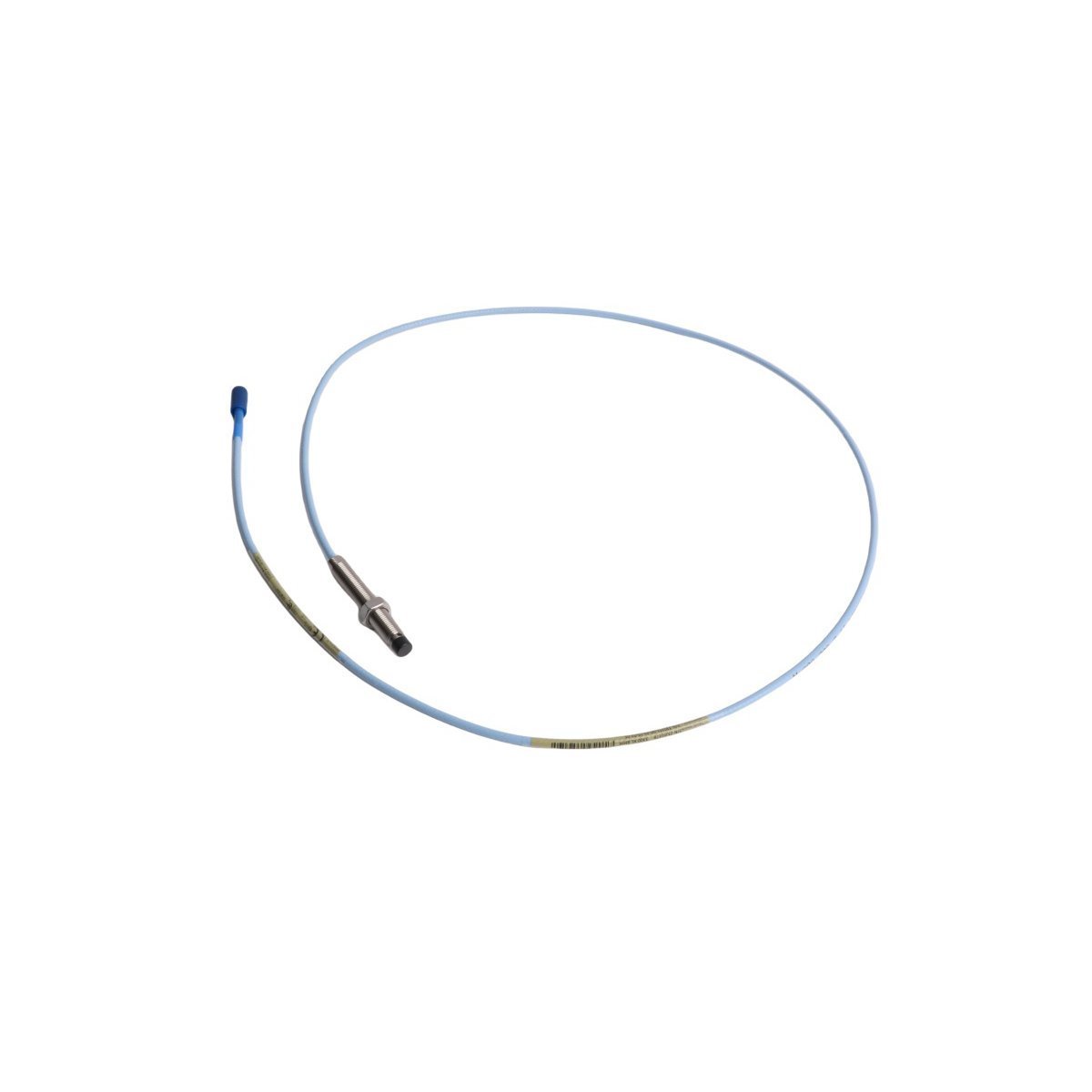

(1) Bently Nevada 330101-00-24-10-02-05 8 mm Proximity Probe with integrated 1.0-meter cable line.

(2) Factory-installed male miniature coaxial Click-Loc connector with a protective vinyl shipping cap.

(3) Pair of heavy-duty hexagonal locking nuts for rigid positioning inside the machine casing thread.

(4) Complete material traceability sheet and original factory calibration verification documentation.

Global Logistics and Packaging Standards

Accelerated Carrier Routing

Global warehouses dispatch shipments within 2-7 days when payment finish verification processes complete. Cargo moves exclusively via top-tier express global networks including DHL, FedEx, and UPS to guarantee secure, time-critical arrival at plant maintenance sites.

ESD Protection Protocols

Logistics engineers package each transducer inside customized, multi-layered anti-static industrial packaging sleeves. This specialized electrostatic protection system isolates the internal precision sensing coils from static voltage spikes and heavy kinetic shocks during intercontinental air transport.

Sensor Engineering FAQs

Q1: Why does the -05 multiple approval option matter if my plant is non-hazardous?

A1: The -05 designation certifies the probe for globally recognized hazardous areas under ATEX, IECEx, and CSA standards. Even in standard non-hazardous locations, this rating proves the probe utilizes premium construction tolerances and hermetic sealing. It provides an extra layer of structural reliability and allows you to standardize a single part number across multiple plant environments.

Q2: Can I connect this 1.0-meter probe directly to a 3.0-meter extension cable?

A2: No, you must verify the total loop length requirements of your specific 3300 XL Proximitor sensor. Bently Nevada systems require either a 5.0-meter or 9.0-meter total electrical loop length. Since this probe contains an integrated 1.0-meter cable, you must pair it with a 4.0-meter or 8.0-meter extension cable to achieve the required calibration balance.

Q3: What indicates that a probe has suffered an internal electrical failure?

A3: Disconnect the probe from the extension cable and run a resistance test using a digital multimeter across the center pin and outer jacket of the coaxial connector. A fully functional 3300 XL 8 mm probe must show a stable resistance between 4.0 ohms and 8.0 ohms. If the display shows an infinite open circuit or a dead short near zero ohms, replace the probe immediately.
