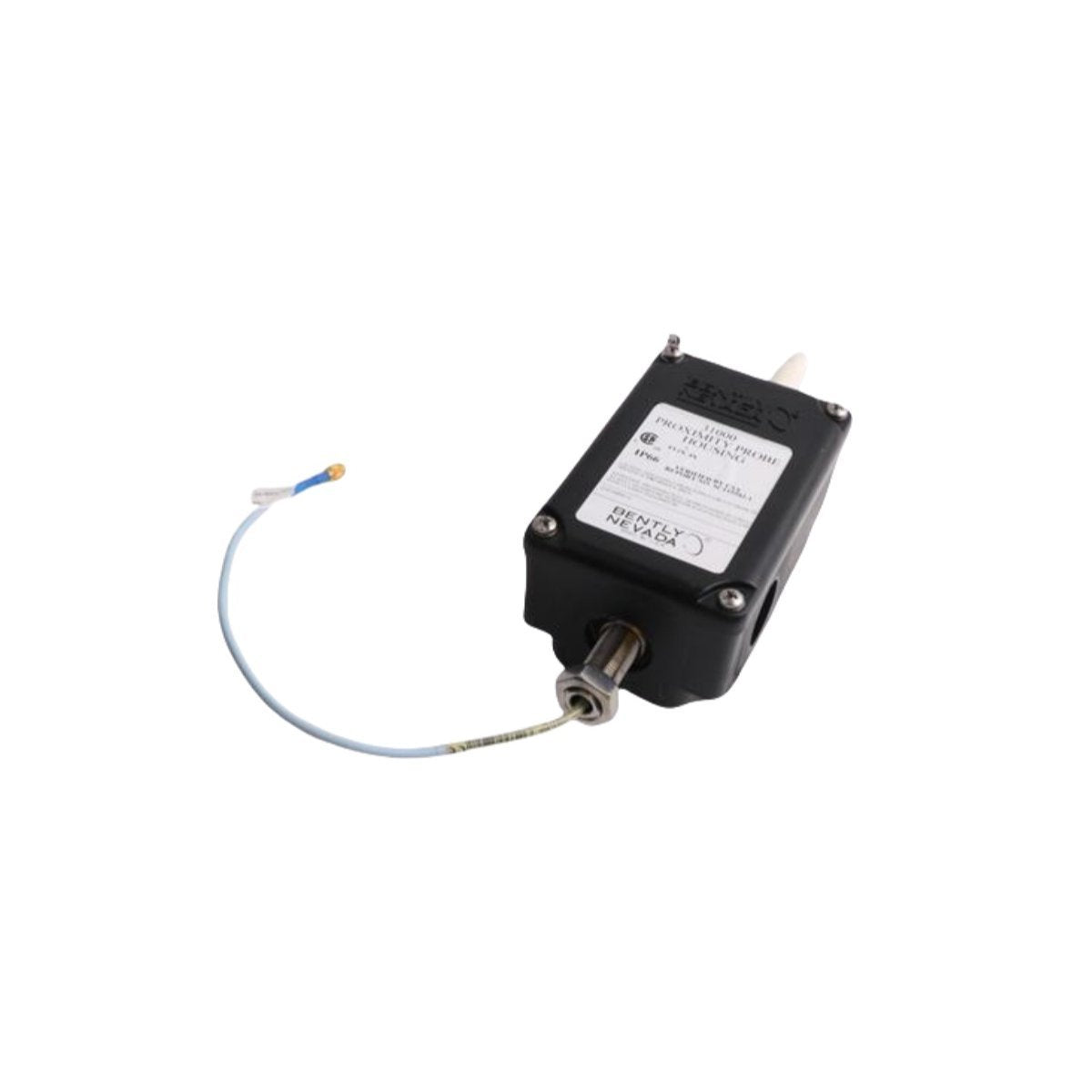

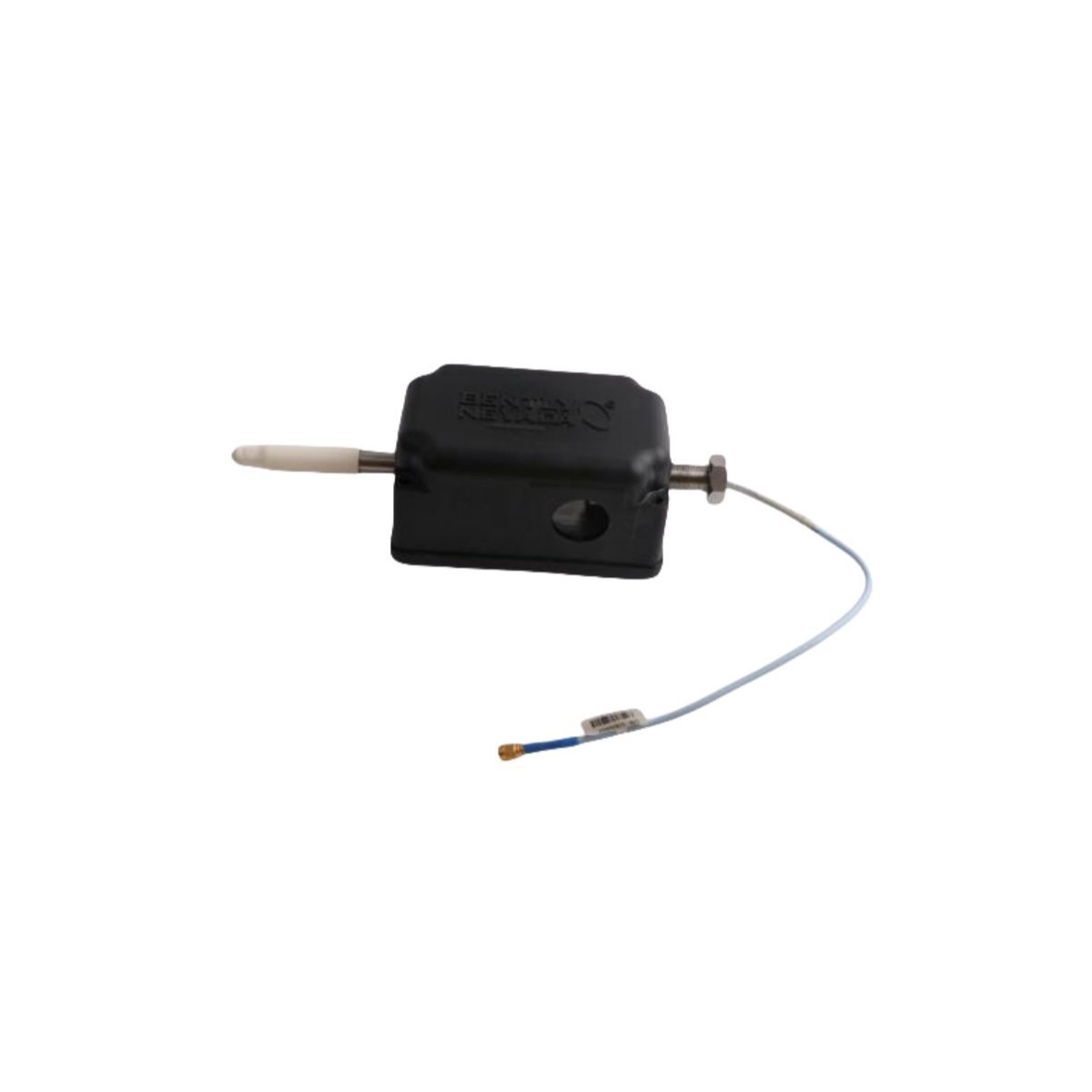

Configured for physical enclosure and environmental protection of proximity transducers in Machinery Protection Systems (MPS), the Bently Nevada 31000-28-05-35-032-03-02 (31000 Proximity Probe Housing Assembly) provides direct physical/electrical execution. It secures the eddy-current probe relative to the target shaft surface, allowing external adjustment of the probe insertion depth without shutting down monitored rotating machinery. The explosion-proof housing acts as a sealed mechanical conduit maintaining structural integrity under high casing pressures and harsh industrial atmospheres.

Component Configuration Matrix

The specific alphanumeric configuration defines the exact material composition, thread pitches, and length metrics for this mechanical assembly breakdown:

• 31000: Base Model Designation for Explosion-Proof Proximity Probe Housing.

• -28: Probe Thread Option (3/8-24 UNF thread).

• -05: Housing Thread Option (3/4-14 NPT conduit fitting connections).

• -35: Explosion-Proof Housing Material Option (Anodized aluminum structure).

• -032: Overall Sleeving Length Option (3.2 inches nominal length).

• -03: Stilling Guide Option (3.0 inches length extension).

• -02: O-Ring Material Option (Fluorocarbon Viton composition for enhanced chemical resistance).

Physical and Electrical Parameters

Eddy-Current Signal Verification and Validation Profiles

The Bently Nevada 31000-28-05-35-032-03-02 housing interfaces directly with 3300 XL 8 mm proximity probe systems. During probe deep-setting operations inside the housing sleeve, cross-talk suppression must be achieved by maintaining the structural spacing of the probe tip relative to the housing interior diameter.

Technicians must utilize a static calibrator to check gap voltage validation (-10 VDC targets) during installation. Adjusting the sleeve positioning alters the physical gap spacing between the probe face and the target rotor dynamics monitoring zone, mapping directly to a linear voltage output from the Proximitor Sensor at 7.87 V/mm (200 mV/mil). Correct alignment prevents signal saturation and ensures distortion-free tracking of fluid-film bearing vibrations.

Engineering Support Q&A

Q: How is the physical gap calibrated while the machinery is operating?

A: The sleeve locknut is loosened, and the external sleeve is rotated clockwise or counterclockwise. Technicians track the gap voltage validation via a digital multimeter connected to the Proximitor test points until the target -10 VDC baseline is read.

Q: Does the assembly prevent environmental ingress at maximum temperature cycles?

A: Yes. The -02 Viton O-ring configuration retains its sealing profile up to 100 deg C, preventing process gases or moisture from penetrating the sleeve interior and degrading the probe coaxial extension cable.

Q: What prevents the probe from backing out due to structural rotor dynamics vibrations?

A: The external housing features a dual locknut mechanism that mechanically binds the calibrated sleeve position to the machine casing, eliminating axial drift from high-frequency vibration profiles.

Mechanical Installation and Grounding Protocols

• Thread Engagement: All NPT conduit connections must achieve a minimum of 5 full turns of thread engagement to comply with explosion-proof and flame-proof safety metrics.

• Sleeve Alignment: Avoid excessive lateral torque when feeding the 3300 XL probe through the stilling guide. Ensure the probe tip does not contact internal housing metallic lips, preventing structural damage to the ceramic tip face.

• Shield Grounding: The coaxial cable shield must be continuously isolated from the housing chassis and grounded strictly at the single-point common ground inside the monitoring rack or instrument junction box to mitigate parasitic electromagnetic interference.

Logistics and Kit Checklist

Every processed order includes the following components packed as an integrated unit:

• 1 x Bently Nevada 31000 Series Anodized Aluminum Explosion-Proof Junction Box Cover and Base.

• 1 x Calibrated Internal Guide Sleeve with Integrated 3/8-24 UNF Probe Adapter Threads.

• 2 x Fluorocarbon Viton High-Temperature O-Rings (Pre-installed).

• 1 x Installation instruction leaflet containing dimensional layouts.

Dispatch and Transport Standards

• Delivery Lead Time: 2-7 days when payment finish via premium priority channels.

• Carrier Networks: Dispatched exclusively through global DHL, FEDEX, or UPS air freight networks.

• Packaging Mandate: Enclosed inside a heavy-duty anti-static industrial packaging container lined with high-density foam inserts to mitigate shock displacement hazards during physical transit.
