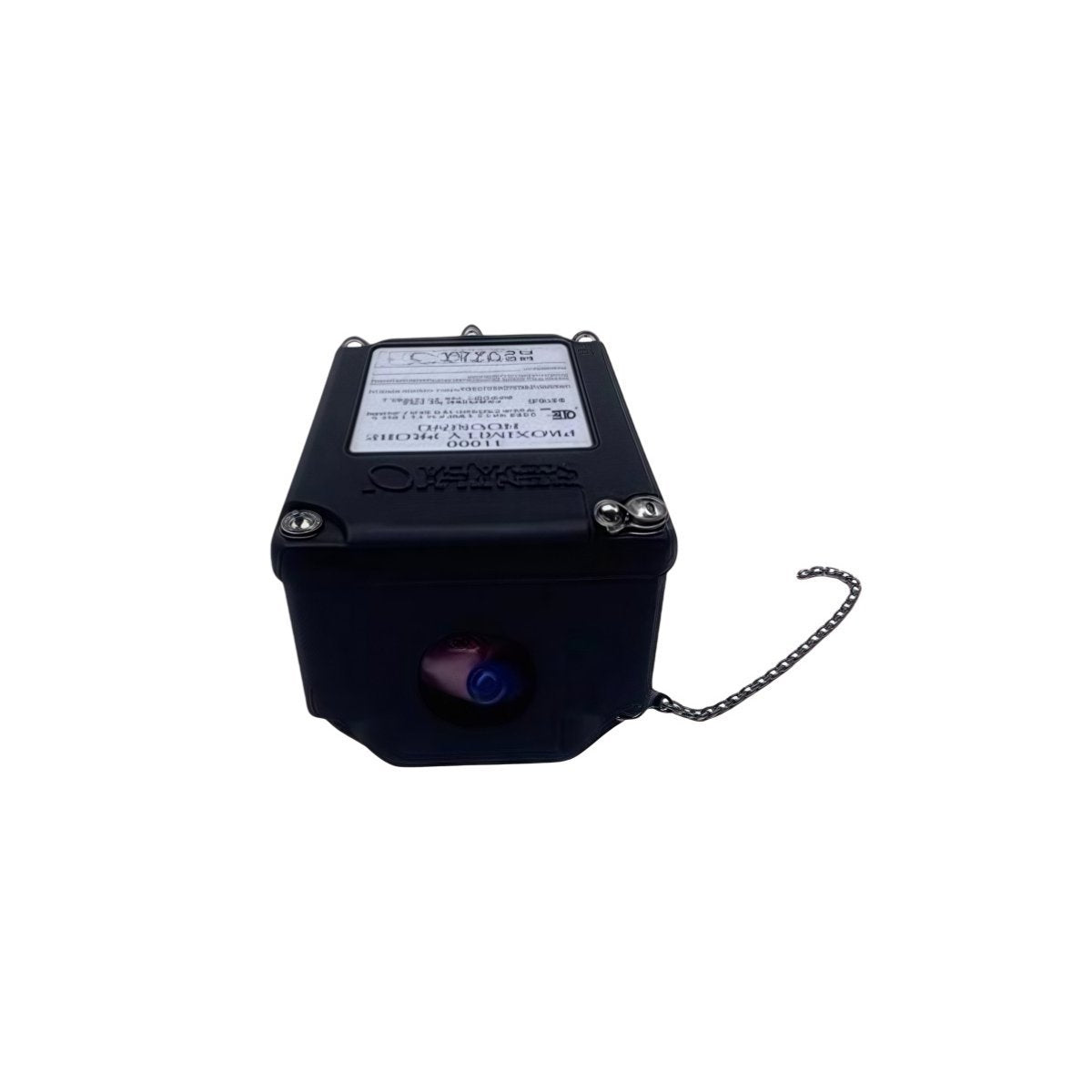

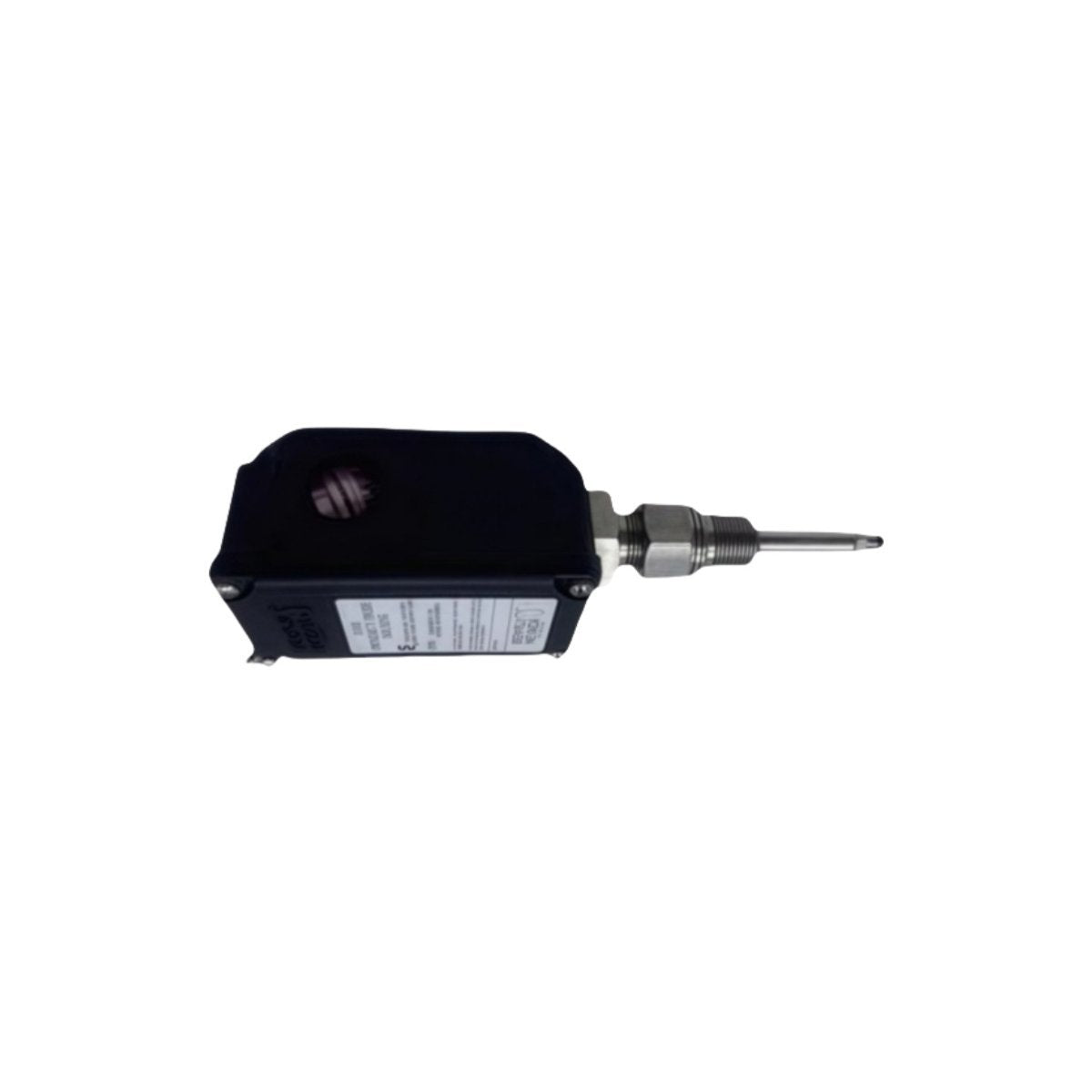

The Bently Nevada 31000-16-05-00-023-02-02 serves as the primary 31000 Proximity Probe Housing Assemblies utilized to execute physical probe encapsulation and external machine mounting across 31000 Series platforms. The hardware assembly mounts directly onto machinery casings to shield enclosed proximity probes from harsh environmental conditions while facilitating mechanical spacing adjustments relative to the observed rotating shaft.

Option Options Option Allocation

The alphanumeric option sequence identifies the precise physical dimensions and material selections for the product line:

• 31000: Base model designator for the standard proximity probe housing assembly series.

• 16: Designates the absolute probe insertion thread profile and size parameters.

• 05: Specifies the internal sleeve section length in metric increments.

• 00: Sets the baseline options for the auxiliary internal spacer adjustments.

• 023: Pinpoints the nominal shaft immersion depth measured in millimeters.

• 02: Equips the rear conduit link interface with a standard internal adapter thread.

• 02: Allocates specialized high-durability synthetic elastomer seals for fluid isolation.

Structural Parameter Data

Gap Voltage Validation and Rotor Dynamics

The geometric stability of the 31000 housing assembly determines the spatial precision of the internally seated probe tip. Maintaining rigid mechanical orientation enables accurate gap voltage validation routines, checking that steady-state sensor positioning continuously lines up with factory -10 VDC targets. This structural retention isolates the active transducer from industrial shell vibrations, suppressing micro-displacement artifacts in high-speed rotor dynamics tracking data and maximizing cross-talk suppression paths when sensors are deployed in dual-axial monitoring clusters.

Transducer Loop Verification Logs

Q: Can adjustments be performed on this housing hardware while the machine train is operating?

A: No, altering sleeve locking mechanisms or changing depth codes while the shaft rotates risks fatal contact with the probe head, destroying the sensor array and falsifying rotor dynamics readings.

Q: How do the internal seals counter high-pressure oil containment issues?

A: The layout employs a matched dual-layer synthetic O-ring structure that maintains complete environmental separation, preventing lubrication fluid leaks from reaching the external coaxial terminal joints.

Q: Is a localized power supply link required to grounding this housing matrix?

A: No, the metal enclosure serves as a passive shield layer, routing internal ground potentials through standard chassis casing engagement or external grounding strap tabs.

Field Alignment and Rigging Methods

• Ensure the machine mounting boss thread has at least 5 full thread engagements to fulfill standard high-vibration containment metrics.

• Record the static physical gap dimension using baseline depth gauges before final clamping ring torque is applied to ensure compliance with the target gap voltage lines.

• Orient the primary electrical wire egress path in a downward direction to prevent environmental runoff from tracing along the outer conduit face.

• Apply standard non-seizing compound to the primary mounting threads to eliminate the hazard of mechanical galling over long-term operations.

Order Fulfillment Component Inventory

• Bently Nevada 31000 Sealed Proximity Probe Housing Enclosure

• Factory Adjustment Compression Shim Packs and O-Ring Seal Kit
