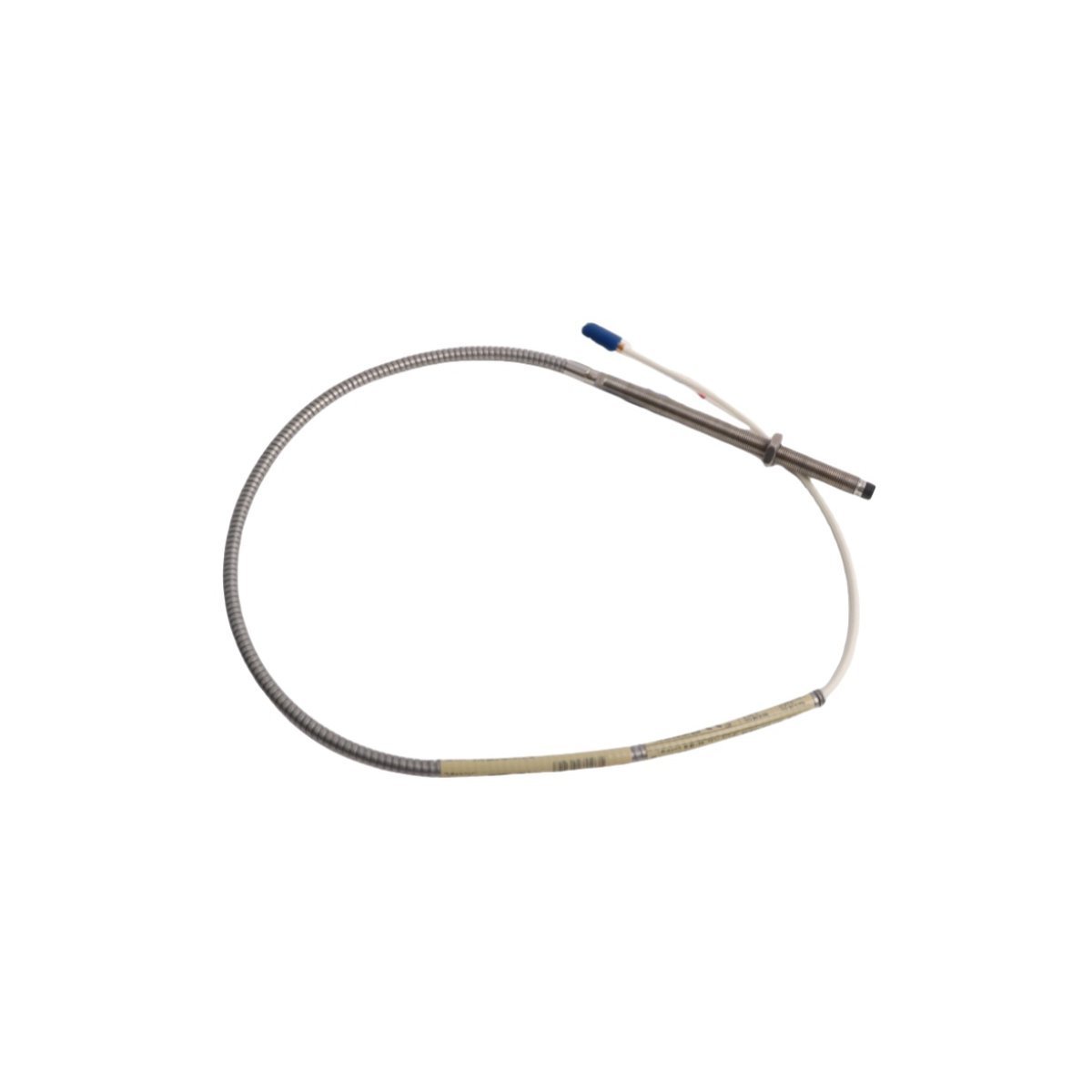

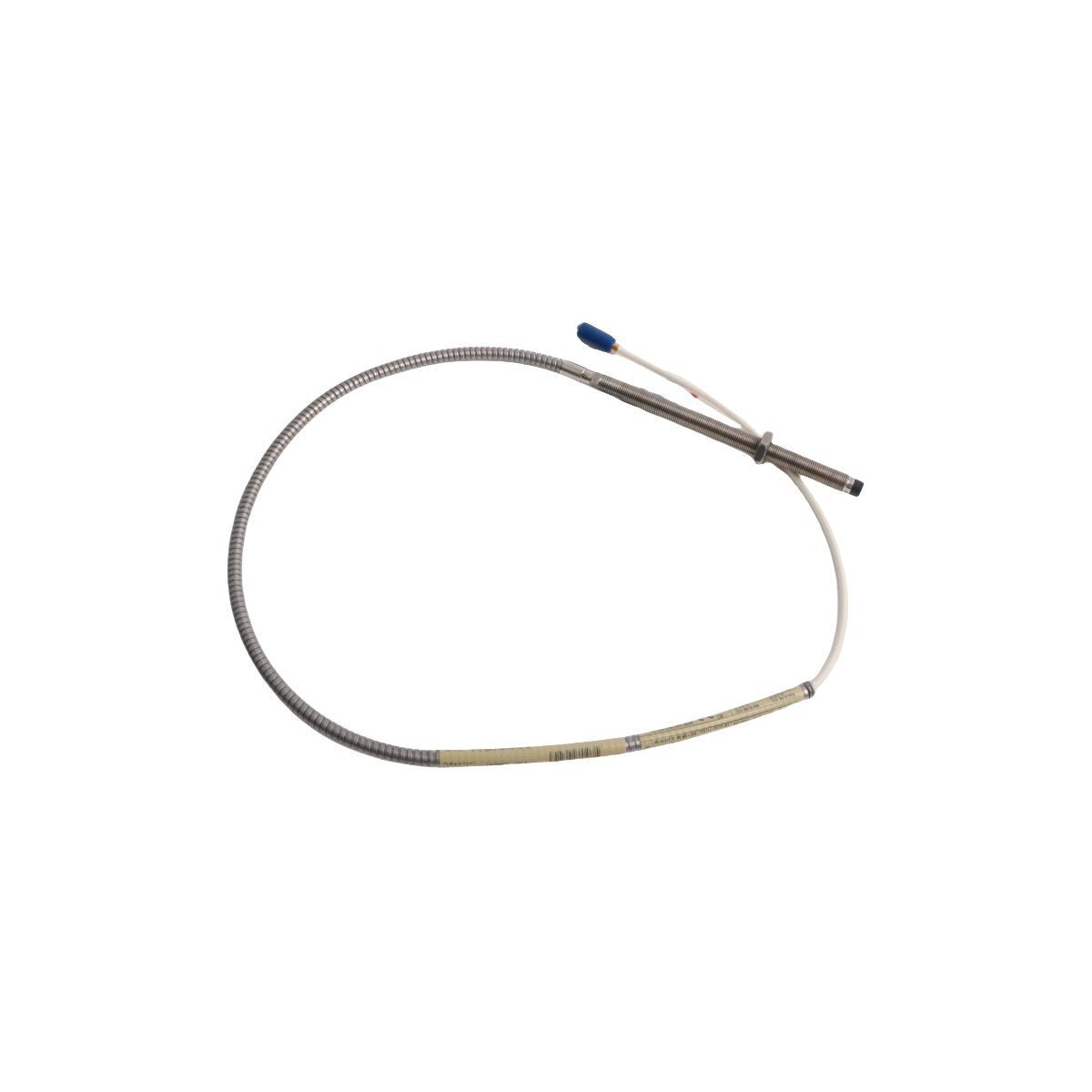

The Bently Nevada 22810-00-0610-02 serves as the primary 22810 Proximity Probe utilized to execute non-contact shaft vibration and displacement monitoring across Bently Nevada TSI platforms. The probe assembly produces eddy-current output signals proportional to shaft movement and radial position variation within rotating machinery monitoring circuits.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The probe assembly functions as part of a calibrated transducer loop consisting of probe, extension cable, and driver electronics. Eddy-current probe scaling is dependent on matched system components and controlled cable impedance characteristics. Alteration of cable length or connector substitution may affect linearity and signal calibration.

Rotor dynamic monitoring applications use the transducer output to identify shaft eccentricity, imbalance response, and transient vibration behavior during startup and coastdown conditions. Gap voltage validation procedures typically target approximately -10 VDC during initial probe positioning and shaft centerline alignment verification.

Frequently Asked Questions

Q: Can the 22810-00-0610-02 probe operate independently without a driver module?
A: No. The probe requires compatible proximitor or driver electronics to convert the raw eddy-current signal into calibrated output measurements.

Q: Does the probe require physical contact with the shaft surface?
A: No. The sensing method is fully non-contact and operates through an electromagnetic field generated at the probe tip.

Q: Can field technicians splice or extend the probe cable?
A: Cable modification is not recommended because impedance changes may alter transducer calibration and signal response characteristics.

Q: What installation condition commonly affects signal stability?
A: Improper shield grounding, close routing near high-current conductors, or excessive connector contamination may introduce electrical noise into the measurement channel.

Q: Is the probe compatible with hot-swap replacement procedures?
A: Probe replacement should be completed with associated monitoring channels inhibited or de-energized to prevent false alarm conditions.

Field Installation Guidelines

Verify threaded probe engagement before shaft rotation. Insufficient mounting depth may permit probe movement during machine vibration events.

Maintain separation between probe cables and motor feeder circuits, relay coils, or variable frequency drive output wiring to reduce electromagnetic interference.

Do not sharply bend the coaxial cable near the probe body or connector transition area. Excessive bending stress may damage internal shielding continuity.

Inspect probe tip condition before installation. Metallic debris or surface contamination may affect gap voltage stability and vibration waveform quality.

Apply shield grounding practices according to the associated Bently Nevada monitoring system documentation to reduce ground loop effects.
