Product Overview

The Bently Nevada 21504-00-16-10-02 3300 XL 8 mm Reverse Mount Proximity Probe provides critical mechanical asset visibility for high-speed rotating industrial equipment. This specialized eddy current sensor monitors key machinery parameters such as shaft dynamic radial vibration, axial thrust position, and internal bearing clearances. It streams uncompromised analog displacement waveforms directly into Bently Nevada 3500 monitoring racks and plant Distributed Control Systems (DCS), acting as a vital signal source for automated Emergency Shutdown (ESD) control loops. By generating a highly linear voltage output scale factor, it enables instrumentation specialists to identify micro-level target anomalies before structural failure manifests. The robust internal coil geometry maintains absolute thermal stability, eliminating measurement drift within demanding gas turbine packages, boiler feed pumps, and heavy-duty process compressors.

Decoupling of Hardware Suffix Selections

21504: 3300 XL 8 mm Reverse Mount Probe Assembly

This primary designator specifies an 8 mm tip diameter reverse mount proximity probe carrying standard 3/8-24 UNF external body threads, designed for rear-insertion installation.

Unthreaded Length Suffix: -00

This selection indicates a 0.0-inch unthreaded sleeve. Standard mechanical threads run along the entirety of the steel housing, giving field installation teams maximum alignment adjustment depth inside the mounting sleeve.

Overall Case Length Suffix: -16

This parameter establishes a 1.6-inch overall case length, defining the physical dimensions and structural reach of the sensor shell inside the designated bearing housing bracket.

Total Cable Length Parameter: -10

This suffix dictates a 1.0-meter (3.3 feet) total integrated cable length, running from the encapsulated probe face directly to the male terminal connector joint.

Connector Options and Construction: -02

This configuration confirms the integration of a miniature coaxial Click-Loc plug paired with standard premium coaxial cabling, minimizing high-frequency electrical transmission loss.

Mechanical and Physical Parameters

Proximity System Mechanical Alignment

Live DC Gap Calibration

Thread the reverse mount sensor body into the housing bracket while checking the live DC voltage across the terminals of the paired 3300 XL Proximitor sensor. Manually shift the mechanical clearance until your digital multimeter indicates exactly -10.0 VDC, verifying that the target shaft surface rests at the precise center of the calibrated linear measurement window.

Cable Layout Routing Limits

Enforce a rigid minimum cable bend radius constraint of 25.4 mm (1.0 inch) across the entire 1.0-meter integrated lead path to prevent internal shield crimping. Route all low-voltage transducer cables through dedicated grounded iron conduits, isolating the raw signals from electromagnetic fields generated by high-power supply grids.

Click-Loc Connector Enclosure

Always shield the intermediate Click-Loc connector junction point linking the integrated probe line to the main extension cable inside a sealed, weatherproof junction box. Apply proper liquid-tight cable glands to exclude moisture condensation and oil mist, maintaining infinite loop insulation resistance.

Operational Assets and Structural Safeguards

Caustic Medium Protection

The high-grade 303 stainless steel frame and vacuum-bonded PPS tip face withstand heavy exposure to synthetic machinery lubricants, process steam, and hot moisture. Advanced sealing layers stop fluid migration into the internal sensing coils during rapid machine startup temperature shifts, suppressing signal distortion.

Turbine Supervisory Instrumentation Mastery

This proximity probe generates the pure, high-frequency analog waveforms required by advanced Turbine Supervisory Instrumentation (TSI) diagnostics. It transmits uncompromised raw tracking vectors into corporate asset networks, integrating seamlessly with Honeywell Experion PKS platforms for real-time orbit logging, shaft centerline tracking, and oil film diagnostics.

Ordered Kit Manifest

The complete commercial product shipping box contains the following individual items:

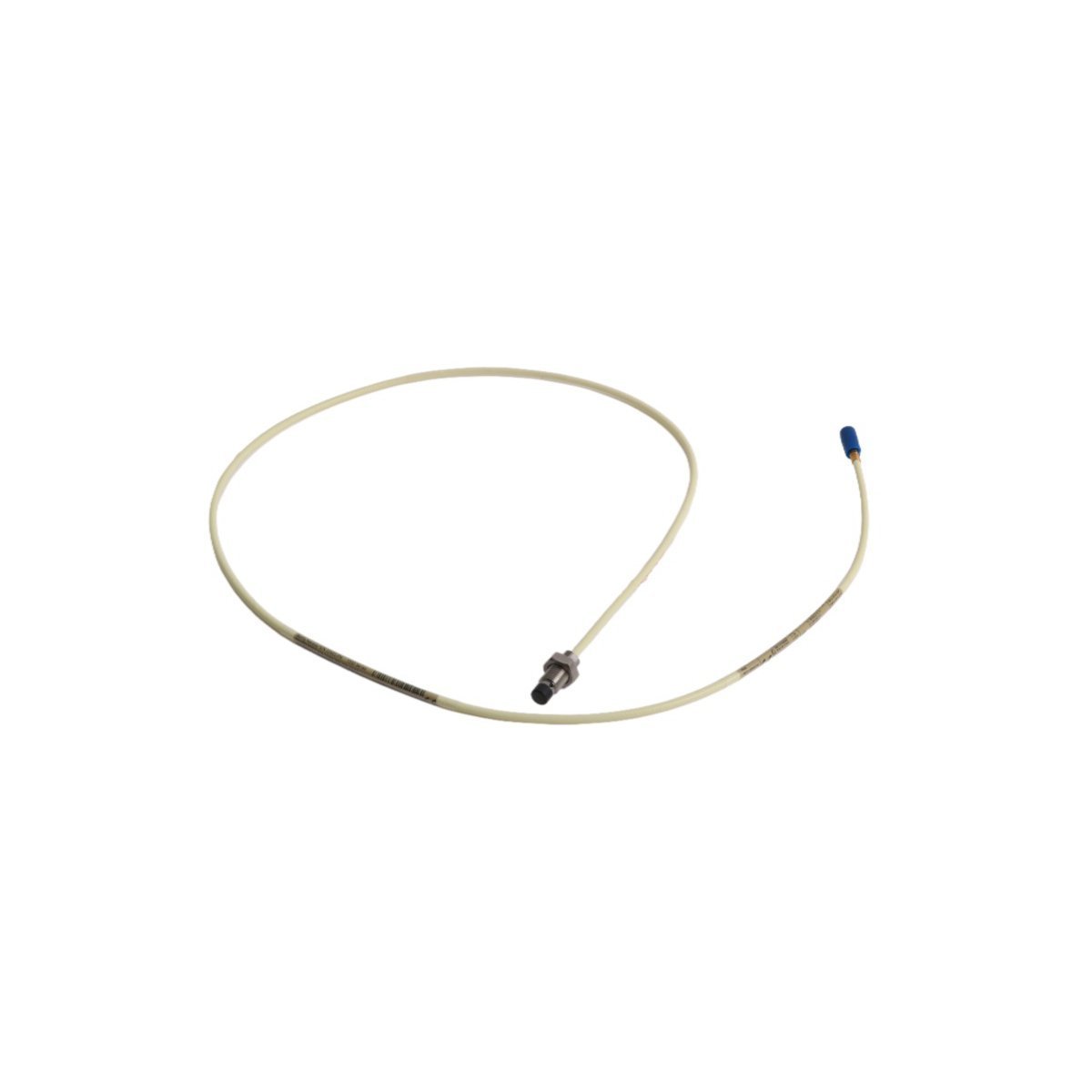

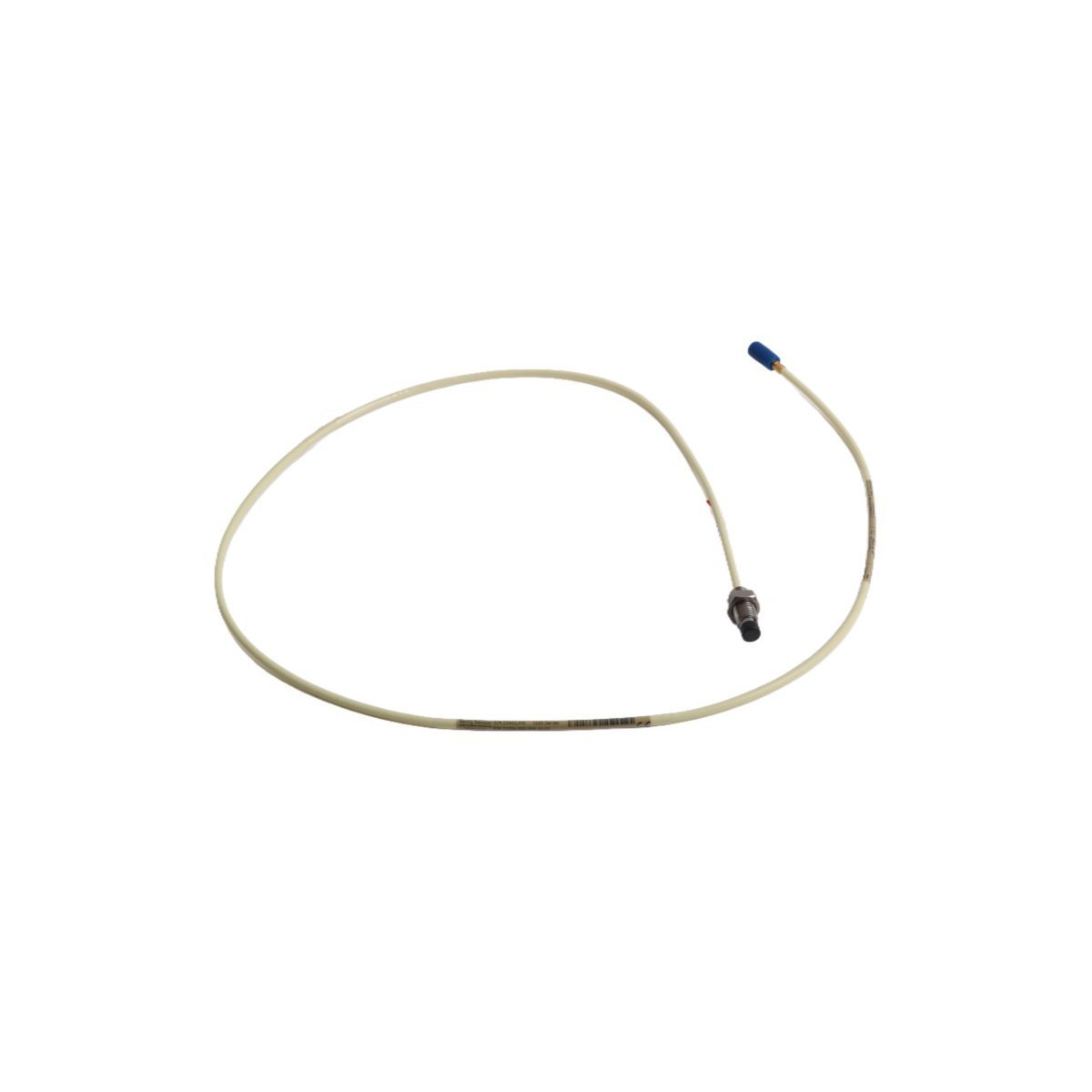

(1) Bently Nevada 21504-00-16-10-02 8 mm reverse mount proximity probe with attached 1.0-meter cable.

(2) Pre-terminated male miniature coaxial Click-Loc terminal joint with a protective clear shipping cap.

(3) Complete kit of heavy-duty imperial locking nuts and washers configured for rear-mounting mechanical fixation.

(4) Material compliance log documentation and original factory calibration tracing sheets.

Distribution and Global Logistics Management

Accelerated Carrier Routing

Global warehouses dispatch shipments within 2-7 days when payment finish verification steps complete. Freight runs through premium international express couriers including DHL, FedEx, and UPS to guarantee time-critical tracked delivery directly to industrial facilities.

Shielded Kinetic Enclosures

Shipping personnel package each transducer inside customized, multi-layer anti-static industrial packaging enclosures. This multi-layered static dissipation layout isolates the internal precision sensing coils from static electricity voltage arcs and intense mechanical kinetic impacts during long-distance global transport.

Transducer Engineering Support FAQs

Q1: What is the primary installation difference between this 21504 reverse mount probe and a standard 330101 probe?

A1: The primary difference centers on the physical installation path. A standard 330101 probe threads directly from the outside of the machine casing toward the target. This 21504 reverse mount probe inserts into a separate housing sleeve or internal bracket from the back, making it ideal for compact machinery configurations or internal bearing locations where external clearance is limited.

Q2: Can I combine this 1.0-meter integrated probe line with a standard 9.0-meter extension cable?

A2: No, doing so will throw off the total electrical balancing of the circuit. Bently Nevada 3300 XL 8 mm proximity systems operate on strict total loop lengths of either 5.0 meters or 9.0 meters. Since this probe has an integrated 1.0-meter cable, you must use a 4.0-meter or 8.0-meter extension cable to complete the calibrated circuit correctly.

Q3: What electrical test indicates that the internal sensor coil has failed?

A3: Disconnect the probe from the extension cable and measure the electrical resistance across the center conductor pin and the outer shield of the Click-Loc connector with a digital multimeter. A fully functional 3300 XL 8 mm probe must display a stable resistance reading between 4.0 ohms and 8.0 ohms. An infinite open-circuit reading or a near-zero ohm short-circuit reading indicates internal damage, requiring a full sensor replacement.
