Product Overview

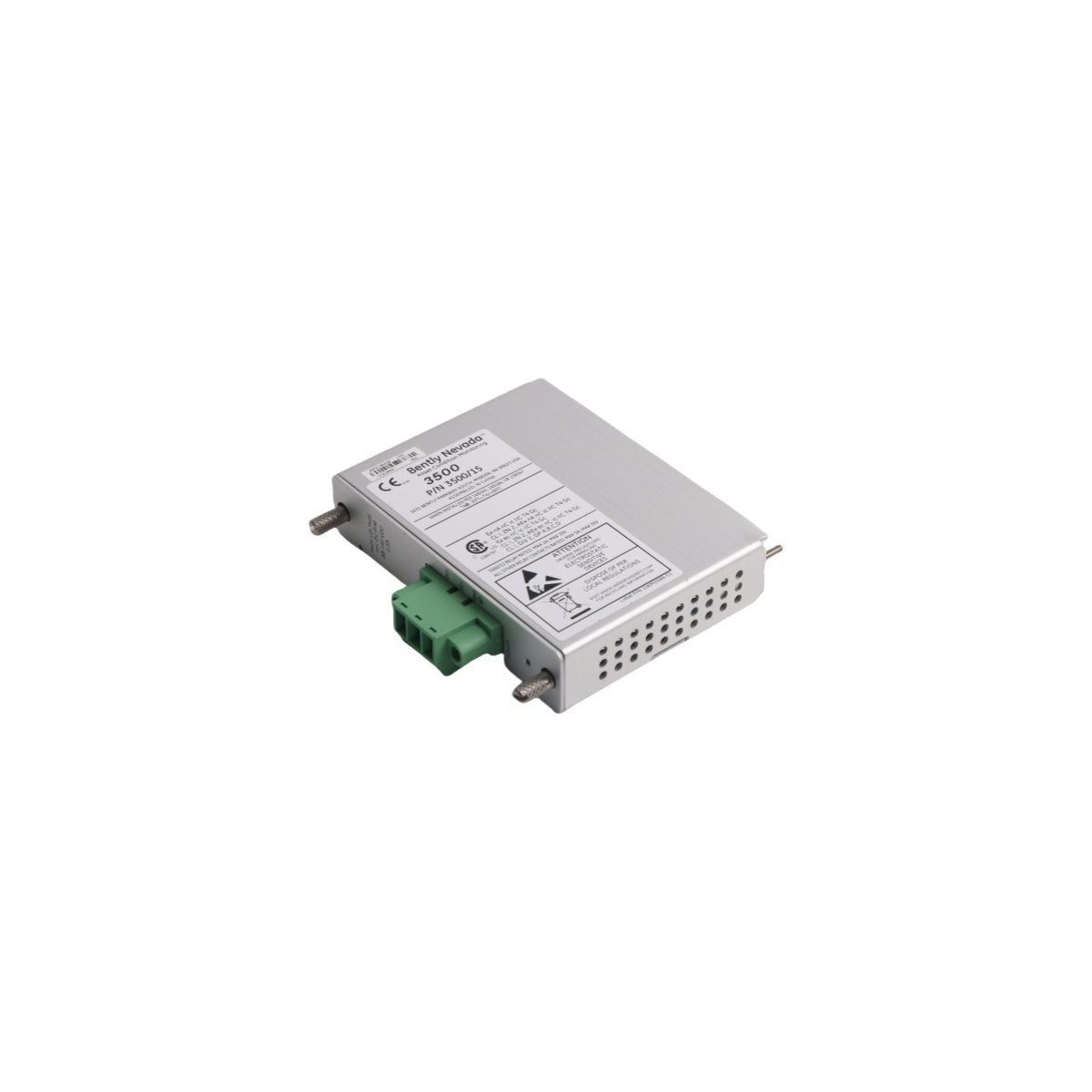

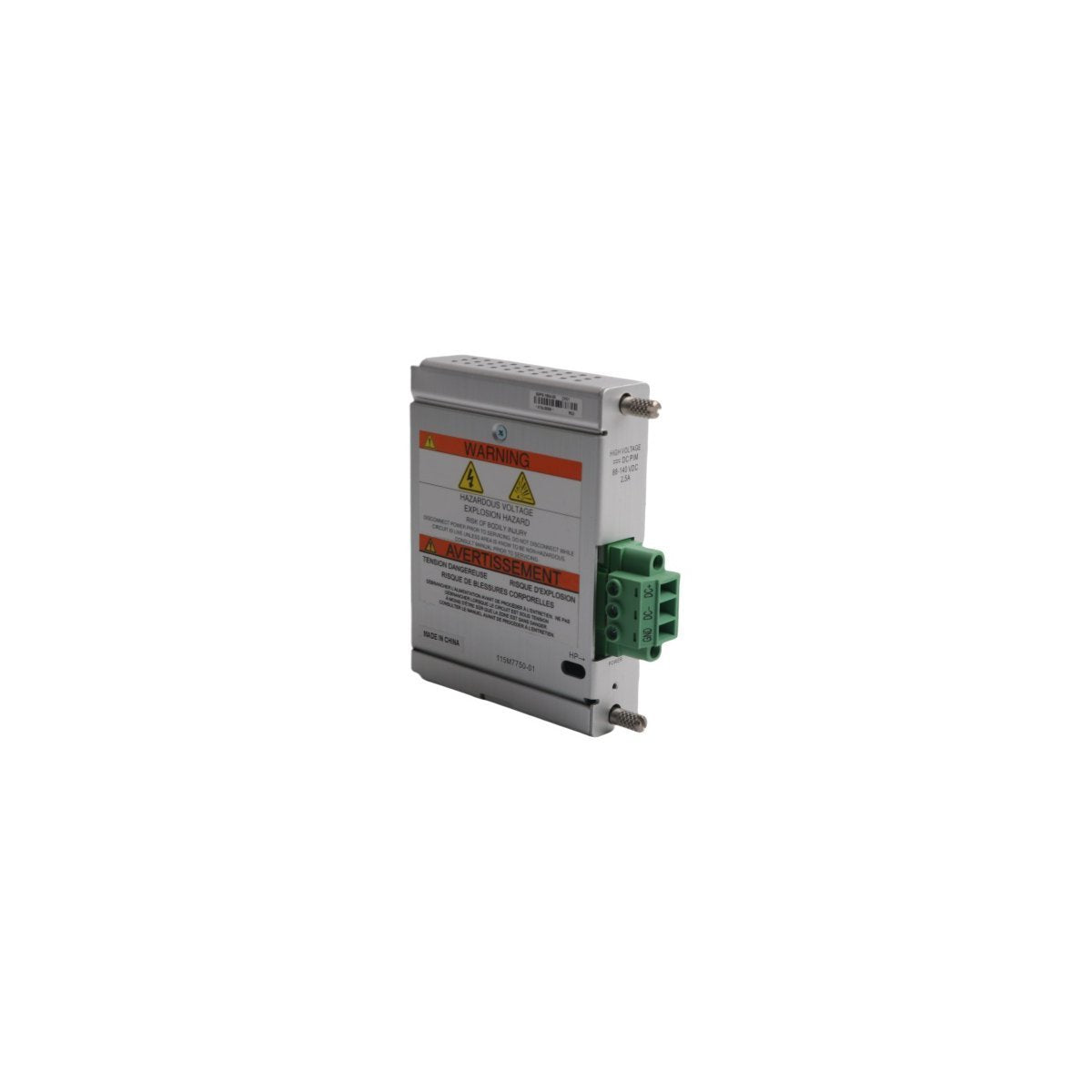

The Bently Nevada 106M2686-01 is a specialized 4-channel Relay Module designed for the 3500 Machinery Protection System. This component serves as the critical physical interface for automated machinery shutdown and alarm annunciation. When a monitor module within the 3500 rack detects a vibration, position, or temperature violation, the 106M2686-01 executes the corresponding logic to trigger dry-contact relays. These relays are essential for interfacing the protection system with external Emergency Shutdown (ESD) circuits, Distributed Control Systems (DCS), or Programmable Logic Controllers (PLCs). By providing high-speed, hardware-based switching, this module ensures that critical assets are protected even in the event of a network or software communication failure.

Key Technical Characteristics and Hardware Parameters

Built for high-reliability switching, the 106M2686-01 is engineered to meet API 670 standards for machinery protection systems.

• Model Identification 106M2686-01

• Module Type 4-Channel Relay Output Module

• System Compatibility Bently Nevada 3500 Series (3500/42 Or 3500/94) Monitoring System

• Contact Type Single-pole, double-throw (SPDT) dry contacts

• Relay Logic Supports "Normally Energized" or "Normally De-energized" configurations via software

• Switching Capacity Optimized for both low-current signaling and high-current interlocking duties

• Diagnostic Integrity Integrated "OK" relay and continuous self-test functionality to monitor relay coil health

• Response Time Millisecond-level latency to ensure rapid machinery trip execution

• Environmental Tolerance Rated for industrial temperatures (-30°C to +65°C) and high-vibration control cabinets

• Physical Weight 0.32 kg

• Dimensions 2.5 x 12.0 x 12.0 cm

Operational Use Cases and Industrial Applications

The 106M2686-01 is an indispensable component for facilities where mechanical failure requires an immediate, automated response to prevent catastrophic damage.

• Turbine Emergency Shutdown (ESD) Providing the physical contact closure to trip the main steam or fuel valves when vibration setpoints are exceeded in power generation units.

• Centrifugal Compressor Protection Interfacing with the motor control center (MCC) to cut power to large compressors upon detection of surge or thrust position violations.

• Remote Alarm Annunciation Triggering local sirens, beacons, or control room indicators in petrochemical refineries to alert operators of developing mechanical faults.

• Interlocking Safety Logic Coordinating multiple relay outputs to ensure that auxiliary systems (such as lube oil pumps) remain active or inactive based on the main machine status.

• Predictive Maintenance Integration Feeding discrete alarm signals to SCADA systems for time-stamped event logging and fault sequence analysis.

The modular design of the 106M2686-01 allows for flexible grouping, where specific relays can be programmed to respond to individual channels or a voting logic (e.g., 2-out-of-3) from multiple sensors, providing a highly customizable protection layer for mission-critical infrastructure.
