Product Overview

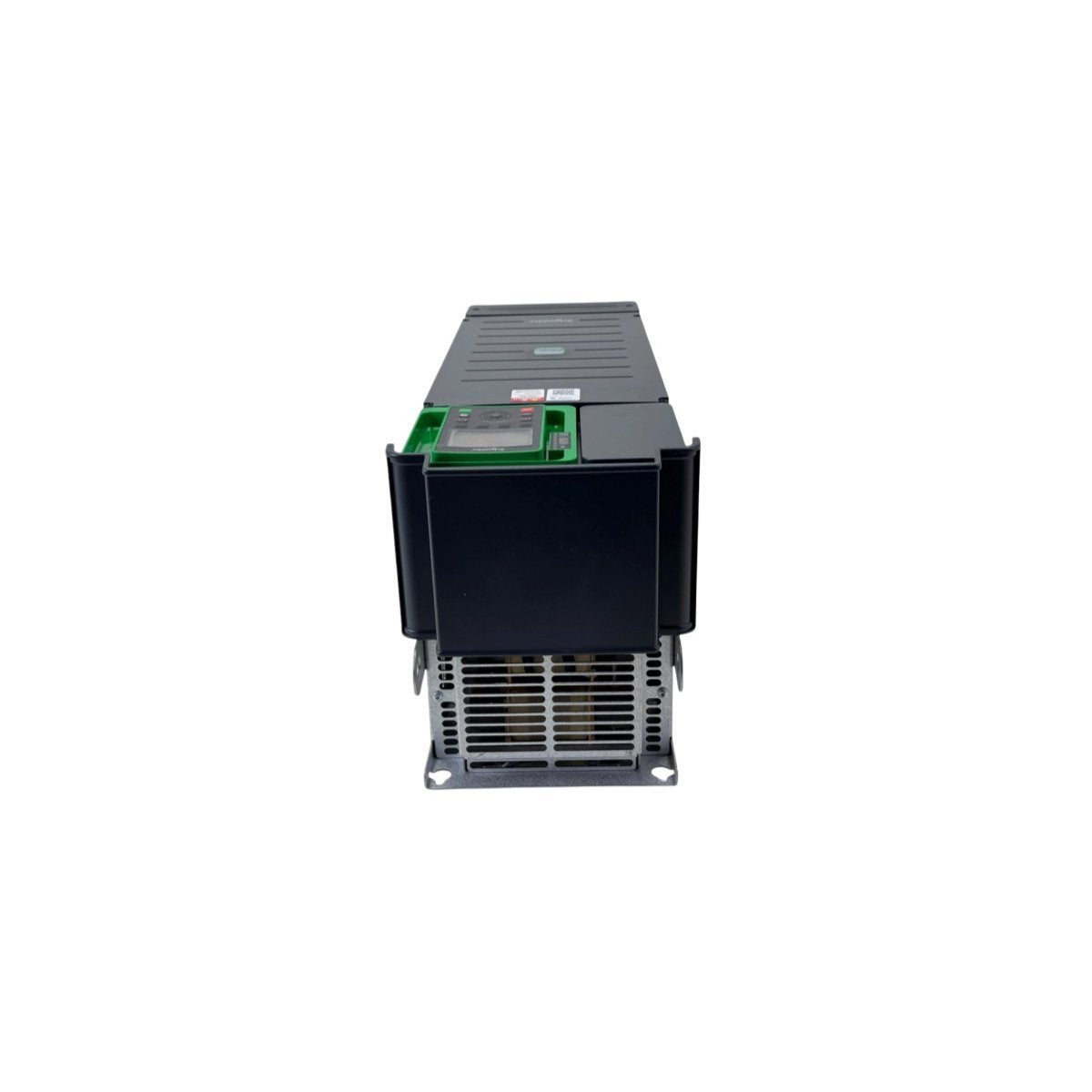

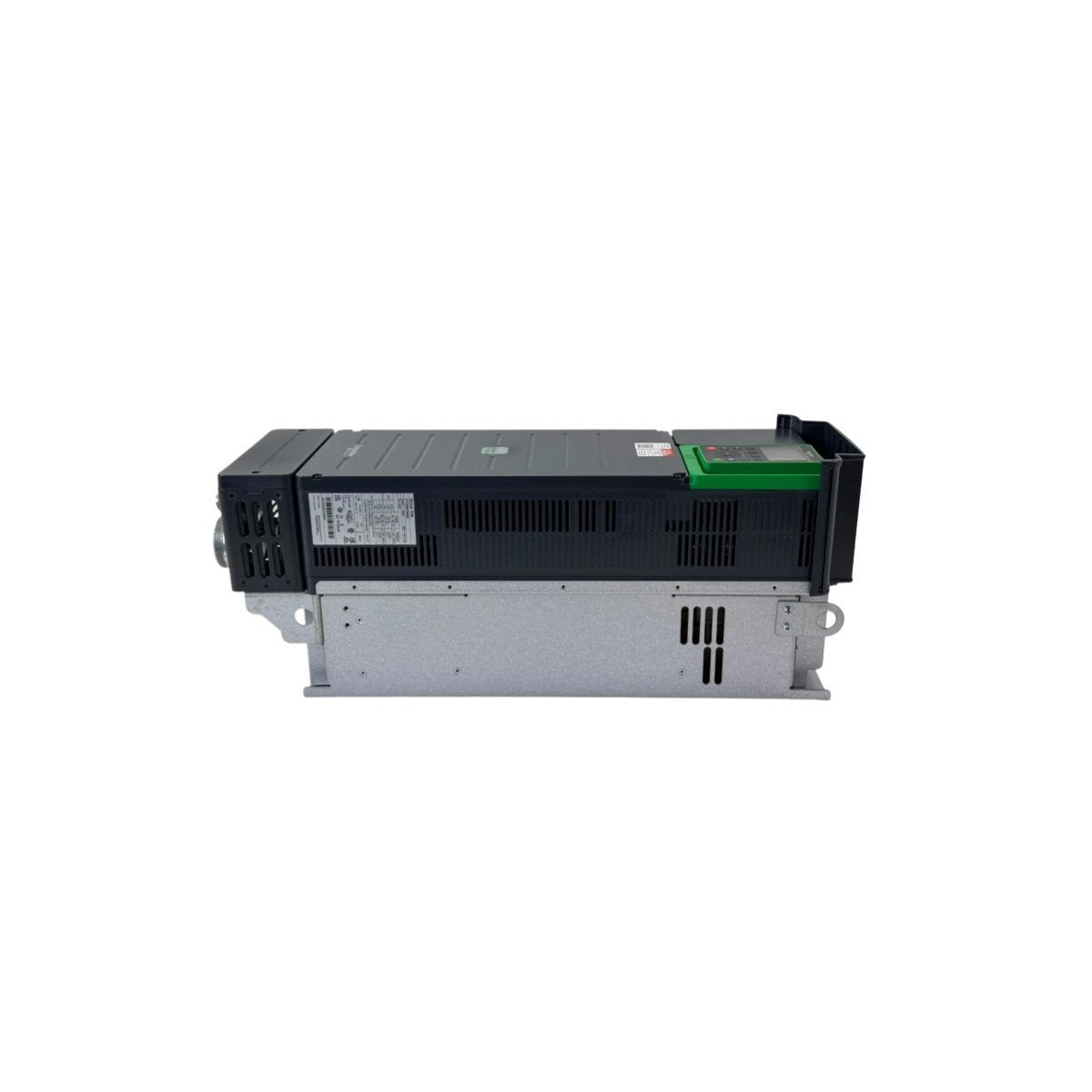

The Schneider Electric ATV930D30N4 is a sophisticated 30 kW (40 HP) frequency inverter from the Altivar Process ATV900 family, specifically engineered for high-performance motor control in heavy-duty industrial environments. This drive excels in managing both asynchronous and synchronous motors with precision, offering a 120% overload capacity for standard duty cycles. Designed to act as an "intelligent" asset within a connected automation architecture, it features embedded energy management, cybersecurity protocols, and a native web server for real-time process monitoring. It operates efficiently on a 3-phase supply range of 380V to 480V AC, ensuring stability for critical process industries.

Hardware Specifications and Engineering Data

• Network Continuity: Equipped with advanced communication services that prevent process interruption during network signal loss.

• Control Versatility: Optimized for master/slave configurations and complex torque/speed regulation.

• Maintenance Tools: Onboard data logging and diagnostics accessible via Ethernet for predictive maintenance strategies.

• Mounting Tolerance: Optimized for vertical panel installation with an allowable incline of ±10°.

Strategic Deployment and Industrial Usage

This variable speed drive is a primary solution for sectors where process reliability and high-torque performance are essential. In the mining and mineral processing industry, the ATV930D30N4 is frequently utilized for conveyor systems and heavy-duty crushers. Within the oil and gas sector, it provides reliable control for centrifugal pumps and compressors under variable load conditions. Furthermore, it is a preferred choice for water treatment facilities, managing high-capacity pumping stations with integrated anti-cavitation logic. Its dual Ethernet ports and seamless PLC integration make it an ideal fit for smart factory initiatives and decentralized automation projects where real-time visibility is a prerequisite for operational success.
