Product Overview

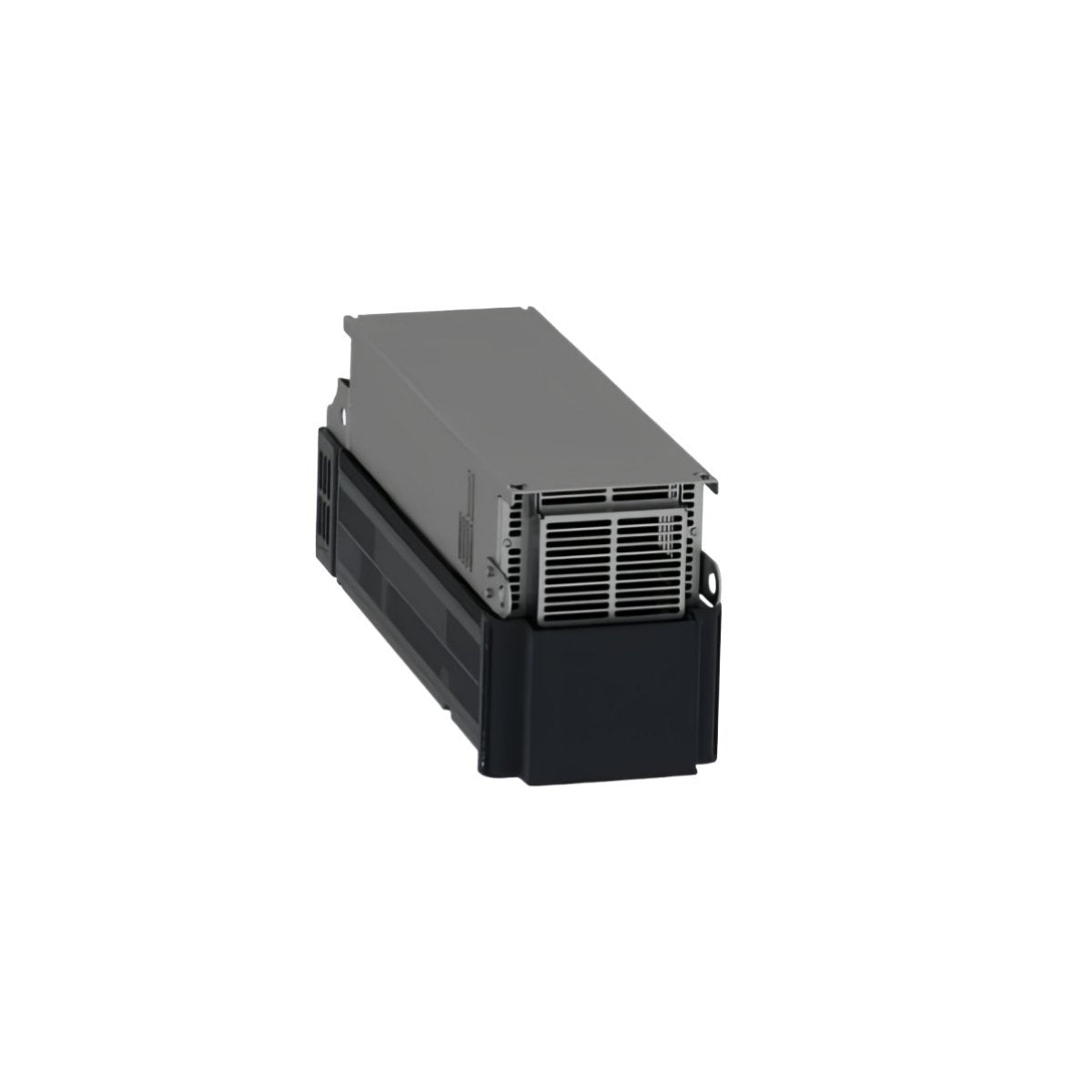

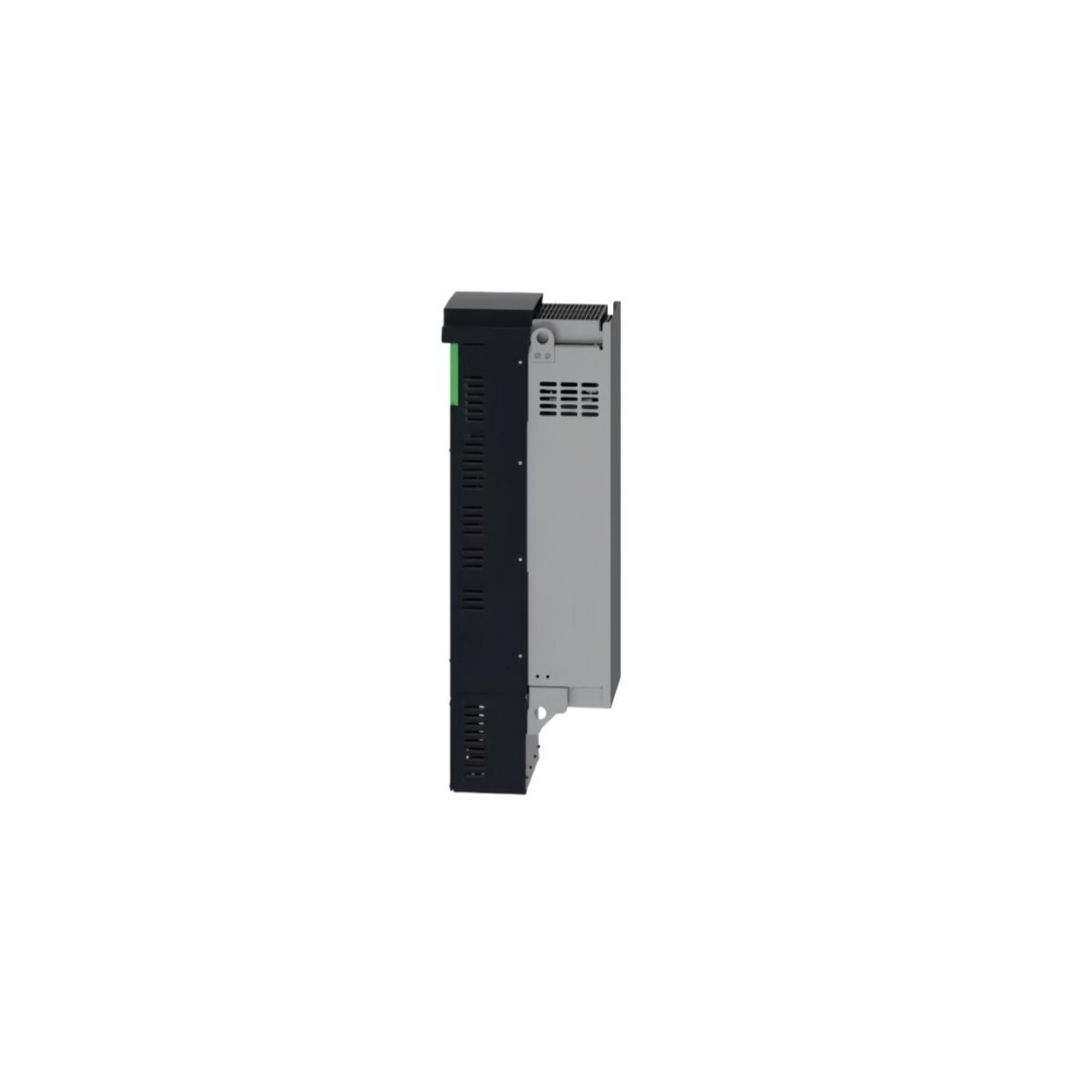

The Schneider Electric ATV630D90N4 is a sophisticated Altivar Process ATV600 series drive engineered specifically for industrial fluid management and process optimization. Delivering 90kW (125HP) of power, this drive is designed to enhance the efficiency of pumps, fans, and compressors by utilizing advanced energy-saving algorithms. A key innovation is its "Stop and Go" technology, which significantly reduces power consumption during standby periods. Built for the era of smart manufacturing, it offers deep integration with EcoStruxure architectures, enabling real-time energy monitoring and predictive maintenance to minimize the total cost of ownership in heavy-duty industrial environments.

Technical Architecture and Hardware Parameters

The ATV630D90N4 combines high power density with a robust physical design suitable for vertical installation.

• Rated Power Output: 90 kW (125 HP) for normal duty applications.

• Operational Voltage: 380V to 480V AC (3-Phase).

• Overload Performance: Supports 120% overload for 60 seconds (Normal Duty) or 150% for Heavy Duty (75kW).

• Integrated Connectivity: Three RJ45 ports supporting Modbus TCP, Modbus Serial, and Ethernet/IP protocols.

• Enclosure Protection: IP21 / UL Type 1 rating for standard industrial environments.

• Energy Efficiency: Embedded power measurement and standby energy reduction up to 30%.

• Physical Weight: 58.5 kg (Note: Shipping weight may vary; control module components roughly 0.7kg).

• Unit Dimensions: 290 x 922 x 323 mm.

Strategic Industrial Implementations

This Variable Speed Drive is a primary solution for sectors focused on fluid movement and energy conservation. In the water and wastewater industry, it provides precise control for high-capacity submersible pumps and aeration blowers, preventing water hammer and mechanical stress. Within the mining and mineral processing sectors, the ATV630D90N4 manages slurry pumps and ventilation systems under variable loads. Additionally, the oil and gas industry utilizes this unit for centrifugal pumps and cooling fans where operational reliability is paramount. Its modular design allows for easy expansion with I/O modules or fieldbus interfaces, ensuring it scales with evolving process requirements.
