Product Overview

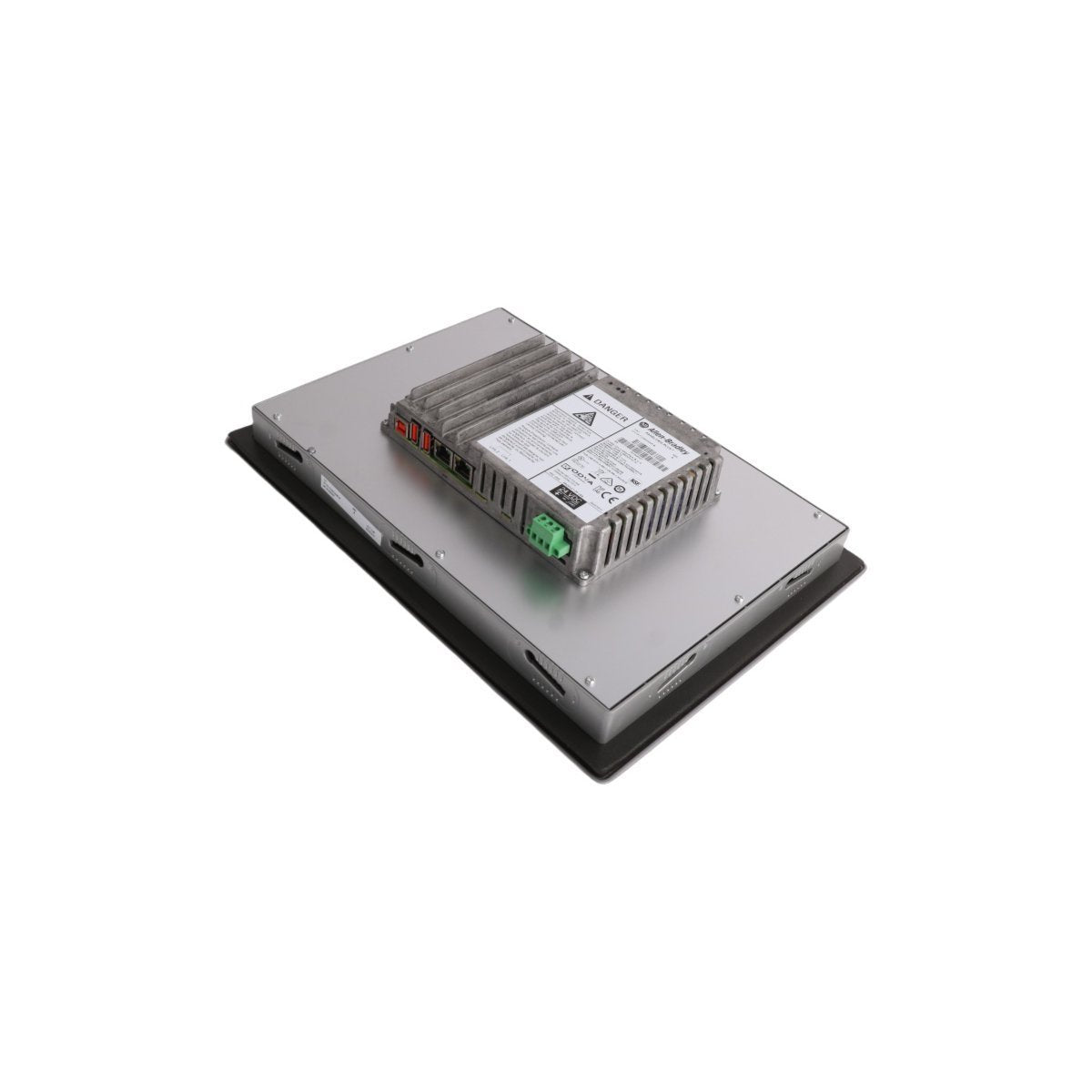

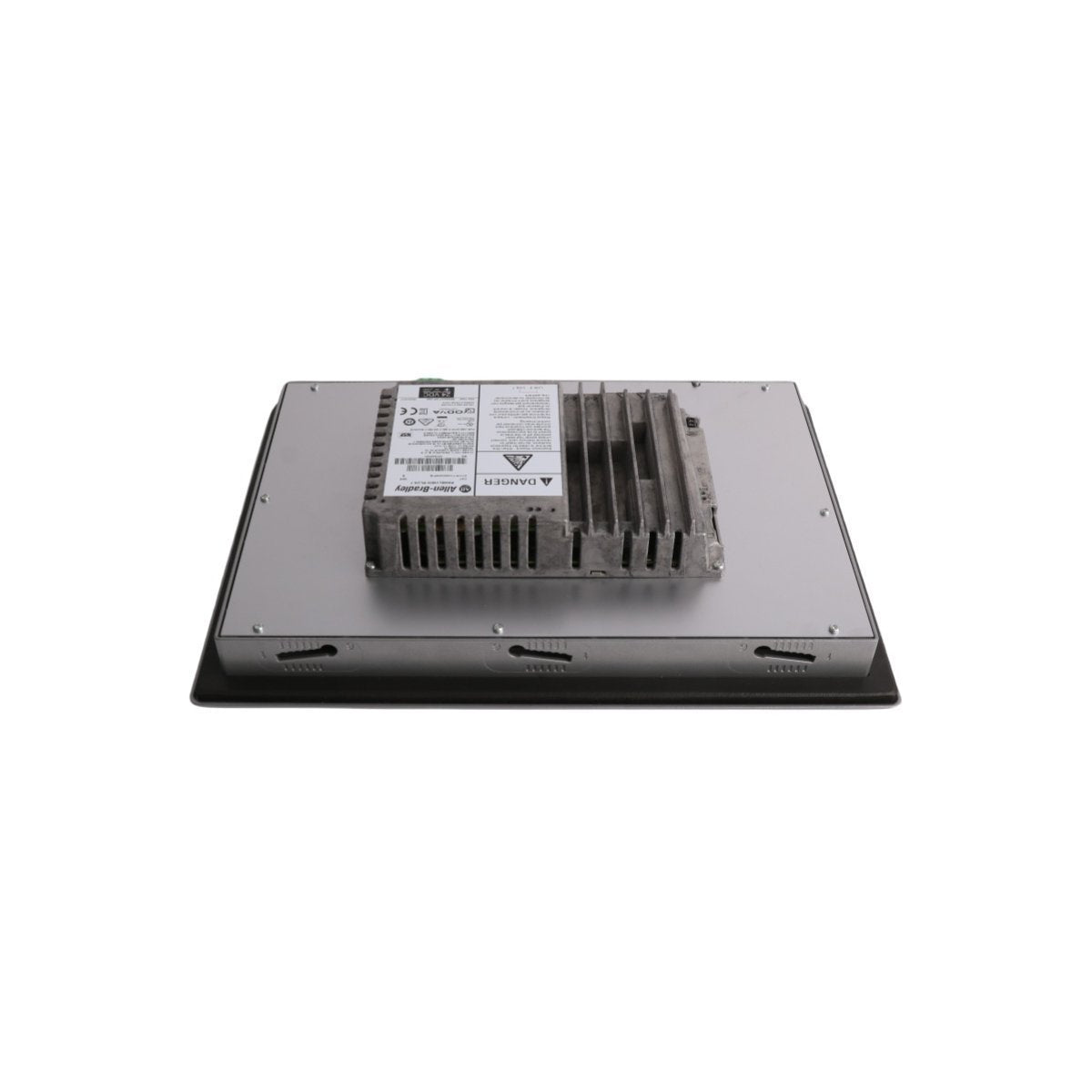

The Allen-Bradley 2711P-T19C22D9P is a high-end 19-inch widescreen graphic terminal from the PanelView Plus 7 Performance series. Designed for large-scale industrial visualization, this HMI offers an expansive display area that allows operators to monitor complex plant floor operations with high-definition clarity. It acts as the primary interface for Rockwell Automation’s Integrated Architecture, providing high-speed data synchronization with ControlLogix and CompactLogix controllers. Utilizing a Windows 10 IoT Core operating system and FactoryTalk View Machine Edition, the 2711P-T19C22D9P supports sophisticated graphics, real-time trending, and comprehensive alarm management within a single, ruggedized hardware platform.

Technical Characteristics

The 2711P-T19C22D9P is engineered for high-bandwidth process control and durability:

Large-Format Widescreen Display The 19-inch display features an SXGA+ resolution (typically 1280 x 1024 or widescreen equivalent depending on firmware version), providing a significant increase in screen real estate compared to standard 4:3 models. The projected capacitive (PCAP) touchscreen technology supports multi-touch functionality, offering a modern, smartphone-like interaction experience that remains responsive even in industrial settings.

Reliable Network Redundancy Equipped with dual 10/100Base-T Ethernet ports, the terminal supports Device Level Ring (DLR) and linear topologies. This ensures that the HMI maintains communication with the PLC even if a network cable is severed, providing the fault tolerance necessary for mission-critical automation systems.

Powerful Processing Core Driven by a high-speed processor and 2GB of RAM, the unit handles resource-intensive HMI applications with ease. The 4GB of non-volatile flash storage provides ample space for logging historical data, storing complex PDF manuals for operator reference, and hosting large-scale graphic libraries.

Resilient Industrial Construction The front bezel is rated IP66 and NEMA 4X, making it suitable for environments requiring wash-down protection or where corrosive elements are present. The unit is powered by a standard 24V DC input and is designed to operate in ambient temperatures up to 55°C, ensuring longevity in unconditioned control rooms or machine-side enclosures.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation

• Model Number: 2711P-T19C22D9P

• Product Type: Graphic Terminal / HMI

• Series: PanelView Plus 7 Performance

• Display Size: 19.0-inch Widescreen

• Input Type: Projected Capacitive Touch

• Resolution: 1280 x 1024 (Typical SXGA)

• Operating System: Windows 10 IoT Core

• Network Ports: Dual 10/100 Ethernet (Supports DLR)

• Input Voltage: 24V DC (18–30V DC)

• Protection Rating: IP66, NEMA 4X, NEMA 12

• Weight: 5.1 kg

• Dimensions: 42 x 50 x 18.5 cm

Application Areas

The 2711P-T19C22D9P is ideal for high-complexity control scenarios:

• Energy and Utilities: Visualizing large-scale power distribution and substation status.

• Automotive Production: Managing multi-station assembly lines with detailed robotic diagnostics.

• Pharmaceuticals: Providing clear, large-format dashboards for clean-room batch processing.

• Marine and Heavy Industry: Durable monitoring systems for bridge control or large-scale engine management.
