20F11NC011JA0NNNNN Allen-Bradley AC Drive

Allen-Bradley

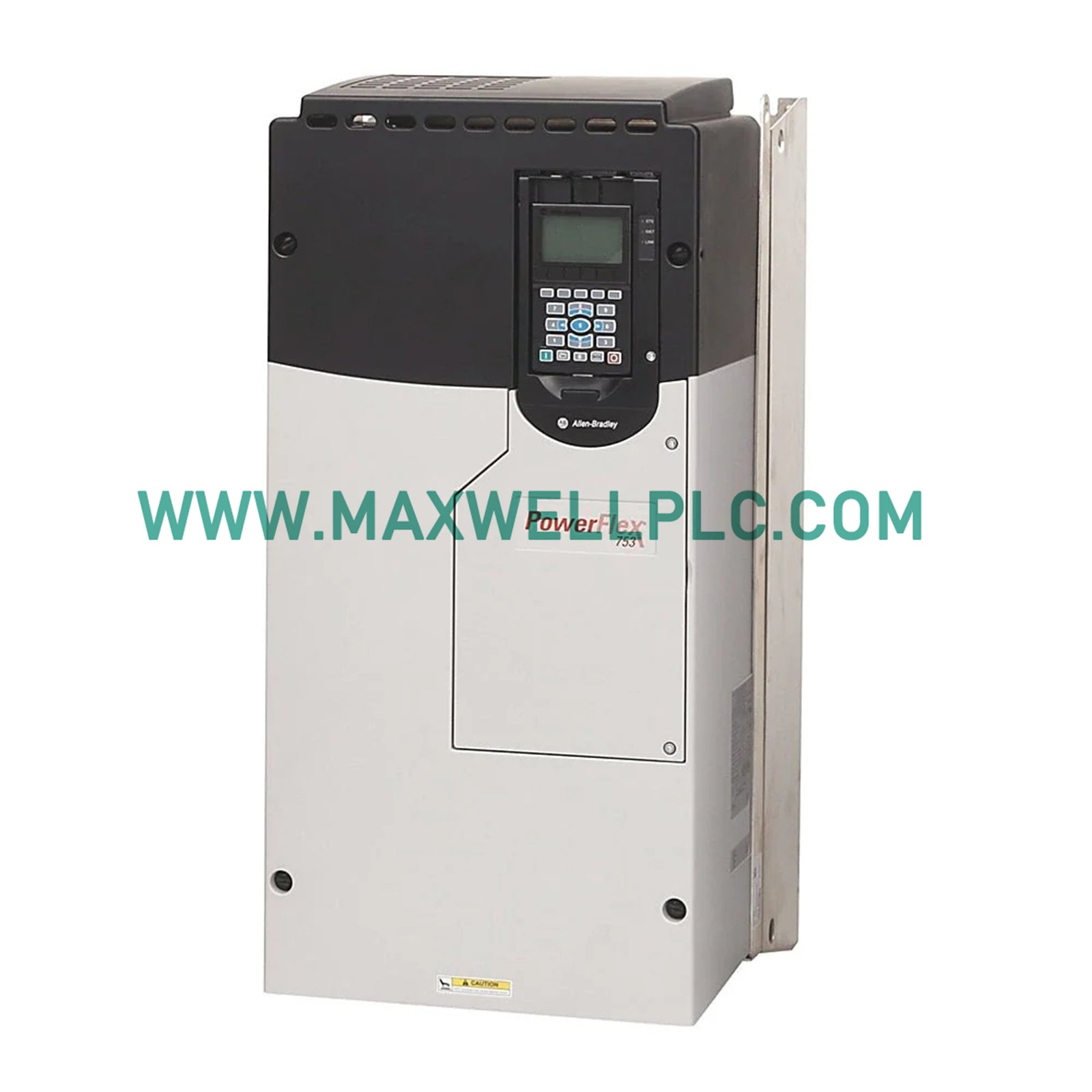

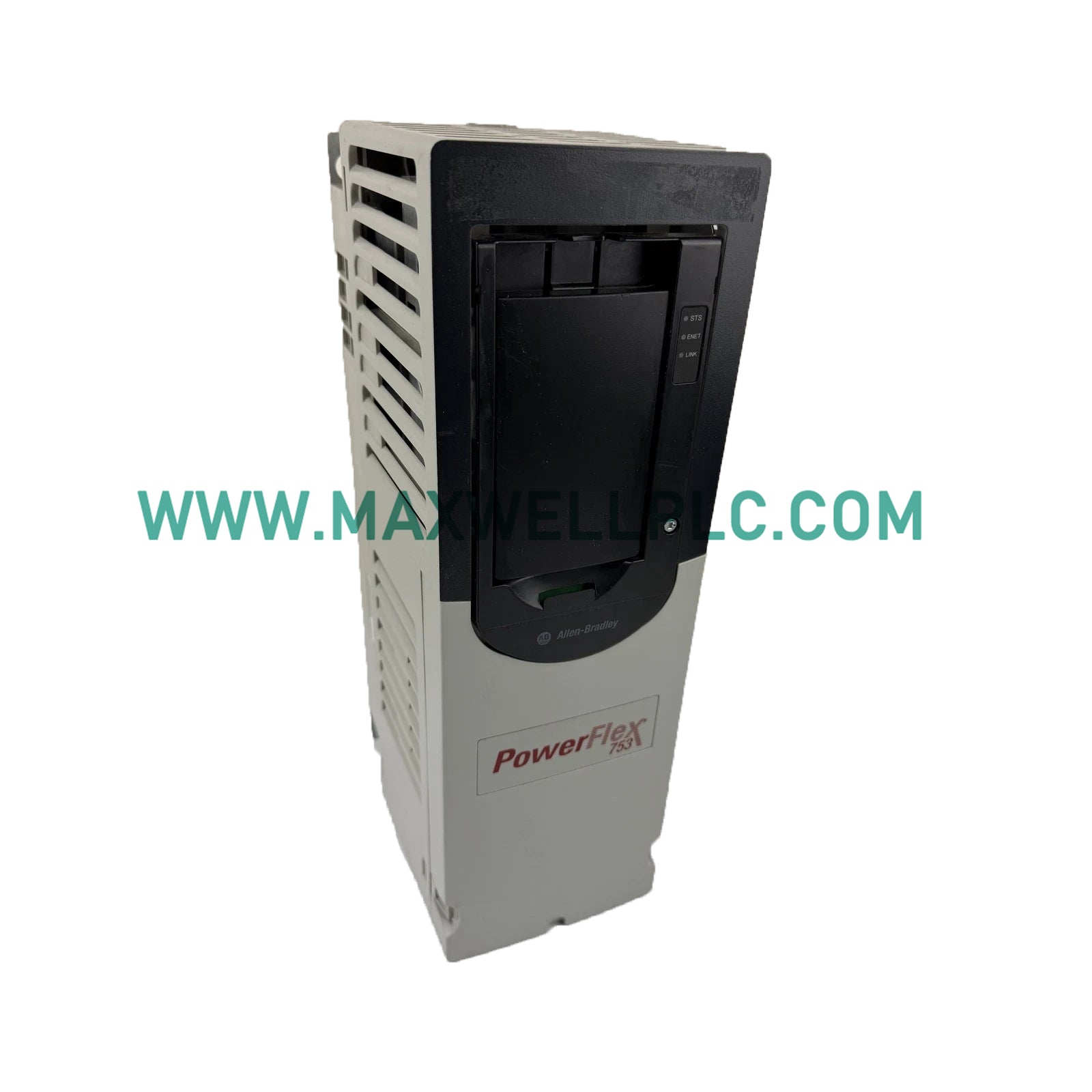

Allen-Bradley 20F11NC011JA0NNNNN AC Drive PowerFlex 753

SKU: 20F11NC011JA0NNNNN

In Stock

Dimensions: 21 x 59.5 x 17 cm
Country of origin: USA
Payment: T/T, Western Union
Shipping port: Xiamen

Categories : All Products, Allen-Bradley

Tags : AC Drives, Allen-Bradley PowerFlex 753, PowerFlex 753 AC Drive

1 years warranty

Delivery time: 3-7 business days

Free 30 days return

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

The Allen-Bradley 20F11NC011JA0NNNNN, also cataloged as the 20F11NC011JA0NNNNN AC Drive, operates as a dedicated hardware component for frequency-controlled motor regulation within industrial drive systems.

Hardware Specifications

Parameter	Specification
Model	20F11NC011JA0NNNNN
Brand	Allen-Bradley
Origin	USA
Weight	8 kg
Shipping Dimensions	21 x 59.5 x 17 cm
Input Voltage	400 VAC, 3 Phase
Output Current	11.5 A
Power Rating	5.5 kW (ND) / 4 kW (HD)
Enclosure Type	IP20 / IP00, NEMA/UL Type Open
CM Connection	Jumper Installed

Network and Firmware Integration

The PowerFlex 753 architecture utilizes EtherNet/IP deterministic networks to facilitate real-time drive monitoring and control. Through the internal backplane, the drive manages high-speed packet exchanges, ensuring that I/O density scaling remains consistent across complex automation topologies. Firmware flash compatibility is maintained via the peripheral interface port, allowing for controlled version updates that align with existing control logic and safety configurations within the drive network.

Ordering Info

1 unit 20F11NC011JA0NNNNN AC Drive
1 set of DC Terminal covers
1 User documentation packet

Field Installation Guidelines

Ensure the drive is installed in a vertical orientation on a grounded, conductive backplane to facilitate proper heat dissipation.
Maintain a minimum clearance of 100 mm above and below the unit to prevent thermal throttling.
Establish a low-impedance protective earth (PE) connection using copper conductors.
Route shielded motor cables separately from signal wiring to mitigate electromagnetic interference.
Utilize EMC clamps to terminate cable braids directly to the drive chassis.

Frequently Asked Questions

Does the drive support hot-swap of communication modules?

Yes, the PowerFlex 753 supports hot-swapping of option modules while the drive is powered, provided the drive is not in an active Run state.
What is the default CM jumper status?

The CM jumper is installed by default, connecting the common-mode capacitors to the chassis ground.
Can this drive be used without an external HIM?

Yes, the drive functions via remote control inputs and network commands without a Human Interface Module (HIM) attached.
What is the maximum ambient operating temperature?

The standard operating temperature range is -10 to 50 deg C for this frame size in an open-type enclosure.
Does the drive include a braking transistor?

Yes, the model includes an internal Dynamic Braking (DB) transistor for standard deceleration control.
How is the drive programmed?

Programming is executed via CCW or Studio 5000 Logix Designer software through the EtherNet/IP or USB port.
Is the drive compatible with 540 VDC input?

Yes, the DC bus terminals allow for 540 VDC common bus applications, complying with standard 400 VAC drive ratings.
What is the purpose of the Filtered rating?

The integrated filter reduces high-frequency conducted emissions to meet specific industrial EMC standards.
